1. Find "Access point names"
Slide two fingers downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-637d3391-6eab-4aa3-8fe4-bd7f7faf78e8.png?width=206&height=434)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-af3fb3f3-15d8-4ea5-a0b6-2538d96ea4f8.png?width=206&height=434)

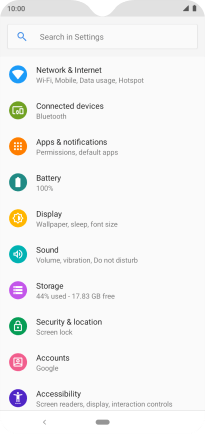

Press Network & Internet.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-56e563cb-fcf6-41ac-b350-7c9a67e34098.png?width=206&height=434)

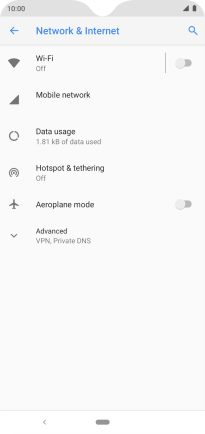

Press Mobile network.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-162761ab-b2fa-4fb5-852a-3f73a01b840d.png?width=206&height=434)

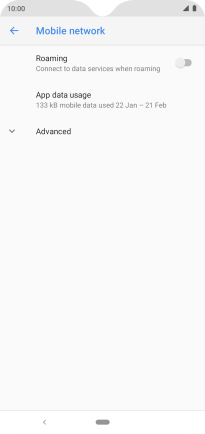

Press Advanced.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-4658f03a-e0ab-4800-ae48-7c0c7aab267d.png?width=206&height=434)

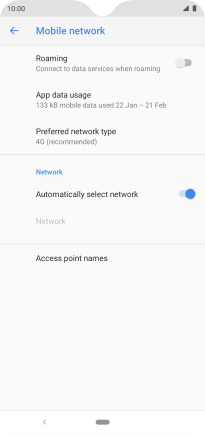

Press Access point names.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-6f9acf01-503b-42a9-9030-ab7ca20c51bc.png?width=206&height=434)
2. Create new data connection

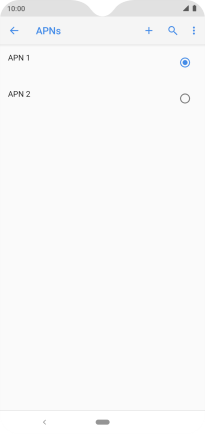

Press the new data connection icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-9e76490b-4d8c-436e-a839-f5246aeaec5a.png?width=206&height=434)

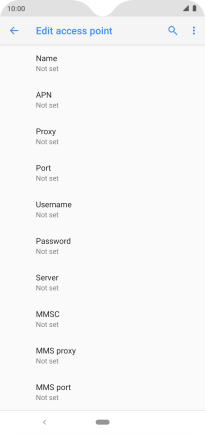

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-f038c91d-b6a9-487c-9b0d-20d9bcea2e94.png?width=206&height=434)
Key in Vodafone MMS and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-23b881f0-1262-4553-bf68-71e514452ca5.png?width=206&height=434)
Vodafone MMS
3. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-f038c91d-b6a9-487c-9b0d-20d9bcea2e94.png?width=206&height=434)

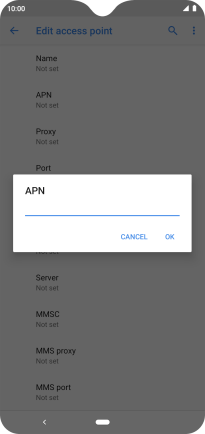

Key in mms.vodafone.net and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-4a6e01b0-3780-449a-a07f-af699c6791d7.png?width=206&height=434)
mms.vodafone.net
4. Enter MMSC
Press MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-f038c91d-b6a9-487c-9b0d-20d9bcea2e94.png?width=206&height=434)

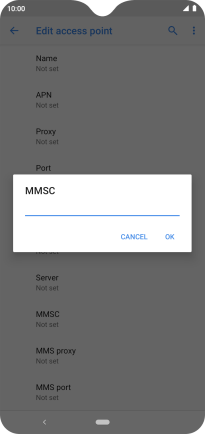

Key in http://www.vodafone.ie/mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-b0d69832-7124-4d55-a8ae-4c78bd59c627.png?width=206&height=434)
http://www.vodafone.ie/mms
5. Enter IP address
Press MMS proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-f038c91d-b6a9-487c-9b0d-20d9bcea2e94.png?width=206&height=434)

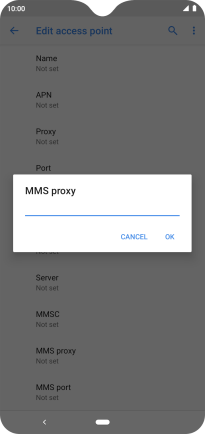

Key in 10.24.59.200 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-0045b834-c657-4369-9eec-55012b350952.png?width=206&height=434)
10.24.59.200
6. Enter port number
Press MMS port.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-f038c91d-b6a9-487c-9b0d-20d9bcea2e94.png?width=206&height=434)
Key in 80 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-0fa0f55c-457b-4811-b8a0-8a0541afb155.png?width=206&height=434)
80
7. Enter country code

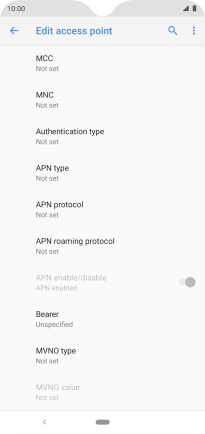

Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-dfa8d291-620b-422e-aa6a-df3b06dc9058.png?width=206&height=434)
Key in 272 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-07e20ce3-1f8c-4c80-bd3d-07aa5965d1a2.png?width=206&height=434)
272
8. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-dfa8d291-620b-422e-aa6a-df3b06dc9058.png?width=206&height=434)

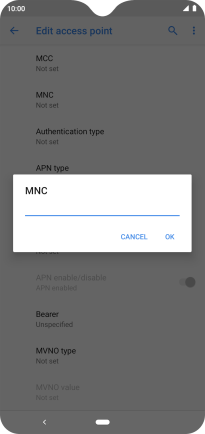

Key in 01 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-339665e0-9ef8-4074-b2ca-fee1cfce40fe.png?width=206&height=434)
01
9. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-dfa8d291-620b-422e-aa6a-df3b06dc9058.png?width=206&height=434)

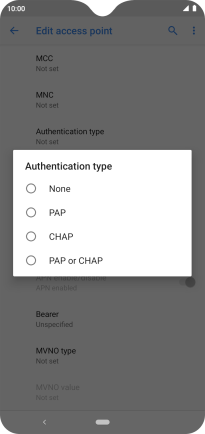

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-2a6757d6-feb4-466b-84ff-6f580a2f46ba.png?width=206&height=434)
10. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-dfa8d291-620b-422e-aa6a-df3b06dc9058.png?width=206&height=434)

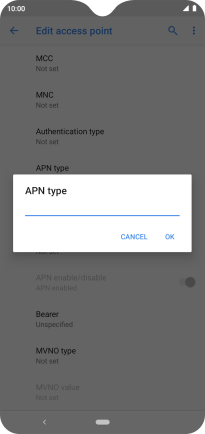

Key in mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-39b8e6a9-ddd7-4e26-ba3a-2c5c25e420df.png?width=206&height=434)
mms
11. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-dfa8d291-620b-422e-aa6a-df3b06dc9058.png?width=206&height=434)

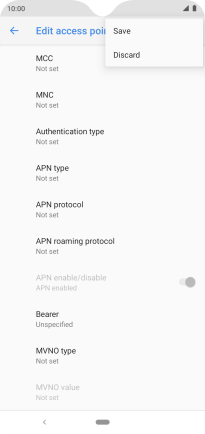

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-a13205f6-b0ce-43c1-aa94-0e908b26f177.png?width=206&height=434)
12. Return to the home screen

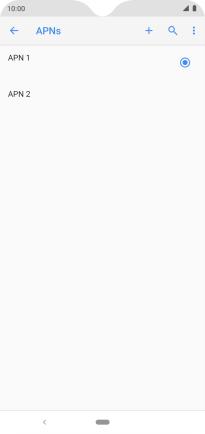

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-dbd3df3f-2314-493e-a154-019531d56097.png?width=206&height=434)
