Set up your phone for picture messaging - Motorola Defy Mini

Read help info

Follow these instructions to set up your phone for picture messaging.

Step 1 of 40

Find "Access Point Names"

Press the menu icon.

Step 2 of 40

Find "Access Point Names"

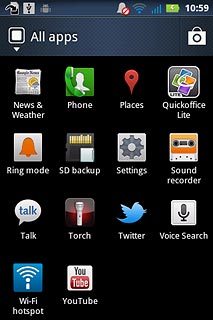

Press Settings.

Step 3 of 40

Find "Access Point Names"

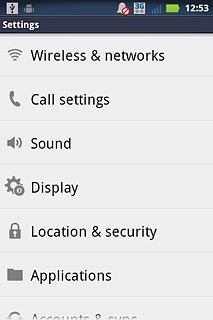

Press Wireless & networks.

Step 4 of 40

Find "Access Point Names"

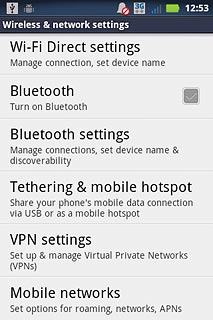

Press Mobile networks.

Step 5 of 40

Find "Access Point Names"

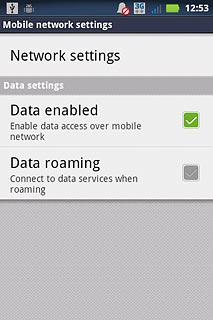

Press Network settings.

Step 6 of 40

Find "Access Point Names"

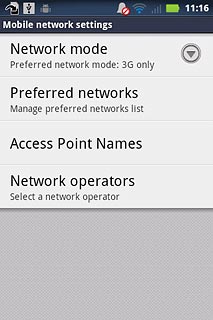

Press Access Point Names.

Step 7 of 40

Create new data connection

Press the Menu key.

Step 8 of 40

Create new data connection

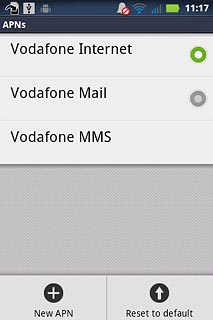

Press New APN.

Step 9 of 40

Enter data connection name

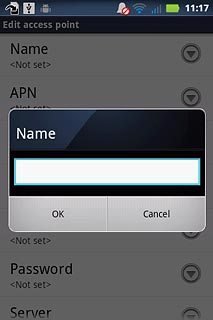

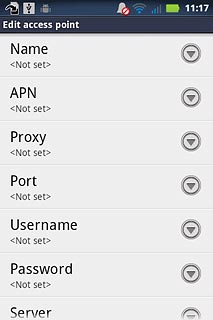

Press Name.

Step 10 of 40

Enter data connection name

Key in Vodafone MMS and press OK.

Step 11 of 40

Enter APN

Press APN.

An APN is used to create a data connection. In order to send and receive picture messages, your phone needs a data connection.
Step 12 of 40

Enter APN

Key in mms.vodafone.net and press OK.

An APN is used to create a data connection. In order to send and receive picture messages, your phone needs a data connection.
Step 13 of 40

Enter picture messaging server

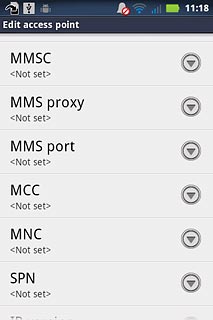

Press MMSC.

Step 14 of 40

Enter picture messaging server

Key in http://www.vodafone.ie/mms and press OK.

Step 15 of 40

Enter IP address

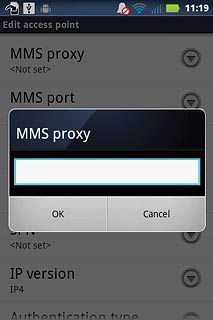

Press MMS proxy.

Step 16 of 40

Enter IP address

Key in 10.24.59.200 and press OK.

Step 17 of 40

Enter port number

Press MMS port.

Step 18 of 40

Enter port number

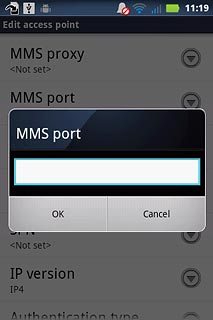

Key in 80 and press OK.

Step 19 of 40

Enter country code

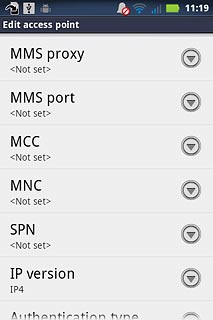

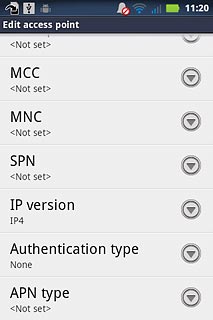

Press MCC.

Step 20 of 40

Enter country code

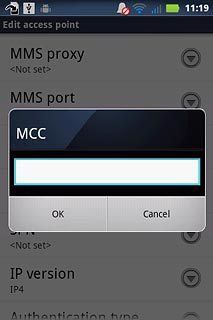

Key in 272 and press OK.

Step 21 of 40

Enter network code

Press MNC.

Step 22 of 40

Enter network code

Key in 01 and press OK.

Step 23 of 40

Select authentication type

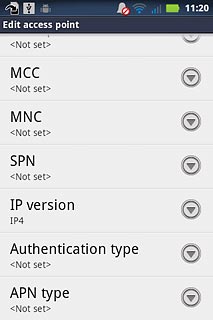

Press Authentication type.

Step 24 of 40

Select authentication type

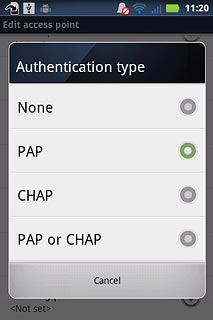

Press PAP.

Step 25 of 40

Select APN type

Press APN type.

Step 26 of 40

Select APN type

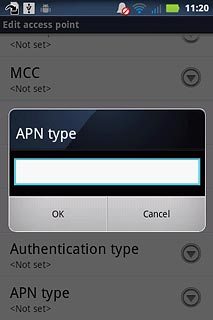

Key in mms and press OK.

Step 27 of 40

Save data connection

Press the Menu key.

Step 28 of 40

Save data connection

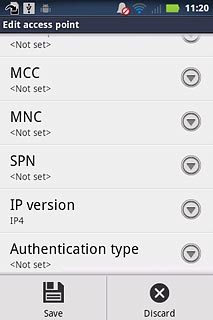

Press Save.

Step 29 of 40

Save data connection

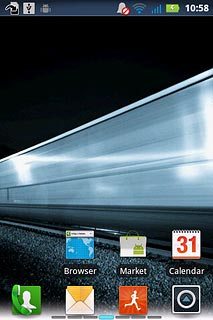

Press the Home key to return to standby mode.

Step 30 of 40

Find "Settings"

Press the menu icon.

Step 31 of 40

Find "Settings"

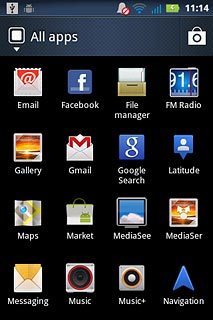

Press Messaging.

Step 32 of 40

Find "Settings"

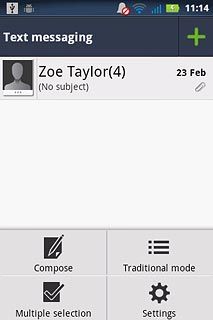

Press the Menu key.

Step 33 of 40

Find "Settings"

Press Settings.

Step 34 of 40

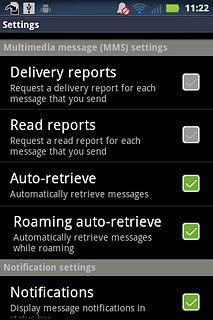

Turn request for delivery reports on or off

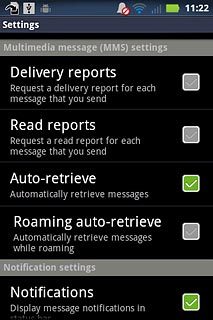

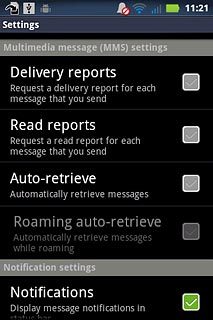

Press Delivery reports below Multimedia message (MMS) settings to turn the function on or off.

If you turn on request for delivery reports, you'll be notified when your message has been delivered. This requires that sending of delivery reports has been turned on by the recipient.
Step 35 of 40

Turn request for delivery reports on or off

When the box next to the menu item is ticked (V), the function is turned on.

If you turn on request for delivery reports, you'll be notified when your message has been delivered. This requires that sending of delivery reports has been turned on by the recipient.
Step 36 of 40

Select setting for picture message download in home network

Press Auto-retrieve to turn on the function.

If you turn on the function, you'll receive all picture messages when you're within range of your home network.
If you turn off the function, you'll be notified before you receive picture messages when you're within range of your home network.
Step 37 of 40

Select setting for picture message download in home network

When the box next to the menu item is ticked (V), the function is turned on.

If you turn on the function, you'll receive all picture messages when you're within range of your home network.
If you turn off the function, you'll be notified before you receive picture messages when you're within range of your home network.
Step 38 of 40

Select setting for picture message download when roaming

Press Roaming auto-retrieve to turn on the function.

If you turn on the function, you'll receive all picture messages when you're out of range of your home network.
If you turn off the function, you'll be notified before you receive picture messages when you're out of range of your home network.
Step 39 of 40

Select setting for picture message download when roaming

When the box next to the menu item is ticked (V), the function is turned on.

If you turn on the function, you'll receive all picture messages when you're out of range of your home network.
If you turn off the function, you'll be notified before you receive picture messages when you're out of range of your home network.
Step 40 of 40

Exit

Press the Home key to return to standby mode.
