Microsoft Lumia 550

Microsoft Lumia 550

Windows Phone 10.0

Set up your Microsoft Lumia 550 Windows Phone 10.0 for picture messaging

Read help info

A picture message is a message which can contain pictures and other media files and can be sent to other mobile phones. You can send and receive picture messages as soon as you've inserted your SIM. If this isn't the case, you can set up your phone for picture messaging manually.

Step 1 of 15

1. Find "Add an MMS APN"

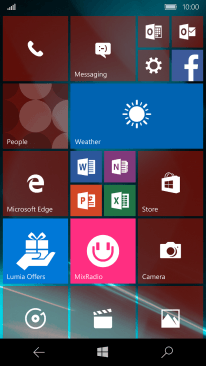

Slide your finger downwards starting from the top of the screen.

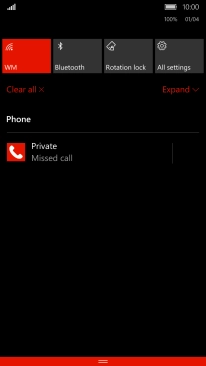

Step 2 of 15

1. Find "Add an MMS APN"

Press All settings.

Step 3 of 15

1. Find "Add an MMS APN"

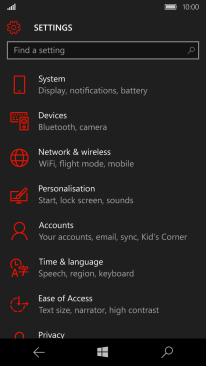

Press Network & wireless.

Step 4 of 15

1. Find "Add an MMS APN"

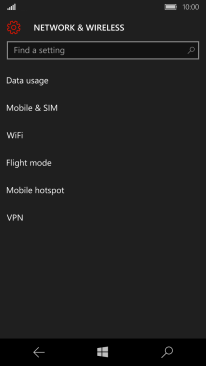

Press Mobile & SIM.

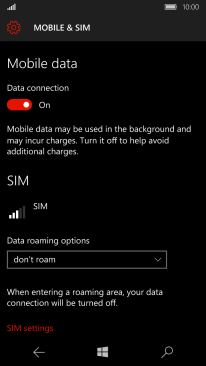

Step 5 of 15

1. Find "Add an MMS APN"

Press SIM settings.

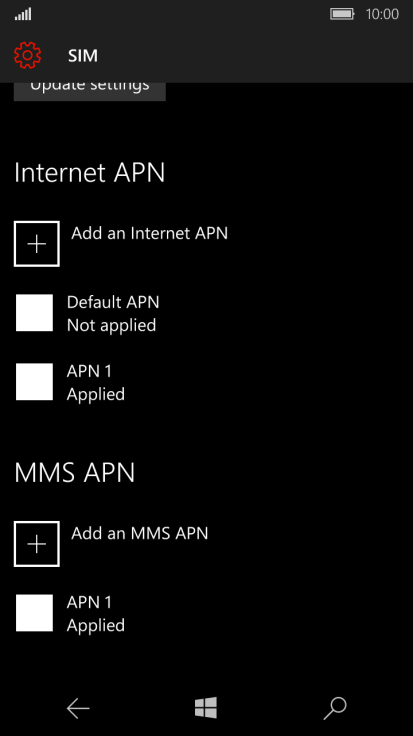

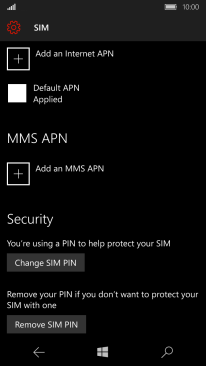

Step 6 of 15

1. Find "Add an MMS APN"

Press Add an MMS APN.

mms.vodafone.net
Step 7 of 15

2. Enter APN

Press the field below "APN" and key in mms.vodafone.net.

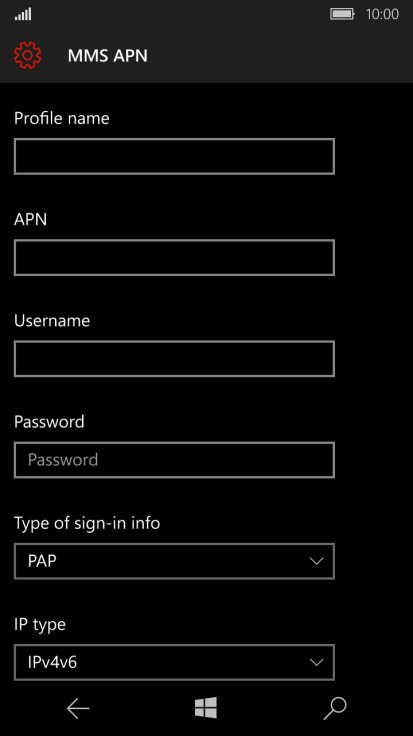

Step 8 of 15

3. Select authentication type

Press the drop down list below "Type of sign-in info".

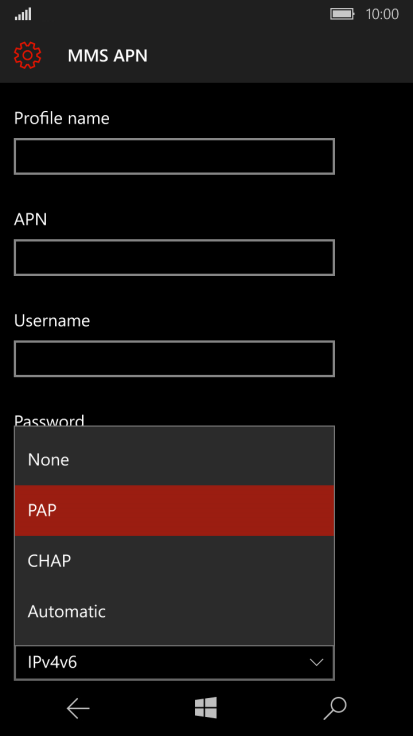

Step 9 of 15

3. Select authentication type

Press PAP.

10.24.59.200
Step 10 of 15

4. Enter IP address

Press the field below "Proxy server" and key in 10.24.59.200.

80
Step 11 of 15

5. Enter port number

Press the field below "Proxy port" and key in 80.

http://www.vodafone.ie/mms

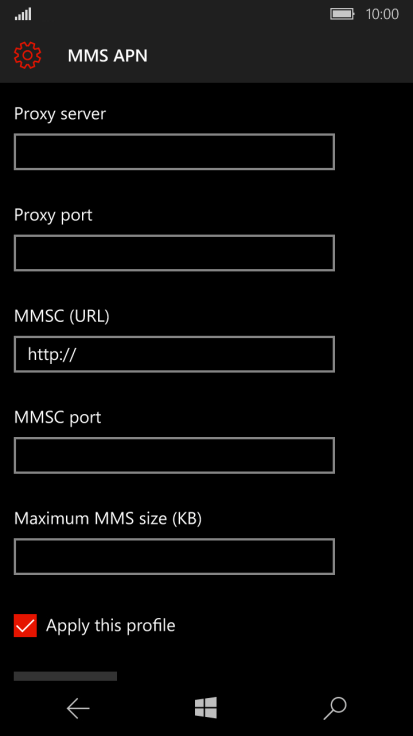

Step 12 of 15

6. Enter MMSC

Press the field below "MMSC (URL)" and key in http://www.vodafone.ie/mms.

Step 13 of 15

7. Save data connection

Press Save.

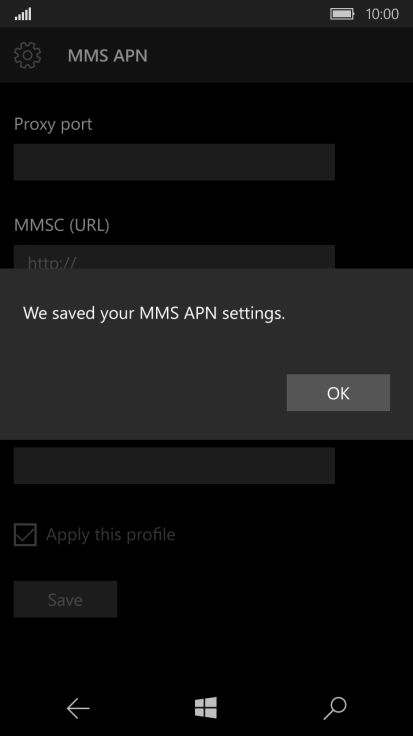

Step 14 of 15

7. Save data connection

Press OK.

Step 15 of 15

8. Return to the home screen

Press the Home key to return to the home screen.

1. 1. Find "Add an MMS APN"

Slide your finger downwards starting from the top of the screen.
Press All settings.
Press Network & wireless.
Press Mobile & SIM.
Press SIM settings.
Press Add an MMS APN.

2. 2. Enter APN

Press the field below "APN" and key in mms.vodafone.net.
mms.vodafone.net

3. 3. Select authentication type

Press the drop down list below "Type of sign-in info".
Press PAP.

4. 4. Enter IP address

Press the field below "Proxy server" and key in 10.24.59.200.
10.24.59.200

5. 5. Enter port number

Press the field below "Proxy port" and key in 80.
80

6. 6. Enter MMSC

Press the field below "MMSC (URL)" and key in http://www.vodafone.ie/mms.
http://www.vodafone.ie/mms

7. 7. Save data connection

Press Save.
Press OK.

8. 8. Return to the home screen

Press the Home key to return to the home screen.
