1. Find "Access Point Name"
Press Settings.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-e2ed6960-f0f6-48b8-bffe-0696393cf6b9.png?width=212&height=380)
Press More.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-24842052-f4e8-4a71-81b0-25486ffae3e1.png?width=212&height=380)
Press Mobile network.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-75325665-faff-4f98-8bcb-ebedfbe9d5bf.png?width=212&height=380)
Press Access Point Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-9893a70c-0b7a-4880-b65c-4d1a6b9c1684.png?width=212&height=380)
2. Create new data connection

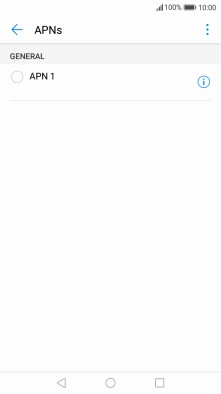

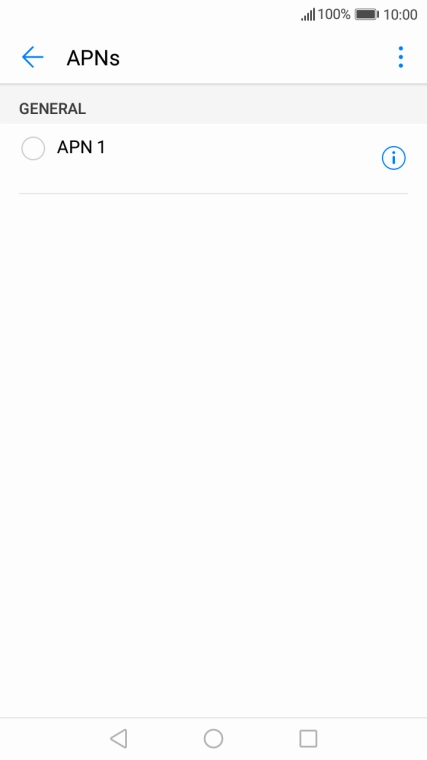

Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-79888bf4-a77a-437f-b8b6-15ae679697fc.png?width=212&height=380)

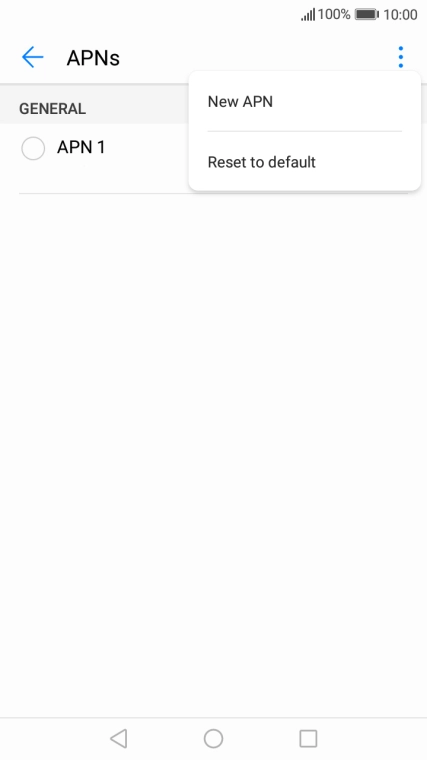

Press New APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-34b166dc-24e9-42df-b884-49358ac690d4.png?width=212&height=380)
3. Enter a name for the connection

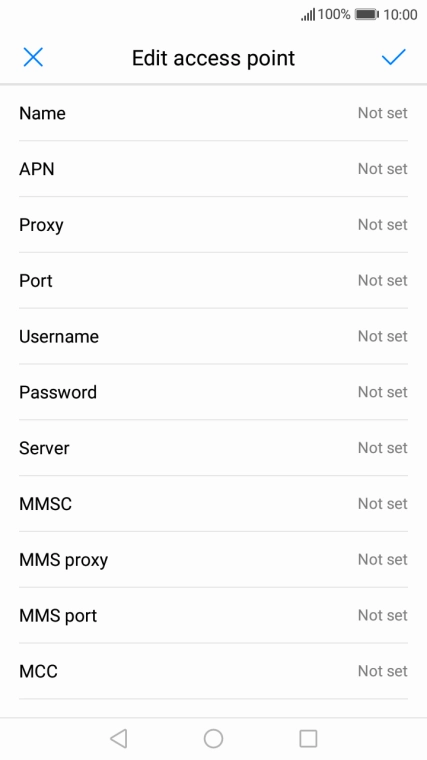

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-fabadf88-7916-4306-b68a-cfd1ad3f1dfd.png?width=212&height=380)
Key in Vodafone MMS and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-eb57809c-ba50-4072-9a54-d93e9760a6b7.png?width=212&height=380)
Vodafone MMS
4. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-fabadf88-7916-4306-b68a-cfd1ad3f1dfd.png?width=212&height=380)

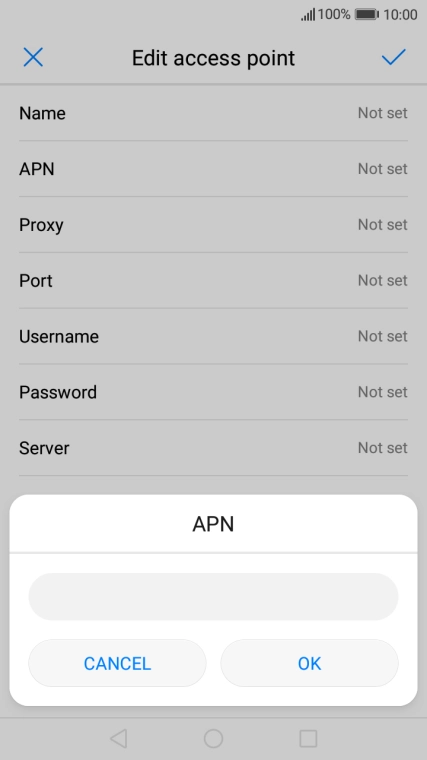

Key in mms.vodafone.net and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-26993d89-bccc-4865-969e-3498230b1f6d.png?width=212&height=380)
mms.vodafone.net
5. Enter picture messaging server
Press MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-fabadf88-7916-4306-b68a-cfd1ad3f1dfd.png?width=212&height=380)

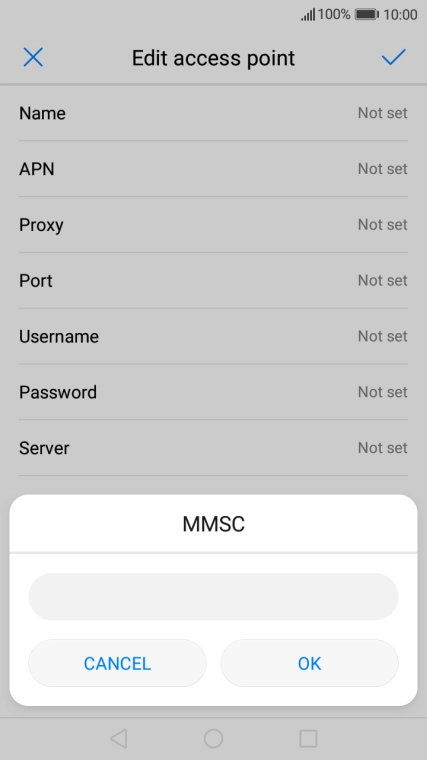

Key in http://www.vodafone.ie/mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-d55bd59a-9432-40cd-8de4-e1d73b119602.png?width=212&height=380)
http://www.vodafone.ie/mms
6. Enter IP address

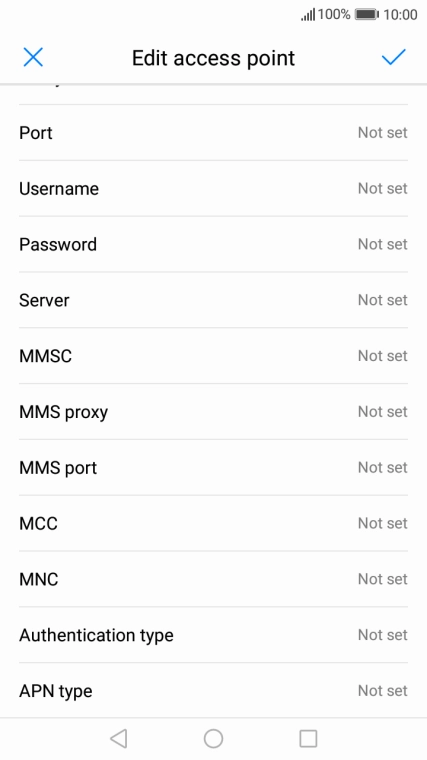

Press MMS proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-9e849beb-ca96-494b-9ff9-c9db8cc95f07.png?width=212&height=380)

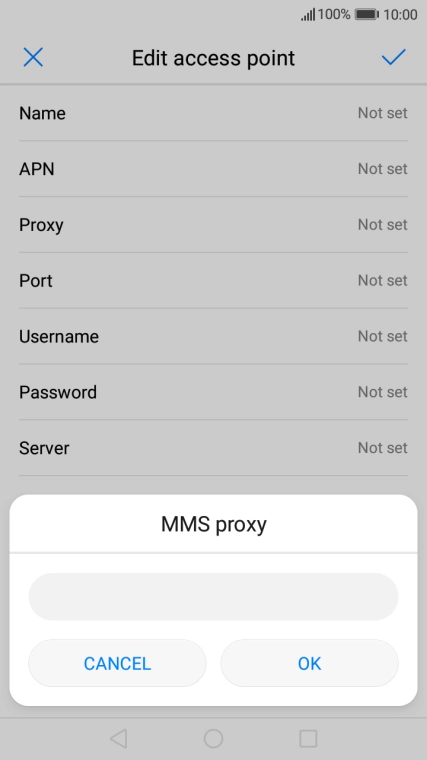

Key in 10.24.59.200 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-b5f526d1-97d8-43f9-bf00-95865734df09.png?width=212&height=380)
10.24.59.200
7. Enter port number
Press MMS port.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-9e849beb-ca96-494b-9ff9-c9db8cc95f07.png?width=212&height=380)

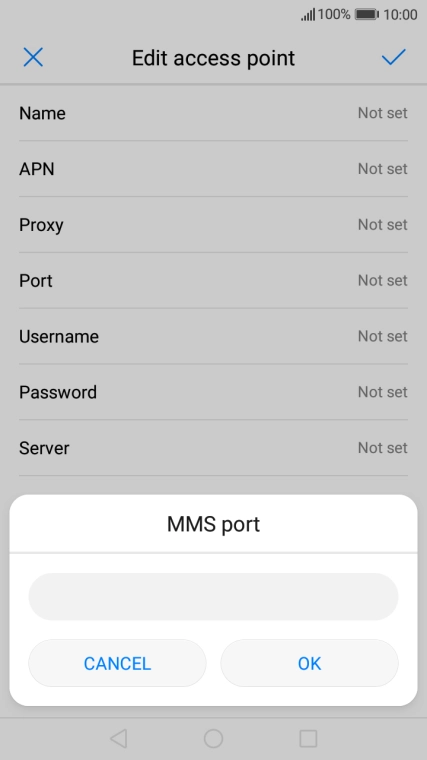

Key in 80 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-23a1fc6a-cb56-4598-ad38-754529e1869f.png?width=212&height=380)
80
8. Enter country code

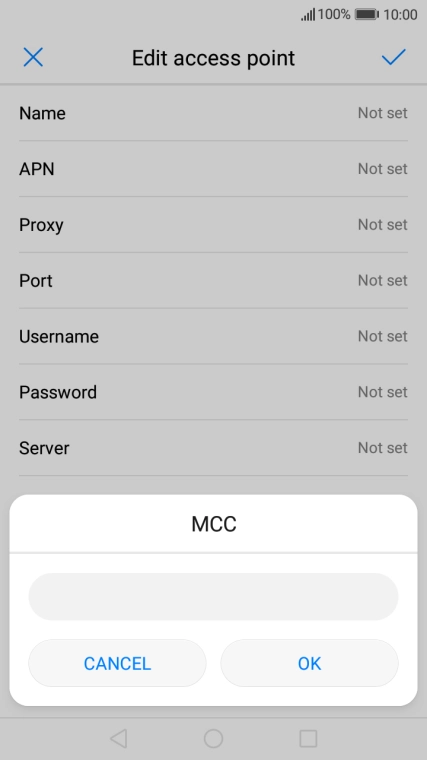

Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-9e849beb-ca96-494b-9ff9-c9db8cc95f07.png?width=212&height=380)
Key in 272 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-c969e3e3-fbb5-4a0e-b600-2fdef8d794ff.png?width=212&height=380)
272
9. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-9e849beb-ca96-494b-9ff9-c9db8cc95f07.png?width=212&height=380)

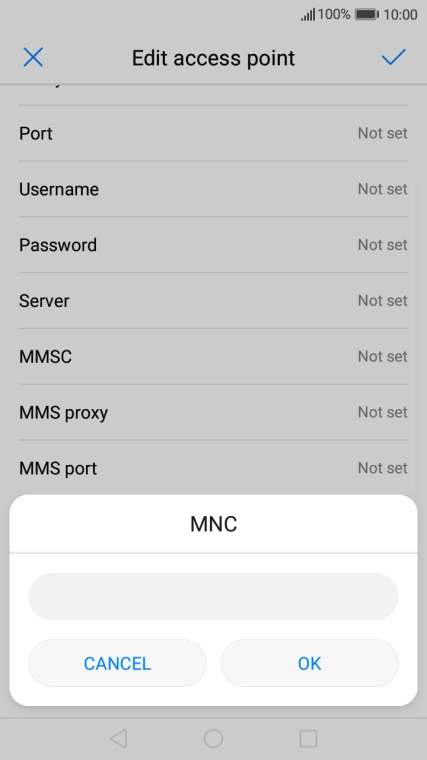

Key in 01 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-0e300689-7425-4d6a-a4cf-f9ddaae649fb.png?width=212&height=380)
01
10. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-9e849beb-ca96-494b-9ff9-c9db8cc95f07.png?width=212&height=380)

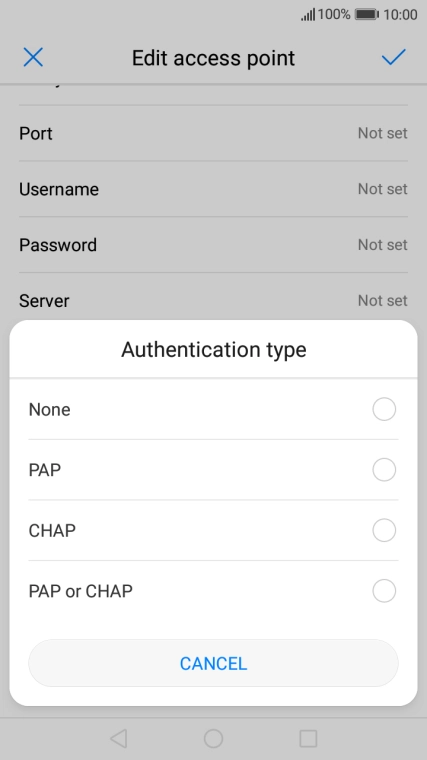

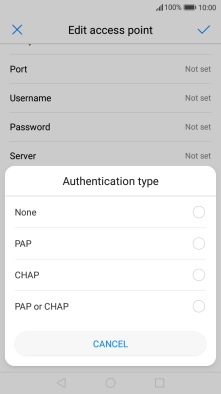

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-f153f4a7-3075-4e0d-ac0d-fb8d5d60ab22.png?width=212&height=380)
11. Select APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-9e849beb-ca96-494b-9ff9-c9db8cc95f07.png?width=212&height=380)

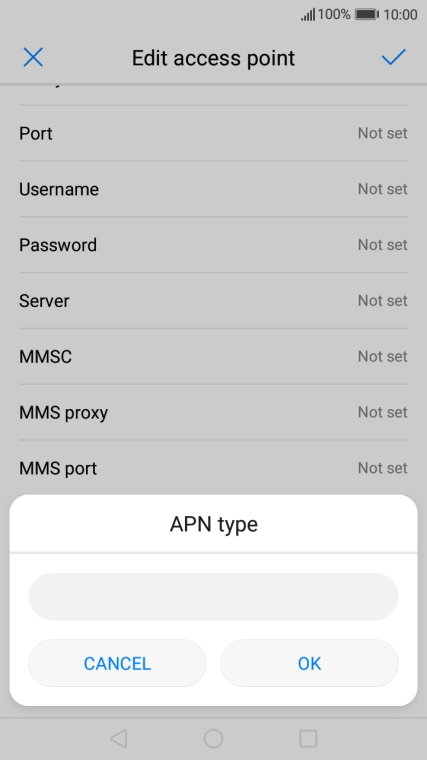

Key in mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-079b36ff-9a5b-43ee-bfb0-d3edf1164df4.png?width=212&height=380)
mms
12. Save data connection
Press the confirm icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-9e849beb-ca96-494b-9ff9-c9db8cc95f07.png?width=212&height=380)
13. Return to the home screen

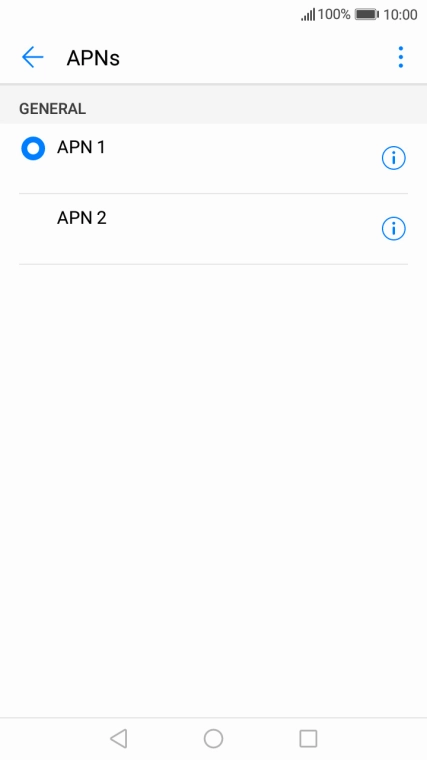

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-6a0189db-30e7-4c5e-ac8c-caf47791966e.png?width=212&height=380)
