1. Find "Access Point Names (APNs)"
Press Settings.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-8767b56c-d4ee-470b-a0f0-d2153eab2ebb.png?width=204&height=408)
Press Mobile network.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-e9056a13-b138-44f1-8614-061dc24f1be7.png?width=204&height=408)
Press Mobile data.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-df501df5-1a4f-4400-9381-f5b4c73817ef.png?width=204&height=408)
Press Access Point Names (APNs).
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-faa936d2-f4f4-41d1-bc26-5666a6620ed6.png?width=204&height=408)
2. Create new data connection

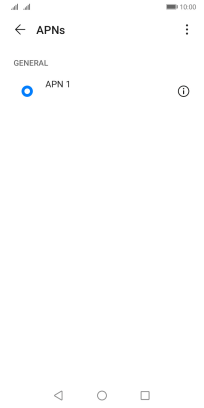

Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-1137b088-9d94-4614-bb7b-0133e78d214a.png?width=204&height=408)

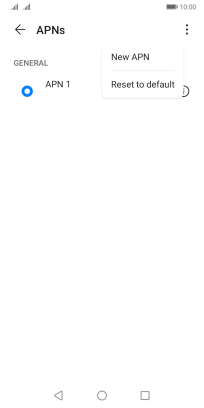

Press New APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-f226caae-6ec3-43a7-8890-a09a120df70a.png?width=204&height=408)
3. Enter a name for the connection

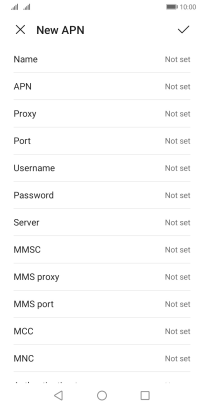

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-e6f592dc-668d-4982-bd01-7cdd04015ac1.png?width=204&height=408)
Key in Vodafone MMS and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-7a4ff620-5c9f-4697-8f29-74874e6e17bc.png?width=204&height=408)
Vodafone MMS
4. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-e6f592dc-668d-4982-bd01-7cdd04015ac1.png?width=204&height=408)

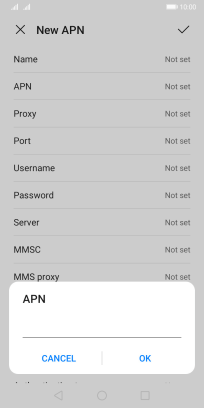

Key in mms.vodafone.net and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-9a70f969-6415-485d-876f-f88042c8535d.png?width=204&height=408)
mms.vodafone.net
5. Enter picture messaging server
Press MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-e6f592dc-668d-4982-bd01-7cdd04015ac1.png?width=204&height=408)
Key in http://www.vodafone.ie/mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-f2de95fd-0453-445e-8fcb-9d94fa249e1f.png?width=204&height=408)
http://www.vodafone.ie/mms
6. Enter IP address
Press MMS proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-e6f592dc-668d-4982-bd01-7cdd04015ac1.png?width=204&height=408)
Key in 10.24.59.200 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-a9e84427-aeb0-44dd-80c2-83e6ede51d01.png?width=204&height=408)
10.24.59.200
7. Enter port number
Press MMS port.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-e6f592dc-668d-4982-bd01-7cdd04015ac1.png?width=204&height=408)

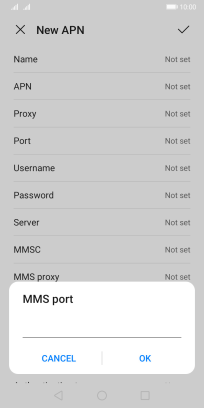

Key in 80 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-77d15982-372b-4434-9c96-b4437ac9b932.png?width=204&height=408)
80
8. Enter country code
Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-e6f592dc-668d-4982-bd01-7cdd04015ac1.png?width=204&height=408)
Key in 272 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-6c7909fb-37b0-4c3b-a590-98af76b69681.png?width=204&height=408)
272
9. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-e6f592dc-668d-4982-bd01-7cdd04015ac1.png?width=204&height=408)

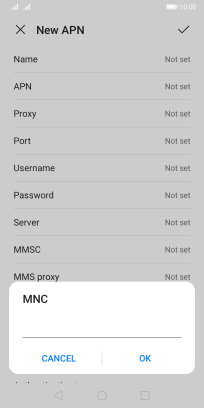

Key in 01 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-b3665705-1538-418b-81d1-dd21132bcfe3.png?width=204&height=408)
01
10. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-a13aee9a-cc45-43fa-a7e5-479544f0ae12.png?width=204&height=408)

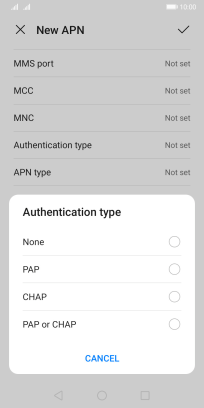

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-145f667e-9f48-428e-b838-46d329fe3580.png?width=204&height=408)
11. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-a13aee9a-cc45-43fa-a7e5-479544f0ae12.png?width=204&height=408)

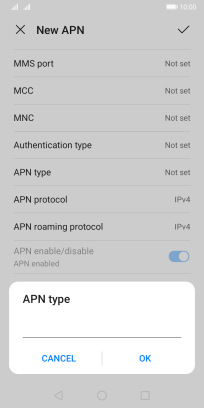

Key in mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-205fcaaa-6ca8-403a-919a-a6b61c8a9973.png?width=204&height=408)
mms
12. Save data connection
Press the confirm icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-e6f592dc-668d-4982-bd01-7cdd04015ac1.png?width=204&height=408)
13. Return to the home screen

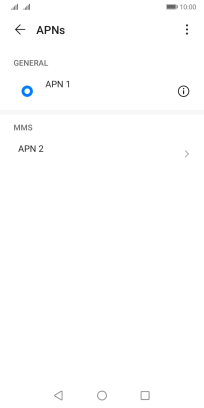

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-cadcc59c-810f-4b50-b45c-c01ba25bb673.png?width=204&height=408)
