1. Find "Access Point Names"
Slide two fingers downwards starting from the top the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-19214162-0078-4d0a-912f-a3d3d0ed22a7.png?width=218&height=386)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-dba07846-f574-4e52-bbb6-b763627679a5.png?width=218&height=386)
Press More.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-5cf5fb4b-eb6e-44fa-b8cc-87656d6bb2e7.png?width=218&height=386)

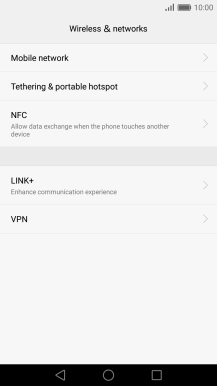

Press Mobile network.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-e1072804-3eb7-45b0-80fd-2118ae6d9ea4.png?width=218&height=386)

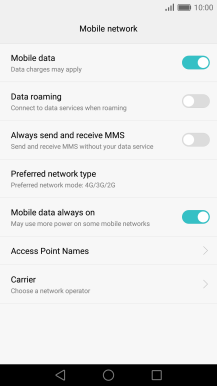

Press Access Point Names.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-c76826e4-4f04-4c48-a503-178d1c38b34c.png?width=218&height=386)
2. Create new data connection

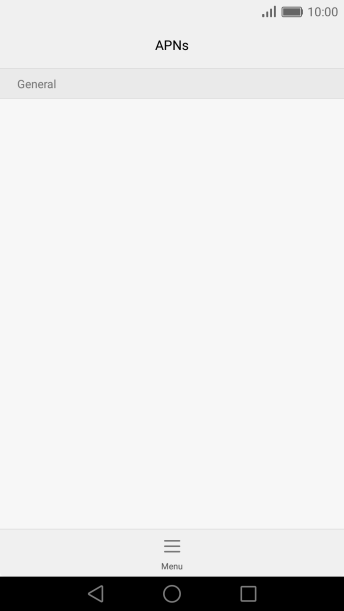

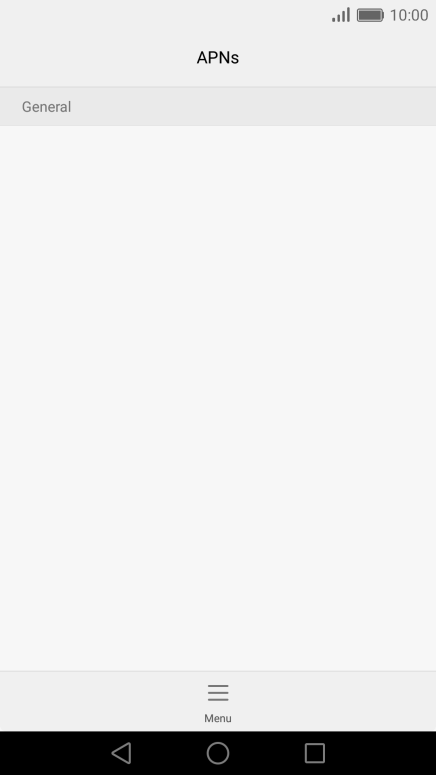

Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-78273af0-e614-4f3a-9860-7f3d70ec2eb1.png?width=218&height=386)

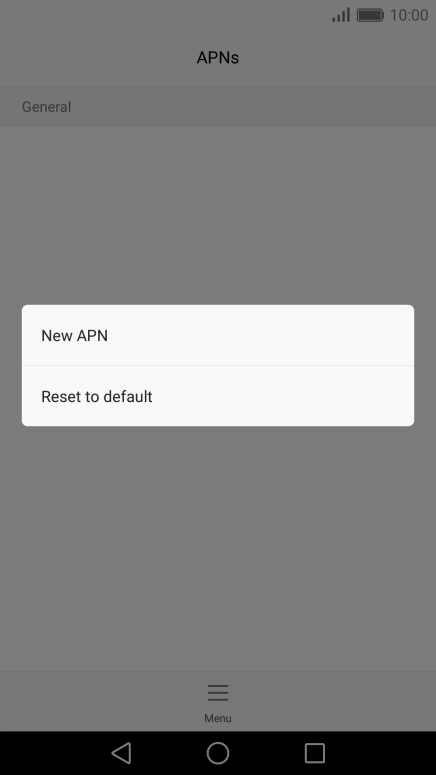

Press New APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-57545043-5223-46e3-8eb7-0b6fe444e27b.png?width=218&height=386)

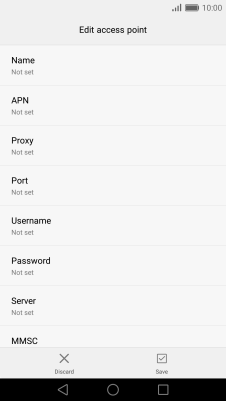

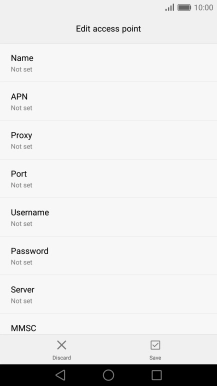

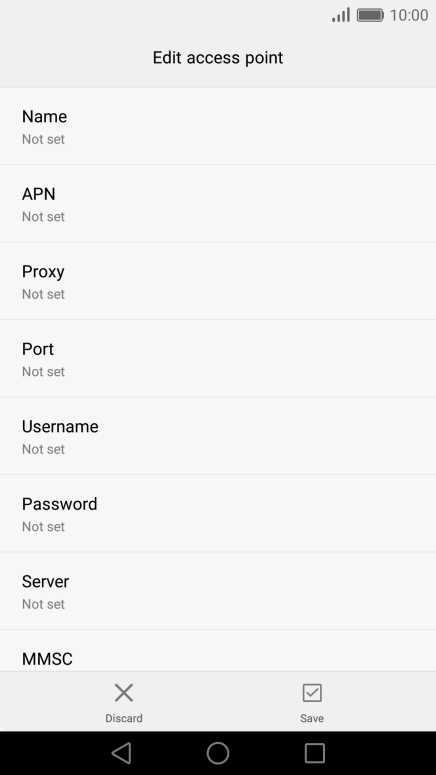

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ca63177c-85f6-4791-8d46-cf82558c26e6.png?width=218&height=386)

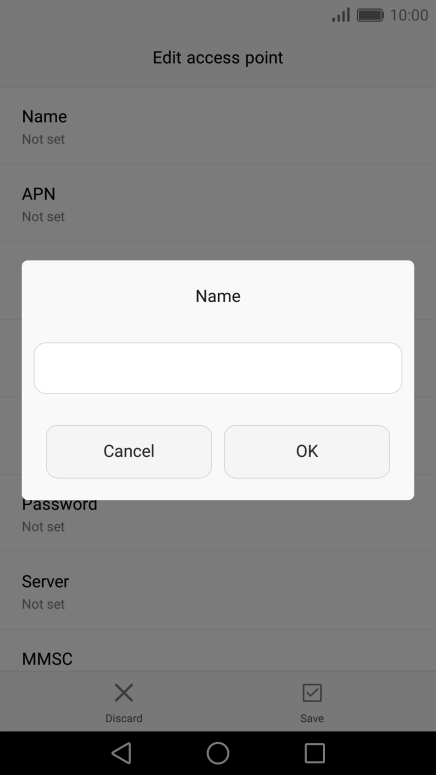

Key in Vodafone MMS and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-b8031da2-cff8-4399-bb73-7c758a01b0f9.png?width=218&height=386)
Vodafone MMS
3. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ca63177c-85f6-4791-8d46-cf82558c26e6.png?width=218&height=386)

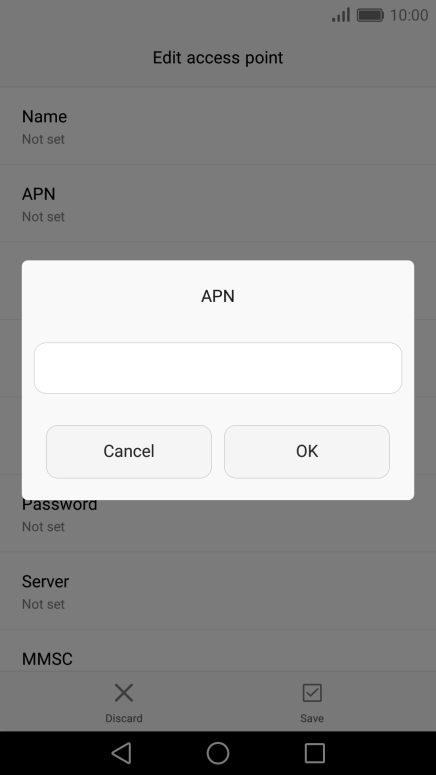

Key in mms.vodafone.net and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-45c4db99-cc1c-4ec9-8f19-08b9c77ce13b.png?width=218&height=386)
mms.vodafone.net
4. Enter MMSC

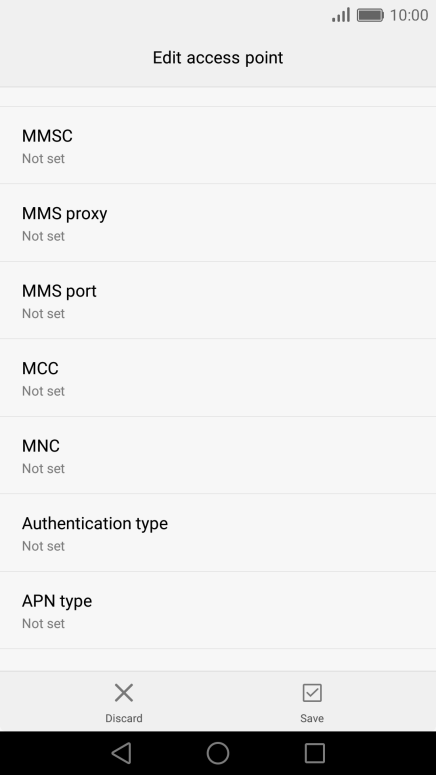

Press MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-9f7f3348-8551-4d0d-8339-26f4a69a874c.png?width=218&height=386)

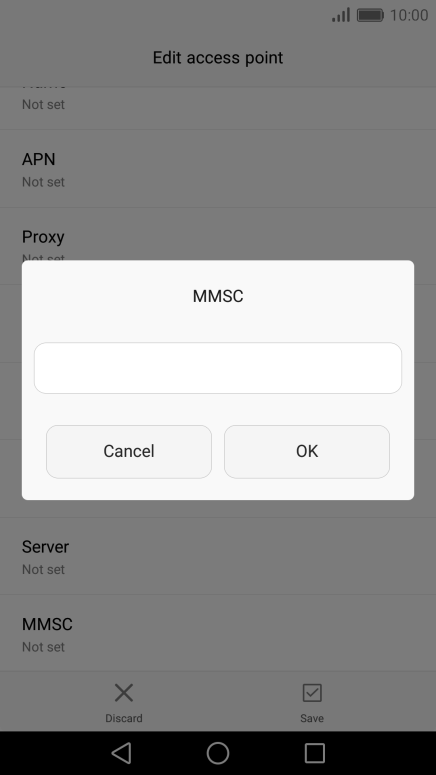

Key in http://www.vodafone.ie/mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-4aaf1d49-f4f3-4fa3-bf43-6c0bcc536b7a.png?width=218&height=386)
http://www.vodafone.ie/mms
5. Enter IP address
Press MMS proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-9f7f3348-8551-4d0d-8339-26f4a69a874c.png?width=218&height=386)
Key in 10.24.59.200 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-c6b5157d-d081-4756-ab38-b75cfe10a158.png?width=218&height=386)
10.24.59.200
6. Enter port number
Press MMS port.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-9f7f3348-8551-4d0d-8339-26f4a69a874c.png?width=218&height=386)

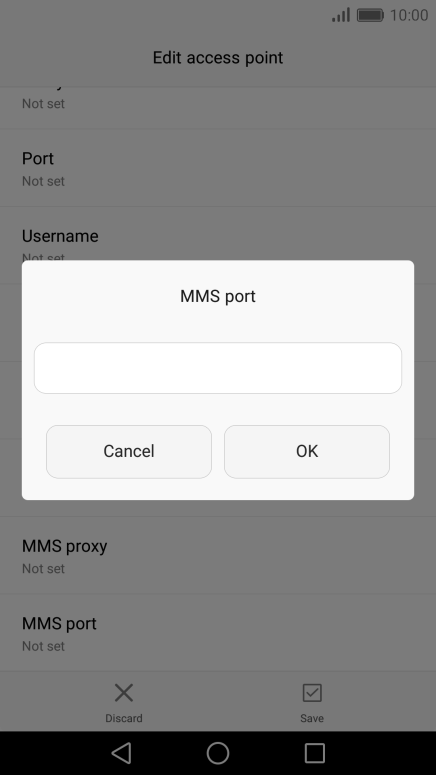

Key in 80 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-39bed5be-5e23-4e97-a793-82f5b6481751.png?width=218&height=386)
80
7. Enter country code
Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-9f7f3348-8551-4d0d-8339-26f4a69a874c.png?width=218&height=386)

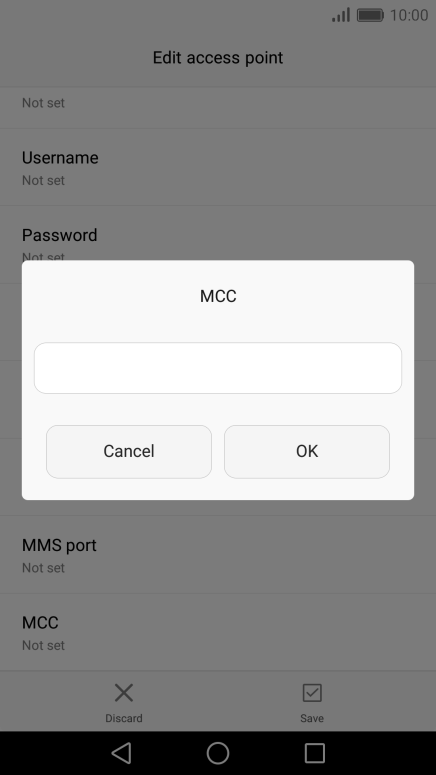

Key in 272 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-3fc5f1cd-326a-4624-a1bb-800e27626e0b.png?width=218&height=386)
272
8. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-9f7f3348-8551-4d0d-8339-26f4a69a874c.png?width=218&height=386)

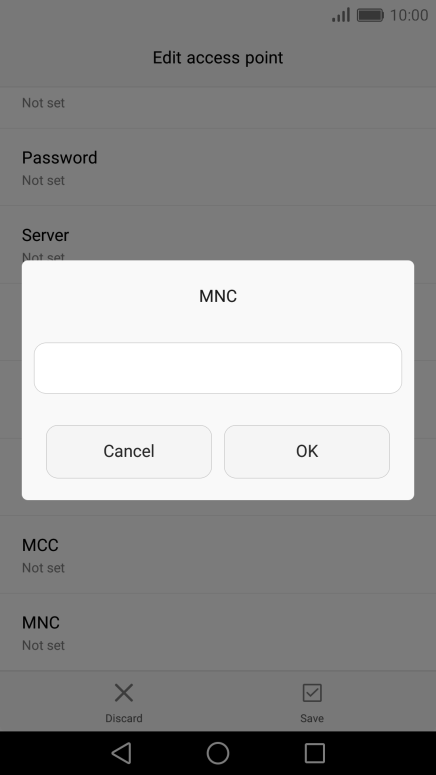

Key in 01 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-1792bc8d-be18-4d8d-ac37-90d0ae130212.png?width=218&height=386)
01
9. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-9f7f3348-8551-4d0d-8339-26f4a69a874c.png?width=218&height=386)

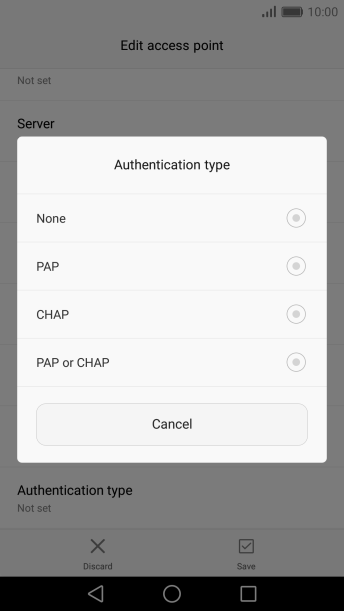

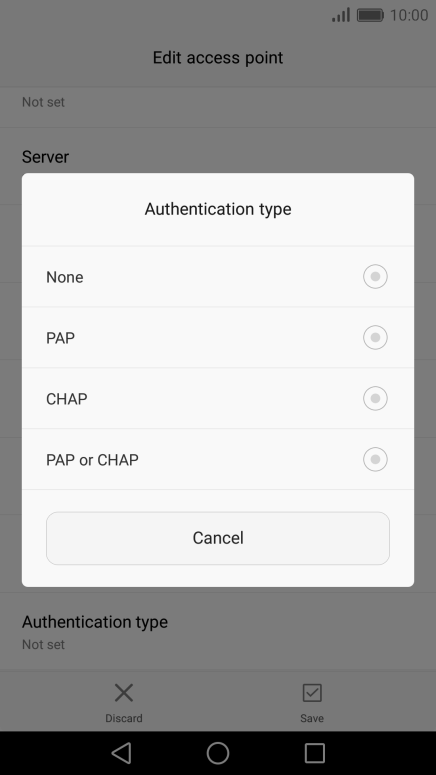

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-27186a75-5dc7-40b7-974c-47f56fcbdb9b.png?width=218&height=386)
10. Select APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-9f7f3348-8551-4d0d-8339-26f4a69a874c.png?width=218&height=386)

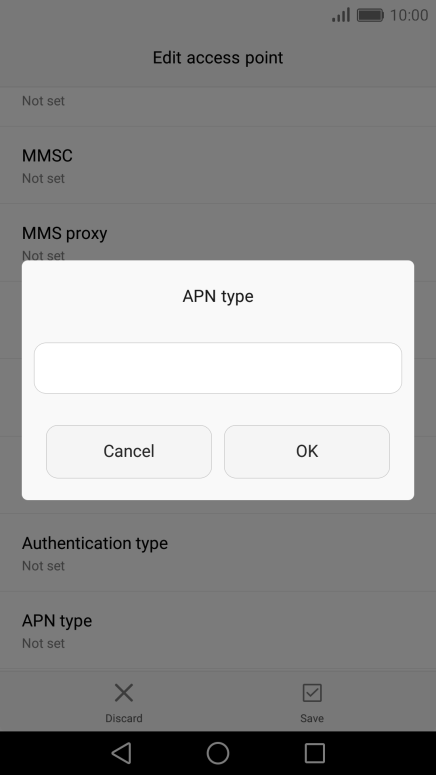

Key in mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-5077dd24-6ffb-4222-8216-20d3da1a2232.png?width=218&height=386)
mms
11. Save data connection
Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-9f7f3348-8551-4d0d-8339-26f4a69a874c.png?width=218&height=386)
12. Return to the home screen

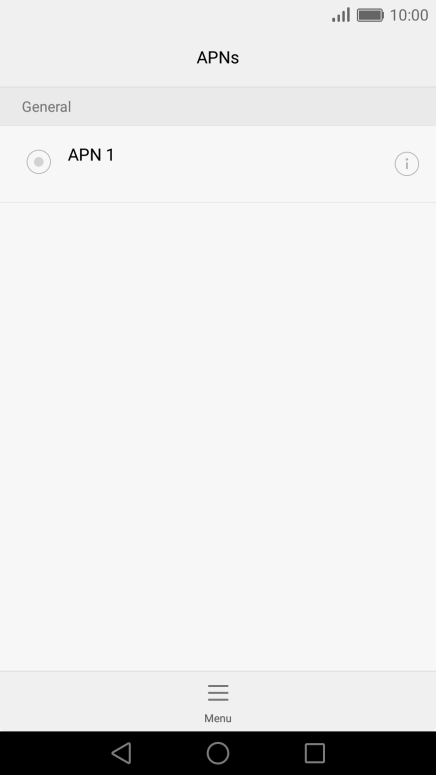

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-175fe9bc-d17b-4f6f-9fb4-220085e87a1d.png?width=218&height=386)
