Huawei P40 Pro

Huawei P40 Pro

Android 10.0

Set up your Huawei P40 Pro Android 10.0 for picture messaging

Read help info

A picture message is a message which can contain pictures and other media files and can be sent to other mobile phones. You can send and receive picture messages as soon as you've inserted your SIM. If this isn't the case, you can set up your phone for picture messaging manually.

Step 1 of 26

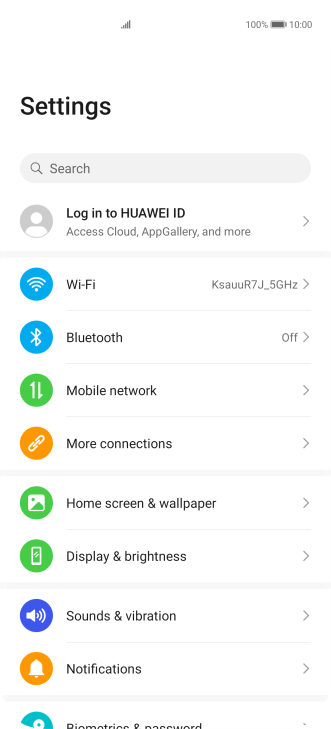

1. Find "Access Point Names (APNs)"

Press Settings.

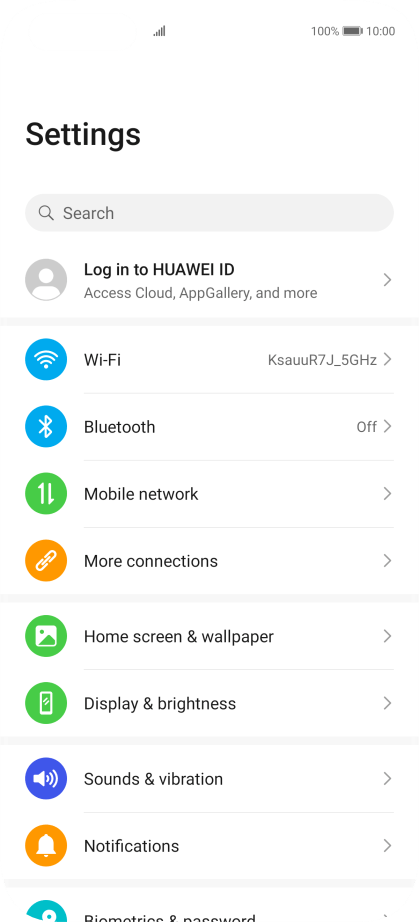

Step 2 of 26

1. Find "Access Point Names (APNs)"

Press Mobile network.

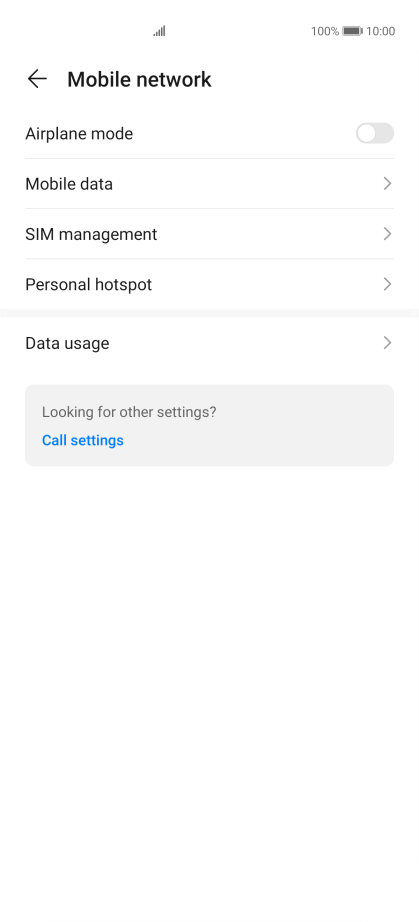

Step 3 of 26

1. Find "Access Point Names (APNs)"

Press Mobile data.

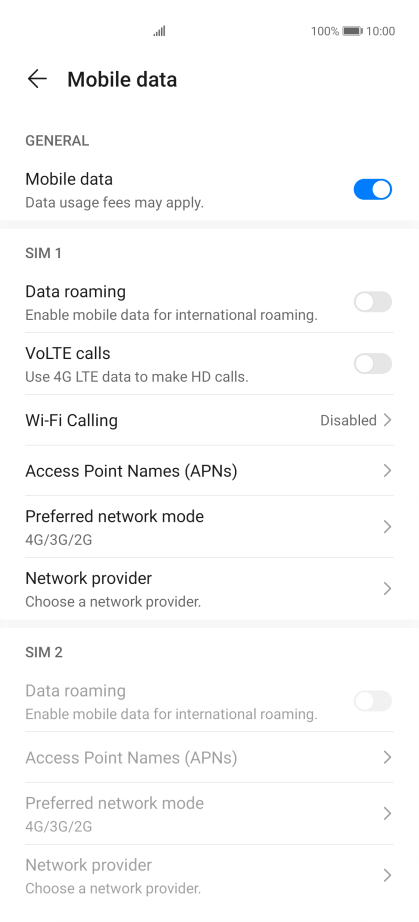

Step 4 of 26

1. Find "Access Point Names (APNs)"

Press Access Point Names (APNs).

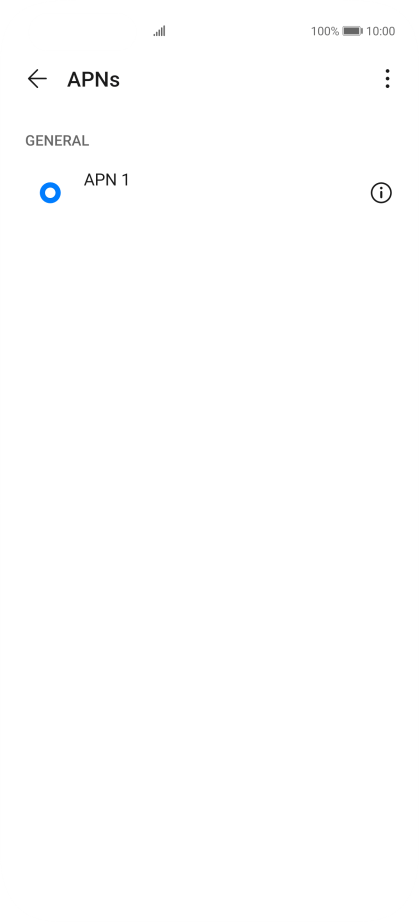

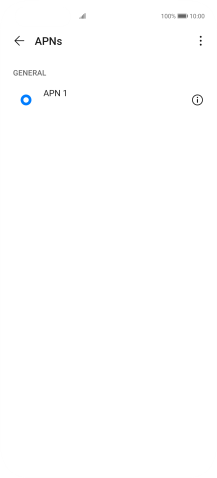

Step 5 of 26

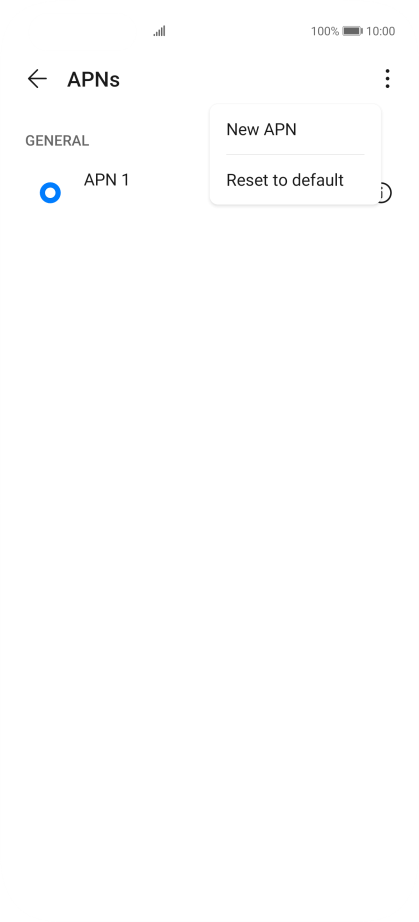

2. Create new data connection

Press the menu icon.

Step 6 of 26

2. Create new data connection

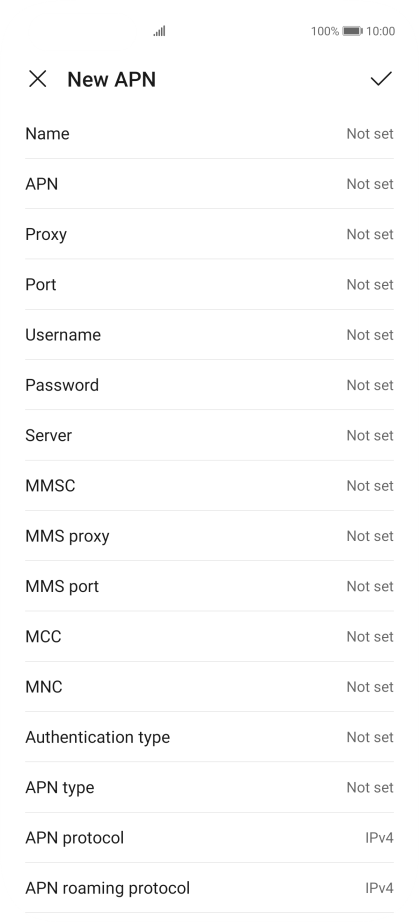

Press New APN.

Step 7 of 26

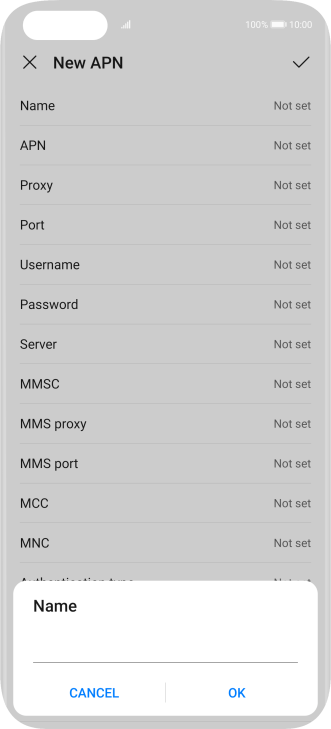

3. Enter a name for the connection

Press Name.

Vodafone MMS
Step 8 of 26

3. Enter a name for the connection

Key in Vodafone MMS and press OK.

Step 9 of 26

4. Enter APN

Press APN.

mms.vodafone.net
Step 10 of 26

4. Enter APN

Key in mms.vodafone.net and press OK.

Step 11 of 26

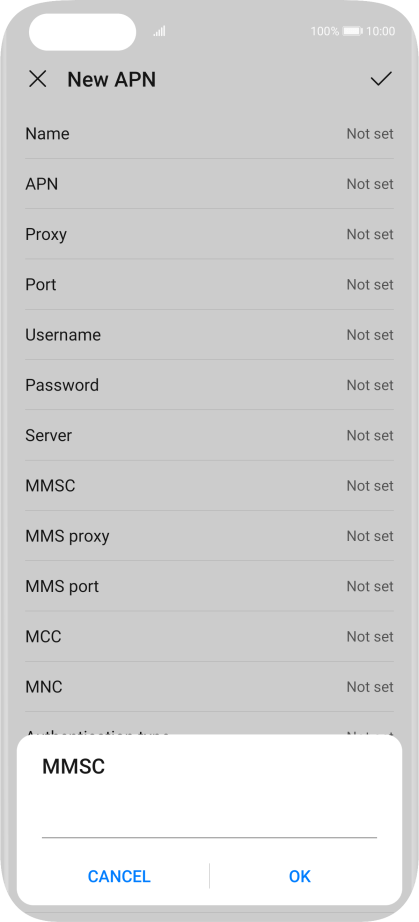

5. Enter picture messaging server

Press MMSC.

http://www.vodafone.ie/mms
Step 12 of 26

5. Enter picture messaging server

Key in http://www.vodafone.ie/mms and press OK.

Step 13 of 26

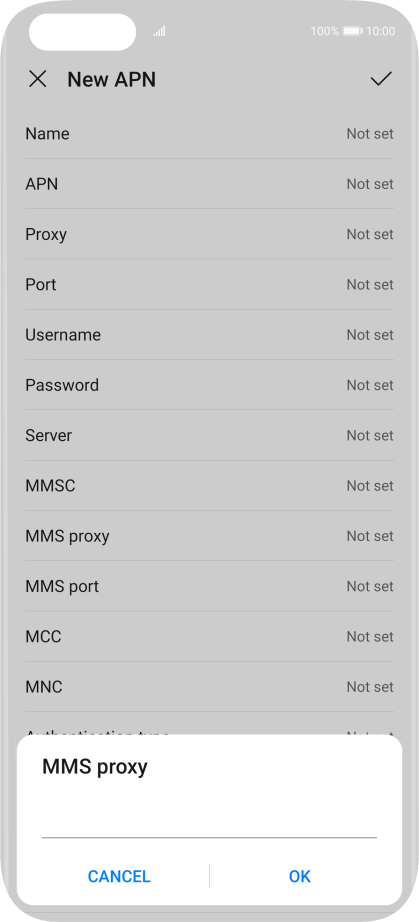

6. Enter IP address

Press MMS proxy.

10.24.59.200
Step 14 of 26

6. Enter IP address

Key in 10.24.59.200 and press OK.

Step 15 of 26

7. Enter port number

Press MMS port.

80
Step 16 of 26

7. Enter port number

Key in 80 and press OK.

Step 17 of 26

8. Enter country code

Press MCC.

272
Step 18 of 26

8. Enter country code

Key in 272 and press OK.

Step 19 of 26

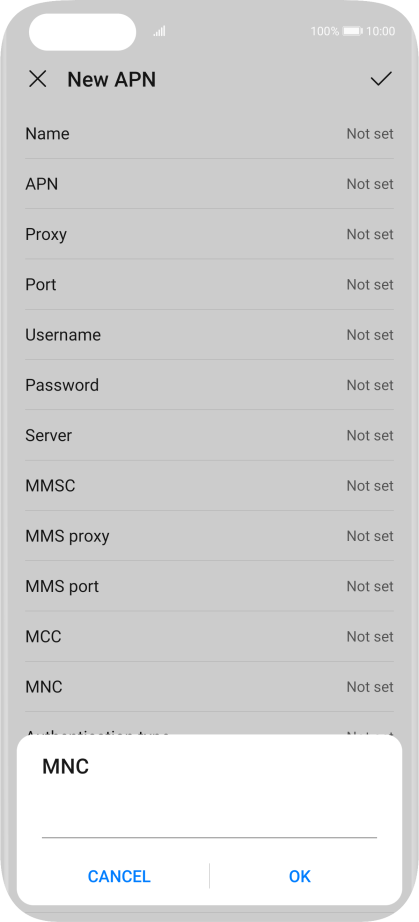

9. Enter network code

Press MNC.

01
Step 20 of 26

9. Enter network code

Key in 01 and press OK.

Step 21 of 26

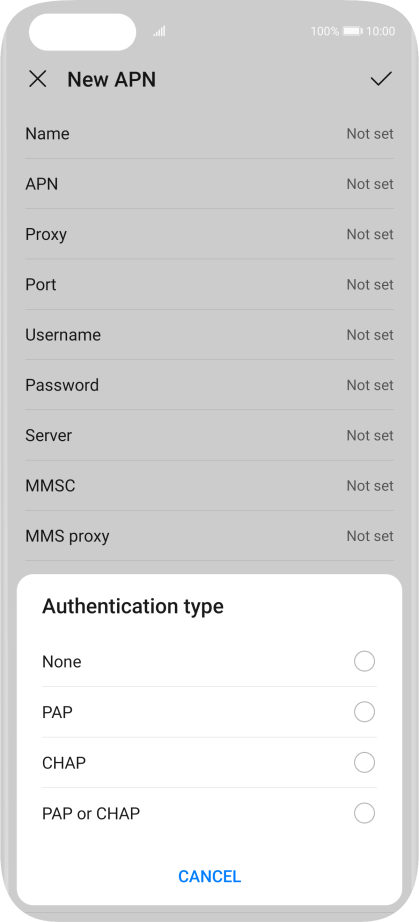

10. Select authentication type

Press Authentication type.

Step 22 of 26

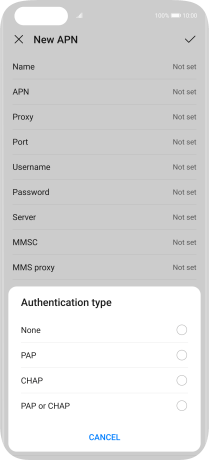

10. Select authentication type

Press PAP.

Step 23 of 26

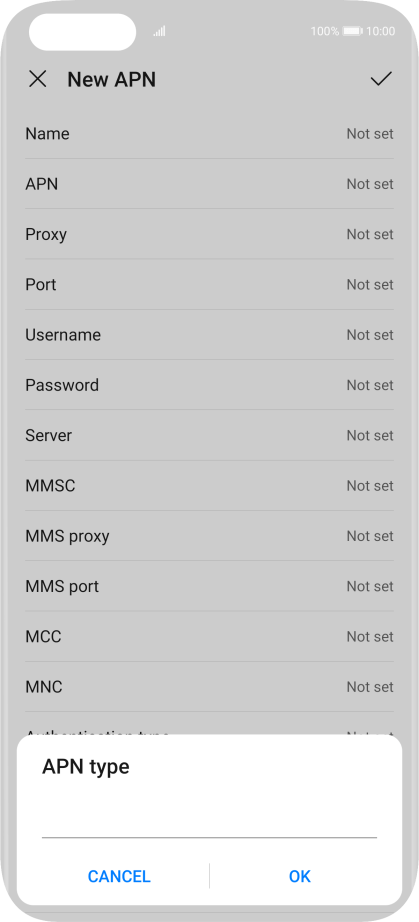

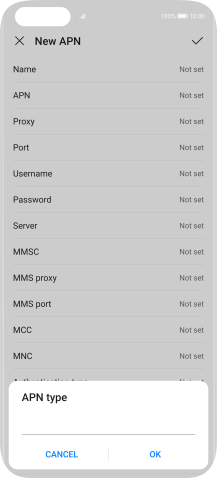

11. Enter APN type

Press APN type.

mms
Step 24 of 26

11. Enter APN type

Key in mms and press OK.

Step 25 of 26

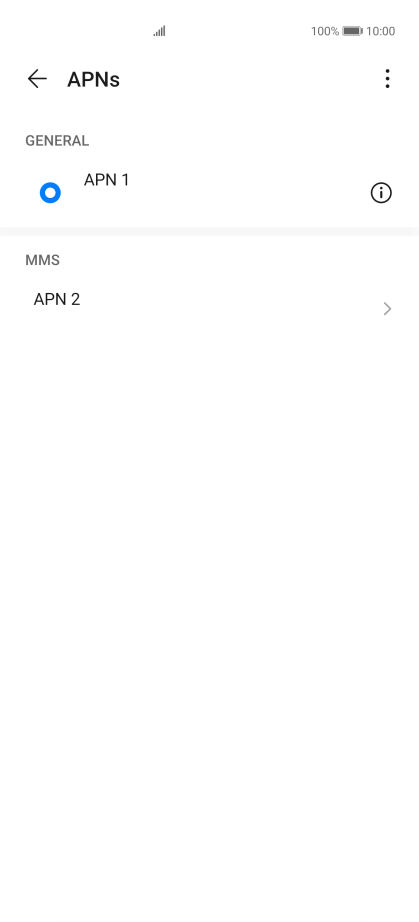

12. Save data connection

Press the confirm icon.

Step 26 of 26

13. Return to the home screen

Slide your finger upwards starting from the bottom of the screen to return to the home screen.

1. Find "Access Point Names (APNs)"

Press Settings.
Press Mobile network.
Press Mobile data.
Press Access Point Names (APNs).

2. Create new data connection

Press the menu icon.
Press New APN.

3. Enter a name for the connection

Press Name.
Key in Vodafone MMS and press OK.
Vodafone MMS

4. Enter APN

Press APN.
Key in mms.vodafone.net and press OK.
mms.vodafone.net

5. Enter picture messaging server

Press MMSC.
Key in http://www.vodafone.ie/mms and press OK.
http://www.vodafone.ie/mms

6. Enter IP address

Press MMS proxy.
Key in 10.24.59.200 and press OK.
10.24.59.200

7. Enter port number

Press MMS port.
Key in 80 and press OK.
80

8. Enter country code

Press MCC.
Key in 272 and press OK.
272

9. Enter network code

Press MNC.
Key in 01 and press OK.
01

10. Select authentication type

Press Authentication type.
Press PAP.

11. Enter APN type

Press APN type.
Key in mms and press OK.
mms

12. Save data connection

Press the confirm icon.

13. Return to the home screen

Slide your finger upwards starting from the bottom of the screen to return to the home screen.
