1. Find "Access Point Name"
Press Settings.
1. Find "Access Point Name"
Press Wireless & networks.
1. Find "Access Point Name"

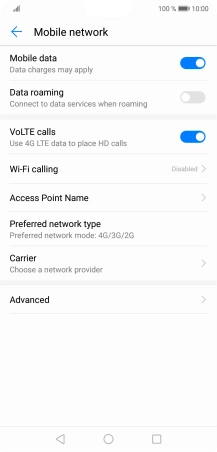

Press Mobile network.

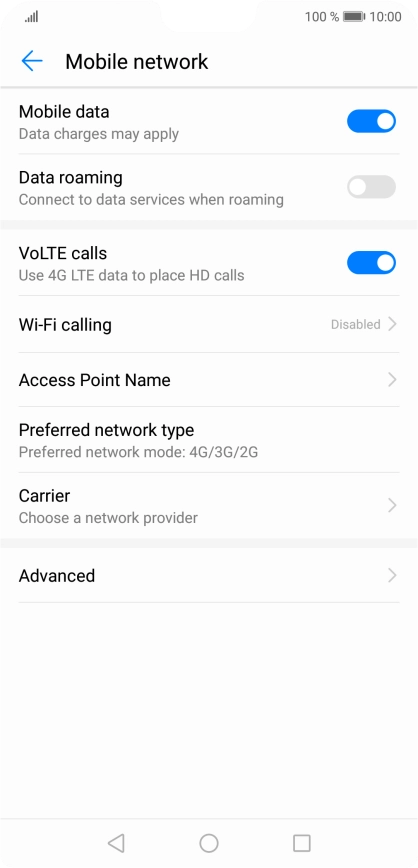

1. Find "Access Point Name"

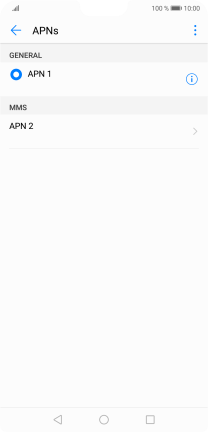

Press Access Point Name.

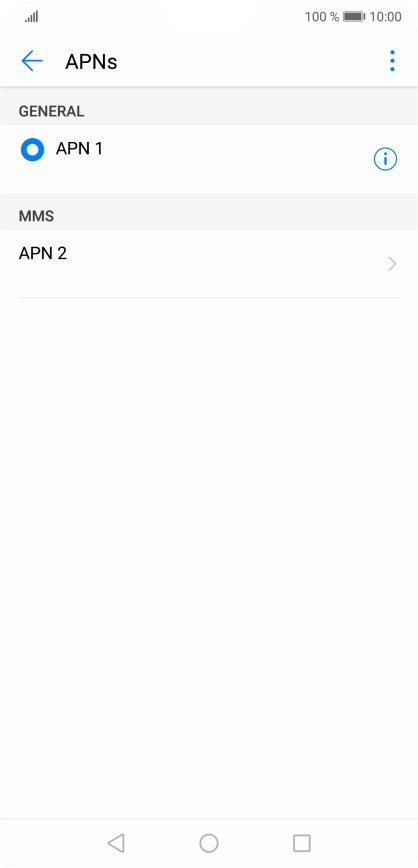

2. Create new data connection

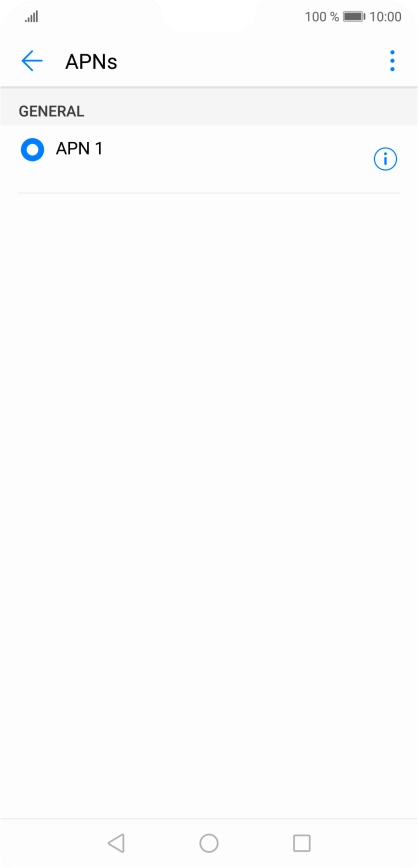

Press the menu icon.
2. Create new data connection

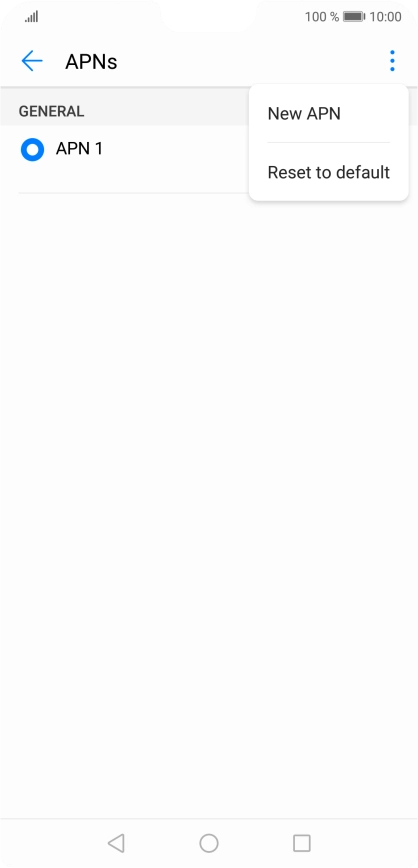

Press New APN.

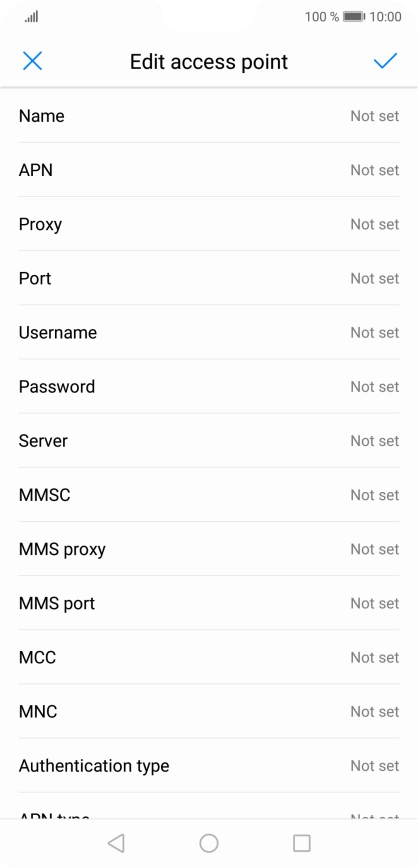

3. Enter a name for the connection

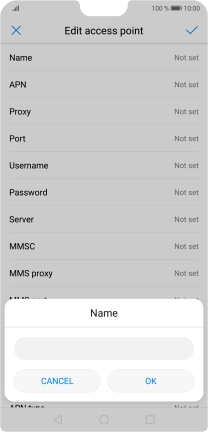

Press Name.
3. Enter a name for the connection
Key in Vodafone MMS and press OK.

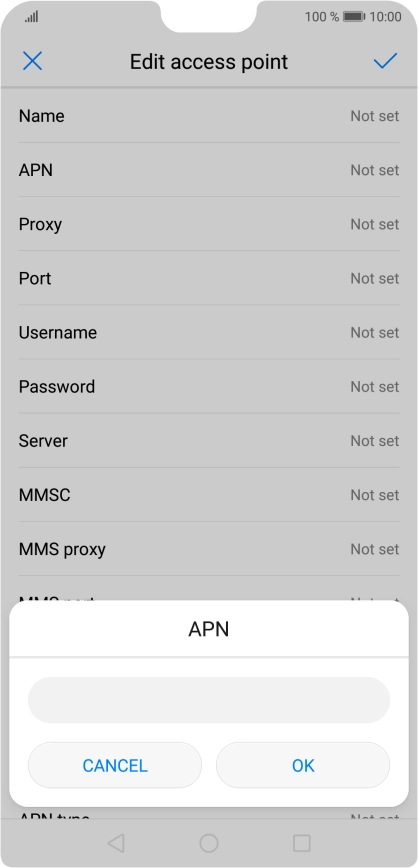

4. Enter APN

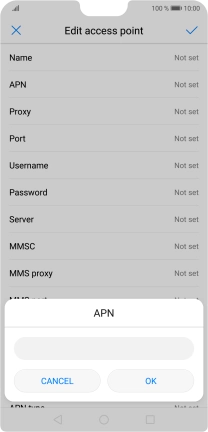

Press APN.
4. Enter APN
Key in mms.vodafone.net and press OK.

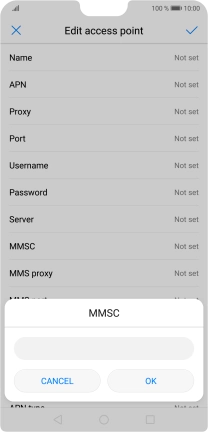

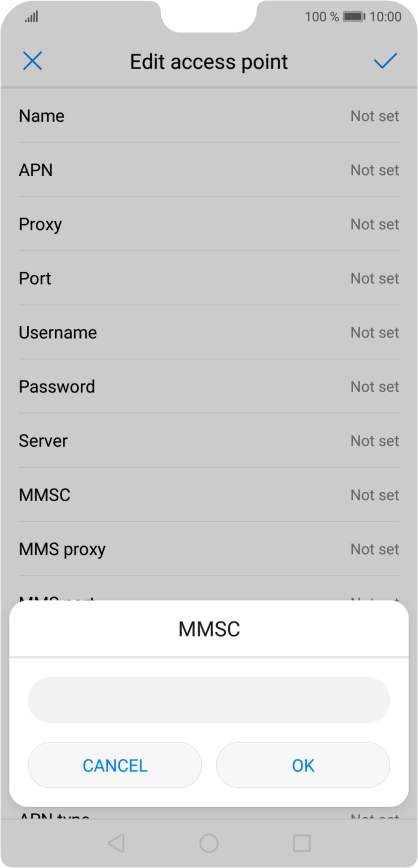

5. Enter picture messaging server

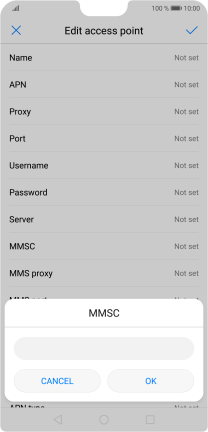

Press MMSC.
5. Enter picture messaging server
Key in http://www.vodafone.ie/mms and press OK.
6. Enter IP address

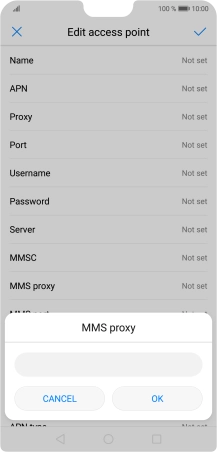

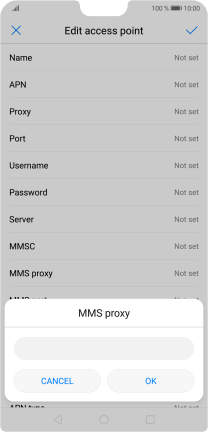

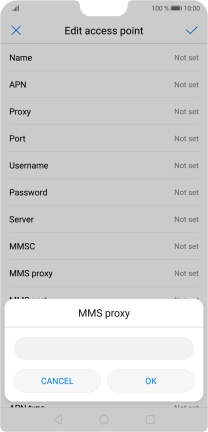

Press MMS proxy.
6. Enter IP address
Key in 10.24.59.200 and press OK.

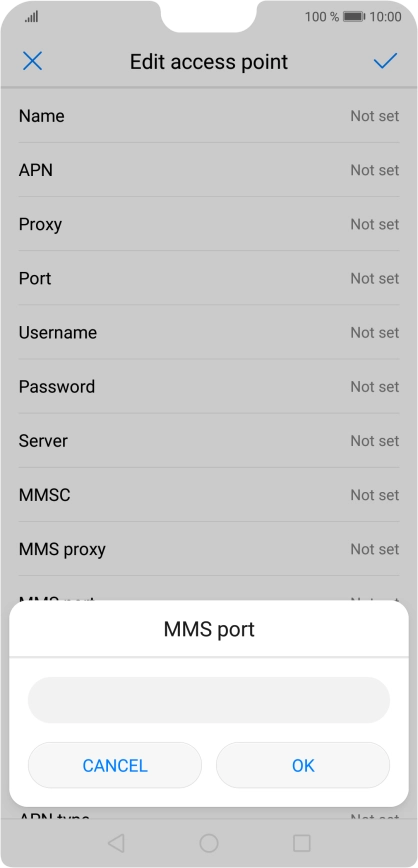

7. Enter port number

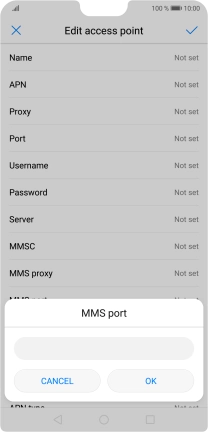

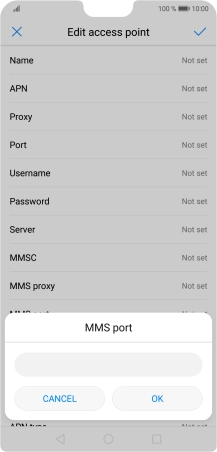

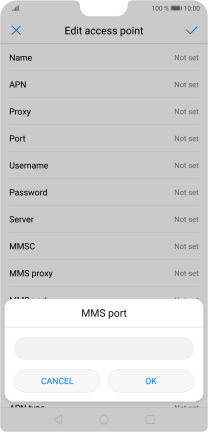

Press MMS port.
7. Enter port number
Key in 80 and press OK.
8. Enter country code
Press MCC.
8. Enter country code
Key in 272 and press OK.
9. Enter network code
Press MNC.
9. Enter network code
Key in 01 and press OK.

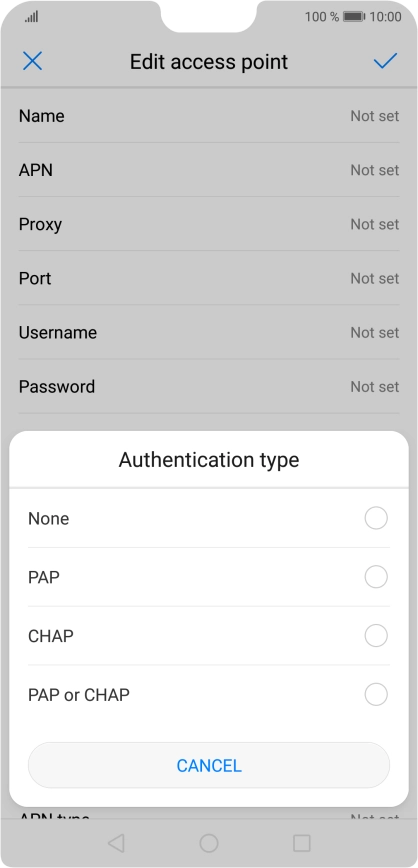

10. Select authentication type

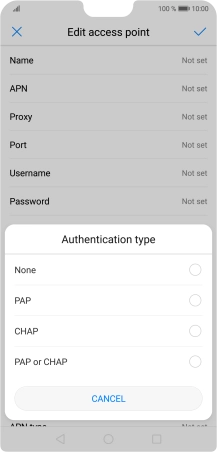

Press Authentication type.
10. Select authentication type
Press PAP.

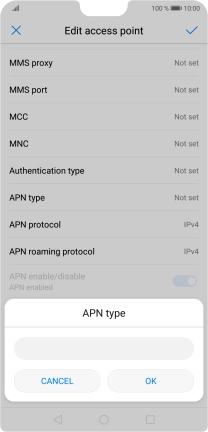

11. Enter APN type

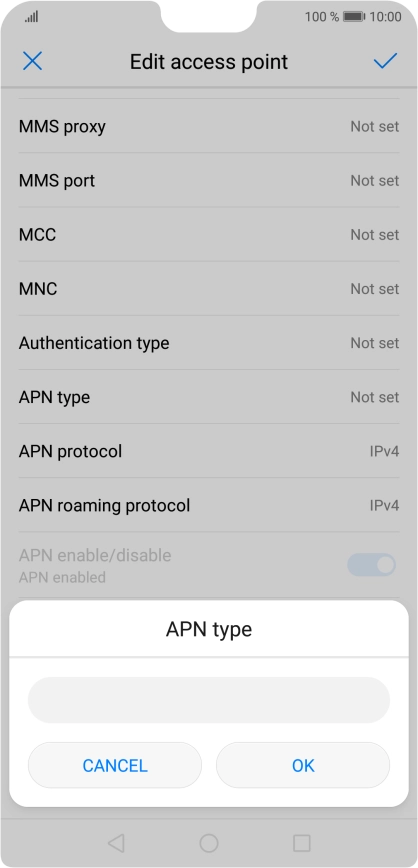

Press APN type.
11. Enter APN type
Key in mms and press OK.
12. Save data connection

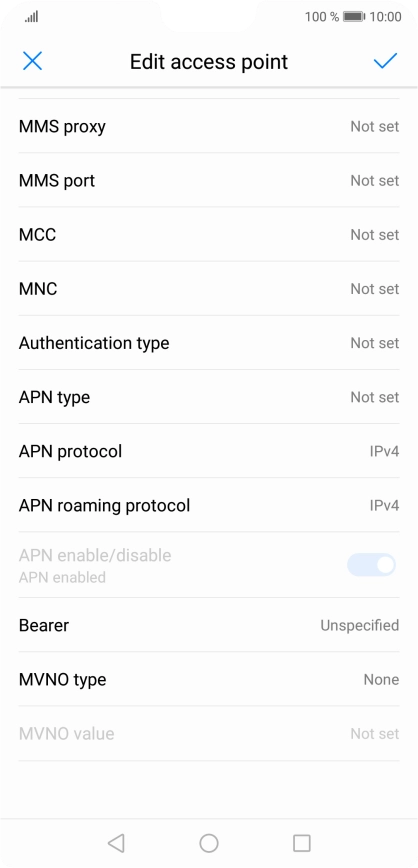

Press the confirm icon.
13. Return to the home screen
Press the Home key to return to the home screen.
