1. Find "Access Point Name"
Press Settings.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-0de143ff-646f-4dcd-9cc4-2c57b388683f.png?width=210&height=376)
Press More.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-b9ad0d4b-0175-4642-8c4f-a6172c8a3336.png?width=210&height=376)

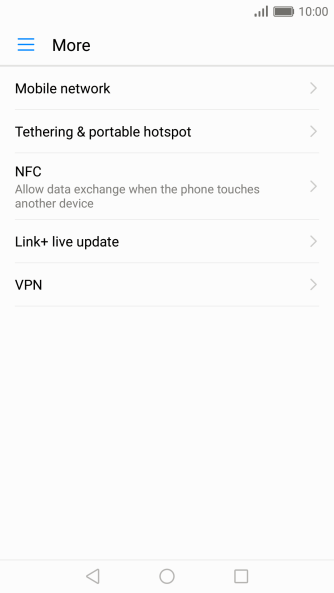

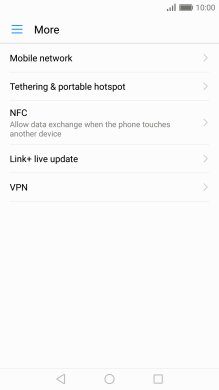

Press Mobile network.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-d369e0d5-0cbf-418d-b238-869e91d6b045.png?width=210&height=376)

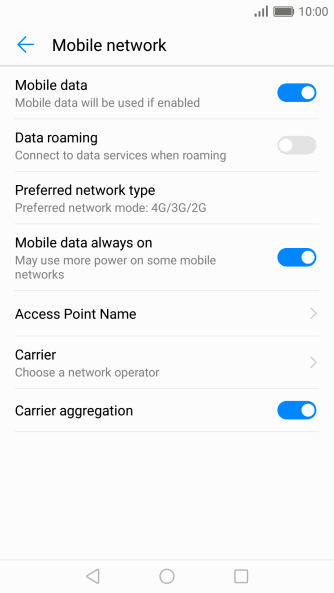

Press Access Point Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-361a8b1b-26bf-452f-94ab-5563926b5e2e.png?width=210&height=376)
2. Create new data connection

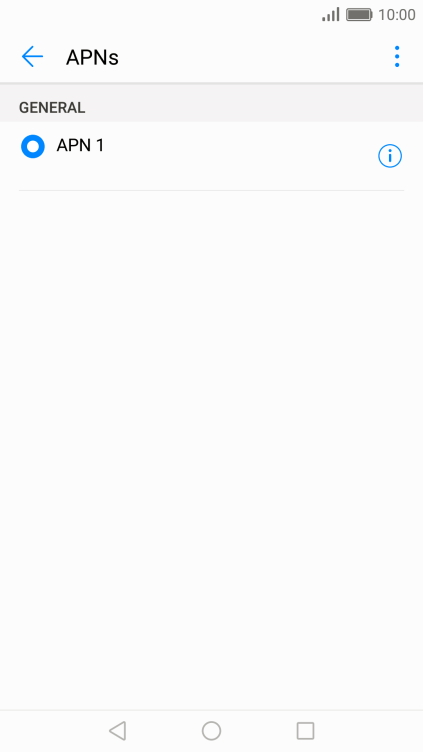

Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-9c680e81-7ab2-41d9-a5e6-522a6084568d.png?width=210&height=376)

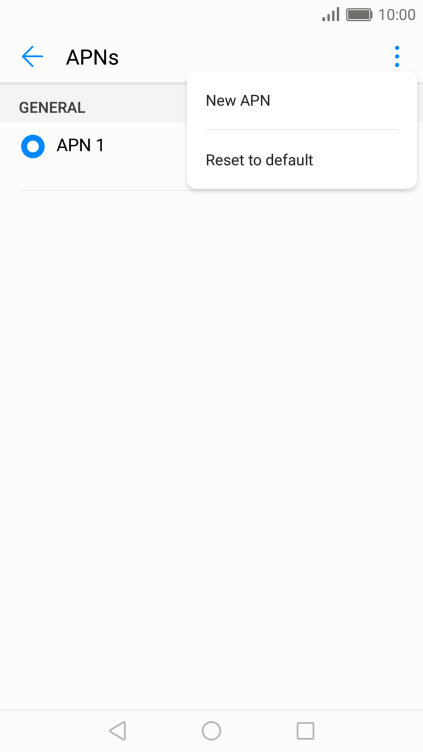

Press New APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-6a029f95-967c-4525-9333-2131e5617ee1.png?width=210&height=376)
3. Enter a name for the connection

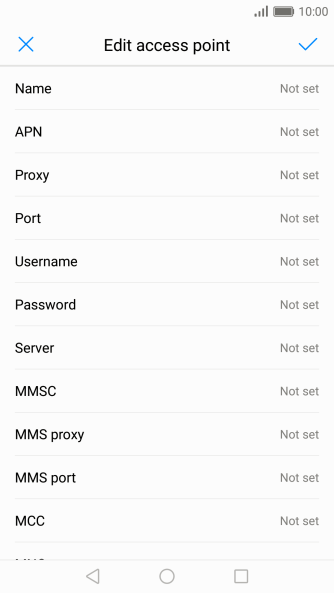

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-95fc4c4c-b293-4f9e-b0bd-1dae21a3f95b.png?width=210&height=376)
Key in Vodafone MMS and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-7e4d8420-337d-4467-a5a0-30a1249176b0.png?width=210&height=376)
Vodafone MMS
4. Enter APN

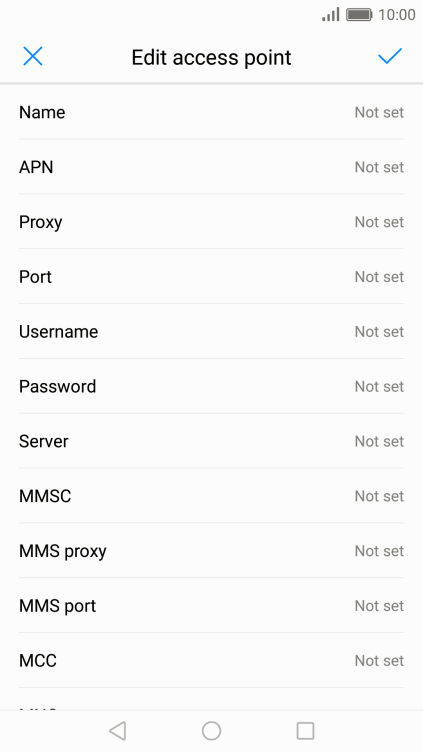

Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-95fc4c4c-b293-4f9e-b0bd-1dae21a3f95b.png?width=210&height=376)

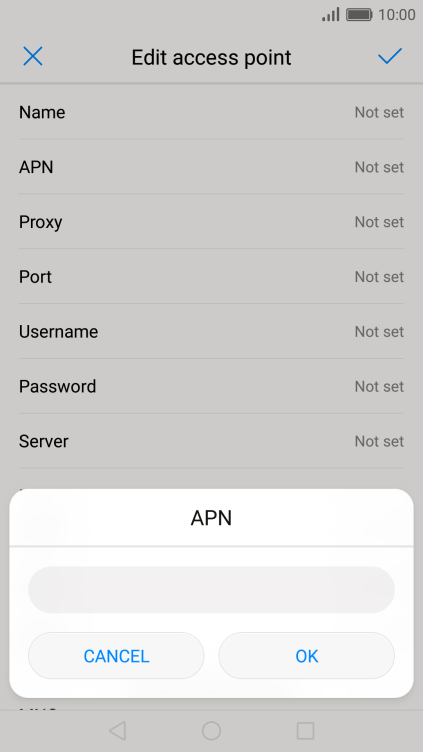

Key in mms.vodafone.net and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-61b5af77-f6e0-4f9d-a93c-095c67853c1a.png?width=210&height=376)
mms.vodafone.net
5. Enter picture messaging server
Press MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-95fc4c4c-b293-4f9e-b0bd-1dae21a3f95b.png?width=210&height=376)

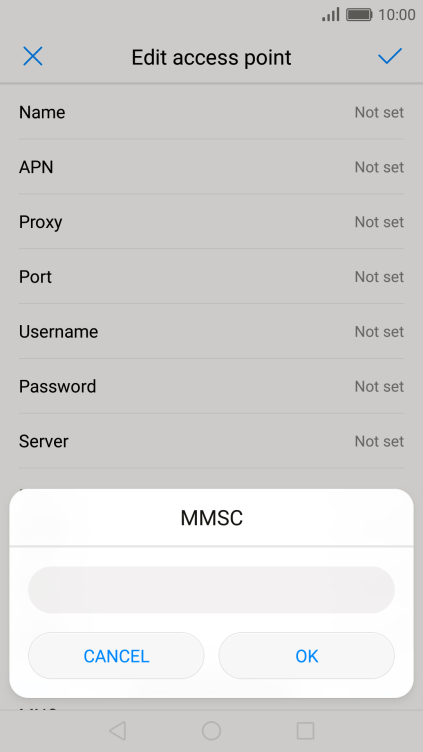

Key in http://www.vodafone.ie/mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-6ea534cc-32bc-43f5-a85e-5521d38a4e9b.png?width=210&height=376)
http://www.vodafone.ie/mms
6. Enter IP address

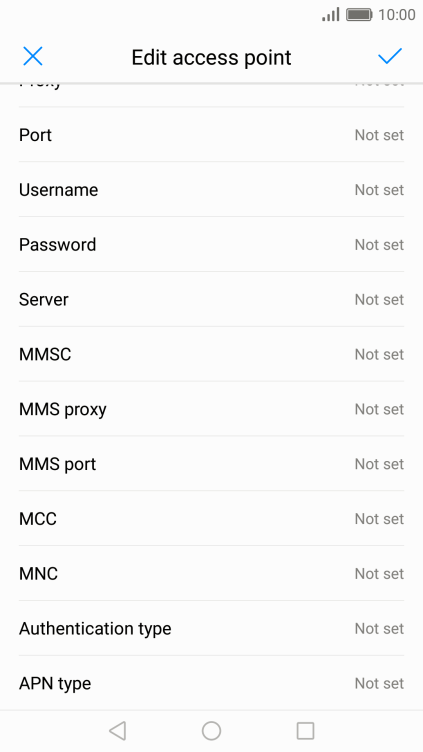

Press MMS proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-d54f48b9-d342-4d5e-899e-18d78ceb37c3.png?width=210&height=376)

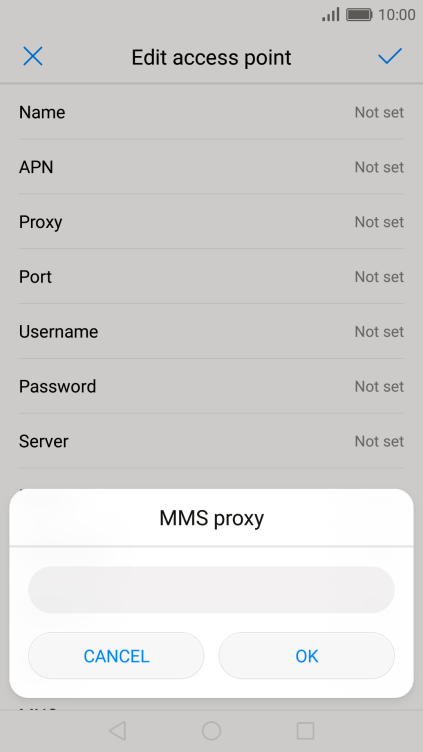

Key in 10.24.59.200 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-10347951-fc6d-4661-bfb2-a92d547e6a7d.png?width=210&height=376)
10.24.59.200
7. Enter port number
Press MMS port.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-d54f48b9-d342-4d5e-899e-18d78ceb37c3.png?width=210&height=376)

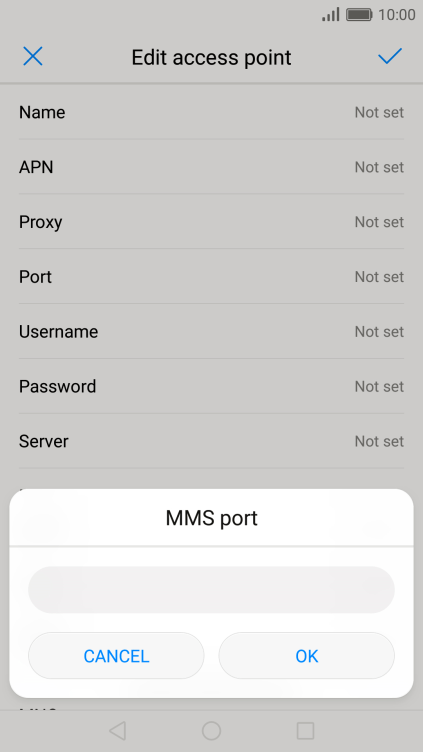

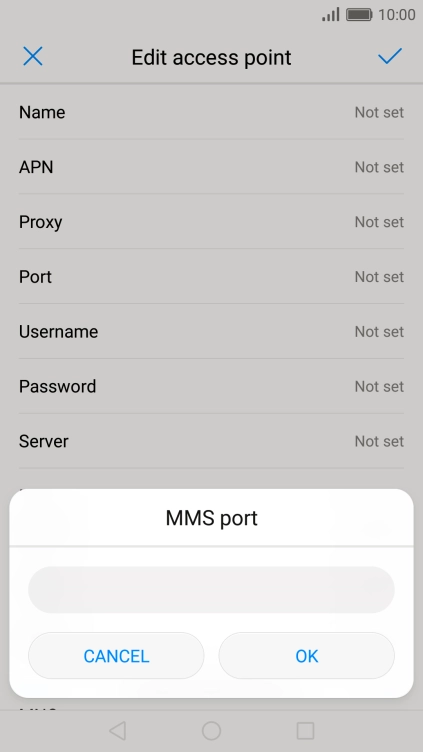

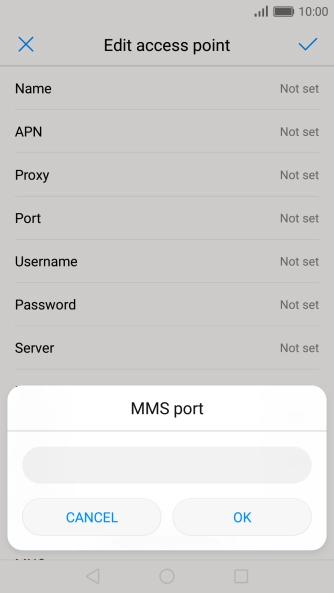

Key in 80 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-97c003c6-08f7-45a8-9116-486ca45994ce.png?width=210&height=376)
80
8. Enter country code
Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-d54f48b9-d342-4d5e-899e-18d78ceb37c3.png?width=210&height=376)

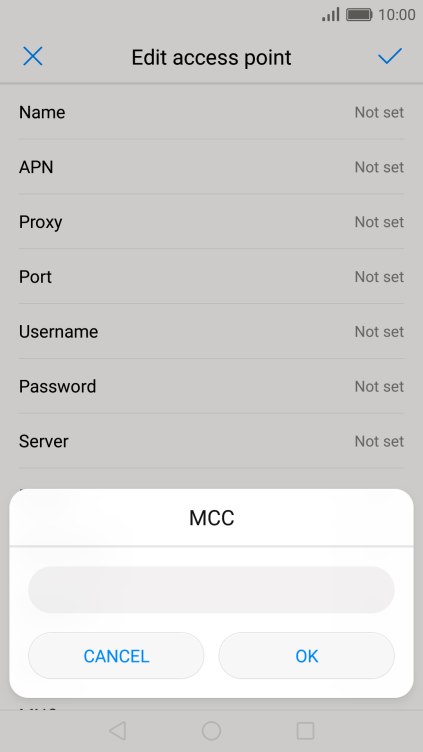

Key in 272 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-d293a002-32d2-428f-a650-6aaa590950ac.png?width=210&height=376)
272
9. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-d54f48b9-d342-4d5e-899e-18d78ceb37c3.png?width=210&height=376)

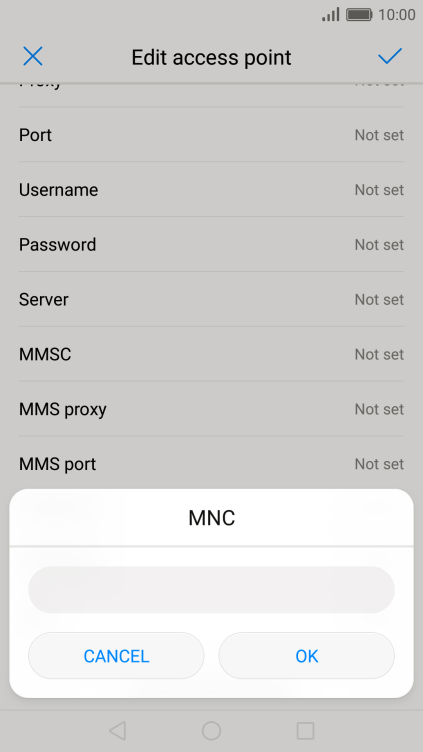

Key in 01 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-4e83cfd3-13c7-46b3-95fa-fc0dc84e37a8.png?width=210&height=376)
01
10. Select authentication type

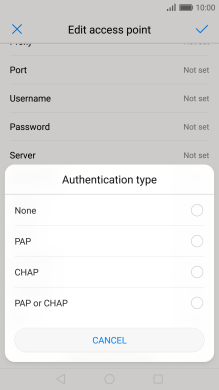

Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-d54f48b9-d342-4d5e-899e-18d78ceb37c3.png?width=210&height=376)

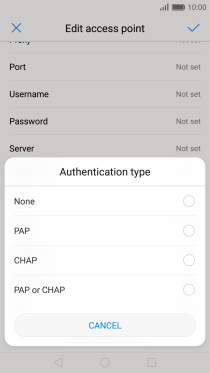

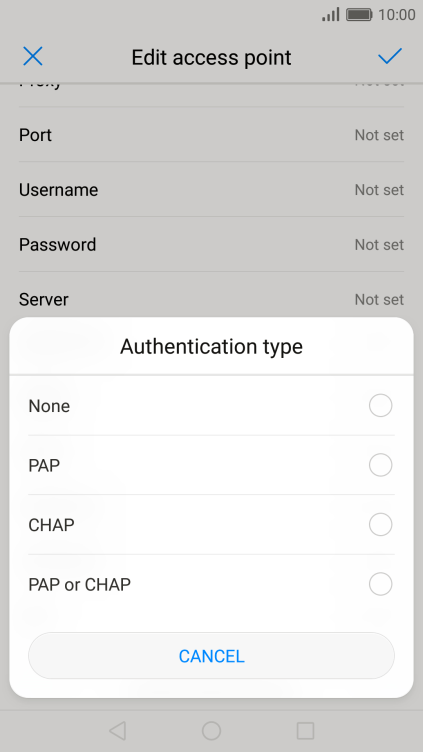

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-acdbedc7-77b2-452f-b0ab-7492c9c3d91d.png?width=210&height=376)
11. Select APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-d54f48b9-d342-4d5e-899e-18d78ceb37c3.png?width=210&height=376)

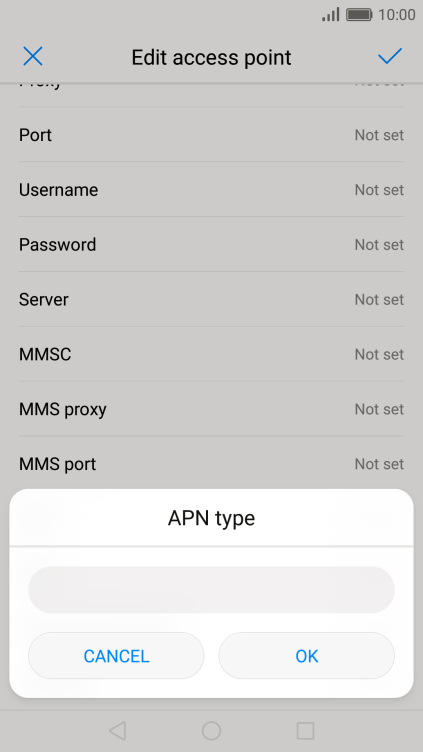

Key in mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-bd06bd33-5069-442e-a3fa-dae4cd62d5c5.png?width=210&height=376)
mms
12. Save data connection
Press the confirm icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-d54f48b9-d342-4d5e-899e-18d78ceb37c3.png?width=210&height=376)
13. Return to the home screen

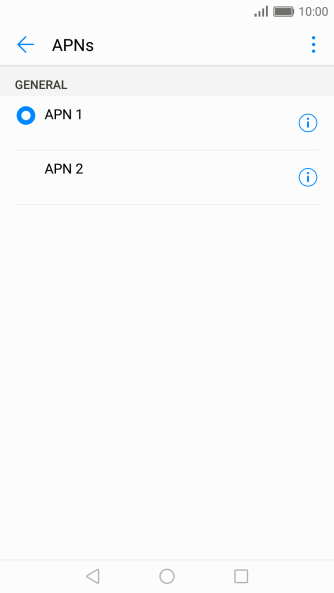

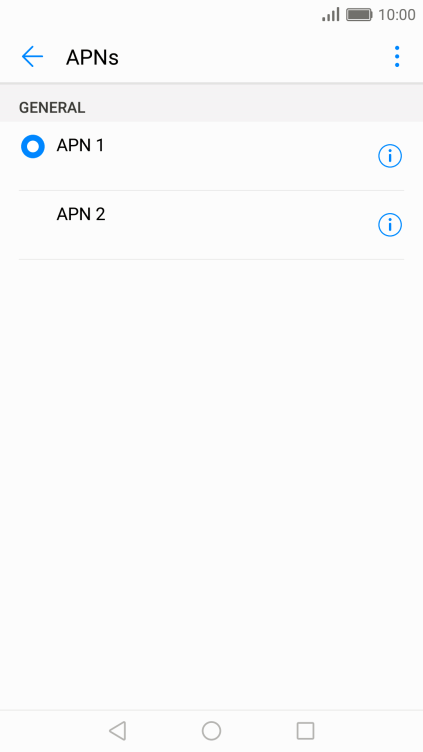

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-32014cbe-1044-4fcb-bfa4-84e93c1b939e.png?width=210&height=376)
