1. Find "Access Point Names"
Press Settings.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-f77a8e56-b2f6-4fb7-bd8a-668274854c25.png?width=204&height=446)
Press Wireless & networks.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-cb0ac1eb-addc-42be-8381-27406e1c35e1.png?width=204&height=446)

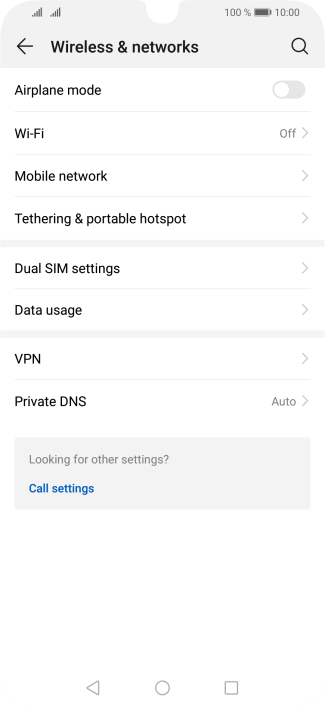

Press Mobile network.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-8d2a0faa-8c38-4858-8495-d1626a101741.png?width=204&height=446)

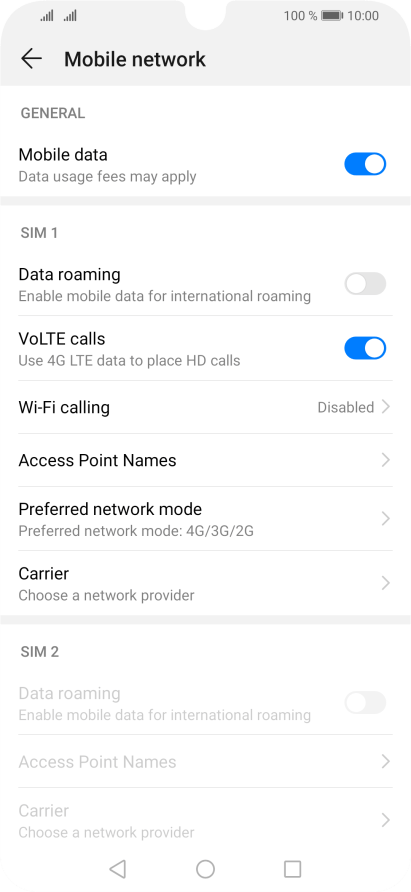

Press Access Point Names.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-fa93df1b-cb4e-4fd8-b93c-d59196d07363.png?width=204&height=446)
2. Create new data connection

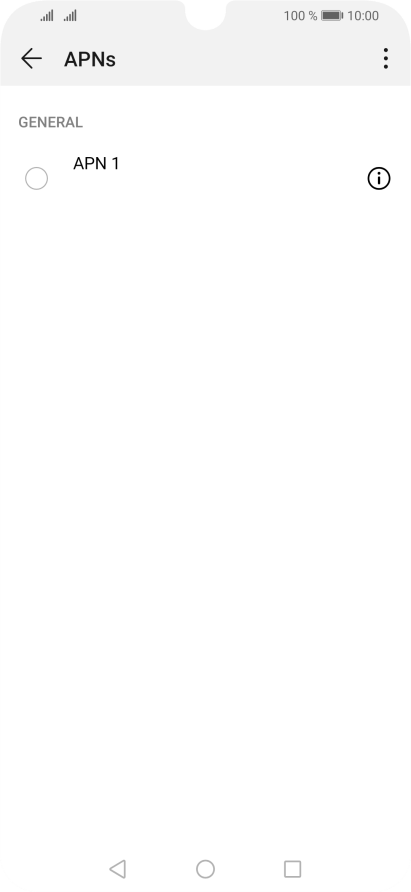

Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-057e78a1-99a4-4189-ba70-f70bde5af773.png?width=204&height=446)

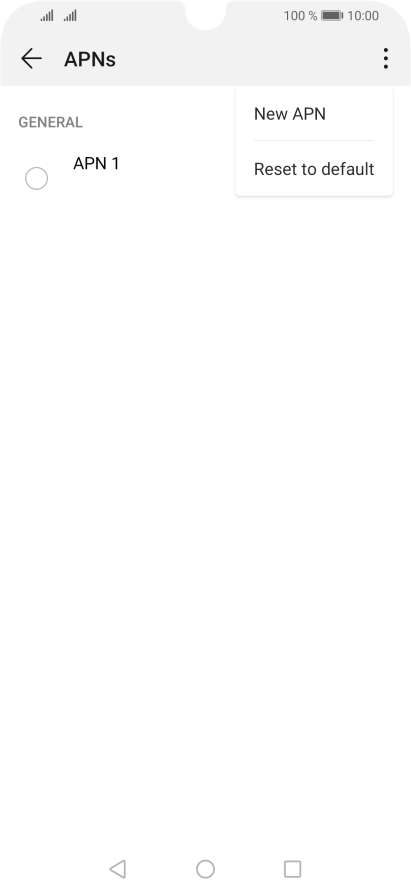

Press New APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-d90ed9f8-5006-4ec2-a234-c0a1359e193a.png?width=204&height=446)
3. Enter a name for the connection

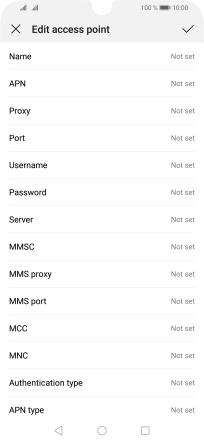

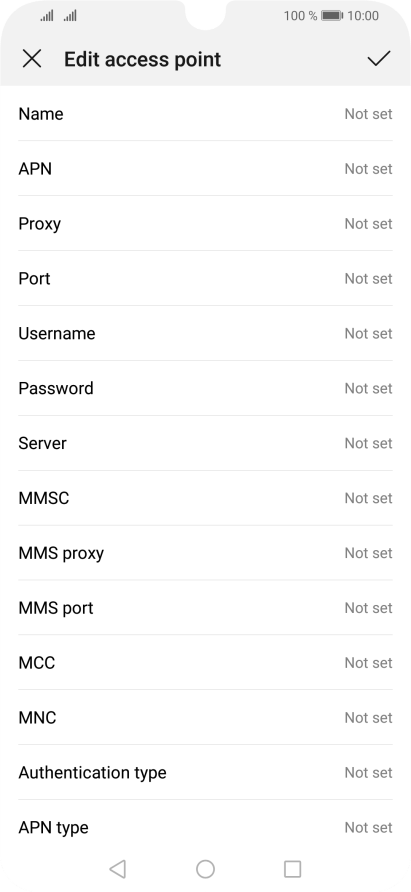

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-c7463930-037e-4665-9681-913f70486bd6.png?width=204&height=446)
Key in Vodafone Internet and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-4b2da41e-07c5-4d88-a430-f0607bfaf200.png?width=204&height=446)
Vodafone Internet
4. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-c7463930-037e-4665-9681-913f70486bd6.png?width=204&height=446)

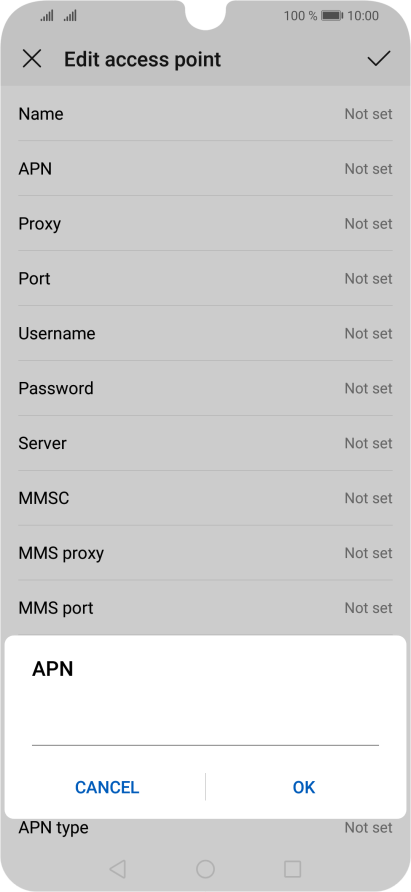

Key in live.vodafone.com and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-d53b315d-58cf-4b09-9810-726d90f531ff.png?width=204&height=446)
live.vodafone.com
5. Enter country code
Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-c7463930-037e-4665-9681-913f70486bd6.png?width=204&height=446)
Key in 272 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-be52c14e-1f63-4921-abaa-3386fecae5ef.png?width=204&height=446)
272
6. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-c7463930-037e-4665-9681-913f70486bd6.png?width=204&height=446)

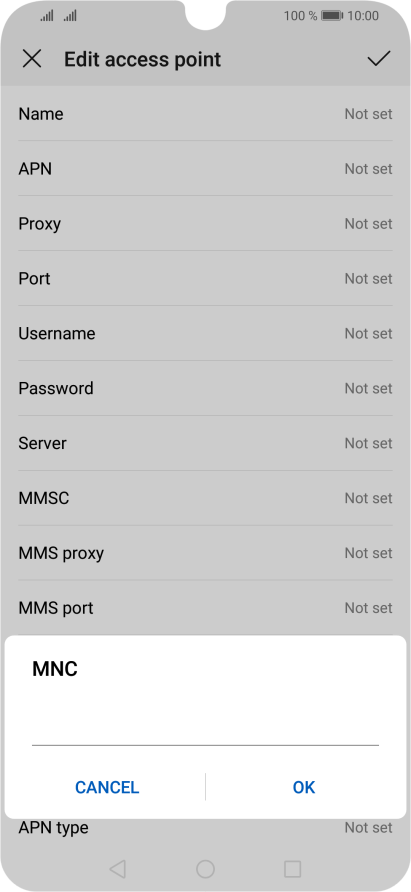

Key in 01 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-c541a782-9740-454d-8309-b112fbd54cf0.png?width=204&height=446)
01
7. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-c7463930-037e-4665-9681-913f70486bd6.png?width=204&height=446)

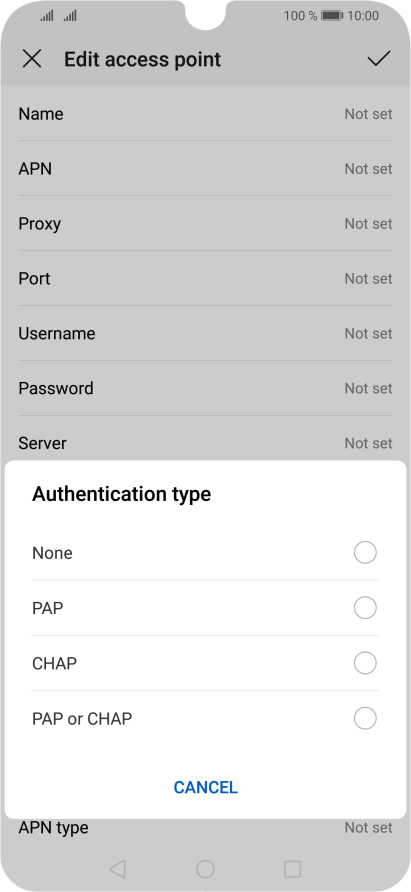

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-1406c0d5-841a-4daa-b263-a236d72eec19.png?width=204&height=446)
8. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-c7463930-037e-4665-9681-913f70486bd6.png?width=204&height=446)

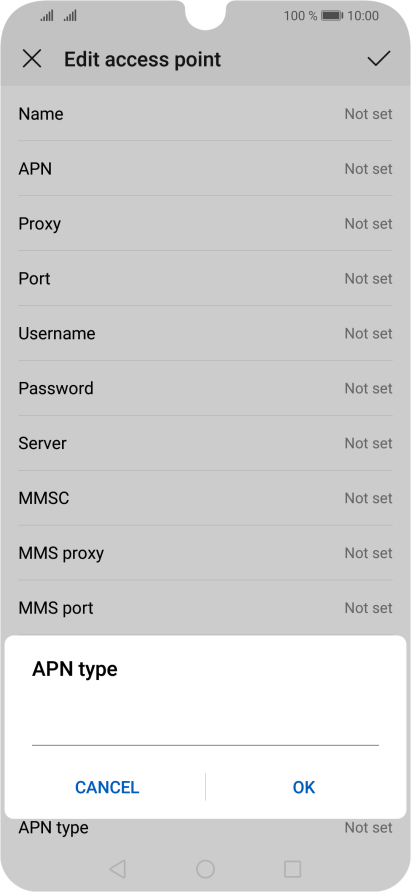

Key in default and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-7194402a-d7a2-4511-ad5c-e61725f23ee7.png?width=204&height=446)
default
9. Save data connection
Press the confirm icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-c7463930-037e-4665-9681-913f70486bd6.png?width=204&height=446)

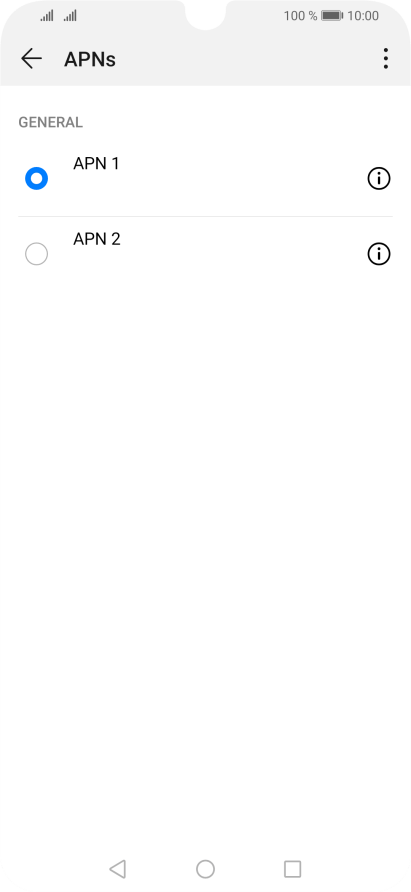

Press the field next to the required data connection to activate it.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-2cc7808e-ceca-41fd-b3b2-d9ecd189c62a.png?width=204&height=446)
10. Return to the home screen

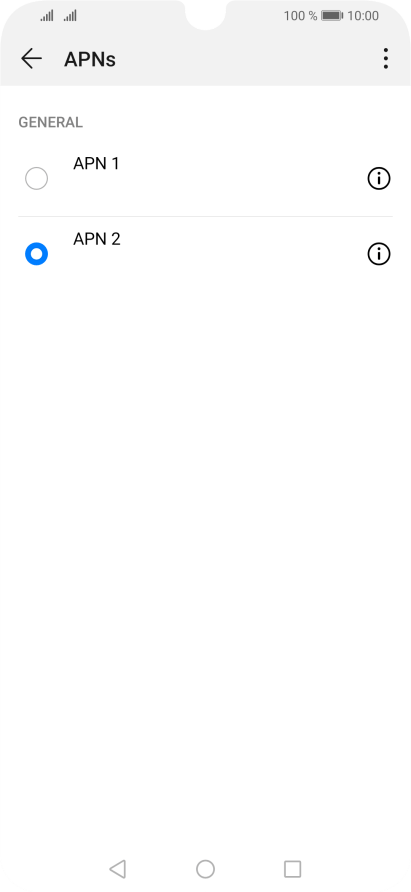

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ebd23fdd-f1b5-4082-8d15-2f6c14bc48be.png?width=204&height=446)
