1. Find "Access Point Names (APNs)"
Press Settings.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-3fe24a4a-3ad5-4a64-9421-f22ef1d99058.png?width=218&height=448)
Press Mobile network.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-1f006724-ae12-4eda-af83-60534b43fcbb.png?width=218&height=448)
Press Mobile data.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-983cfb1b-65a2-4ef3-aba1-d140de20df2b.png?width=218&height=448)
Press Access Point Names (APNs).
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-4bdb1c3a-843c-4108-b3df-39215fd54db1.png?width=218&height=448)
2. Create new data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-27372ae2-4b00-427c-a93f-4da1cc3cd6fc.png?width=218&height=448)
Press New APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-cf919102-d89d-4488-8fb3-650908dff386.png?width=218&height=448)
3. Enter a name for the connection
Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-475bcc9f-1d71-4791-847d-287d536481cd.png?width=218&height=448)
Key in Vodafone Internet and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ece7b23d-dd3f-4358-b2d2-a41b60d63d7c.png?width=218&height=448)
Vodafone Internet
4. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-475bcc9f-1d71-4791-847d-287d536481cd.png?width=218&height=448)
Key in live.vodafone.com and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-f656ce72-f99b-4bf2-ad33-56b9a4f5080b.png?width=218&height=448)
live.vodafone.com
5. Enter country code
Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-475bcc9f-1d71-4791-847d-287d536481cd.png?width=218&height=448)
Key in 272 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-8a85e2cd-1d11-41a4-8e52-e0281ead6470.png?width=218&height=448)
272
6. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-475bcc9f-1d71-4791-847d-287d536481cd.png?width=218&height=448)
Key in 01 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-06d5a309-1733-4c8a-b34c-9eec8affb05f.png?width=218&height=448)
01
7. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-475bcc9f-1d71-4791-847d-287d536481cd.png?width=218&height=448)
Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-26bb1584-9097-494f-b8d4-45da73d7b273.png?width=218&height=448)
8. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-475bcc9f-1d71-4791-847d-287d536481cd.png?width=218&height=448)
Key in default and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-3fc74b3c-40df-40d2-bb49-e78e790a074a.png?width=218&height=448)
default
9. Save data connection
Press the confirm icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-475bcc9f-1d71-4791-847d-287d536481cd.png?width=218&height=448)

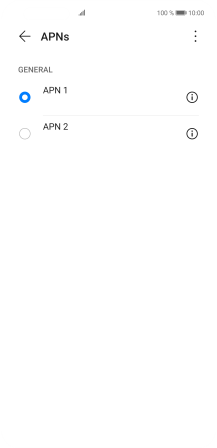

Press the field next to the required data connection to activate it.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-8e3f0f92-914f-4525-8e94-1a5a8dc834e4.png?width=218&height=448)
10. Return to the home screen

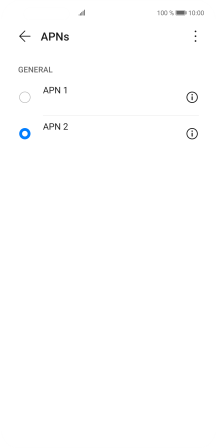

Slide your finger upwards starting from the bottom of the screen to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-c079f6b8-bd1c-4fc3-85ae-7855708497d7.png?width=218&height=448)
