1. Find "Access Point Name"
Press Settings.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-29ffbbbf-5776-4fd6-a30d-2cbc509f7448.png?width=212&height=424)
Press Wireless & networks.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-76a3dfb4-cb0d-47f1-a053-94fb02f586b4.png?width=212&height=424)
Press Mobile network.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-0261a4a7-4778-4c1a-9f3a-5b91da9e3084.png?width=212&height=424)
Press Access Point Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-468874a1-2abf-4adc-8c25-7ef253a08323.png?width=212&height=424)
2. Create new data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-c9b6626c-8117-4117-a5c2-f380de0277f1.png?width=212&height=424)
Press New APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-3e0947b1-7b38-4b83-84a0-91e650b8b9ab.png?width=212&height=424)
3. Enter a name for the connection
Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-b6d07891-c2bc-4e0c-aa7d-198a545d8ea7.png?width=212&height=424)
Key in Vodafone Internet and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-f816ef7c-f22b-4498-ab67-a259da521c2a.png?width=212&height=424)
Vodafone Internet
4. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-b6d07891-c2bc-4e0c-aa7d-198a545d8ea7.png?width=212&height=424)
Key in live.vodafone.com and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-fde59494-44f6-4803-abdb-9f9bb1694d95.png?width=212&height=424)
live.vodafone.com
5. Enter country code
Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-3b957554-39b9-4c8e-b453-e123fd9c874a.png?width=212&height=424)
Key in 272 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-fc15d97c-19c0-46fc-8c50-59f15aa4194c.png?width=212&height=424)
272
6. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-3b957554-39b9-4c8e-b453-e123fd9c874a.png?width=212&height=424)
Key in 01 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-5e1599a0-a4a3-40b4-a6c0-9b2d837e0014.png?width=212&height=424)
01
7. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-3b957554-39b9-4c8e-b453-e123fd9c874a.png?width=212&height=424)
Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-b7e47f54-eb3f-41c9-8230-60dadab621b0.png?width=212&height=424)
8. Select APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-3b957554-39b9-4c8e-b453-e123fd9c874a.png?width=212&height=424)
Key in default and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-c5ae676b-3814-4e98-bc17-a1f32b970296.png?width=212&height=424)
default
9. Save data connection
Press the confirm icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-3b957554-39b9-4c8e-b453-e123fd9c874a.png?width=212&height=424)

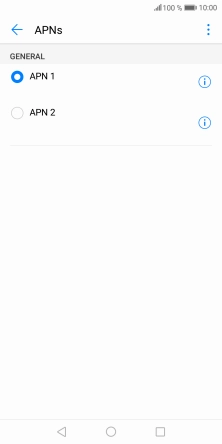

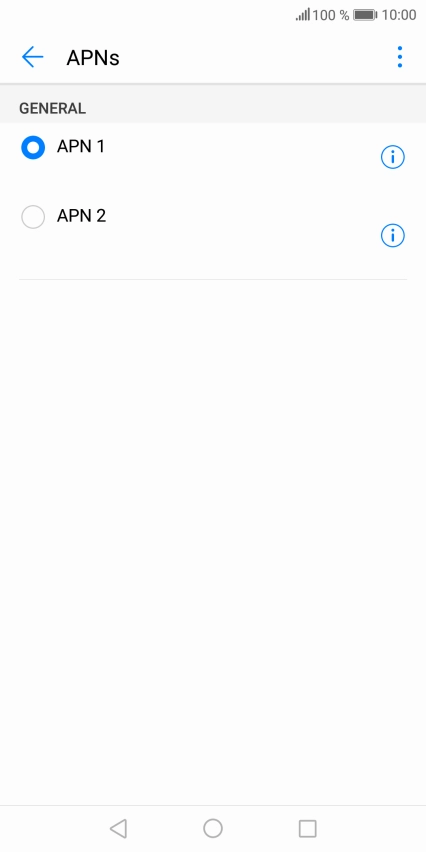

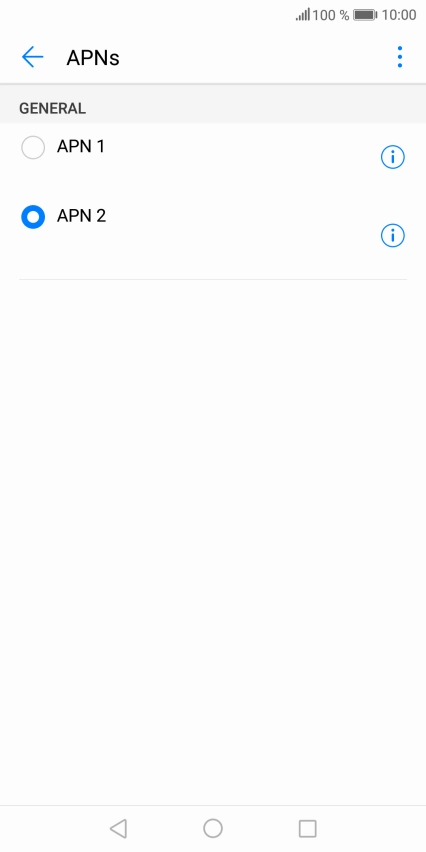

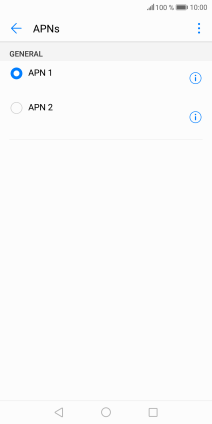

Press the field next to the required data connection to activate it.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-eb13f824-0bca-4271-a11f-af274e733c4e.png?width=212&height=424)
10. Return to the home screen
Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-025f9b2a-0023-4568-b5e6-9f8a70ab9e35.png?width=212&height=424)
