1. Find "Access point names"
Slide your finger downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-3b8110a4-69c3-42e7-9d98-28f2ea911c08.png?width=204&height=362)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-3a7078a3-b4dc-40c4-87c9-12762d877b90.png?width=204&height=362)

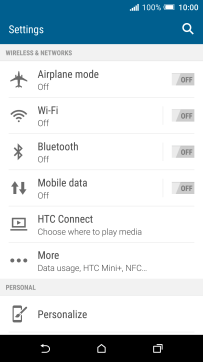

Press Mobile data.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-0d8f84cc-6083-4579-a667-561a38d5065f.png?width=204&height=362)

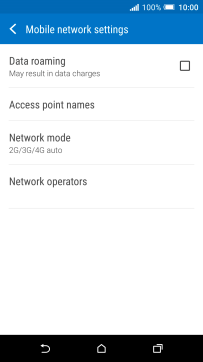

Press Access point names.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-5ec2c205-f8e2-4863-a5ac-39274176b5e8.png?width=204&height=362)
2. Create new data connection

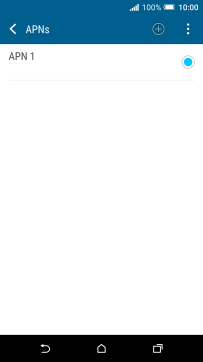

Press the new data connection icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-79694bd2-529a-45d1-b11c-eee054990354.png?width=204&height=362)

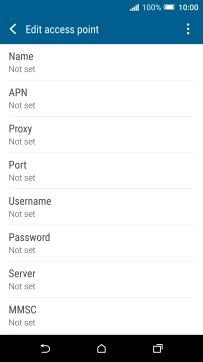

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-b8cdcd9f-8758-49e1-b5fb-0e2bf52ca7ef.png?width=204&height=362)

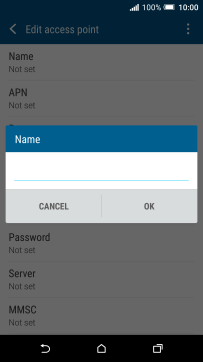

Key in Vodafone MMS and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-8a67af0f-5882-4519-8953-64329e235f1a.png?width=204&height=362)
Vodafone MMS
3. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-b8cdcd9f-8758-49e1-b5fb-0e2bf52ca7ef.png?width=204&height=362)
Key in mms.vodafone.net and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-5f409ded-76f0-4c86-9acc-04cd428d55b3.png?width=204&height=362)
mms.vodafone.net
4. Enter MMSC
Press MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-b8cdcd9f-8758-49e1-b5fb-0e2bf52ca7ef.png?width=204&height=362)

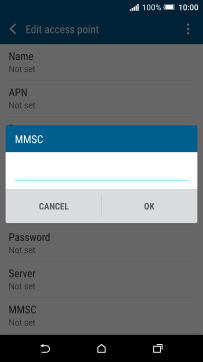

Key in http://www.vodafone.ie/mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-9841b399-2eab-43e6-9dfc-54c7ae8c8c63.png?width=204&height=362)
http://www.vodafone.ie/mms
5. Enter IP address

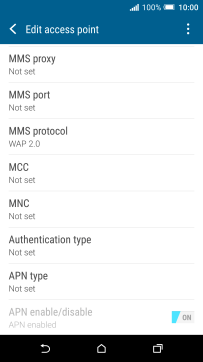

Press MMS proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-db34f956-73a9-48be-8ad3-29ad662d74c1.png?width=204&height=362)
Key in 10.24.59.200 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-a3ee17c4-e6ca-491a-8b2e-d5668467aaf7.png?width=204&height=362)
10.24.59.200
6. Enter port number
Press MMS port.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-db34f956-73a9-48be-8ad3-29ad662d74c1.png?width=204&height=362)

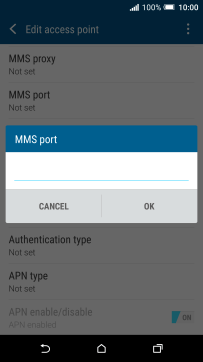

Key in 80 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-828d0054-4bb0-4d0c-b6ac-55d2ed7ecb44.png?width=204&height=362)
80
7. Enter country code
Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-db34f956-73a9-48be-8ad3-29ad662d74c1.png?width=204&height=362)
Key in 272 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-12cd1041-81ad-4999-9566-04727711b64b.png?width=204&height=362)
272
8. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-db34f956-73a9-48be-8ad3-29ad662d74c1.png?width=204&height=362)

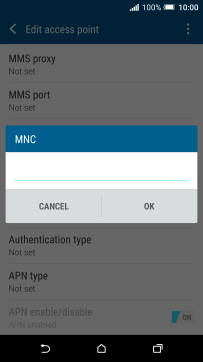

Key in 01 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-c5f80495-f8b9-404c-ad43-c1929c031a35.png?width=204&height=362)
01
9. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-db34f956-73a9-48be-8ad3-29ad662d74c1.png?width=204&height=362)

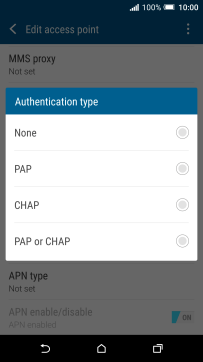

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-a8b0c9de-dcdd-4a1b-9da3-4e1185aa62e3.png?width=204&height=362)
10. Select APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-db34f956-73a9-48be-8ad3-29ad662d74c1.png?width=204&height=362)

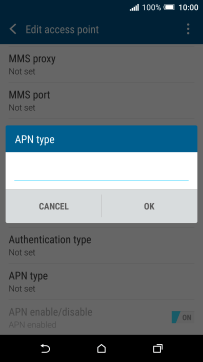

Key in mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-03eb51e0-e2b5-4257-9159-d5d5d8896297.png?width=204&height=362)
mms
11. Save data connection

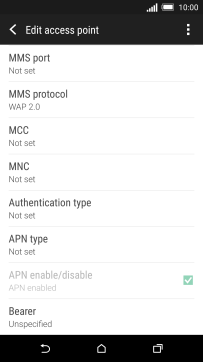

Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-c923f4df-5cd0-4d37-88cc-ea7f35de6f67.png?width=204&height=362)

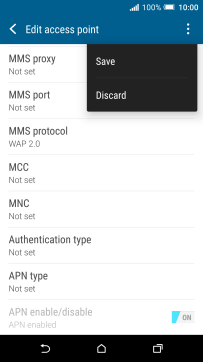

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-e72ad8f5-3449-4ee8-ac6c-a433b90a5925.png?width=204&height=362)
12. Return to the home screen

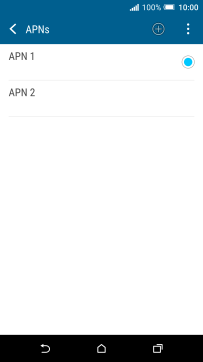

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-1173973f-1995-4c72-8a33-1351d70d5666.png?width=204&height=362)
