Set up your phone for POP3 email - HTC Explorer

Read help info

If you're using a POP3 email account in your email application on your computer, you can also set it up on your phone. Follow these instructions to set up your phone for POP3 email.
Please note that the steps below are based on a Vodafone Mail email account. If you have a web-based email account, such as Hotmail, Yahoo! Mail or Gmail, you need to use the settings for web-based email. Click here for information on how to set up your phone for web-based email.

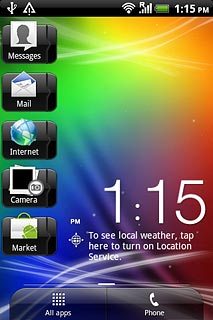

Step 1 of 53

Find "Access Point Names"

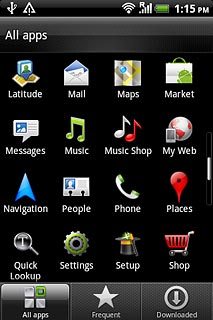

Press All apps to access the main menu.

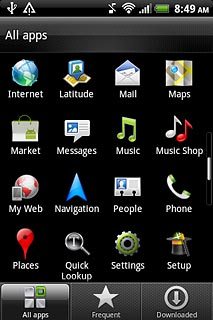

Step 2 of 53

Find "Access Point Names"

Press Settings.

Step 3 of 53

Find "Access Point Names"

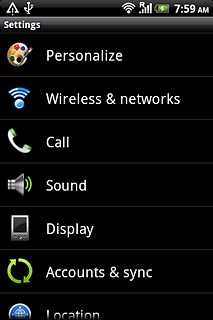

Press Wireless & networks.

Step 4 of 53

Find "Access Point Names"

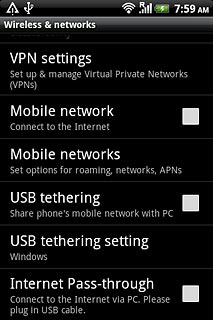

Press Mobile networks.

Step 5 of 53

Find "Access Point Names"

Press Access Point Names.

Step 6 of 53

Create new data connection

Press the Menu key.

Step 7 of 53

Create new data connection

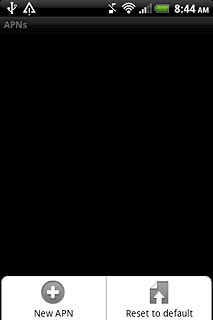

Press New APN.

Step 8 of 53

Enter data connection name

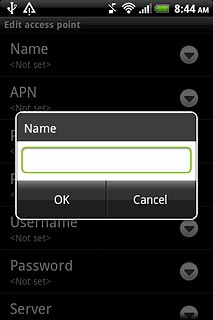

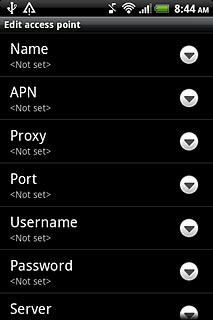

Press Name.

Step 9 of 53

Enter data connection name

Key in Vodafone Mail and press OK.

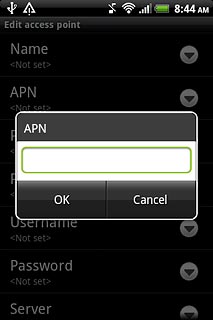

Step 10 of 53

Enter APN

Press APN.
Key in live.vodafone.com

An APN (Access Point Name) is used to establish a connection from your phone to the internet.
Step 11 of 53

Enter APN

Press OK.

An APN (Access Point Name) is used to establish a connection from your phone to the internet.

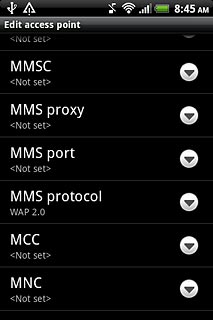

Step 12 of 53

Enter country code

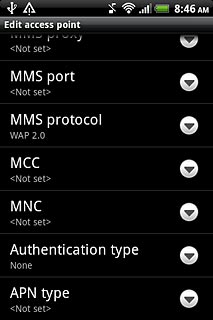

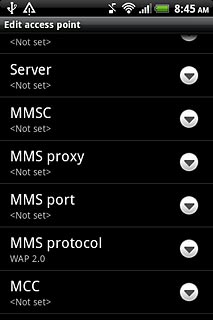

Press MCC.

Step 13 of 53

Enter country code

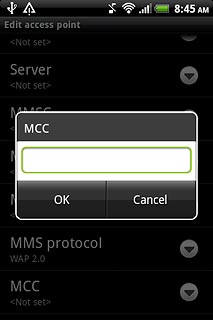

Key in 272 and press OK.

Step 14 of 53

Enter network code

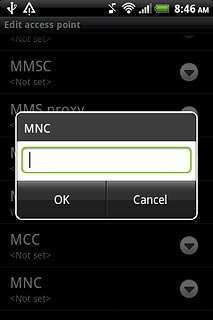

Press MNC.

Step 15 of 53

Enter network code

Key in 01 and press OK.

Step 16 of 53

Select authentication

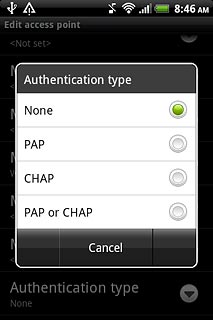

Press Authentication type.

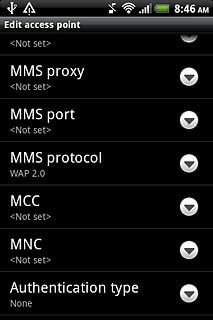

Step 17 of 53

Select authentication

Press None.

Step 18 of 53

Select APN type

Press APN type.

Step 19 of 53

Select APN type

Key in default and press OK.

Step 20 of 53

Save and activate data connection

Press the Menu key.

Step 21 of 53

Save and activate data connection

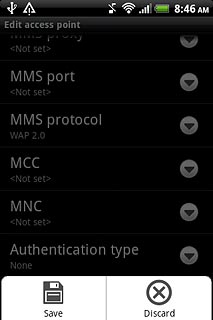

Press Save.

Step 22 of 53

Save and activate data connection

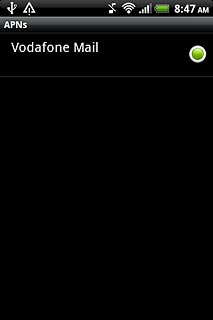

Press the field next to Vodafone Mail to fill in the field.

Step 23 of 53

Save and activate data connection

Press the Home key to return to standby mode.

Step 24 of 53

Find "Mail"

Press All apps to access the main menu.

Step 25 of 53

Find "Mail"

Press Mail.

Step 26 of 53

Create new email account

If email accounts have been created already:

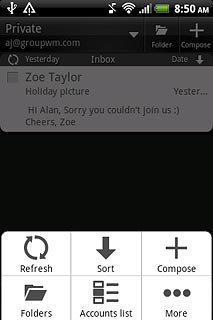

Press the Menu key.

Step 27 of 53

Create new email account

If required, press More.

Step 28 of 53

Create new email account

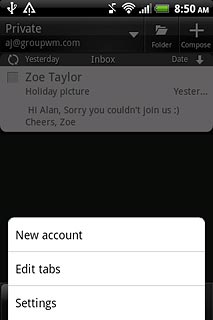

Press New account.

Step 29 of 53

Create new email account

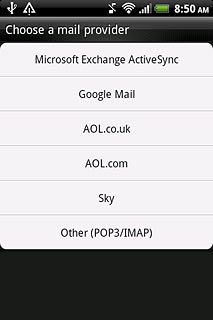

Press Other (POP3/IMAP).

Step 30 of 53

Enter email address

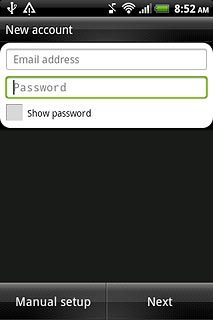

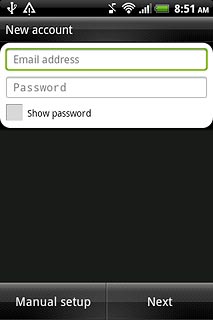

Press Email address and key in your Vodafone email address.

Step 31 of 53

Enter password

Press Password and key in the password for your email account at Vodafone.

Step 32 of 53

Enter password

Press Next.

Step 33 of 53

Select server type

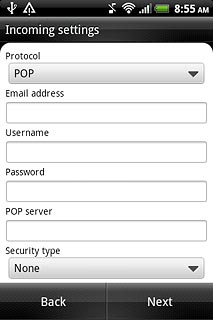

Press the drop down list below Protocol.

Step 34 of 53

Select server type

Press POP.

Step 35 of 53

Enter username

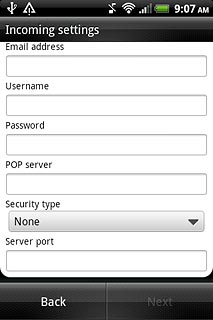

Press the field below Username and key in the username for your email account.

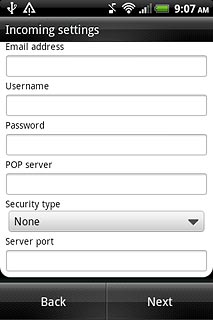

Step 36 of 53

Enter incoming server

Press the field below POP server and key in the name or IP address of your email provider's incoming server.

Step 37 of 53

Turn off SSL encryption of incoming email messages

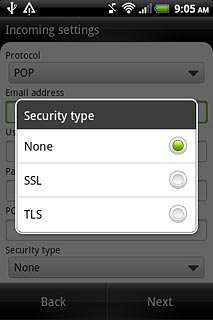

Press the drop down list below Security type.

SSL encryption protects your email messages when sending and receiving email messages. If you turn on SSL encryption, your email provider and internet service provider need to support this function, and you might need to select further settings before you can send and receive email messages.
Step 38 of 53

Turn off SSL encryption of incoming email messages

Press None.

SSL encryption protects your email messages when sending and receiving email messages. If you turn on SSL encryption, your email provider and internet service provider need to support this function, and you might need to select further settings before you can send and receive email messages.
Step 39 of 53

Enter incoming port

Press the field below Server port.
Key in 110

Step 40 of 53

Enter incoming port

Press Next.

Step 41 of 53

Turn on SMTP authentication

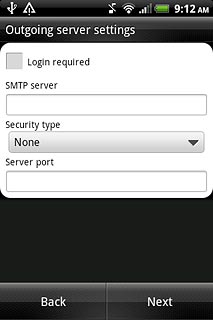

Press Login required to turn on SMTP authentication.

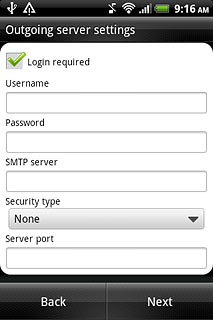

Step 42 of 53

Turn on SMTP authentication

When the box next to the menu item is ticked (V), the function is turned on.

Step 43 of 53

Enter username

Press the field below Username and key in the username for your email account.

Step 44 of 53

Enter password

Press the field below Password and key in the password for your mailbox at Vodafone.

Step 45 of 53

Enter outgoing server

Press the field below SMTP server and key in the name or IP address of your email provider's outgoing server.

Step 46 of 53

Turn off SSL encryption of outgoing email messages

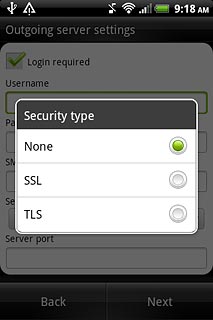

Press the drop down list below Security type.

SSL encryption protects your email messages when sending and receiving email messages. If you turn on SSL encryption, your email provider and internet service provider need to support this function, and you might need to select further settings before you can send and receive email messages.
Step 47 of 53

Turn off SSL encryption of outgoing email messages

Press None.

SSL encryption protects your email messages when sending and receiving email messages. If you turn on SSL encryption, your email provider and internet service provider need to support this function, and you might need to select further settings before you can send and receive email messages.
Step 48 of 53

Enter outgoing port

Press the field below Server port and key in 25

Step 49 of 53

Enter outgoing port

Press Next.

Step 50 of 53

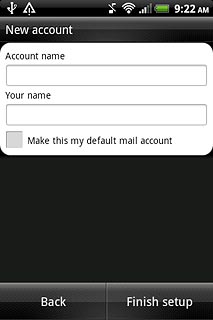

Enter email account name

Press the field below Account name and key in a name for your email account (such as Private or Work).

Step 51 of 53

Enter sender name

Press the field below Your name and key in the required sender name.

Step 52 of 53

Retrieve email messages

Press Finish setup.
Wait while your phone retrieves new email messages.

Step 53 of 53

Exit

Press the Home key to return to standby mode.
