1. Find "Screen lock"
Slide your finger downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-0e4dfb7a-39bf-4cb6-9660-9462966eaa92.png?width=204&height=362)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-e356c44c-6c39-459d-af9c-8d590186788d.png?width=204&height=362)

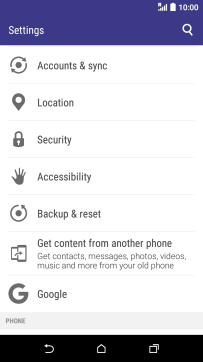

Press Security.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-65355105-37da-4e8a-9de9-41dc174f1798.png?width=204&height=362)

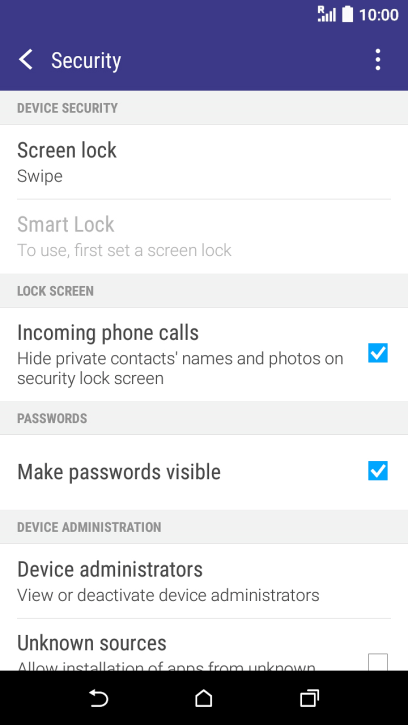

Press Screen lock. If you haven't previously selected a phone lock code, key in a code of your own choice twice.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-12031cf4-95a2-44f6-bd89-3bec568ec2ff.png?width=204&height=362)
2. Create phone lock code using a pattern

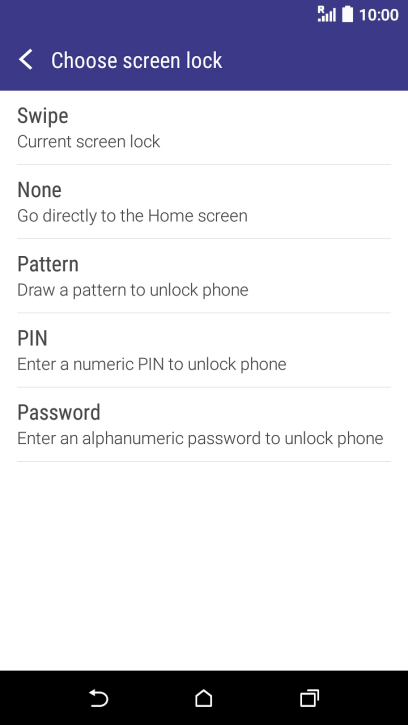

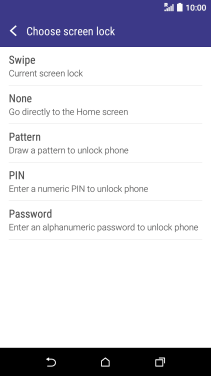

Press Pattern.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-5d881c6b-5f87-42c7-bd07-85777381a479.png?width=204&height=362)

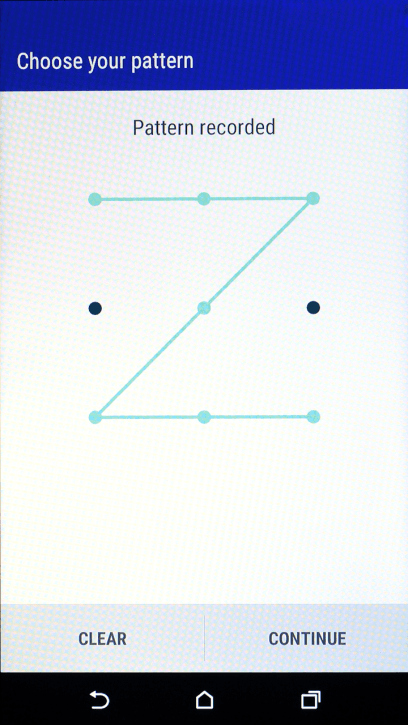

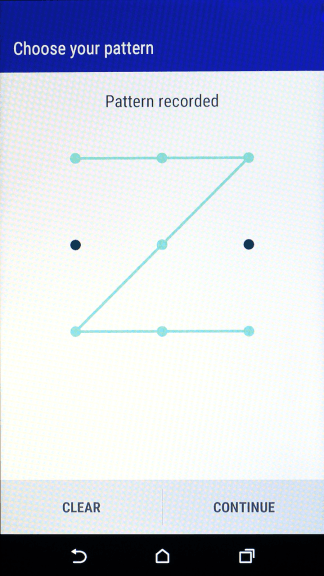

Slide your finger across the screen to connect at least four points and press CONTINUE.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-a45f82b8-b760-4edf-a0f7-6684e98fc600.png?width=204&height=362)

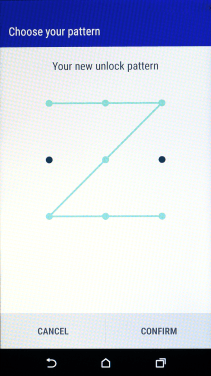

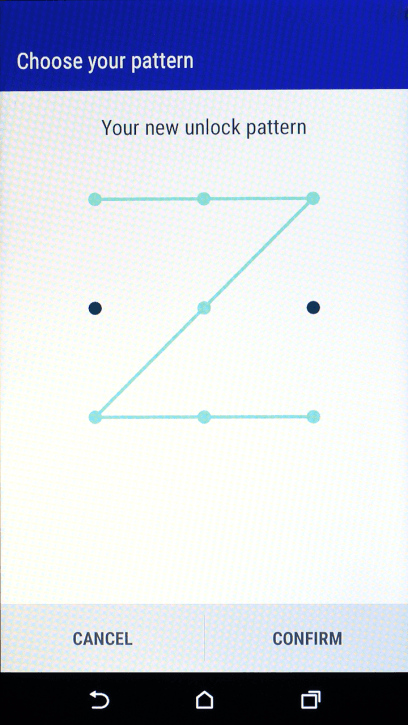

Repeat the selected phone lock code and press CONFIRM.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-055fa691-d030-4b08-b96e-db8ff959d051.png?width=204&height=362)
3. Select setting for displaying notifications on the lock screen

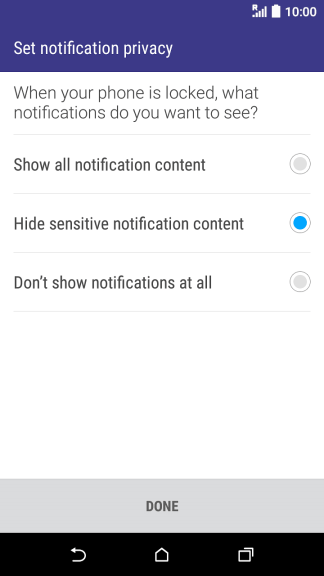

Press the required setting.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-3c903172-6503-495b-a13b-e84fa3a6d569.png?width=204&height=362)
Press DONE.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-3c903172-6503-495b-a13b-e84fa3a6d569.png?width=204&height=362)
4. Turn off use of phone lock code
Press Screen lock and key in the current phone lock code.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-12031cf4-95a2-44f6-bd89-3bec568ec2ff.png?width=204&height=362)
Press None.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-5d881c6b-5f87-42c7-bd07-85777381a479.png?width=204&height=362)

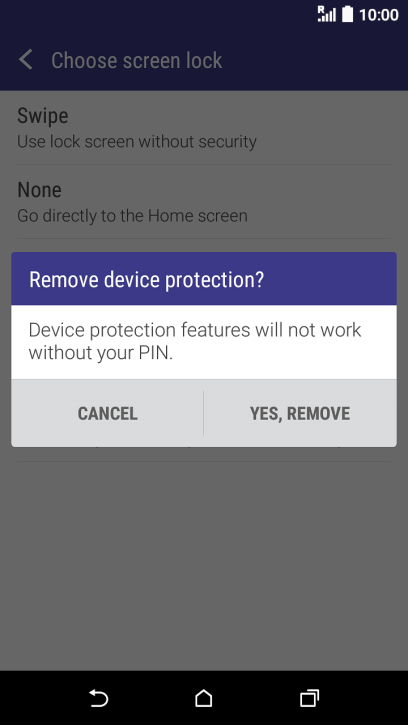

Press YES, REMOVE.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-e49a6e08-cd25-44e7-b6b1-0112085ac8d2.png?width=204&height=362)
5. Return to the home screen
Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-12031cf4-95a2-44f6-bd89-3bec568ec2ff.png?width=204&height=362)
