1. Find "Access point names"
Slide two fingers downwards starting from the top of the screen.
1. Find "Access point names"
Press the settings icon.
1. Find "Access point names"
Press Network & Internet.
1. Find "Access point names"
Press Mobile network.
1. Find "Access point names"
Press Advanced.
1. Find "Access point names"
Press Access point names.

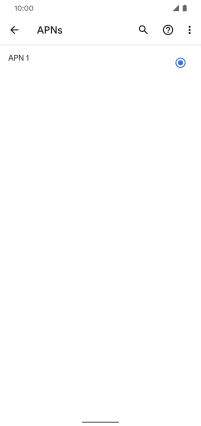

2. Create new data connection

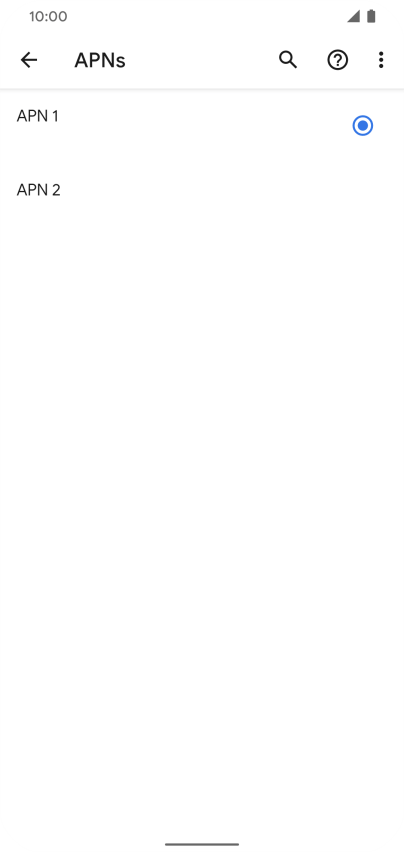

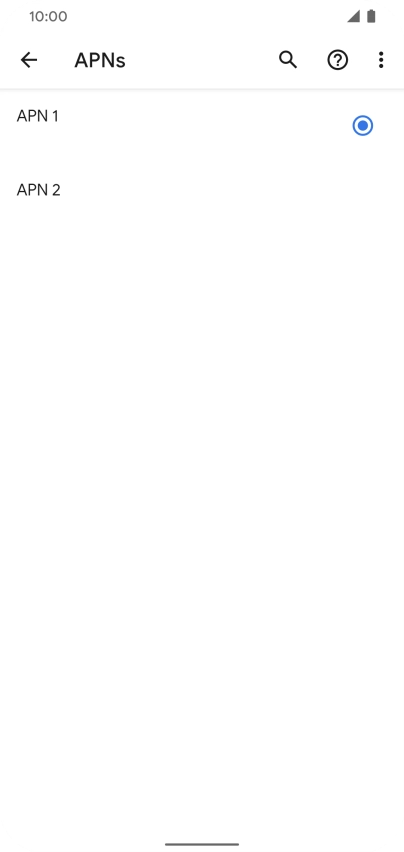

Press the menu icon.

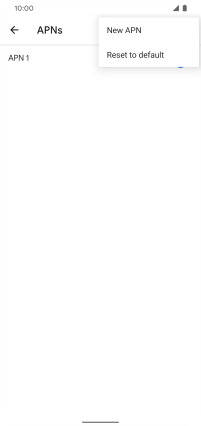

2. Create new data connection
Press New APN.
3. Enter a name for the connection
Press Name.
3. Enter a name for the connection
Key in Vodafone MMS and press OK.
4. Enter APN
Press APN.

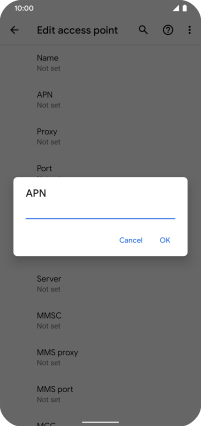

4. Enter APN
Key in mms.vodafone.net and press OK.
5. Enter picture messaging server

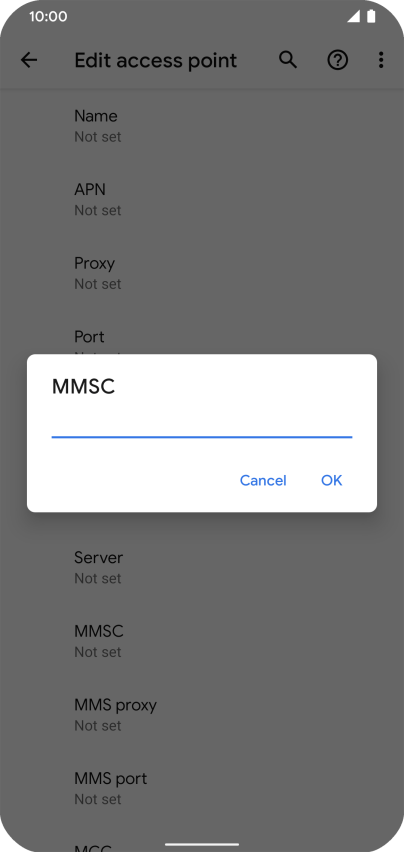

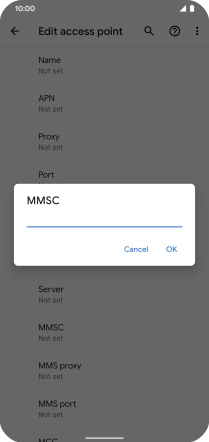

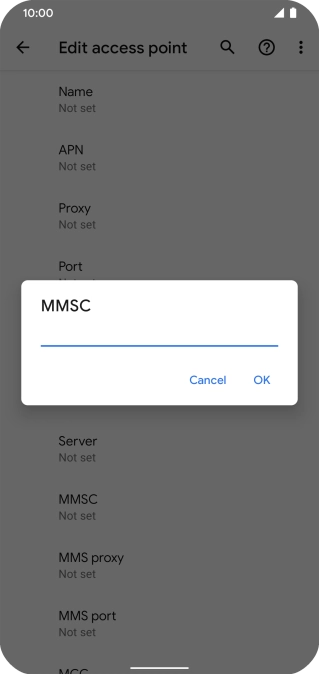

Press MMSC.
5. Enter picture messaging server
Key in http://www.vodafone.ie/mms and press OK.
6. Enter IP address

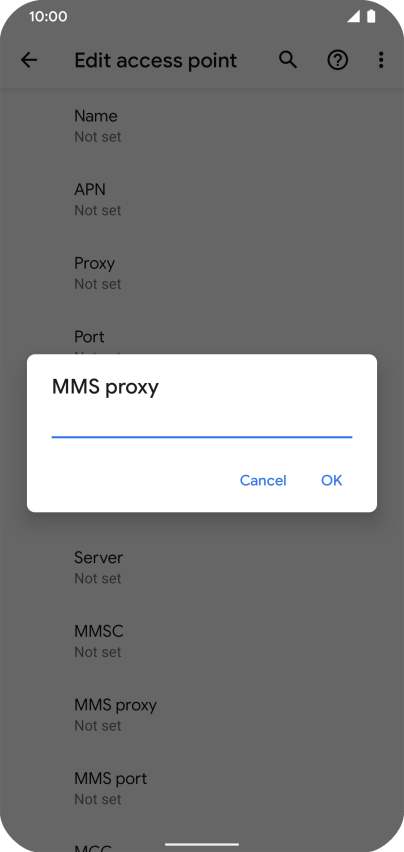

Press MMS proxy.
6. Enter IP address
Key in 10.24.59.200 and press OK.
7. Enter port number

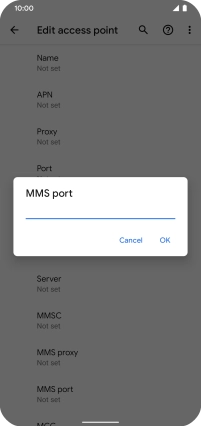

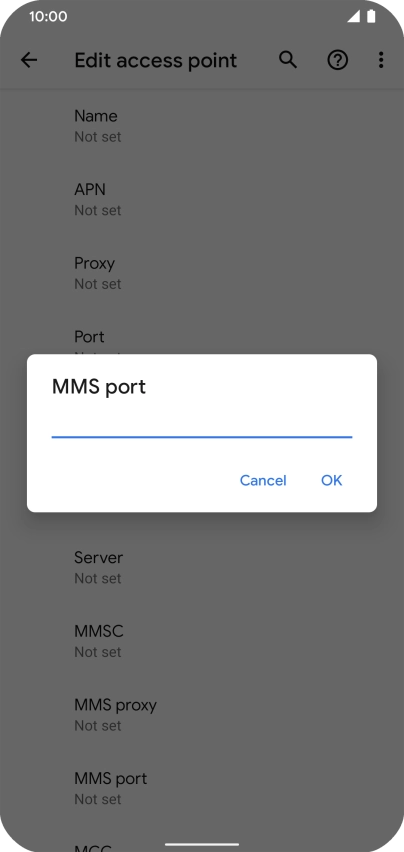

Press MMS port.
7. Enter port number
Key in 80 and press OK.
8. Enter country code
Press MCC.
8. Enter country code
Key in 272 and press OK.
9. Enter network code
Press MNC.
9. Enter network code
Key in 01 and press OK.
10. Select authentication type
Press Authentication type.
10. Select authentication type
Press PAP.
11. Enter APN type
Press APN type.

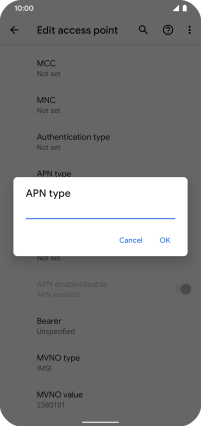

11. Enter APN type
Key in mms and press OK.
12. Save data connection
Press the menu icon.

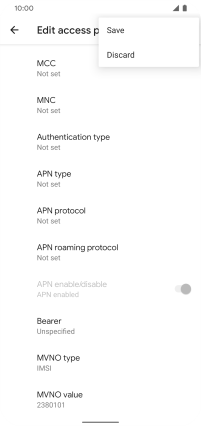

12. Save data connection
Press Save.
13. Return to the home screen
Slide your finger upwards starting from the bottom of the screen to return to the home screen.
