1. Find "Access point names"
Slide two fingers downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-8a6dbeab-932e-4543-a802-c718f42d1127.png?width=212&height=434)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-331afb2f-e0d0-45b8-8618-96dc62de958e.png?width=212&height=434)
Press Network & Internet.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-a783126a-ef0e-4902-a54d-056cdfec5d4c.png?width=212&height=434)
Press Mobile network.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-8e192c92-1ae5-47c1-9411-28a9ff7a426b.png?width=212&height=434)
Press Advanced.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-8e7749cf-1846-4363-8347-4c0ef6cb87a5.png?width=212&height=434)
Press Access point names.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-a3e6088a-58b5-4b3b-8162-2accf25f8e52.png?width=212&height=434)
2. Create new data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-270e8bb8-167d-4615-9ec6-abb3a5d258b4.png?width=212&height=434)
Press New APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-1334f3cb-2bdc-4927-9a57-bba175b4510b.png?width=212&height=434)
3. Enter a name for the connection
Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-a39b1625-32a9-4b64-b07c-6c609313e26f.png?width=212&height=434)
Key in Vodafone Internet and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-4a8801dd-ed54-4b2e-bf48-4a60f869b7d6.png?width=212&height=434)
Vodafone Internet
4. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-a39b1625-32a9-4b64-b07c-6c609313e26f.png?width=212&height=434)
Key in live.vodafone.com and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-bc9de917-8cb0-4ec2-bbd7-f9e5c8ac6740.png?width=212&height=434)
live.vodafone.com
5. Enter country code
Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-d4e7ca6b-8052-4b6a-823d-580948ebbe34.png?width=212&height=434)
Key in 272 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-393550fd-5a16-4f75-97e0-337f3e51113c.png?width=212&height=434)
272
6. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-d4e7ca6b-8052-4b6a-823d-580948ebbe34.png?width=212&height=434)
Key in 01 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-04619157-891f-41e4-8da3-60075f0f30aa.png?width=212&height=434)
01
7. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-d4e7ca6b-8052-4b6a-823d-580948ebbe34.png?width=212&height=434)
Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-1bd02931-f361-4ba6-a2e5-5d89faac803f.png?width=212&height=434)
8. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-d4e7ca6b-8052-4b6a-823d-580948ebbe34.png?width=212&height=434)
Key in default and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-bd87f7d2-b35c-409e-95e6-d91613e1814d.png?width=212&height=434)
default
9. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-d4e7ca6b-8052-4b6a-823d-580948ebbe34.png?width=212&height=434)
Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-7ede189b-b18e-4287-aa8f-3da8008c04a2.png?width=212&height=434)

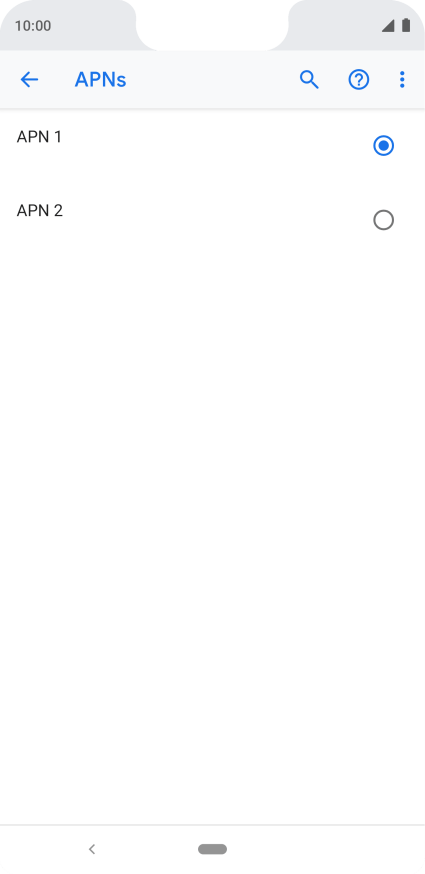

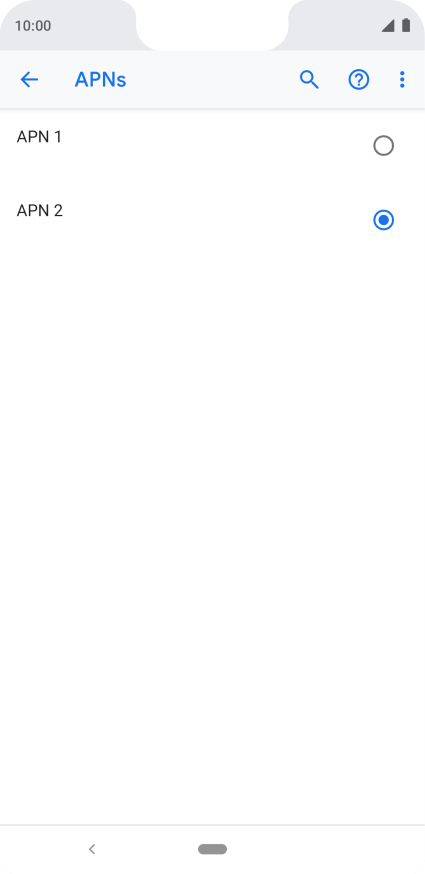

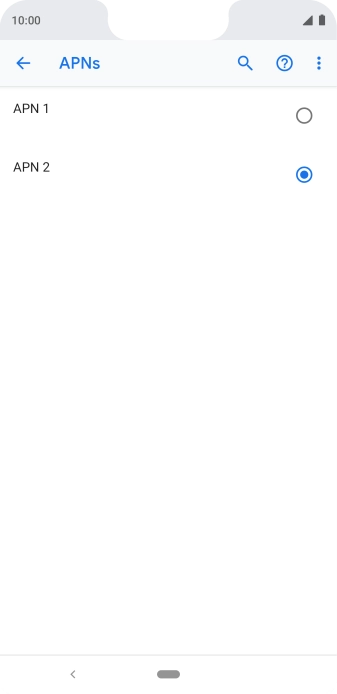

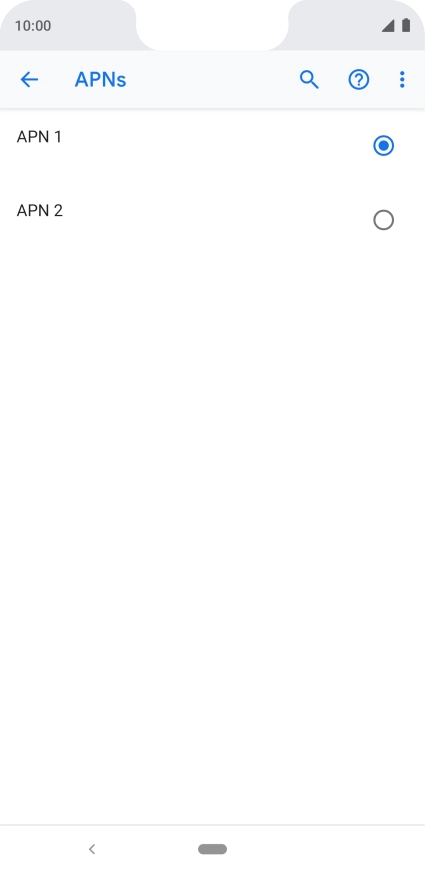

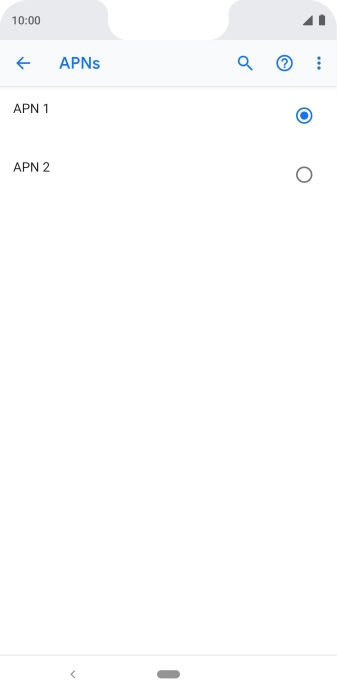

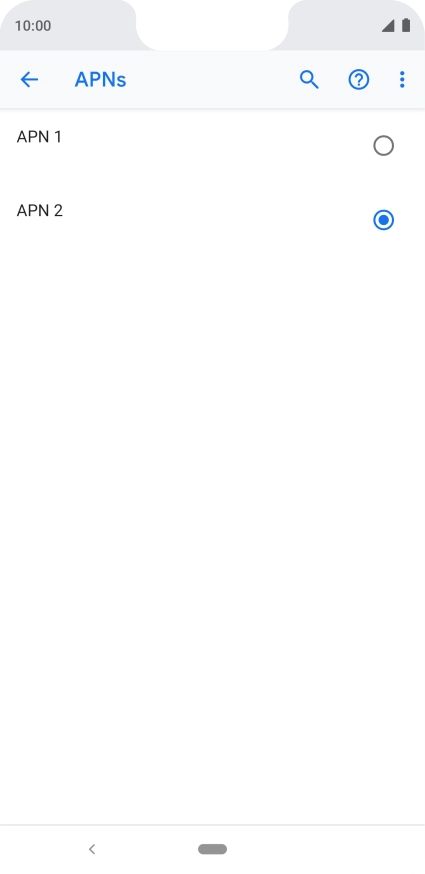

Press the field next to the required data connection to activate it.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-29420776-5b77-4c05-b43b-b8cbf7dc612c.png?width=212&height=434)
10. Return to the home screen
Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-3e9dbaad-6396-4ed8-9321-b23e1cfeffc8.png?width=212&height=434)
