1. Find "Access Point Names"
Slide two fingers downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-767cdf2b-308f-4ec5-833c-fe89a77b852f.png?width=194&height=388)

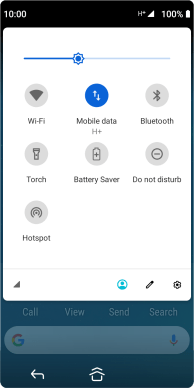

Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-c555acd5-52ef-488b-8f17-068d0616830a.png?width=194&height=388)

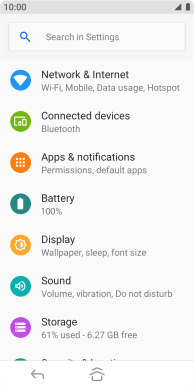

Press Network & Internet.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-fb9915a8-9874-47e2-8a38-49b0f7cb6837.png?width=194&height=388)

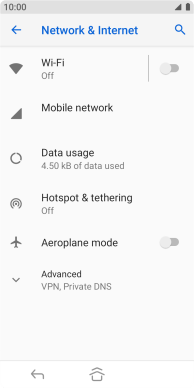

Press Mobile network.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-7f40d5d2-2b98-405e-a608-ae625bf92870.png?width=194&height=388)

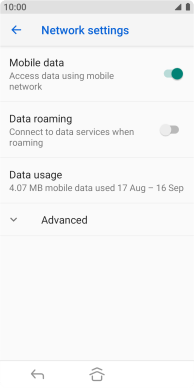

Press Advanced.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-d65dae8a-c923-4428-9cbf-57ccda808bc8.png?width=194&height=388)

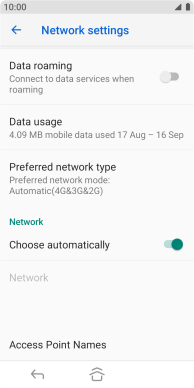

Press Access Point Names.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-c9678cb8-436a-46f3-8a07-da9fdc31cfac.png?width=194&height=388)
2. Create new data connection

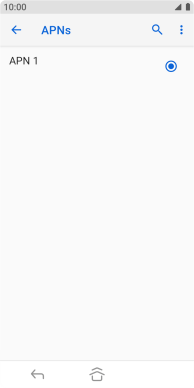

Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-b8f0af7d-bf06-435d-a633-d5404b79c6cb.png?width=194&height=388)

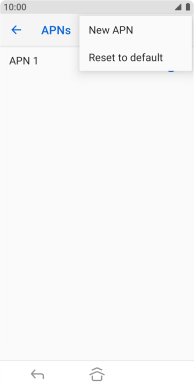

Press New APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-2d10818c-465c-40b7-8a9a-fb8f18323c37.png?width=194&height=388)
3. Enter a name for the connection

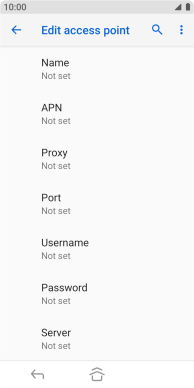

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-e0ca3665-8dab-4c8c-8126-5332fe84774b.png?width=194&height=388)

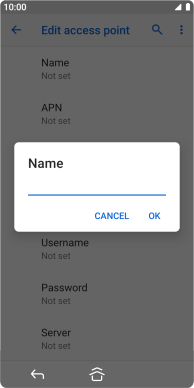

Key in Vodafone Internet and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-584677bd-699b-4f75-aaca-2564ddaf0ebf.png?width=194&height=388)
Vodafone Internet
4. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-e0ca3665-8dab-4c8c-8126-5332fe84774b.png?width=194&height=388)

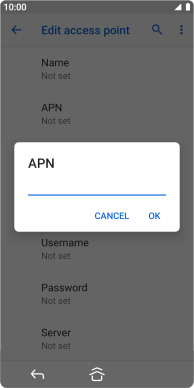

Key in live.vodafone.com and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-4ffea2b6-5620-4e56-9b1f-00d23f769842.png?width=194&height=388)
live.vodafone.com
5. Enter country code

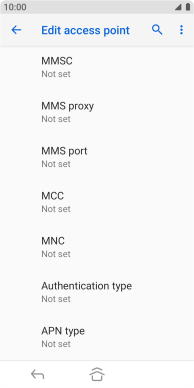

Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ab5fe6e5-e88d-4259-98e0-07b51ffcc88f.png?width=194&height=388)
Key in 272 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-c72cd5b6-d5b8-4b47-b33e-f20d11ba5eeb.png?width=194&height=388)
272
6. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ab5fe6e5-e88d-4259-98e0-07b51ffcc88f.png?width=194&height=388)

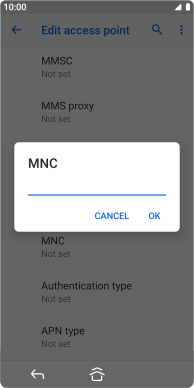

Key in 01 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-301d4f86-4469-4d31-8753-962f669c6631.png?width=194&height=388)
01
7. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ab5fe6e5-e88d-4259-98e0-07b51ffcc88f.png?width=194&height=388)

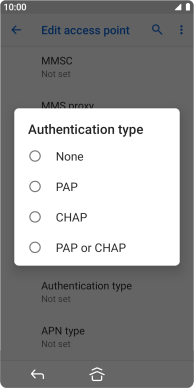

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-fa847c36-390c-454b-8841-e321126f7e94.png?width=194&height=388)
8. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ab5fe6e5-e88d-4259-98e0-07b51ffcc88f.png?width=194&height=388)

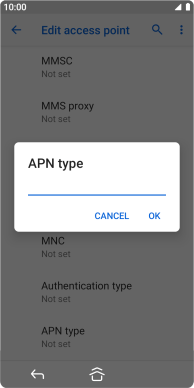

Key in default and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-79dd8b15-725a-48b9-9699-35613066ecab.png?width=194&height=388)
default
9. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ab5fe6e5-e88d-4259-98e0-07b51ffcc88f.png?width=194&height=388)

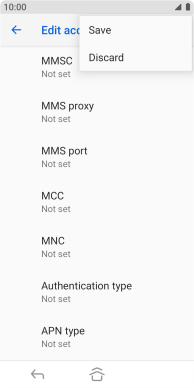

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-eafe2a40-8f78-4cf1-b41f-042e020ba4d7.png?width=194&height=388)

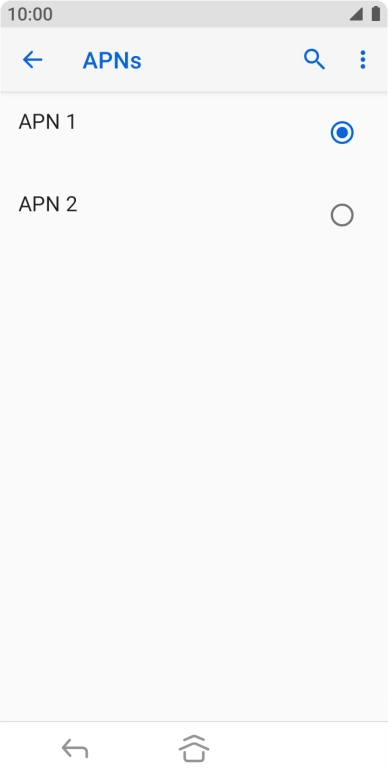

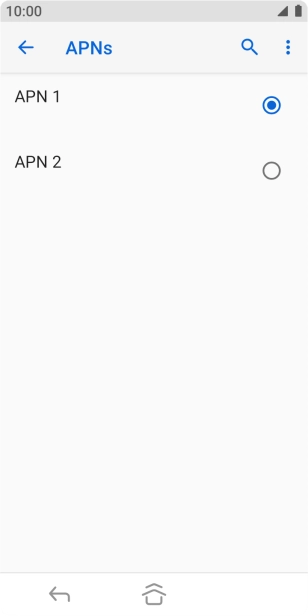

Press the field next to the data connection to activate it.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-e5749922-8c4b-4a2d-8116-6ab14180307d.png?width=194&height=388)
10. Return to the home screen

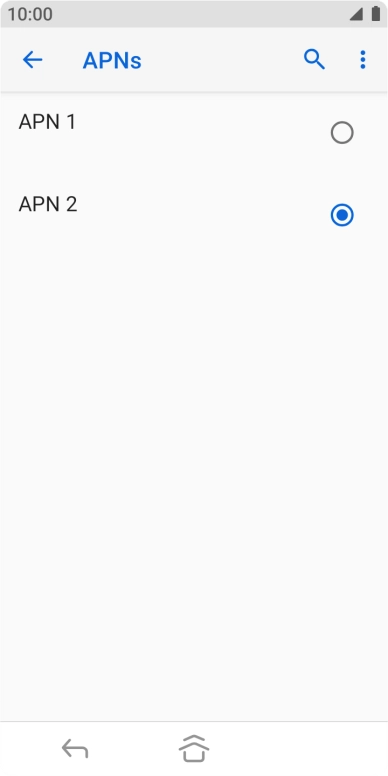

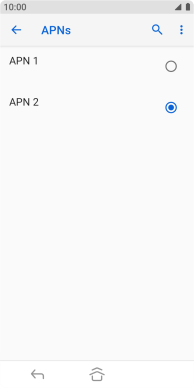

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-b6679aba-fdfc-4ed8-a78b-f85ecd63f3bf.png?width=194&height=388)
