Set up your phone for picture messaging - Vodafone Smart Chat

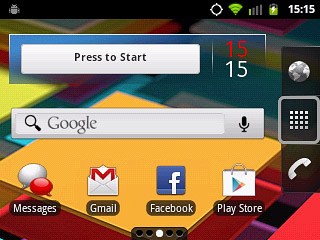

Step 1 of 39

Find "Access Point Names"

Press the menu icon.

Step 2 of 39

Find "Access Point Names"

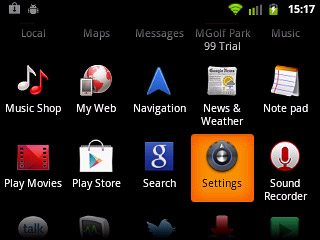

Press Settings.

Step 3 of 39

Find "Access Point Names"

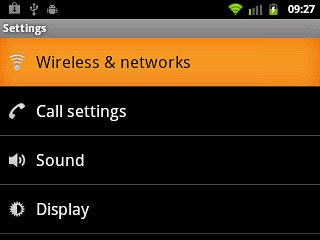

Press Wireless & networks.

Step 4 of 39

Find "Access Point Names"

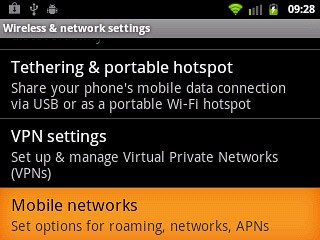

Press Mobile networks.

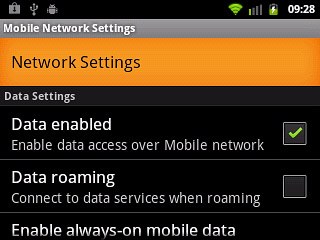

Step 5 of 39

Find "Access Point Names"

Press Network Settings.

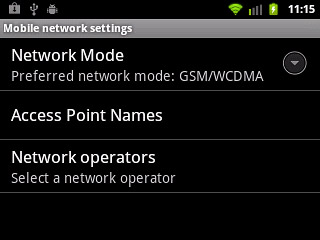

Step 6 of 39

Find "Access Point Names"

Press Access Point Names.

Step 7 of 39

Create new data connection

Press the Menu key.

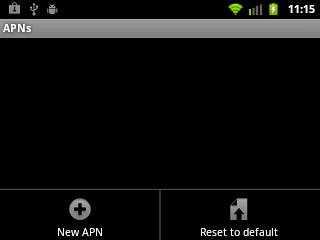

Step 8 of 39

Create new data connection

Press New APN.

Step 9 of 39

Enter data connection name

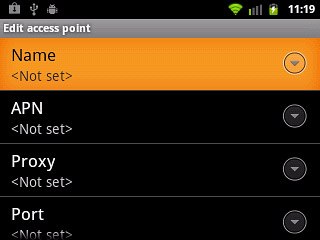

Press Name.

Step 10 of 39

Enter data connection name

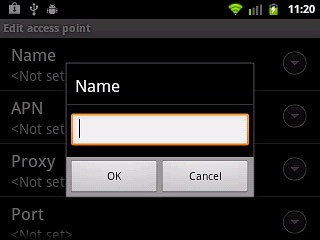

Key in Vodafone MMS and press OK.

Step 11 of 39

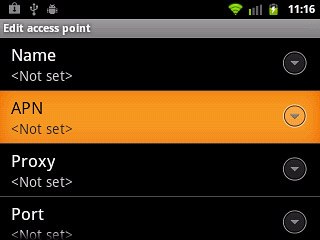

Enter APN

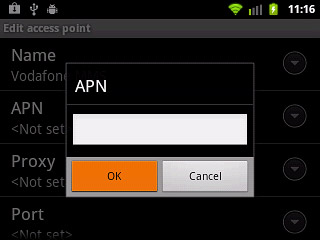

Press APN.

Step 12 of 39

Enter APN

Key in mms.vodafone.net and press OK.

Step 13 of 39

Enter picture messaging server

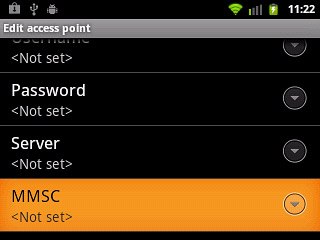

Press MMSC.

Step 14 of 39

Enter picture messaging server

Key in http://www.vodafone.ie/mms and press OK.

Step 15 of 39

Enter IP address

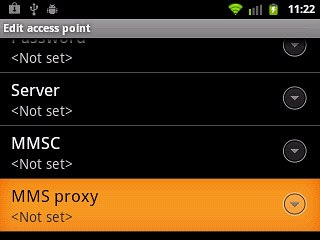

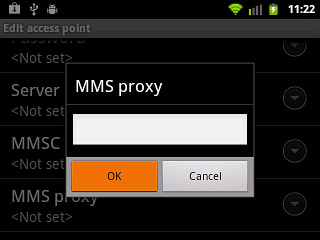

Press MMS proxy.

Step 16 of 39

Enter IP address

Key in 10.24.59.200 and press OK.

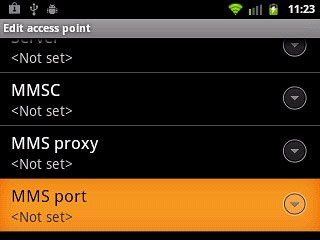

Step 17 of 39

Enter port number

Press MMS port.

Step 18 of 39

Enter port number

Key in 80 and press OK.

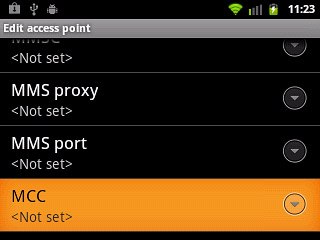

Step 19 of 39

Enter country code

Press MCC.

Step 20 of 39

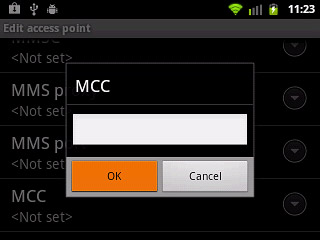

Enter country code

Key in 272 and press OK.

Step 21 of 39

Enter network code

Press MNC.

Step 22 of 39

Enter network code

Key in 01 and press OK.

Step 23 of 39

Select authentication type

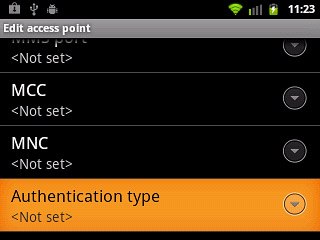

Press Authentication type.

Step 24 of 39

Select authentication type

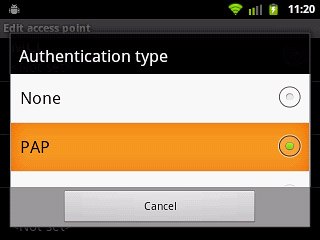

Press PAP.

Step 25 of 39

Select APN type

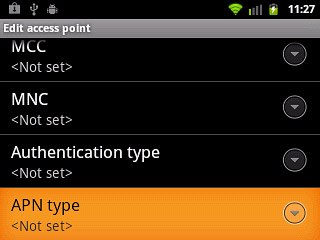

Press APN type.

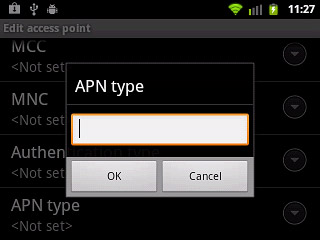

Step 26 of 39

Select APN type

Key in mms and press OK.

Step 27 of 39

Save data connection

Press the Menu key.

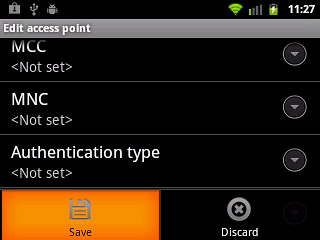

Step 28 of 39

Save data connection

Press Save.

Step 29 of 39

Save data connection

Press the Home key to return to standby mode.

Step 30 of 39

Find "Settings"

Press the menu icon.

Step 31 of 39

Find "Settings"

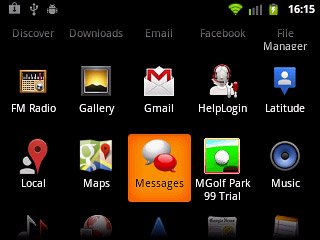

Press Messages.

Step 32 of 39

Find "Settings"

Press the Menu key.

Step 33 of 39

Find "Settings"

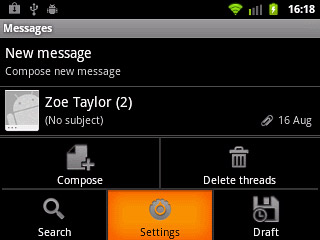

Press Settings.

Step 34 of 39

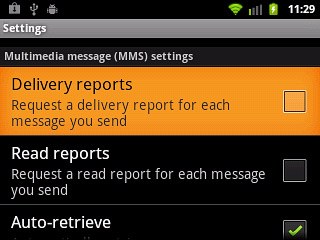

Turn request for delivery reports on or off

Press Delivery reports below Multimedia message (MMS) settings to turn the function off.
When the box next to the menu item is empty, the function is turned off.

Step 35 of 39

Select setting for picture message download in home network

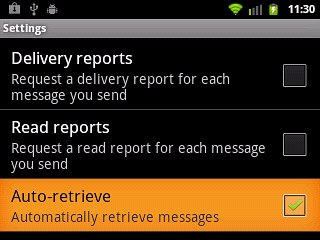

Press Auto-retrieve to turn on the function.

Step 36 of 39

Select setting for picture message download in home network

When the box next to the menu item is ticked (V), the function is turned on.

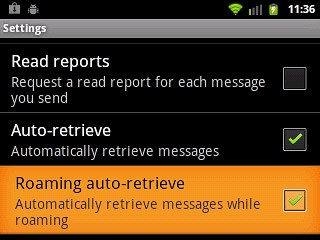

Step 37 of 39

Select setting for picture message download when roaming

Press Roaming auto-retrieve to turn on the function.

Step 38 of 39

Select setting for picture message download when roaming

When the box next to the menu item is ticked (V), the function is turned on.

Step 39 of 39

Exit

Press the Home key to return to standby mode.

1. Find "Access Point Names"

Press the menu icon.
Press Settings.
Press Wireless & networks.
Press Mobile networks.
Press Network Settings.
Press Access Point Names.

2. Create new data connection

Press the Menu key.
Press New APN.

3. Enter data connection name

Press Name.
Key in Vodafone MMS and press OK.

4. Enter APN

Press APN.
Key in mms.vodafone.net and press OK.

5. Enter picture messaging server

Press MMSC.
Key in http://www.vodafone.ie/mms and press OK.

6. Enter IP address

Press MMS proxy.
Key in 10.24.59.200 and press OK.

7. Enter port number

Press MMS port.
Key in 80 and press OK.

8. Enter country code

Press MCC.
Key in 272 and press OK.

9. Enter network code

Press MNC.
Key in 01 and press OK.

10. Select authentication type

Press Authentication type.
Press PAP.

11. Select APN type

Press APN type.
Key in mms and press OK.

12. Save data connection

Press the Menu key.
Press Save.
Press the Home key to return to standby mode.

13. Find "Settings"

Press the menu icon.
Press Messages.
Press the Menu key.
Press Settings.

14. Turn request for delivery reports on or off

Press Delivery reports below Multimedia message (MMS) settings to turn the function off.
When the box next to the menu item is empty, the function is turned off.

15. Select setting for picture message download in home network

Press Auto-retrieve to turn on the function.
When the box next to the menu item is ticked (V), the function is turned on.

16. Select setting for picture message download when roaming

Press Roaming auto-retrieve to turn on the function.
When the box next to the menu item is ticked (V), the function is turned on.

17. Exit

Press the Home key to return to standby mode.
