Vodafone R212/Windows 7

Vodafone R212

Set up your router for internet manually - Vodafone R212/Windows 7

Step 1 of 18

Turn on your router

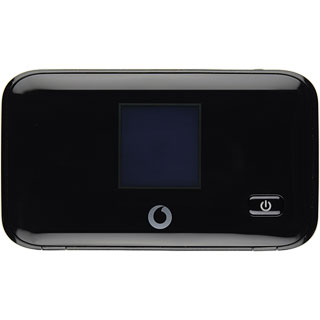

Press and hold On/Off.

Step 2 of 18

Connect to your Wi-Fi hotspot

Do the following in Windows:

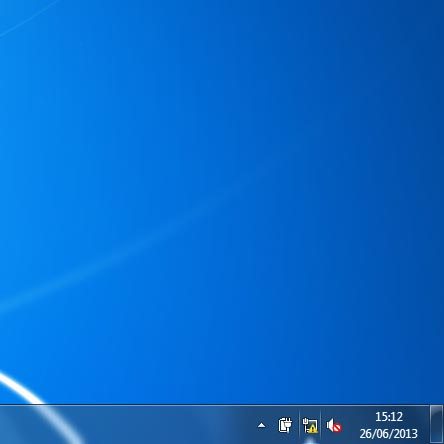

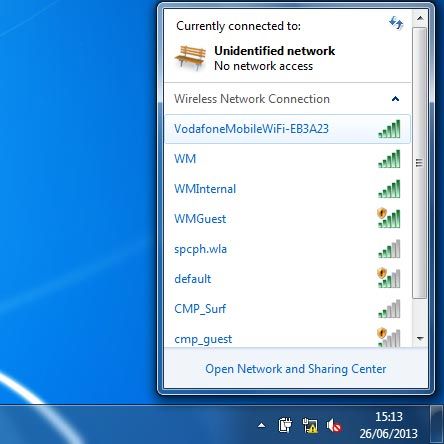

Click the network icon.

Step 3 of 18

Connect to your Wi-Fi hotspot

Highlight the name of your Wi-Fi hotspot and click Connect.

Step 4 of 18

Connect to your Wi-Fi hotspot

You can see the Wi-Fi hotspot name and password by pressing On/Off twice in quick succession.

Step 5 of 18

Connect to your Wi-Fi hotspot

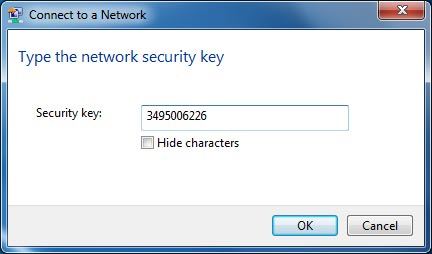

Key in the password for your Wi-Fi hotspot and click OK.
A connection to your Wi-Fi hotspot is established.

Vodafone R212/Windows 7
Step 6 of 18

Establish a connection to your router's web interface

Open a browser.
Key in 192.168.0.1 in the address bar and press Enter.

Step 7 of 18

Establish a connection to your router's web interface

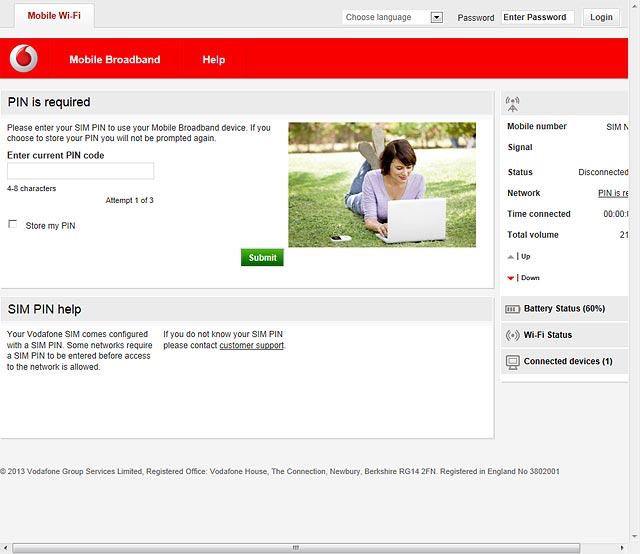

If you're asked to key in your PIN:

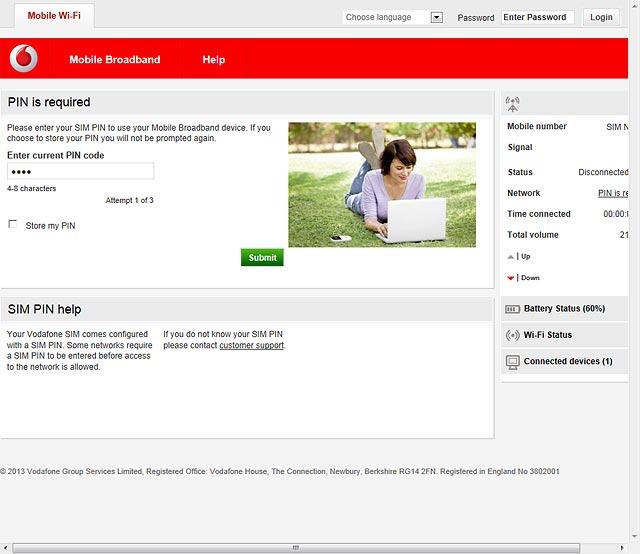

Highlight the field below "Enter current PIN code" and key in your PIN.

Step 8 of 18

Establish a connection to your router's web interface

Click Submit.

Step 9 of 18

Establish a connection to your router's web interface

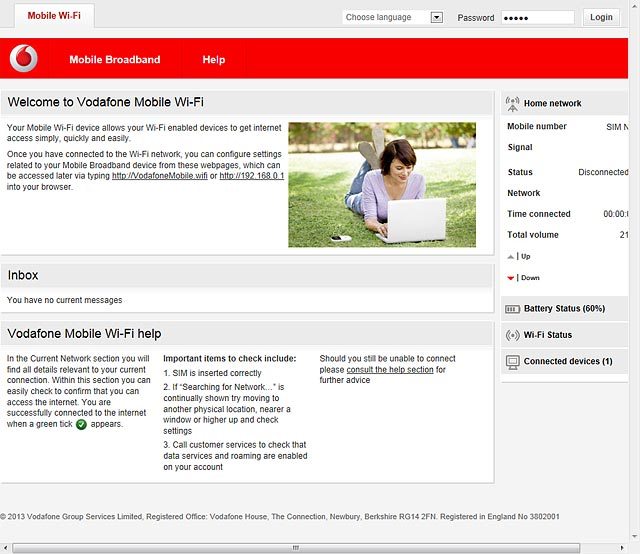

Highlight the field next to "Password" and key in admin

Step 10 of 18

Establish a connection to your router's web interface

Click Login.

Step 11 of 18

Find "Connection"

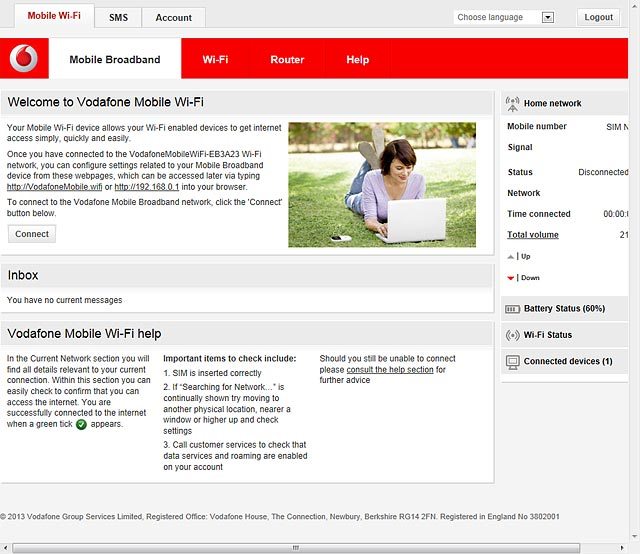

Click Mobile Broadband.

Step 12 of 18

Find "Connection"

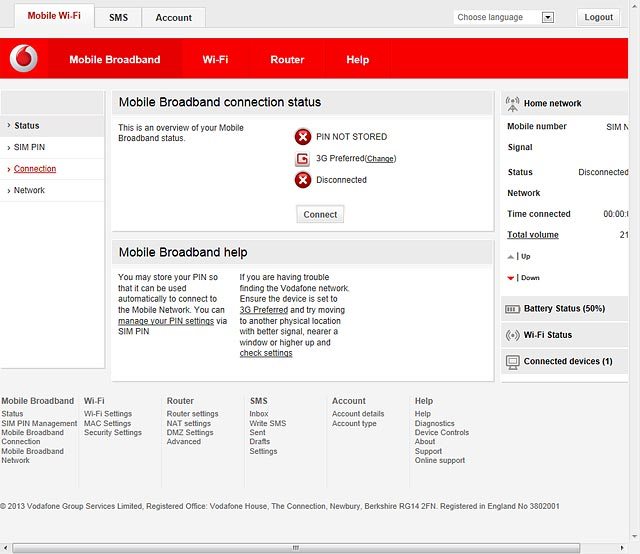

Click Connection.

Step 13 of 18

Create new data connection

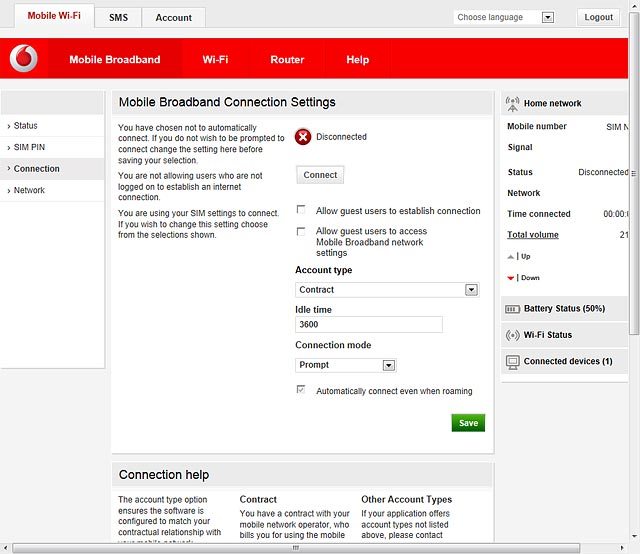

Click the drop down list below "Account type".

Step 14 of 18

Create new data connection

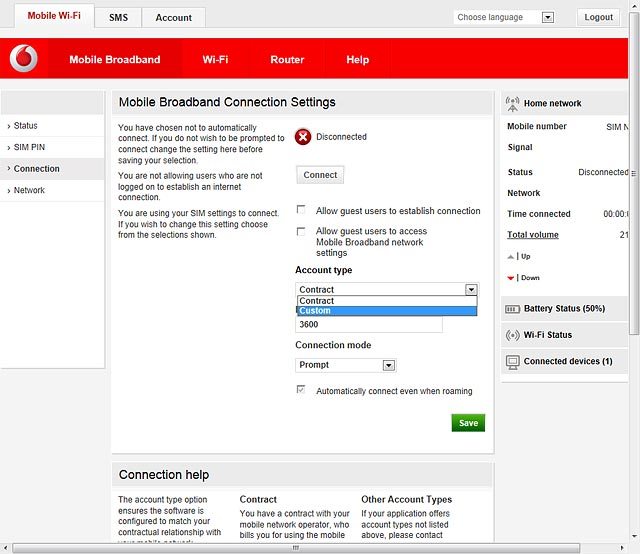

Highlight Custom.

Step 15 of 18

Enter APN

Highlight the field below "APN" and key in live.vodafone.com

Step 16 of 18

Enter dial-up number

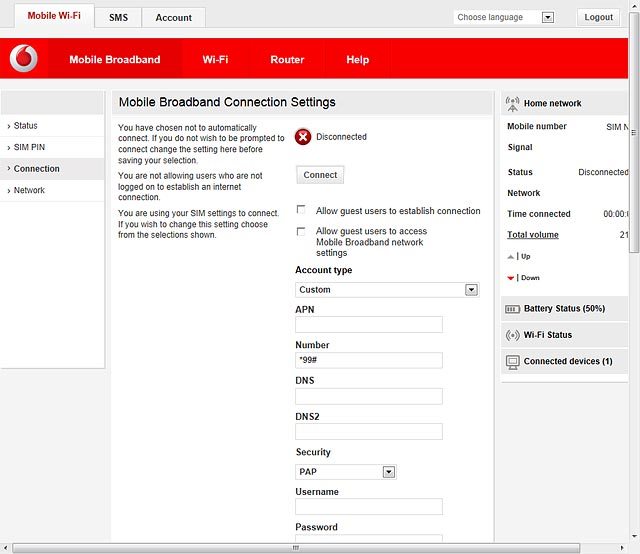

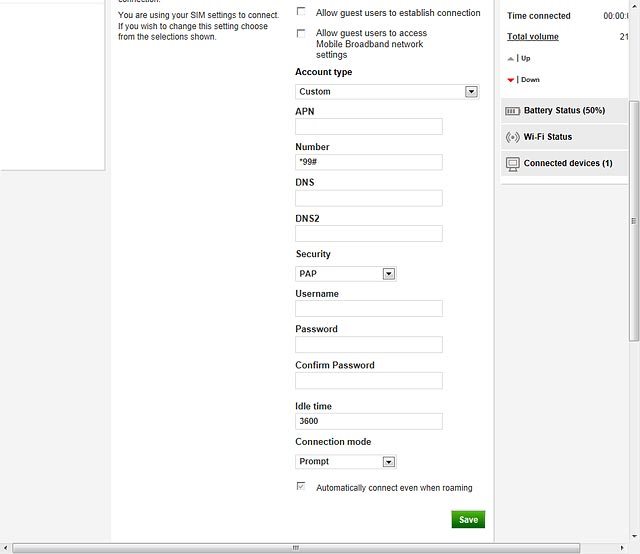

Highlight the field below "Number" and key in *99#

Step 17 of 18

Save and exit

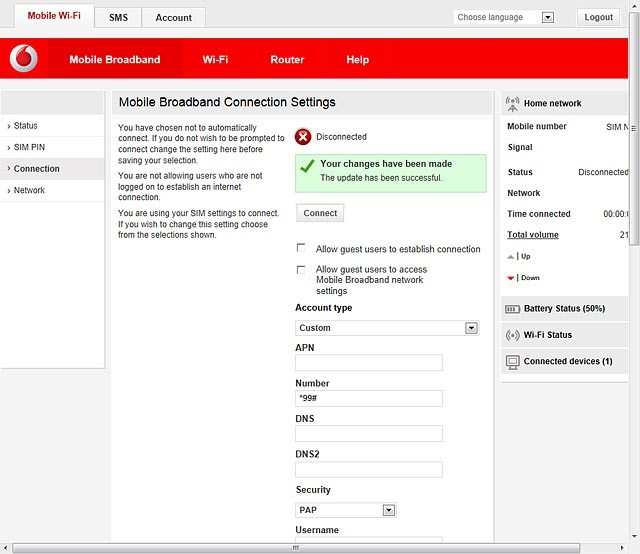

Click Save.

Step 18 of 18

Save and exit

Click Logout.

1. Turn on your router

Press and hold On/Off.

2. Connect to your Wi-Fi hotspot

Do the following in Windows:
Click the network icon.
Highlight the name of your Wi-Fi hotspot and click Connect.
You can see the Wi-Fi hotspot name and password by pressing On/Off twice in quick succession.
Key in the password for your Wi-Fi hotspot and click OK.
A connection to your Wi-Fi hotspot is established.

3. Establish a connection to your router's web interface

Open a browser.
Key in 192.168.0.1 in the address bar and press Enter.
Vodafone R212/Windows 7
If you're asked to key in your PIN:
Highlight the field below "Enter current PIN code" and key in your PIN.
Click Submit.
Highlight the field next to "Password" and key in admin
Click Login.

4. Find "Connection"

Click Mobile Broadband.
Click Connection.

5. Create new data connection

Click the drop down list below "Account type".
Highlight Custom.

6. Enter APN

Highlight the field below "APN" and key in live.vodafone.com

7. Enter dial-up number

Highlight the field below "Number" and key in *99#

8. Save and exit

Click Save.
Click Logout.
