Vodafone R209-Z/Windows 8

Vodafone R209-Z

Windows

Turn use of PIN on or off - Vodafone R209-Z/Windows 8

Step 1 of 16

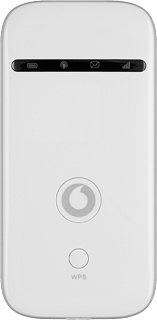

Turn on your router

Press and hold On/Off.

Step 2 of 16

Connect to your Wi-Fi hotspot

Do the following in Windows:
Click the network icon.

Step 3 of 16

Connect to your Wi-Fi hotspot

Highlight the name of your Wi-Fi hotspot and click Connect.

Step 4 of 16

Connect to your Wi-Fi hotspot

You can find the name and password for your Wi-Fi hotspot under the battery.

Step 5 of 16

Connect to your Wi-Fi hotspot

Key in the password for your Wi-Fi hotspot and click Next.
A connection to your Wi-Fi hotspot is established.

Vodafone R209-Z/Windows 8
Step 6 of 16

Establish a connection to your router's web interface

Open a browser.
Key in vodafonemobile.wifi in the address bar and press Enter.

Step 7 of 16

Establish a connection to your router's web interface

If you're asked to key in your PIN:
Highlight the field below "Enter current PIN code" and key in your PIN.

Step 8 of 16

Establish a connection to your router's web interface

Click Submit.

Step 9 of 16

Establish a connection to your router's web interface

Highlight the field next to "Password" and key in admin

Step 10 of 16

Establish a connection to your router's web interface

Click Login.

Step 11 of 16

Turn use of PIN on or off

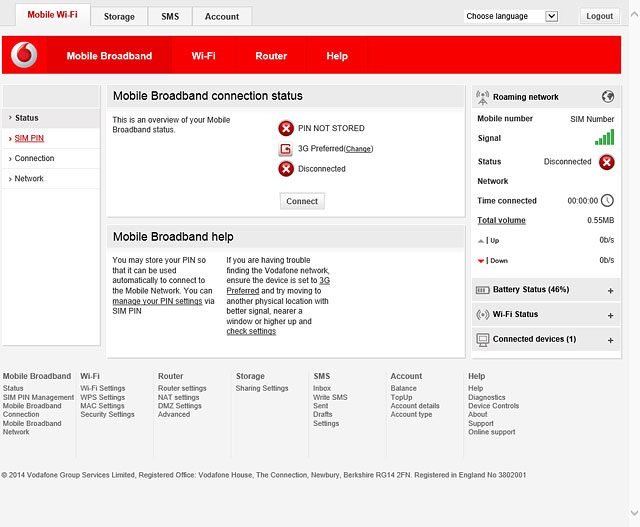

Click Mobile Broadband.

Step 12 of 16

Turn use of PIN on or off

Click SIM PIN.

Step 13 of 16

Turn use of PIN on or off

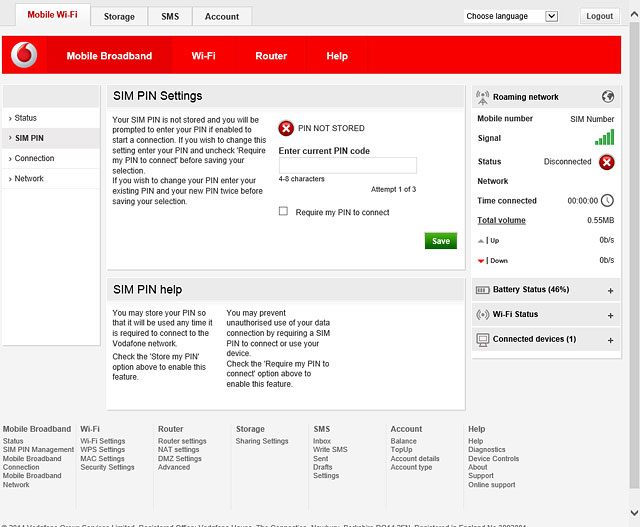

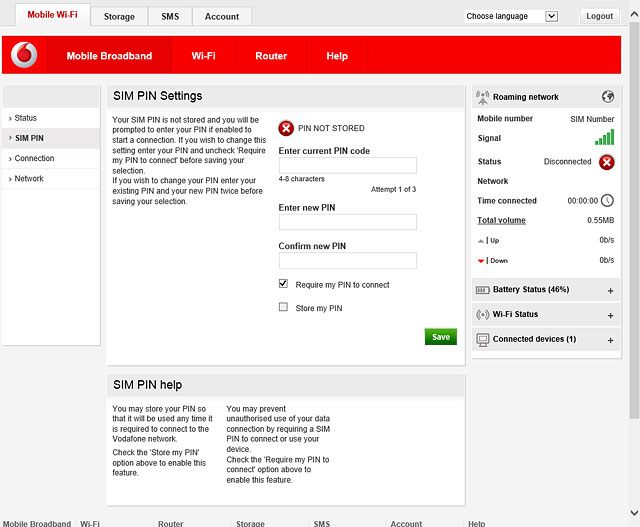

Click the box next to "Require my PIN to connect" to turn the function on or off.

Step 14 of 16

Turn use of PIN on or off

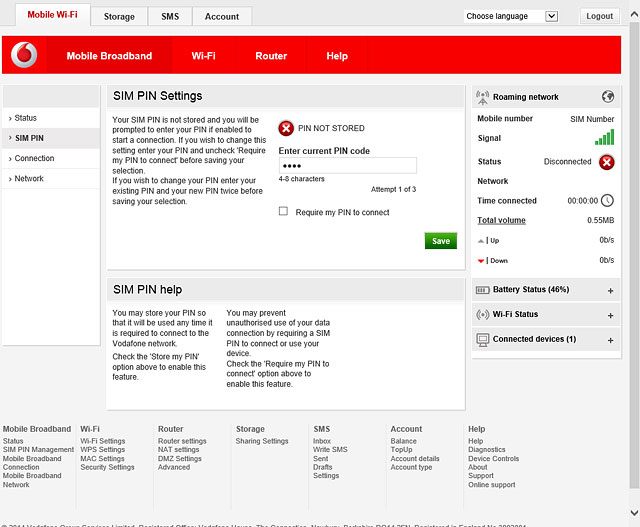

Highlight the field below "Enter current PIN code" and key in your PIN.

Step 15 of 16

Turn use of PIN on or off

Click Save.

Step 16 of 16

Exit

Click Logout.

1. Turn on your router

Press and hold On/Off.

2. Connect to your Wi-Fi hotspot

Do the following in Windows:
Click the network icon.
Highlight the name of your Wi-Fi hotspot and click Connect.
You can find the name and password for your Wi-Fi hotspot under the battery.
Key in the password for your Wi-Fi hotspot and click Next.
A connection to your Wi-Fi hotspot is established.

3. Establish a connection to your router's web interface

Open a browser.
Key in vodafonemobile.wifi in the address bar and press Enter.
Vodafone R209-Z/Windows 8
If you're asked to key in your PIN:
Highlight the field below "Enter current PIN code" and key in your PIN.
Click Submit.
Highlight the field next to "Password" and key in admin
Click Login.

4. Turn use of PIN on or off

Click Mobile Broadband.
Click SIM PIN.
Click the box next to "Require my PIN to connect" to turn the function on or off.
Highlight the field below "Enter current PIN code" and key in your PIN.
Click Save.

5. Exit

Click Logout.
