Vodafone R209-Z/Mavericks

Vodafone R209-Z

Mac OS X

Turn use of PIN on or off - Vodafone R209-Z/Mavericks

Step 1 of 16

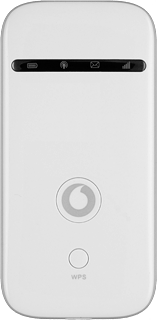

Turn on your router

Press and hold On/Off.

Step 2 of 16

Connect to Wi-Fi hotspot

Do the following in Mac OS X:
Click the network icon.

Step 3 of 16

Connect to Wi-Fi hotspot

Click the name of your Wi-Fi hotspot.

Step 4 of 16

Connect to Wi-Fi hotspot

You can find the name and password for your Wi-Fi hotspot under the battery.

Step 5 of 16

Connect to Wi-Fi hotspot

Key in the password for your Wi-Fi hotspot and click Join.
A connection to your Wi-Fi hotspot is established.

Vodafone R209-Z/Mavericks
Step 6 of 16

Establish a connection to your router's web interface

Open a browser.
Key in vodafonemobile.wifi in the address bar and press Enter.

Step 7 of 16

Establish a connection to your router's web interface

If you're asked to key in your PIN:
Highlight the field below "Enter current PIN code" and key in your PIN.

Step 8 of 16

Establish a connection to your router's web interface

Click Submit.

Step 9 of 16

Establish a connection to your router's web interface

Highlight the field next to "Password" and key in admin

Step 10 of 16

Establish a connection to your router's web interface

Click Login.

Step 11 of 16

Turn use of PIN on or off

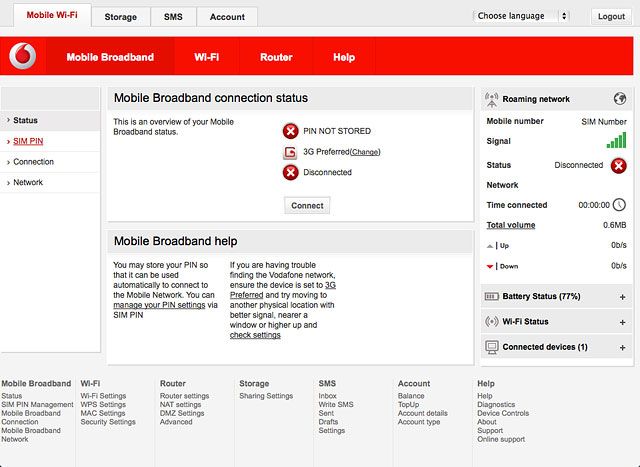

Click Mobile Broadband.

Step 12 of 16

Turn use of PIN on or off

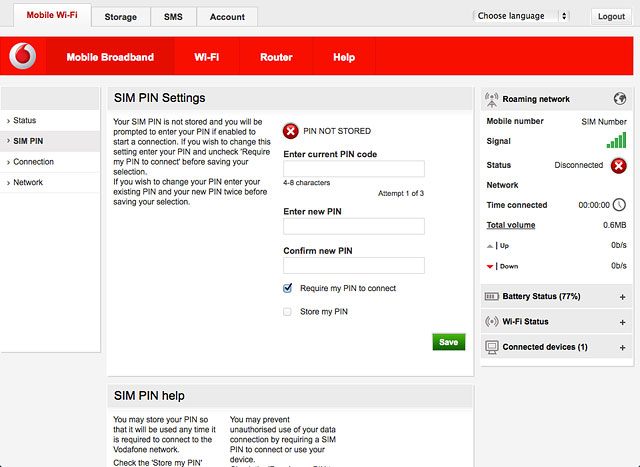

Click SIM PIN.

Step 13 of 16

Turn use of PIN on or off

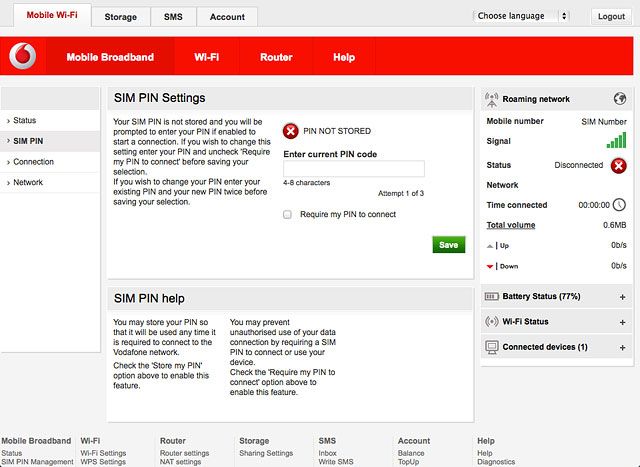

Click the box next to "Require my PIN to connect" to turn the function on or off.

Step 14 of 16

Turn use of PIN on or off

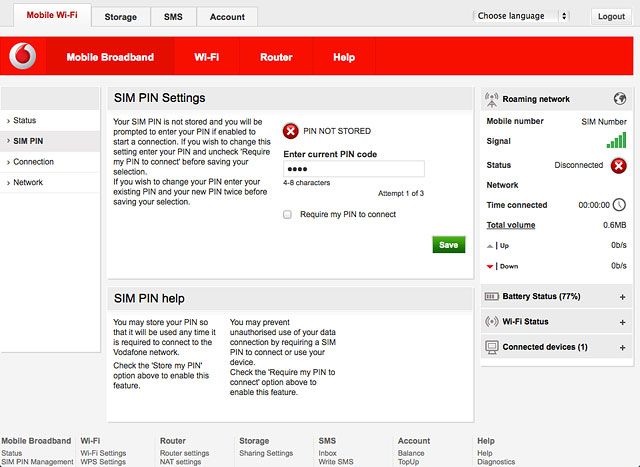

Highlight the field below "Enter current PIN code" and key in your PIN.

Step 15 of 16

Turn use of PIN on or off

Click Save.

Step 16 of 16

Exit

Click Logout.

1. Turn on your router

Press and hold On/Off.

2. Connect to Wi-Fi hotspot

Do the following in Mac OS X:
Click the network icon.
Click the name of your Wi-Fi hotspot.
You can find the name and password for your Wi-Fi hotspot under the battery.
Key in the password for your Wi-Fi hotspot and click Join.
A connection to your Wi-Fi hotspot is established.

3. Establish a connection to your router's web interface

Open a browser.
Key in vodafonemobile.wifi in the address bar and press Enter.
Vodafone R209-Z/Mavericks
If you're asked to key in your PIN:
Highlight the field below "Enter current PIN code" and key in your PIN.
Click Submit.
Highlight the field next to "Password" and key in admin
Click Login.

4. Turn use of PIN on or off

Click Mobile Broadband.
Click SIM PIN.
Click the box next to "Require my PIN to connect" to turn the function on or off.
Highlight the field below "Enter current PIN code" and key in your PIN.
Click Save.

5. Exit

Click Logout.
