Vodafone R206/Windows Vista

Vodafone R206

Select network - Vodafone R206/Windows Vista

Read help info

You can set your router to find a network automatically or you can select a network manually.

Step 1 of 21

Turn on your router

Press and hold On/Off.

Step 2 of 21

Connect to your Wi-Fi hotspot

Do the following in Windows:

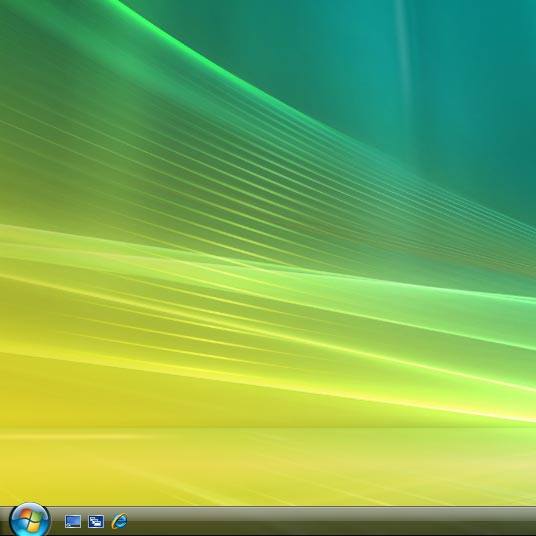

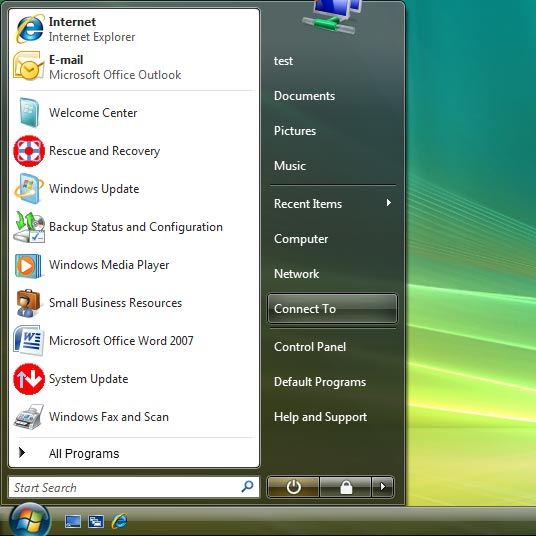

Click the Windows icon.

Step 3 of 21

Connect to your Wi-Fi hotspot

Click Connect To.

Step 4 of 21

Connect to your Wi-Fi hotspot

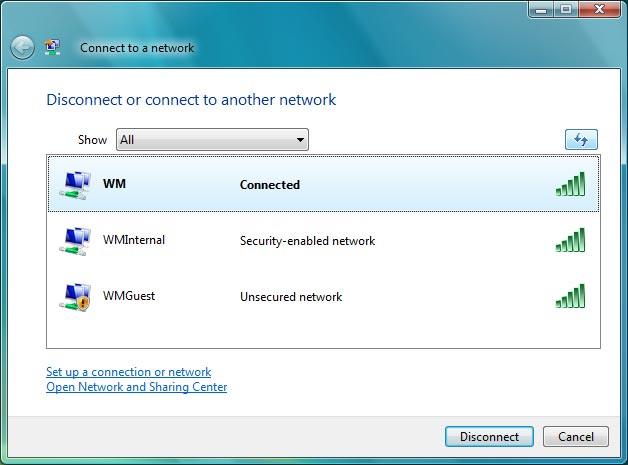

If required, click the refresh icon.

Step 5 of 21

Connect to your Wi-Fi hotspot

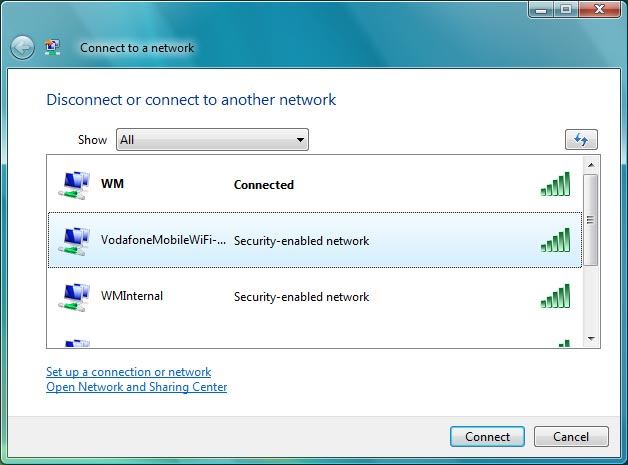

Highlight the name of your Wi-Fi hotspot and click Connect.

Step 6 of 21

Connect to your Wi-Fi hotspot

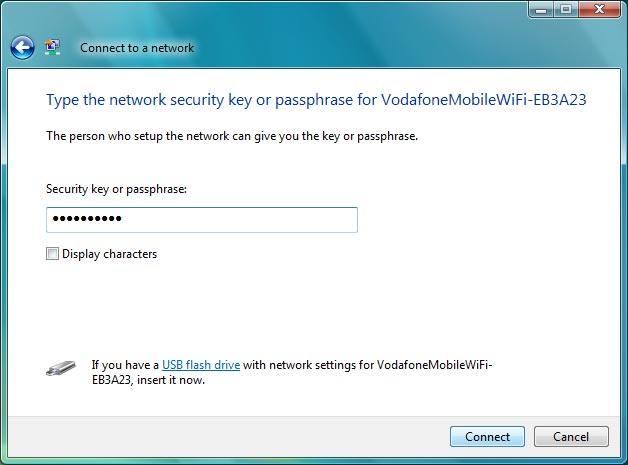

Key in the password for your Wi-Fi hotspot and click Connect.

Step 7 of 21

Connect to your Wi-Fi hotspot

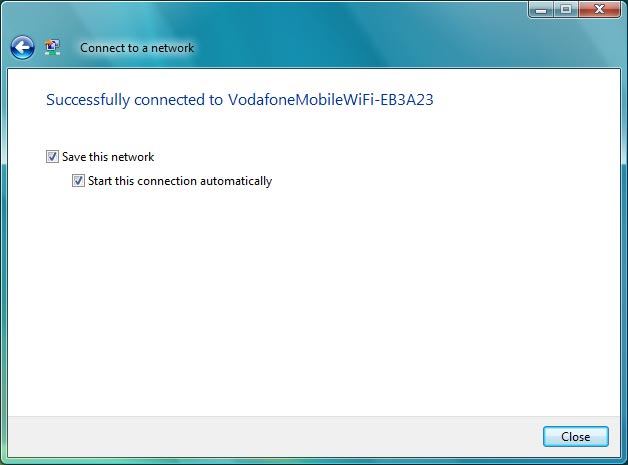

Click Close.
A connection to your Wi-Fi hotspot is established.

Vodafone R206/Windows Vista
Step 8 of 21

Establish a connection to your router's web interface

Open a browser.
Key in 192.168.0.1 in the address bar and press Enter.

If an incorrect PIN is entered three times in a row, your SIM will be blocked. To unblock your SIM, you'll need to key in your PUK. The PUK can be obtained by contacting customer services.
Please note:
If the wrong PUK is entered ten times in a row, your SIM will be blocked permanently. In this case, you need a new SIM from Vodafone.
Step 9 of 21

Establish a connection to your router's web interface

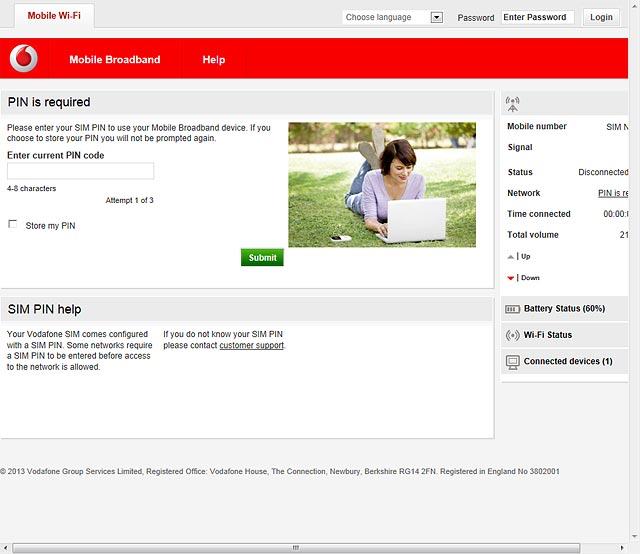

If you're asked to key in your PIN:

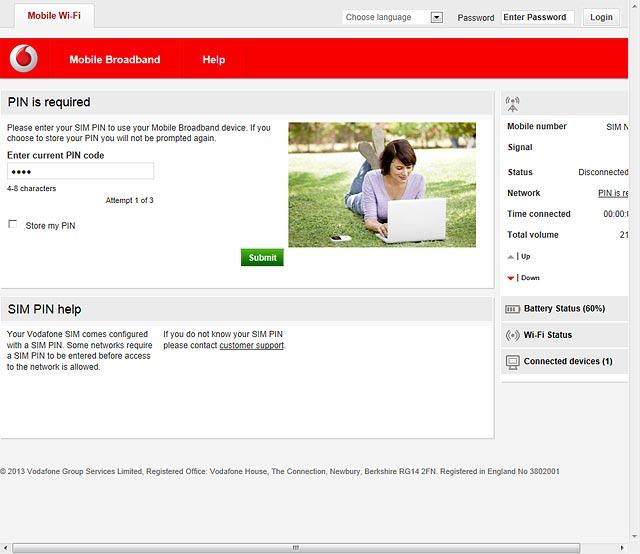

Highlight the field below "Enter current PIN code" and key in your PIN.

If an incorrect PIN is entered three times in a row, your SIM will be blocked. To unblock your SIM, you'll need to key in your PUK. The PUK can be obtained by contacting customer services.
Please note:
If the wrong PUK is entered ten times in a row, your SIM will be blocked permanently. In this case, you need a new SIM from Vodafone.
Step 10 of 21

Establish a connection to your router's web interface

Click Submit.

If an incorrect PIN is entered three times in a row, your SIM will be blocked. To unblock your SIM, you'll need to key in your PUK. The PUK can be obtained by contacting customer services.
Please note:
If the wrong PUK is entered ten times in a row, your SIM will be blocked permanently. In this case, you need a new SIM from Vodafone.
Step 11 of 21

Establish a connection to your router's web interface

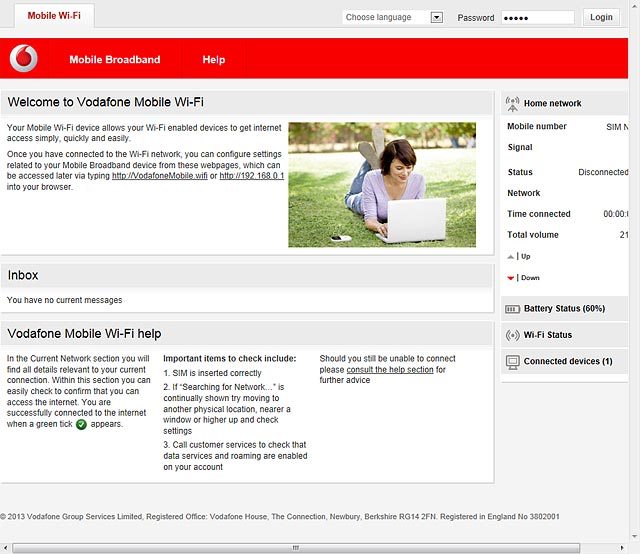

Highlight the field next to "Password" and key in admin

If an incorrect PIN is entered three times in a row, your SIM will be blocked. To unblock your SIM, you'll need to key in your PUK. The PUK can be obtained by contacting customer services.
Please note:
If the wrong PUK is entered ten times in a row, your SIM will be blocked permanently. In this case, you need a new SIM from Vodafone.
Step 12 of 21

Establish a connection to your router's web interface

Click Login.

If an incorrect PIN is entered three times in a row, your SIM will be blocked. To unblock your SIM, you'll need to key in your PUK. The PUK can be obtained by contacting customer services.
Please note:
If the wrong PUK is entered ten times in a row, your SIM will be blocked permanently. In this case, you need a new SIM from Vodafone.
Step 13 of 21

Find "Network"

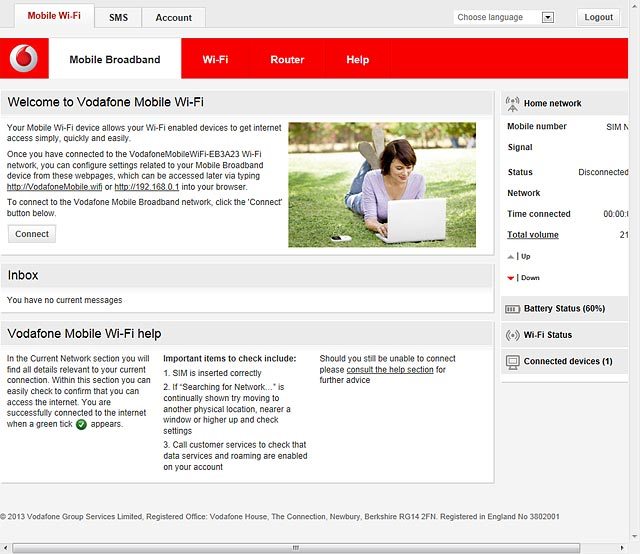

Click Mobile Broadband.

Step 14 of 21

Find "Network"

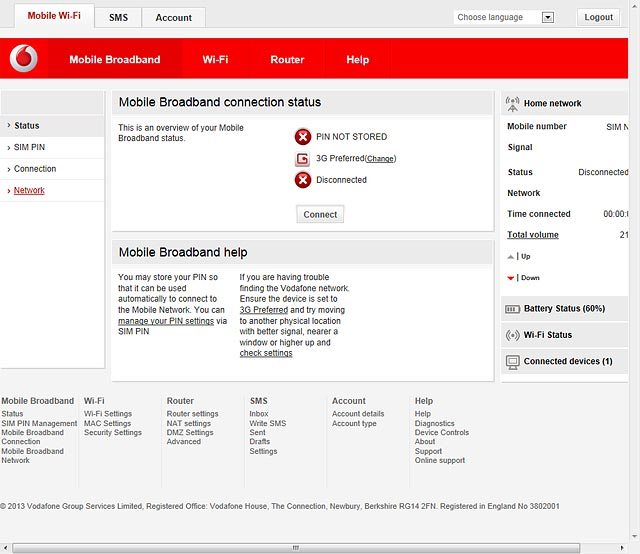

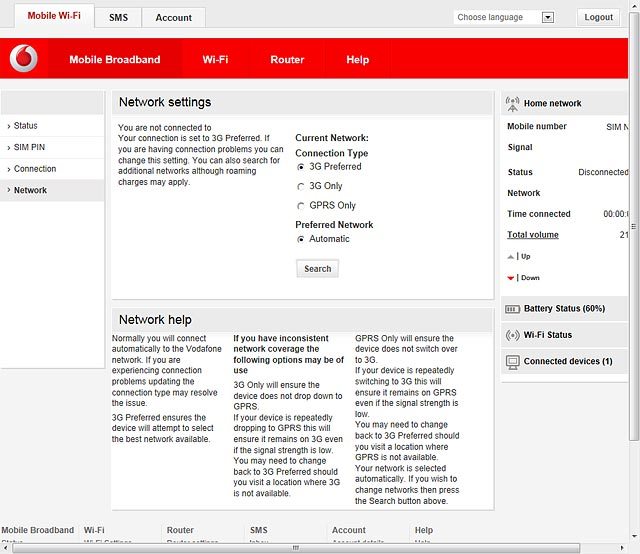

Click Network.

Vodafone R206/Windows Vista
Step 15 of 21

Select option

Select one of the following options:
Select network manually, go to 5a.
Select network automatically, go to 5b.

Step 16 of 21

5a - Select network manually

Click Search.

If you're out of range of the selected network, your router won't work.
Step 17 of 21

5a - Select network manually

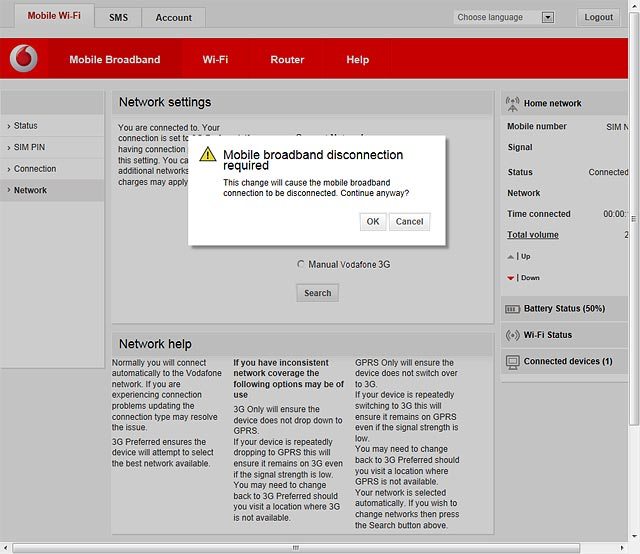

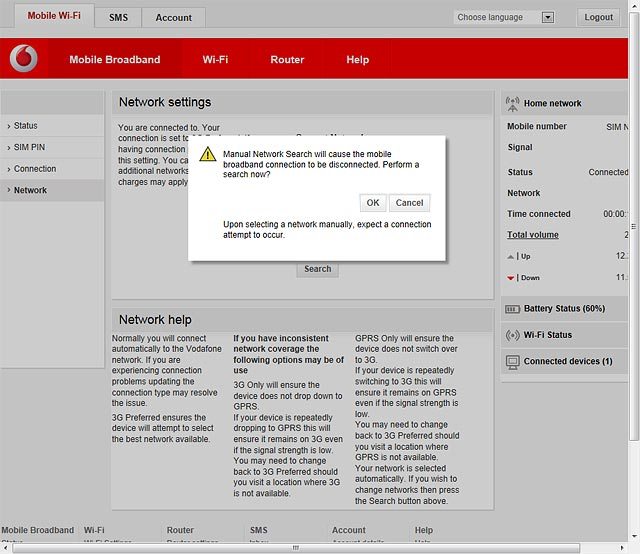

If a connection to the internet has been established:
Click OK to end the connection.

If you're out of range of the selected network, your router won't work.
Step 18 of 21

5a - Select network manually

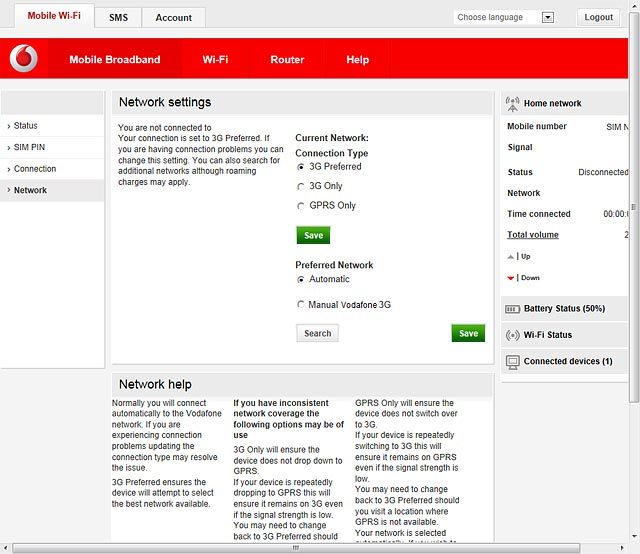

Your router searches for networks within range.

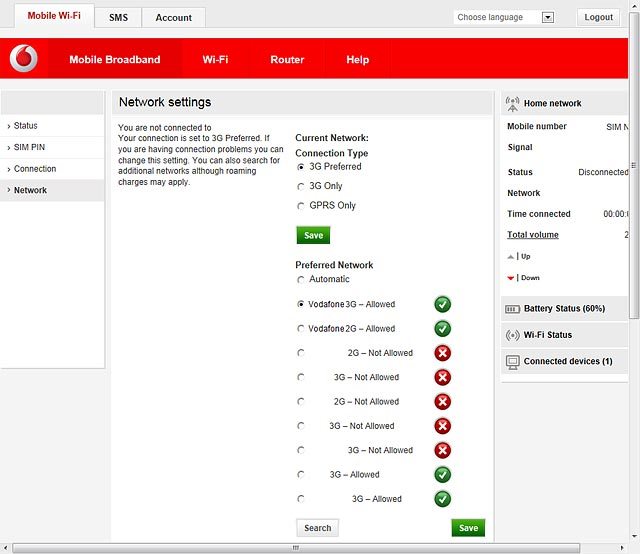

Highlight the required network and click Save.
The screen will tell you if you have access to the network you've chosen.

If you're out of range of the selected network, your router won't work.

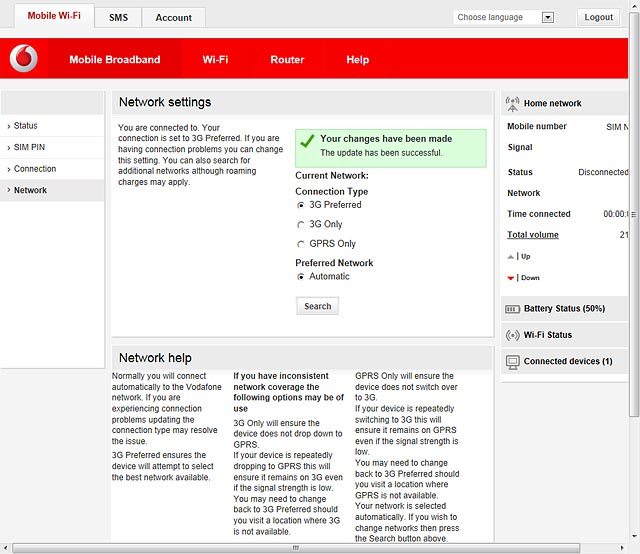

Step 19 of 21

5b - Select network automatically

Highlight Automatic and click Save.

Step 20 of 21

5b - Select network automatically

If a connection to the internet has been established:
Click OK to end the connection.

Step 21 of 21

Exit

Click Logout.

Turn on your router

Press and hold On/Off.

Connect to your Wi-Fi hotspot

Do the following in Windows:
Click the Windows icon.
Click Connect To.
If required, click the refresh icon.
Highlight the name of your Wi-Fi hotspot and click Connect.
Key in the password for your Wi-Fi hotspot and click Connect.
Click Close.
A connection to your Wi-Fi hotspot is established.

Establish a connection to your router's web interface

Open a browser.
Key in 192.168.0.1 in the address bar and press Enter.
If an incorrect PIN is entered three times in a row, your SIM will be blocked. To unblock your SIM, you'll need to key in your PUK. The PUK can be obtained by contacting customer services.
Please note:
If the wrong PUK is entered ten times in a row, your SIM will be blocked permanently. In this case, you need a new SIM from Vodafone.
Vodafone R206/Windows Vista
If you're asked to key in your PIN:
Highlight the field below "Enter current PIN code" and key in your PIN.
If an incorrect PIN is entered three times in a row, your SIM will be blocked. To unblock your SIM, you'll need to key in your PUK. The PUK can be obtained by contacting customer services.
Please note:
If the wrong PUK is entered ten times in a row, your SIM will be blocked permanently. In this case, you need a new SIM from Vodafone.
Click Submit.
If an incorrect PIN is entered three times in a row, your SIM will be blocked. To unblock your SIM, you'll need to key in your PUK. The PUK can be obtained by contacting customer services.
Please note:
If the wrong PUK is entered ten times in a row, your SIM will be blocked permanently. In this case, you need a new SIM from Vodafone.
Highlight the field next to "Password" and key in admin
If an incorrect PIN is entered three times in a row, your SIM will be blocked. To unblock your SIM, you'll need to key in your PUK. The PUK can be obtained by contacting customer services.
Please note:
If the wrong PUK is entered ten times in a row, your SIM will be blocked permanently. In this case, you need a new SIM from Vodafone.
Click Login.
If an incorrect PIN is entered three times in a row, your SIM will be blocked. To unblock your SIM, you'll need to key in your PUK. The PUK can be obtained by contacting customer services.
Please note:
If the wrong PUK is entered ten times in a row, your SIM will be blocked permanently. In this case, you need a new SIM from Vodafone.

Find "Network"

Click Mobile Broadband.
Click Network.

Select option

Select one of the following options:
Select network manually, go to 5a.
Select network automatically, go to 5b.
Vodafone R206/Windows Vista

5a - Select network manually

Click Search.
If you're out of range of the selected network, your router won't work.
If a connection to the internet has been established:
Click OK to end the connection.
If you're out of range of the selected network, your router won't work.
Your router searches for networks within range.
Highlight the required network and click Save.
The screen will tell you if you have access to the network you've chosen.
If you're out of range of the selected network, your router won't work.

5b - Select network automatically

Highlight Automatic and click Save.
If a connection to the internet has been established:
Click OK to end the connection.

Exit

Click Logout.
