Install USB modem - Vodafone K4305/Windows 7

Step 1 of 11

Insert your SIM

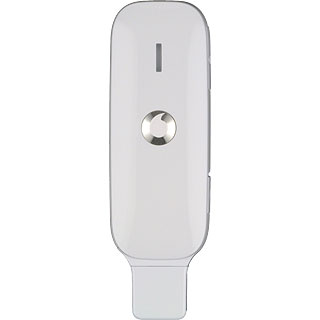

Turn the front of your USB modem towards you.
Slide the cover upwards and remove it.

Step 2 of 11

Insert your SIM

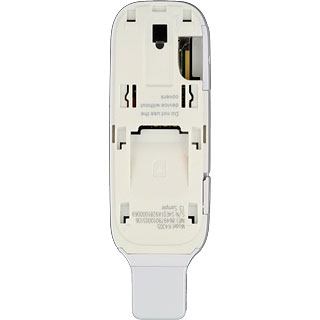

Turn your SIM as illustrated next to the SIM holder and slide your SIM into place in the SIM holder.

Step 3 of 11

Insert your SIM

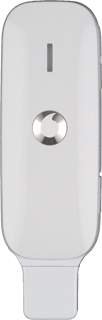

Place the cover on your USB modem with a small opening at the bottom and slide the cover downwards.

Vodafone K4305/Windows 7
Step 4 of 11

Connect your USB modem and your computer

Connect your USB modem to your computer's USB port.

Vodafone K4305/Windows 7
Step 5 of 11

Install USB modem

Wait while your USB modem is installed.
Usually, your computer automatically opens the USB modem's web interface in a browser.

Step 6 of 11

Install USB modem

If the browser doesn't start:

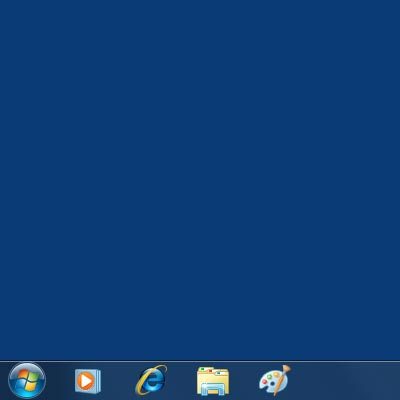

Click the Windows icon.

Step 7 of 11

Install USB modem

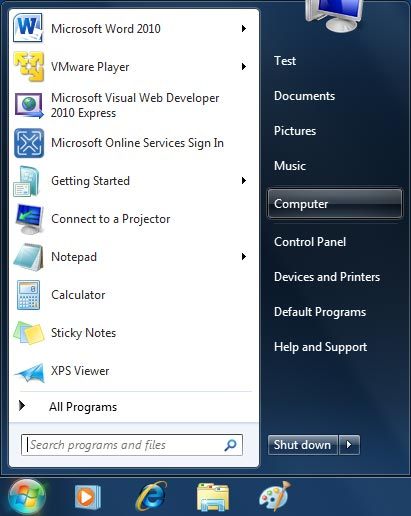

Click Computer.

Step 8 of 11

Install USB modem

Double-click QuickStart 2.0.

Step 9 of 11

Install USB modem

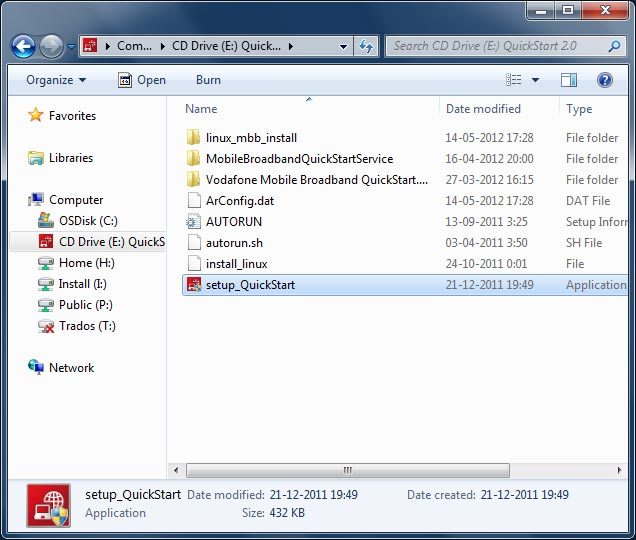

Double-click setup_QuickStart.

Step 10 of 11

Enter PIN

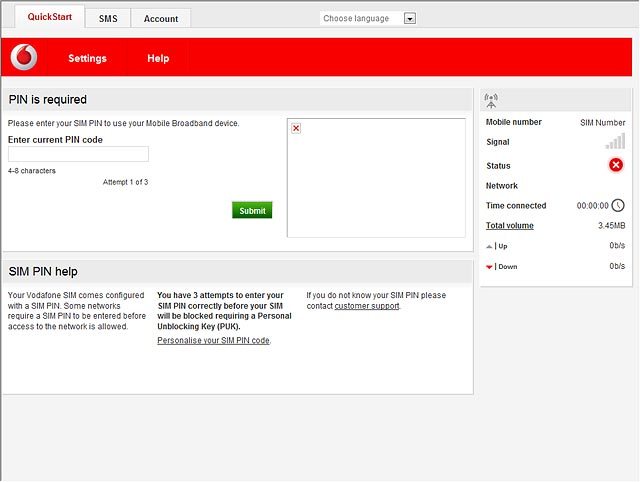

Highlight the field below Enter current PIN code and key in your PIN.

Step 11 of 11

Enter PIN

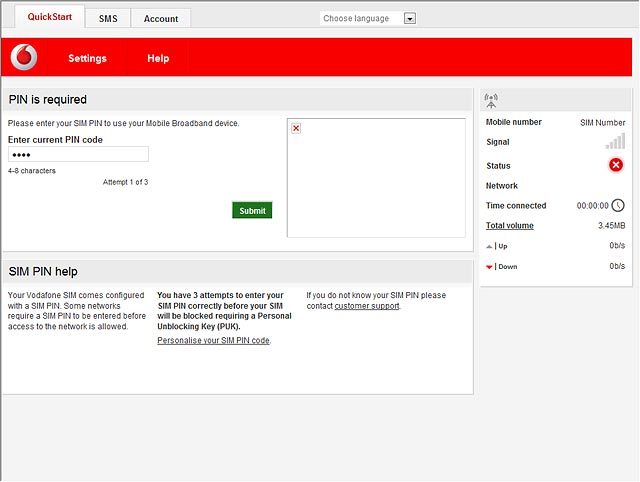

Click Submit.

1. Insert your SIM

Turn the front of your USB modem towards you.
Slide the cover upwards and remove it.
Turn your SIM as illustrated next to the SIM holder and slide your SIM into place in the SIM holder.
Place the cover on your USB modem with a small opening at the bottom and slide the cover downwards.

2. Connect your USB modem and your computer

Connect your USB modem to your computer's USB port.
Vodafone K4305/Windows 7

3. Install USB modem

Wait while your USB modem is installed.
Usually, your computer automatically opens the USB modem's web interface in a browser.
Vodafone K4305/Windows 7
If the browser doesn't start:
Click the Windows icon.
Click Computer.
Double-click QuickStart 2.0.
Double-click setup_QuickStart.

4. Enter PIN

Highlight the field below Enter current PIN code and key in your PIN.
Click Submit.
