Vodafone HG658c/Mavericks

Vodafone HG658c

Set up port forwarding - Vodafone HG658c/Mavericks

Step 1 of 12

Find "Port Mapping"

Click Advanced.

Step 2 of 12

Find "Port Mapping"

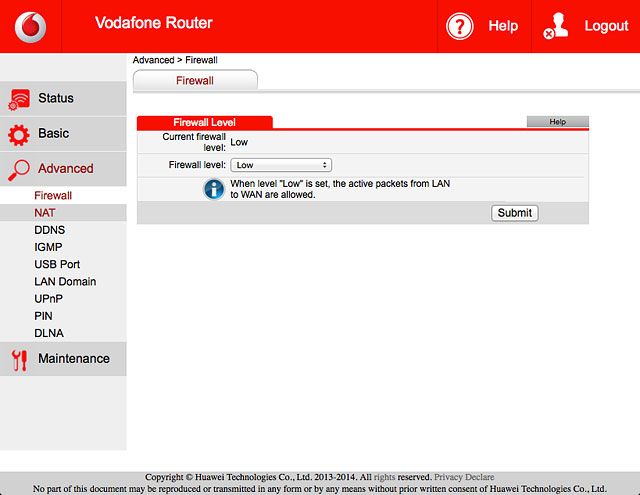

Click NAT.

Step 3 of 12

Find "Port Mapping"

Click Port Mapping.

Step 4 of 12

Set up new port mapping

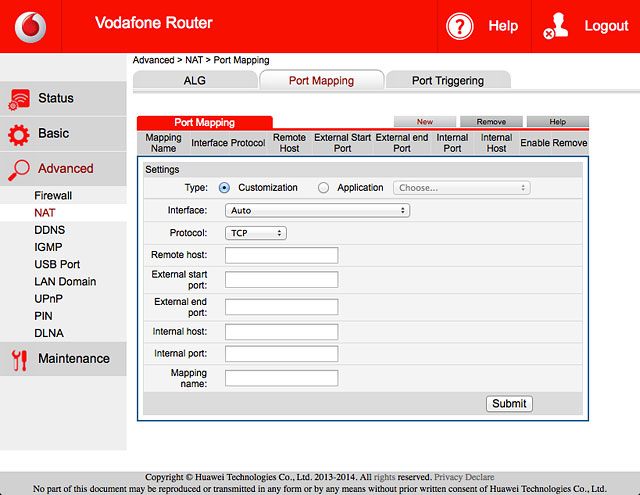

Click New.

Step 5 of 12

Select protocol

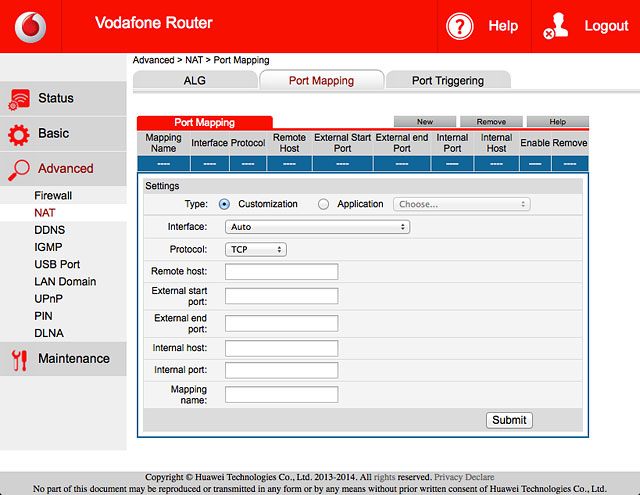

Click the drop down list next to "Protocol".

Step 6 of 12

Select protocol

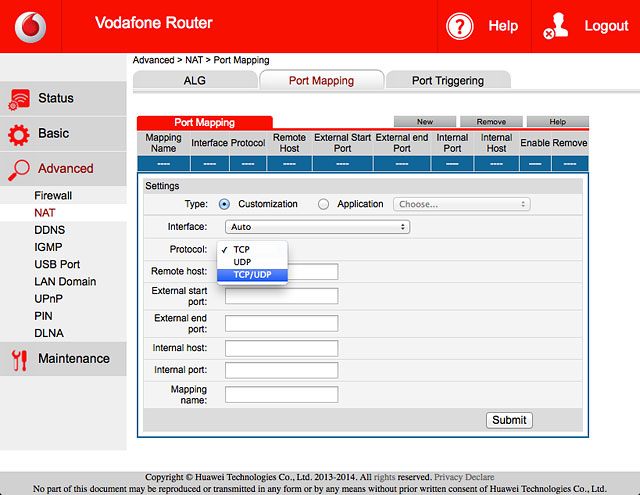

Highlight the required protocol.

Step 7 of 12

Enter external port numbers

Highlight the field next to "External start port" and key in the first port number at the required interval.

Step 8 of 12

Enter external port numbers

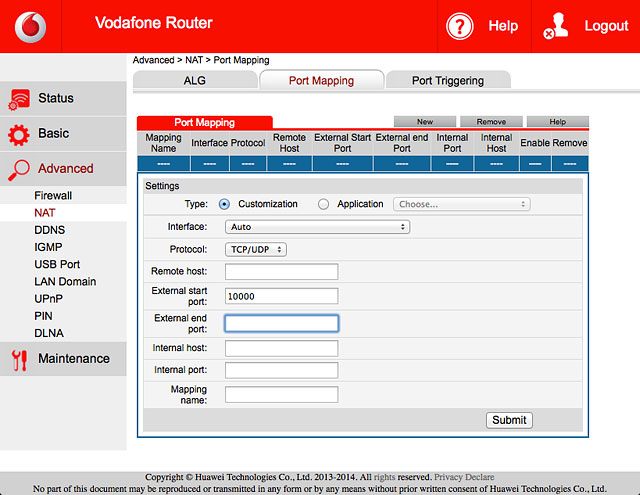

Highlight the field next to "External end port" and key in the last port number at the required interval.

Step 9 of 12

Enter internal IP address

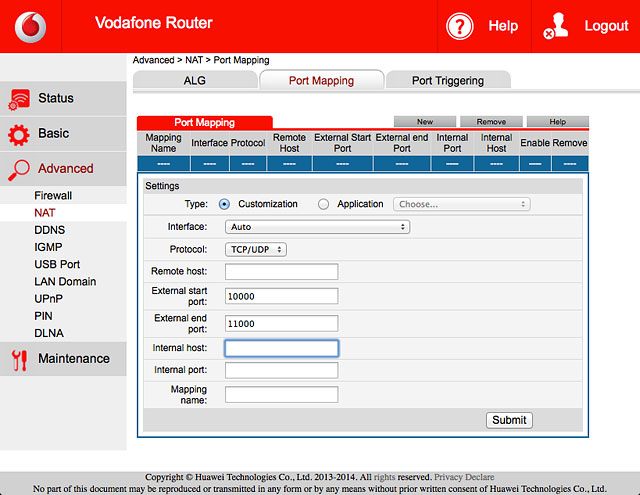

Highlight the field next to "Internal host" and key in the IP address of the device to which the external port numbers are to be forwarded.

Step 10 of 12

Enter internal port number

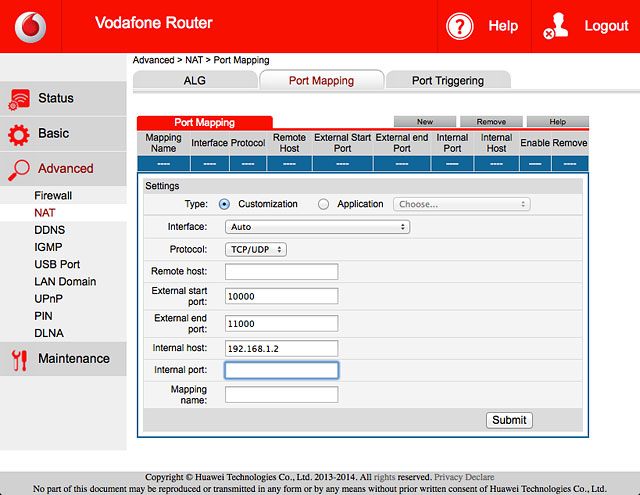

Highlight the field next to "Internal port" and key in the port number of the device to which the external port numbers are to be forwarded.

Step 11 of 12

Enter mapping name

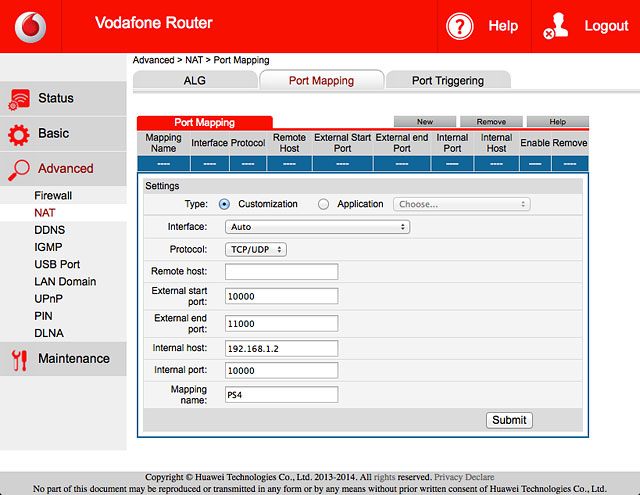

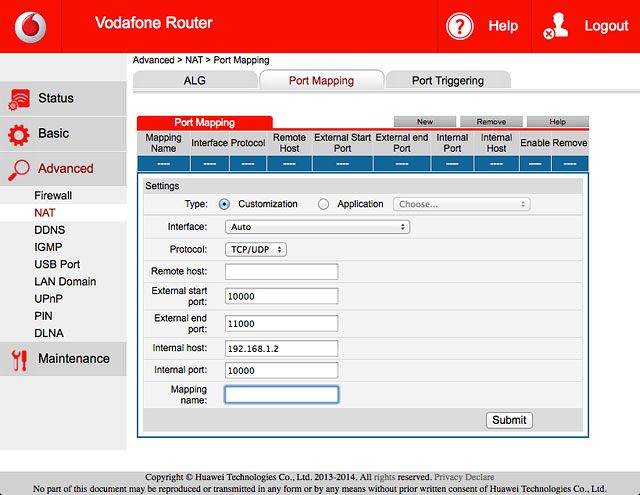

Highlight the field next to "Mapping name" and key in the required mapping name.

Step 12 of 12

Save mapping

Click Submit.

1. Find "Port Mapping"

Click Advanced.
Click NAT.
Click Port Mapping.

2. Set up new port mapping

Click New.

3. Select protocol

Click the drop down list next to "Protocol".
Highlight the required protocol.

4. Enter external port numbers

Highlight the field next to "External start port" and key in the first port number at the required interval.
Highlight the field next to "External end port" and key in the last port number at the required interval.

5. Enter internal IP address

Highlight the field next to "Internal host" and key in the IP address of the device to which the external port numbers are to be forwarded.

6. Enter internal port number

Highlight the field next to "Internal port" and key in the port number of the device to which the external port numbers are to be forwarded.

7. Enter mapping name

Highlight the field next to "Mapping name" and key in the required mapping name.

8. Save mapping

Click Submit.
