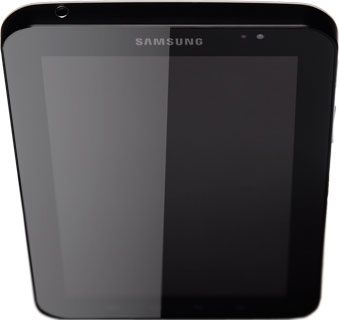

Guide to device keys and sockets - Samsung Galaxy Tab

Step 1 of 12

On/Off

Several functions are associated with On/Off:

Step 2 of 12

On/Off

Press and hold On/Off for 3-5 seconds to turn the device on or off.

Step 3 of 12

On/Off

Briefly press and hold On/Off to gain access to the different device profiles.

Step 4 of 12

On/Off

Briefly press On/Off to activate or deactivate the key lock.

Step 5 of 12

The Home key

Press the Home key to return to standby mode.

Step 6 of 12

The Return key

Press the Return key to exit an active menu item.

Step 7 of 12

The Menu key

Press the Menu key to open a pop-up menu.

Step 8 of 12

The Volume key

Press the upper or lower part of the Volume key to adjust the volume.

Step 9 of 12

Socket

Connect the charger or data cable to the socket and to a wall socket or the computer's USB port.

Step 10 of 12

Headset socket

Connect the headset to the headset socket at the top of the device.

Step 11 of 12

Camera lens at the back of the device

Point the camera lens at the back of the device at the required object to take a picture, record a video clip or during a video call.

Step 12 of 12

Camera lens at the front of the device

Point the camera lens at the front of the device at the required object during a video call.

1. On/Off

Several functions are associated with On/Off:
Press and hold On/Off for 3-5 seconds to turn the device on or off.
Briefly press and hold On/Off to gain access to the different device profiles.
Briefly press On/Off to activate or deactivate the key lock.

2. The Home key

Press the Home key to return to standby mode.

3. The Return key

Press the Return key to exit an active menu item.

4. The Menu key

Press the Menu key to open a pop-up menu.

5. The Volume key

Press the upper or lower part of the Volume key to adjust the volume.

6. Socket

Connect the charger or data cable to the socket and to a wall socket or the computer's USB port.

7. Headset socket

Connect the headset to the headset socket at the top of the device.

8. Camera lens at the back of the device

Point the camera lens at the back of the device at the required object to take a picture, record a video clip or during a video call.

9. Camera lens at the front of the device

Point the camera lens at the front of the device at the required object during a video call.
