Samsung Galaxy A12

Samsung Galaxy A12

Android 10.0

Set up your Samsung Galaxy A12 Android 10.0 for picture messaging

Read help info

A picture message is a message which can contain pictures and other media files and can be sent to other mobile phones. You can send and receive picture messages as soon as you've inserted your SIM. If this isn't the case, you can set up your phone for picture messaging manually.

Step 1 of 28

1. Find "Access Point Names"

Slide two fingers downwards starting from the top of the screen.

Step 2 of 28

1. Find "Access Point Names"

Press the settings icon.

Step 3 of 28

1. Find "Access Point Names"

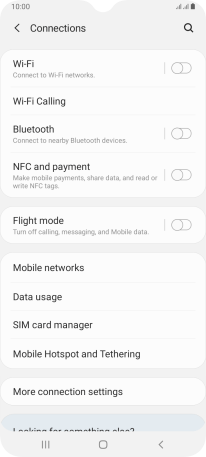

Press Connections.

Step 4 of 28

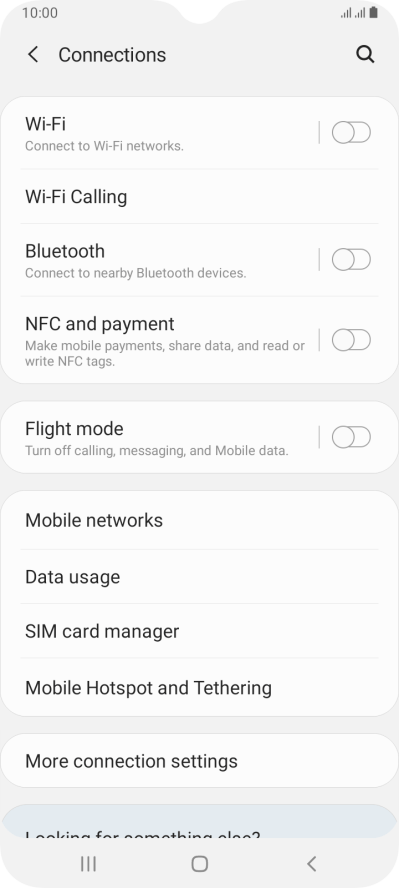

1. Find "Access Point Names"

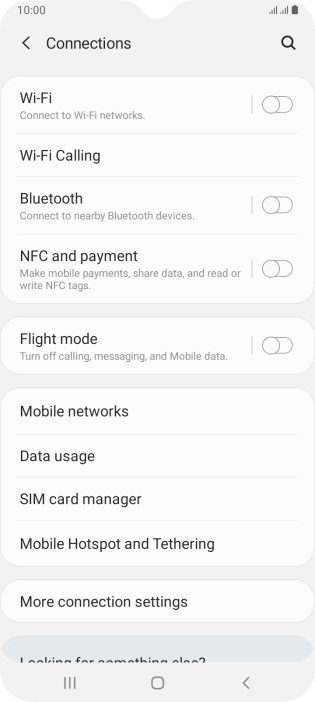

Press Mobile networks.

Step 5 of 28

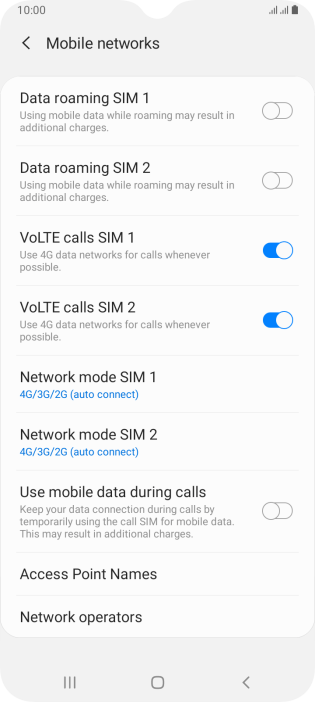

1. Find "Access Point Names"

Press Access Point Names.

Step 6 of 28

2. Create new data connection

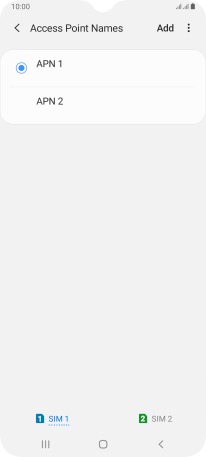

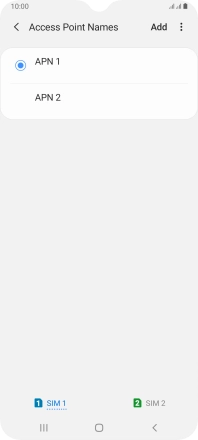

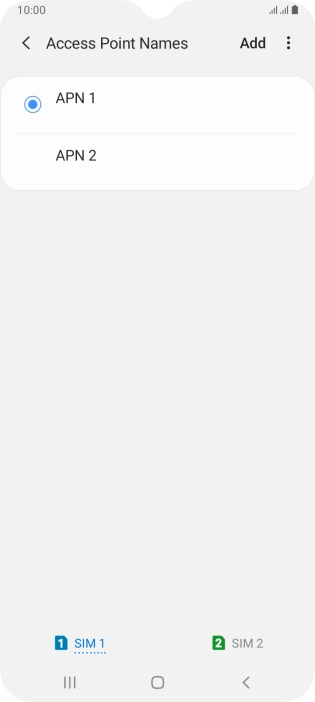

Press the required SIM.

Step 7 of 28

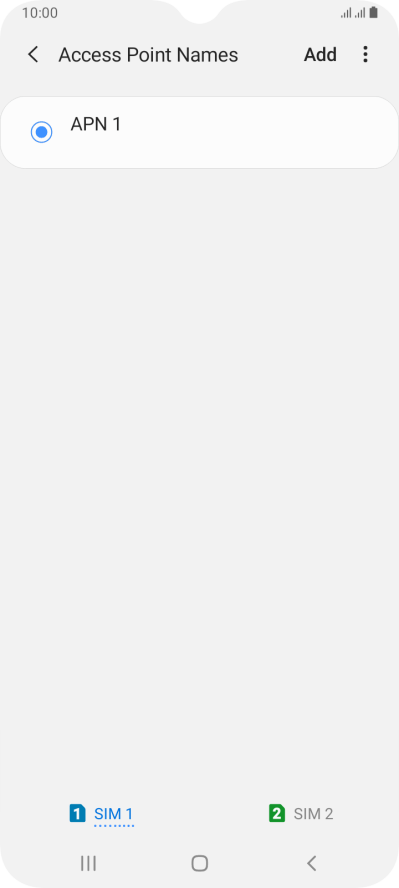

2. Create new data connection

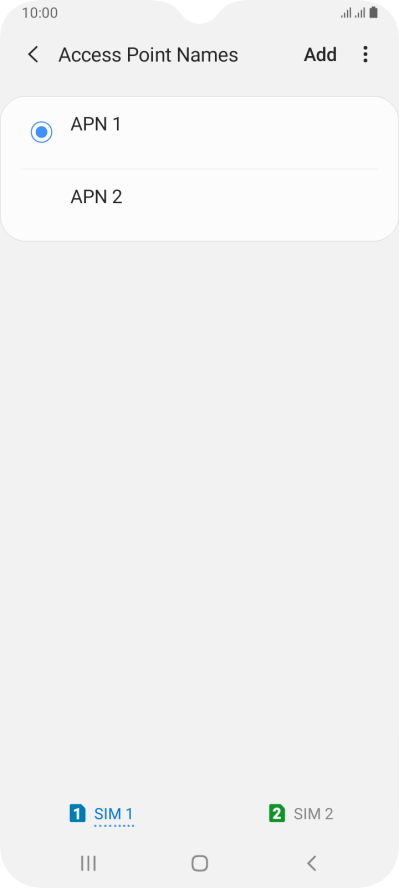

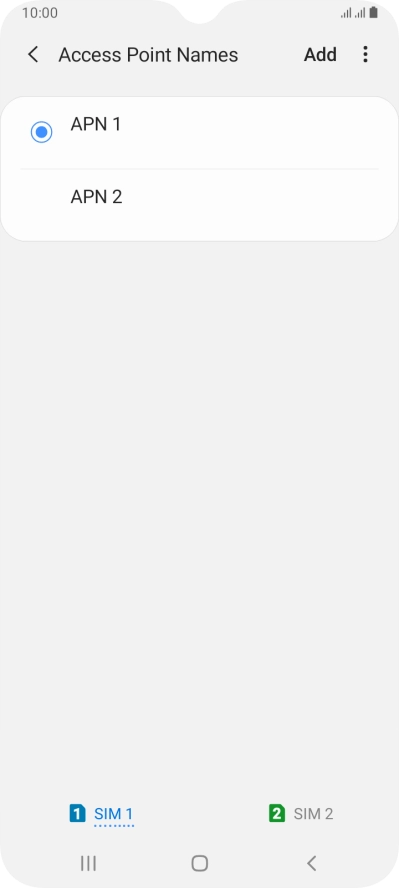

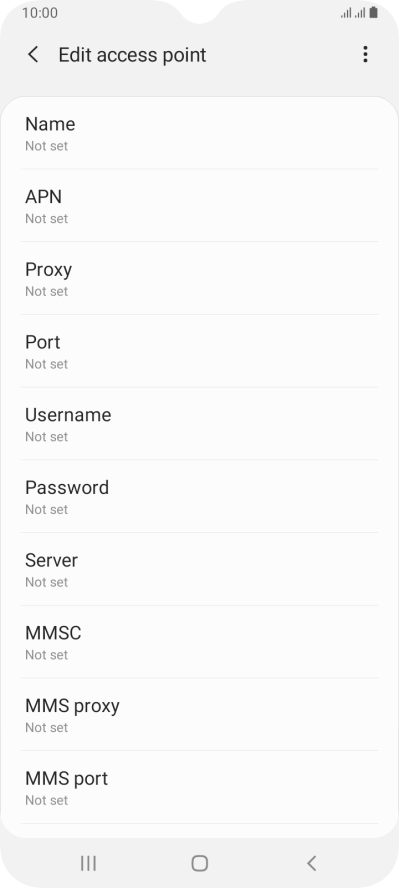

Press Add.

Step 8 of 28

2. Create new data connection

Press Name.

Vodafone MMS
Step 9 of 28

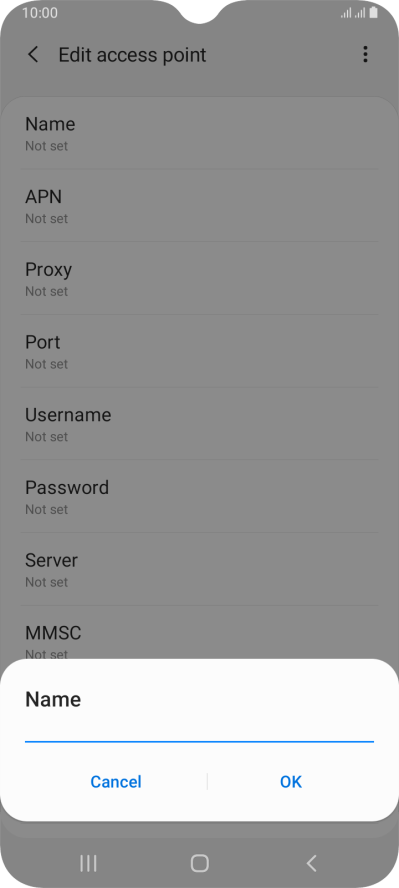

2. Create new data connection

Key in Vodafone MMS and press OK.

Step 10 of 28

3. Enter APN

Press APN.

mms.vodafone.net
Step 11 of 28

3. Enter APN

Key in mms.vodafone.net and press OK.

Step 12 of 28

4. Enter MMSC

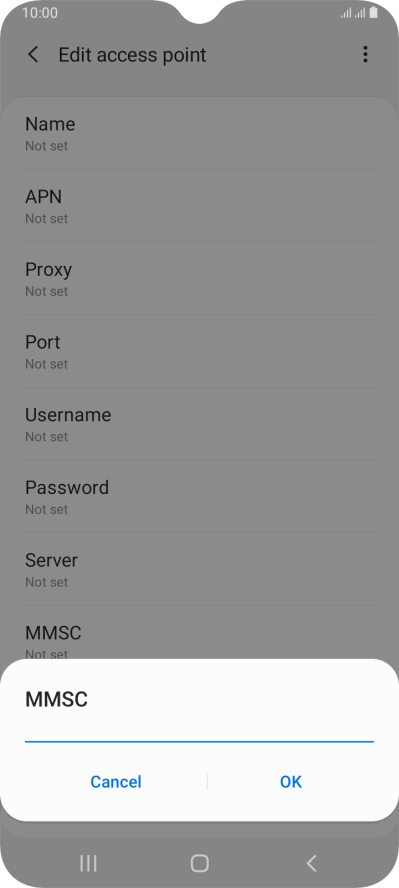

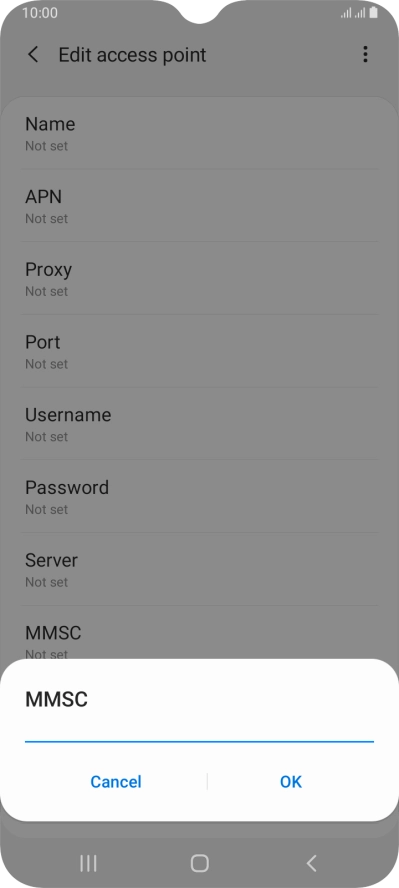

Press MMSC.

http://www.vodafone.ie/mms
Step 13 of 28

4. Enter MMSC

Key in http://www.vodafone.ie/mms and press OK.

Step 14 of 28

5. Enter IP address

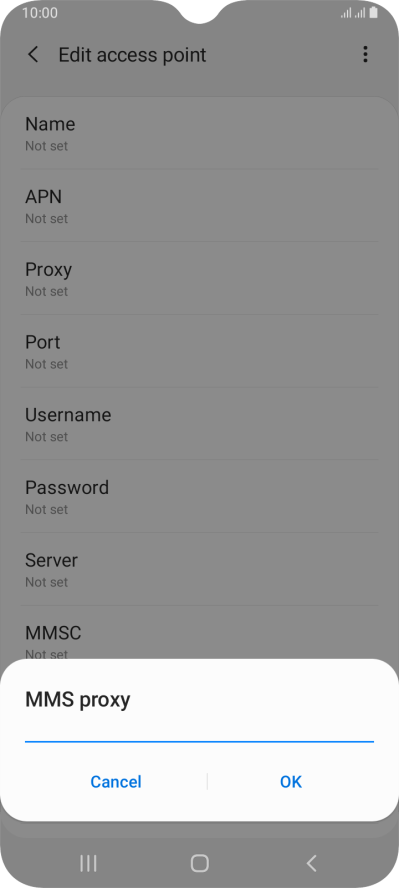

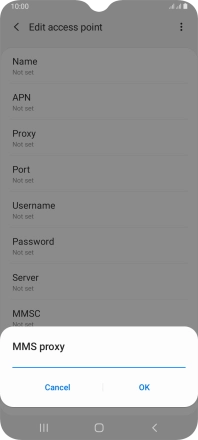

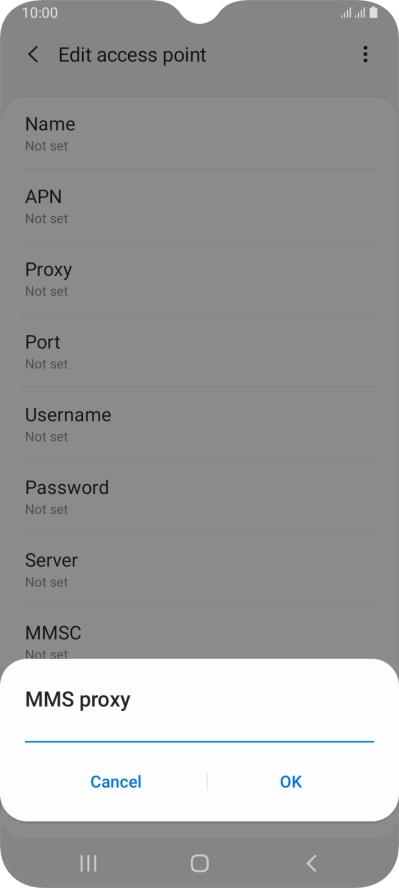

Press MMS proxy.

10.24.59.200
Step 15 of 28

5. Enter IP address

Key in 10.24.59.200 and press OK.

Step 16 of 28

6. Enter port number

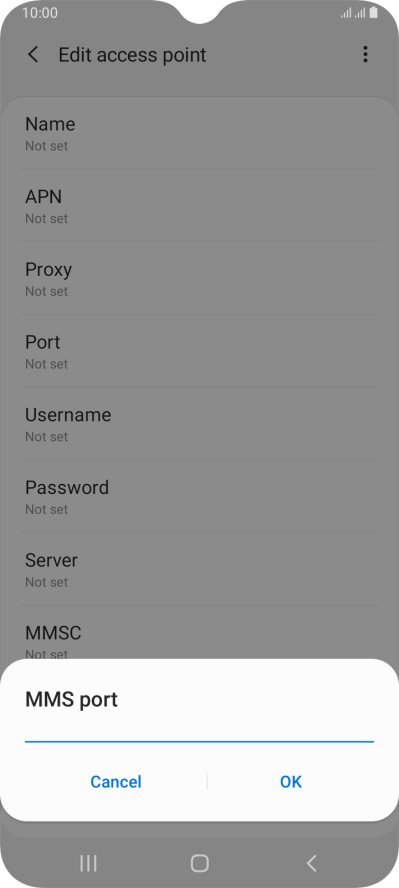

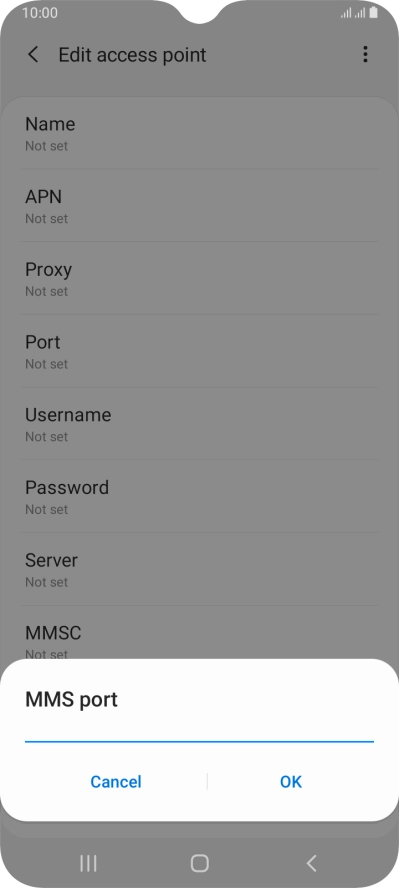

Press MMS port.

80
Step 17 of 28

6. Enter port number

Key in 80 and press OK.

Step 18 of 28

7. Enter country code

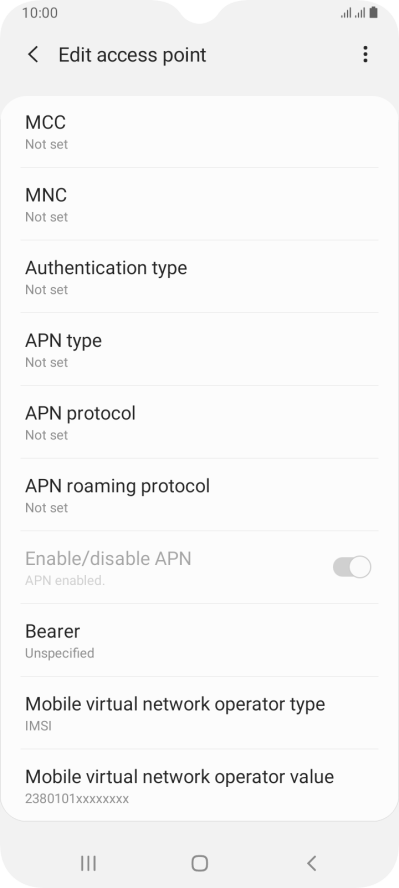

Press MCC.

272
Step 19 of 28

7. Enter country code

Key in 272 and press OK.

Step 20 of 28

8. Enter network code

Press MNC.

01
Step 21 of 28

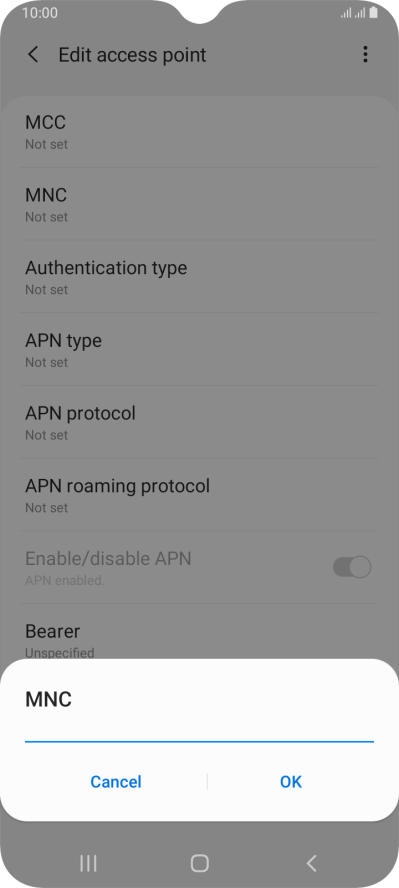

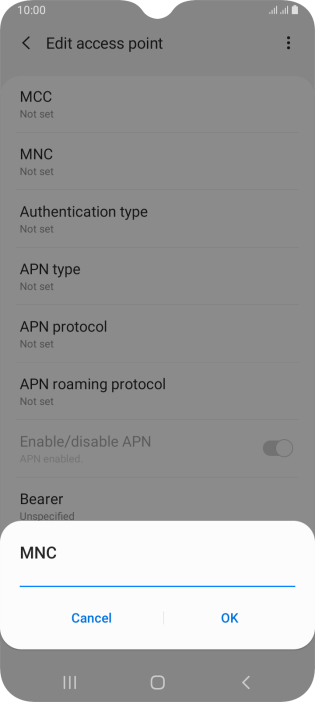

8. Enter network code

Key in 01 and press OK.

Step 22 of 28

9. Select authentication type

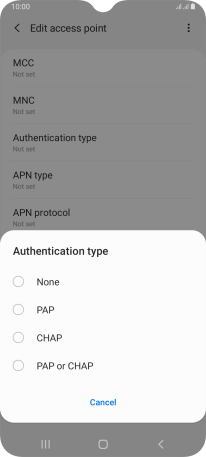

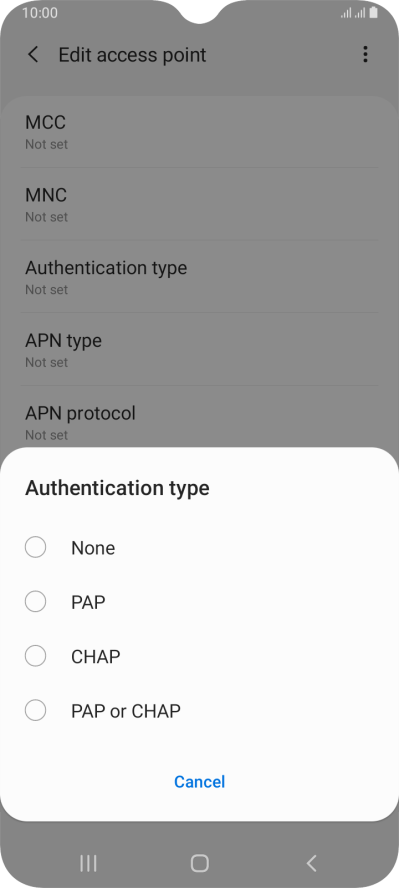

Press Authentication type.

Step 23 of 28

9. Select authentication type

Press PAP.

Step 24 of 28

10. Enter APN type

Press APN type.

mms
Step 25 of 28

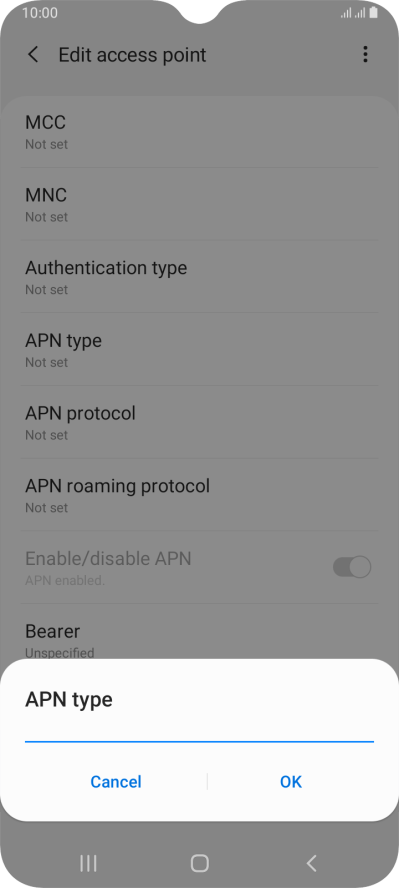

10. Enter APN type

Key in mms and press OK.

Step 26 of 28

11. Save data connection

Press the menu icon.

Step 27 of 28

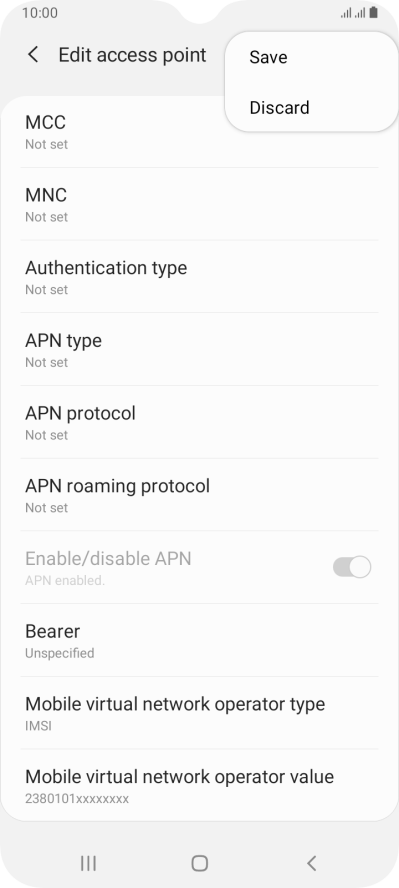

11. Save data connection

Press Save.

Step 28 of 28

12. Return to the home screen

Press the Home key to return to the home screen.

1. Find "Access Point Names"

Slide two fingers downwards starting from the top of the screen.
Press the settings icon.
Press Connections.
Press Mobile networks.
Press Access Point Names.

2. Create new data connection

Press the required SIM.
Press Add.
Press Name.
Key in Vodafone MMS and press OK.
Vodafone MMS

3. Enter APN

Press APN.
Key in mms.vodafone.net and press OK.
mms.vodafone.net

4. Enter MMSC

Press MMSC.
Key in http://www.vodafone.ie/mms and press OK.
http://www.vodafone.ie/mms

5. Enter IP address

Press MMS proxy.
Key in 10.24.59.200 and press OK.
10.24.59.200

6. Enter port number

Press MMS port.
Key in 80 and press OK.
80

7. Enter country code

Press MCC.
Key in 272 and press OK.
272

8. Enter network code

Press MNC.
Key in 01 and press OK.
01

9. Select authentication type

Press Authentication type.
Press PAP.

10. Enter APN type

Press APN type.
Key in mms and press OK.
mms

11. Save data connection

Press the menu icon.
Press Save.

12. Return to the home screen

Press the Home key to return to the home screen.
