Set up your phone for picture messaging - Nokia C3-01

Read help info

Follow these instructions to set up your phone for picture messaging.

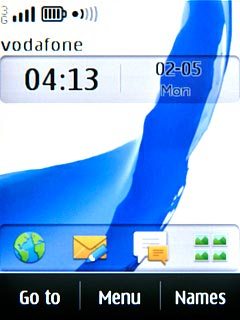

Step 1 of 47

Find "Personal settings"

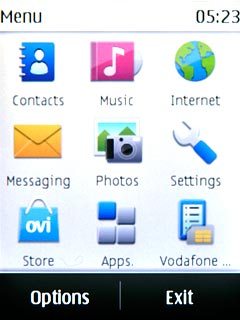

Press Menu.

Step 2 of 47

Find "Personal settings"

Press Settings.

Step 3 of 47

Find "Personal settings"

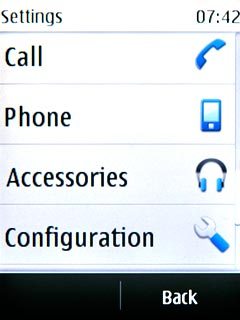

Press Configuration.

Step 4 of 47

Find "Personal settings"

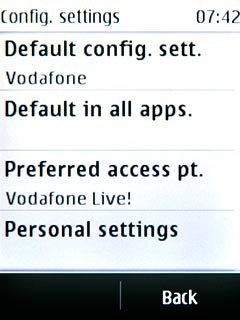

Press Personal settings.

Step 5 of 47

Create new data connection

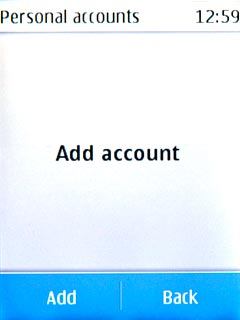

If no data connections have been created:
Press Add.

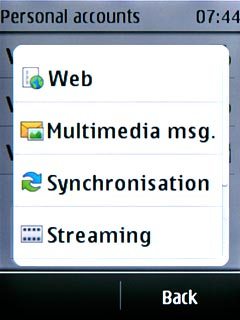

Step 6 of 47

Create new data connection

Press Multimedia mgs..

Step 7 of 47

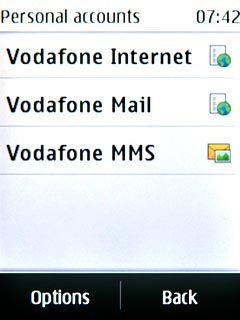

Create new data connection

If data connections have been created already:
Press Options.

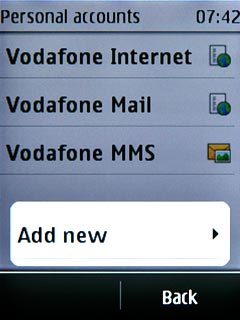

Step 8 of 47

Create new data connection

Press Add new.

Step 9 of 47

Create new data connection

Press Multimedia mgs..

Step 10 of 47

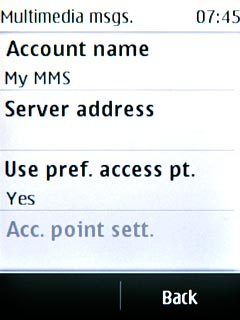

Enter data connection name

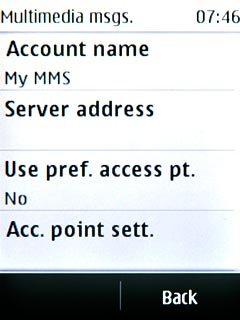

Press Account name.

Step 11 of 47

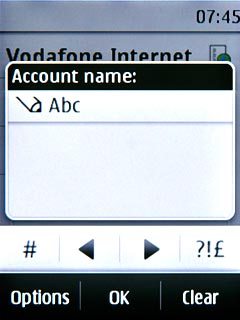

Enter data connection name

Key in Vodafone MMS and press OK.

Step 12 of 47

Enter picture messaging server

Press Server address.

Step 13 of 47

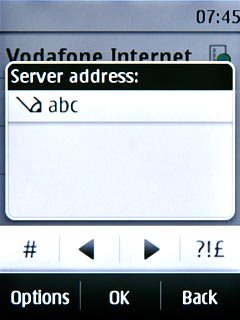

Enter picture messaging server

Key in http://www.vodafone.ie/mms and press OK.

Step 14 of 47

Deactivate default data connection use

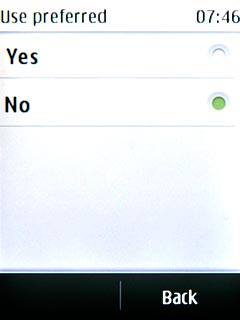

Press Use pref. access pt..

Step 15 of 47

Deactivate default data connection use

Press No.

Step 16 of 47

Turn on proxy server

Press Acc. point sett..

Step 17 of 47

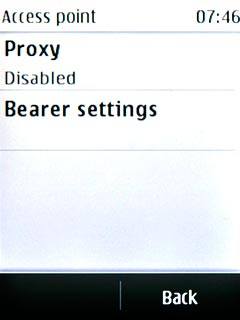

Turn on proxy server

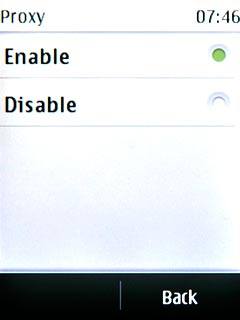

Press Proxy.

Step 18 of 47

Turn on proxy server

Press Enable.

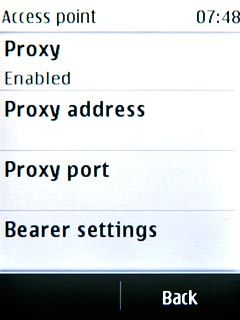

Step 19 of 47

Enter IP address

Press Proxy address.

Step 20 of 47

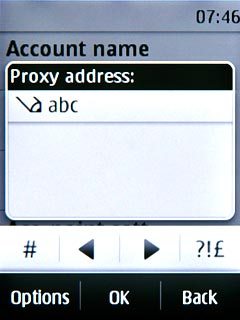

Enter IP address

Key in 10.24.59.200 and press OK.

Step 21 of 47

Enter port number

Press Proxy port.

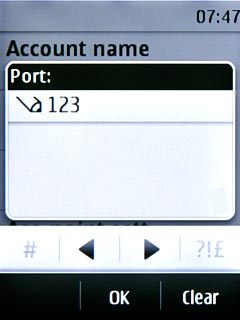

Step 22 of 47

Enter port number

Key in 80 and press OK.

Step 23 of 47

Edit bearer settings

Press Bearer settings.

Step 24 of 47

Enter APN

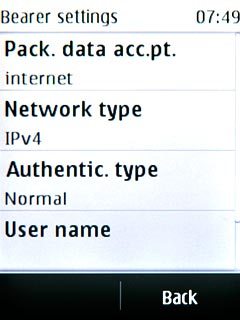

Press Pack. data acc.pt..

Step 25 of 47

Enter APN

Key in mms.vodafone.net and press OK.

Step 26 of 47

Select authentication type

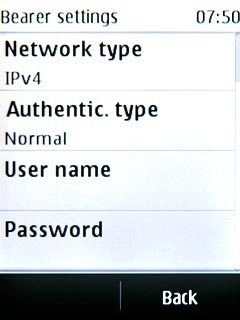

Press Authentic. type.

Step 27 of 47

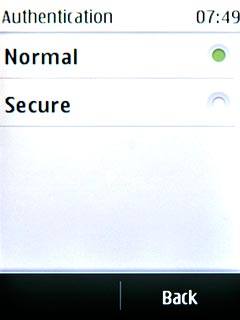

Select authentication type

Press Normal.

Step 28 of 47

Activate data connection

Press Back three times to save the settings and return to the list of data connections.

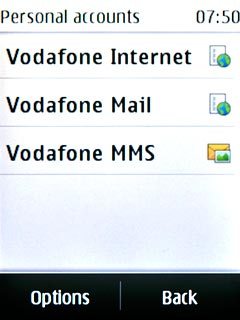

Step 29 of 47

Activate data connection

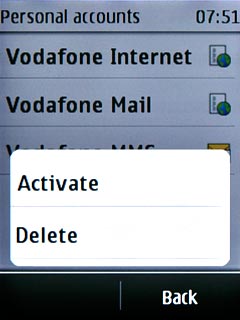

Press and hold Vodafone MMS until a pop-up menu is displayed.

Step 30 of 47

Activate data connection

Press Activate.

Step 31 of 47

Activate data connection

Press Disconnect to return to standby mode.

Step 32 of 47

Find "Msg. settings"

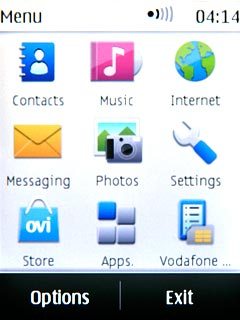

Press Menu.

Step 33 of 47

Find "Msg. settings"

Press Messaging.

Step 34 of 47

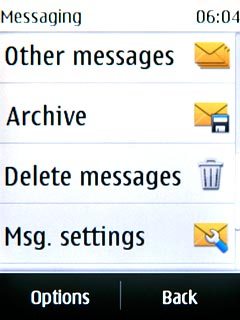

Find "Msg. settings"

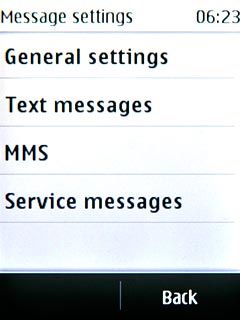

Press Msg. settings.

Step 35 of 47

Turn request for delivery reports on or off

Press General settings.

If you turn on request for delivery reports, you'll be notified when your message has been delivered. This requires that sending of delivery reports has been turned on by the recipient.
Step 36 of 47

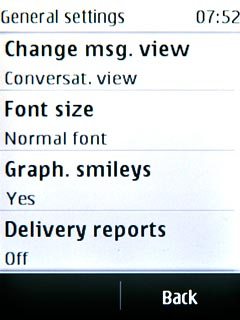

Turn request for delivery reports on or off

Press Delivery reports.

If you turn on request for delivery reports, you'll be notified when your message has been delivered. This requires that sending of delivery reports has been turned on by the recipient.
Step 37 of 47

Turn request for delivery reports on or off

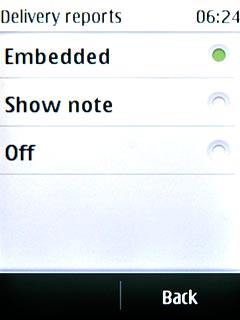

Press Embedded, Show note or Off.

If you turn on request for delivery reports, you'll be notified when your message has been delivered. This requires that sending of delivery reports has been turned on by the recipient.
Step 38 of 47

Turn request for delivery reports on or off

Press Back.

If you turn on request for delivery reports, you'll be notified when your message has been delivered. This requires that sending of delivery reports has been turned on by the recipient.
Step 39 of 47

Select setting for receiving picture messages

Press MMS.

If you select Automatic, you'll receive all picture messages.
If you select Autom. in home, you'll be notified before you receive picture messages when you're out of range of your home network.
If you select Manual, you'll always be notified before you receive picture messages.
If you select Off, only headers are retrieved. You then have to retrieve the picture message manually.
Step 40 of 47

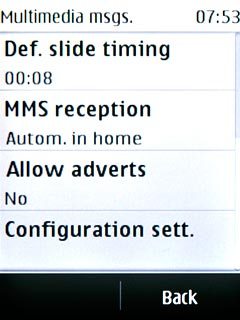

Select setting for receiving picture messages

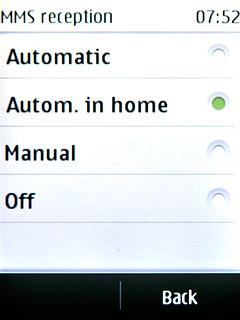

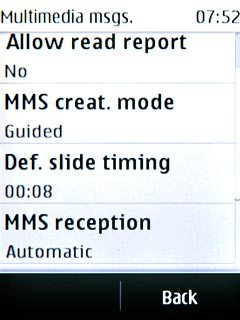

Press MMS reception.

If you select Automatic, you'll receive all picture messages.
If you select Autom. in home, you'll be notified before you receive picture messages when you're out of range of your home network.
If you select Manual, you'll always be notified before you receive picture messages.
If you select Off, only headers are retrieved. You then have to retrieve the picture message manually.
Step 41 of 47

Select setting for receiving picture messages

Press Autom. in home.

If you select Automatic, you'll receive all picture messages.
If you select Autom. in home, you'll be notified before you receive picture messages when you're out of range of your home network.
If you select Manual, you'll always be notified before you receive picture messages.
If you select Off, only headers are retrieved. You then have to retrieve the picture message manually.
Step 42 of 47

Select data connection

Press Configuration sett..

Step 43 of 47

Select data connection

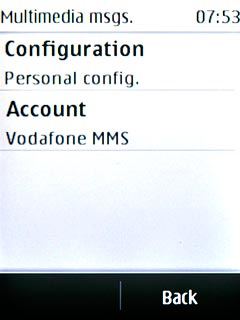

Press Configuration.

Step 44 of 47

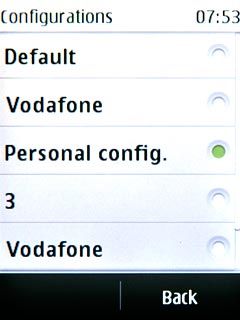

Select data connection

Press Personal config..

Step 45 of 47

Select data connection

Press Account.

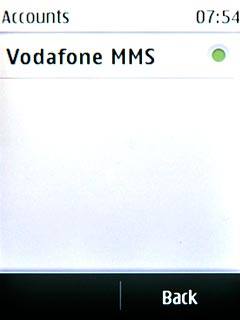

Step 46 of 47

Select data connection

Press Vodafone MMS.

Step 47 of 47

Save and exit

Press Disconnect to return to standby mode.

Find "Personal settings"

Press Menu.
Press Settings.
Press Configuration.
Press Personal settings.

Create new data connection

If no data connections have been created:
Press Add.
Press Multimedia mgs..
If data connections have been created already:
Press Options.
Press Add new.
Press Multimedia mgs..

Enter data connection name

Press Account name.
Key in Vodafone MMS and press OK.

Enter picture messaging server

Press Server address.
Key in http://www.vodafone.ie/mms and press OK.

Deactivate default data connection use

Press Use pref. access pt..
Press No.

Turn on proxy server

Press Acc. point sett..
Press Proxy.
Press Enable.

Enter IP address

Press Proxy address.
Key in 10.24.59.200 and press OK.

Enter port number

Press Proxy port.
Key in 80 and press OK.

Edit bearer settings

Press Bearer settings.

Enter APN

Press Pack. data acc.pt..
Key in mms.vodafone.net and press OK.

Select authentication type

Press Authentic. type.
Press Normal.

Activate data connection

Press Back three times to save the settings and return to the list of data connections.
Press and hold Vodafone MMS until a pop-up menu is displayed.
Press Activate.
Press Disconnect to return to standby mode.

Find "Msg. settings"

Press Menu.
Press Messaging.
Press Msg. settings.

Turn request for delivery reports on or off

Press General settings.
If you turn on request for delivery reports, you'll be notified when your message has been delivered. This requires that sending of delivery reports has been turned on by the recipient.
Press Delivery reports.
If you turn on request for delivery reports, you'll be notified when your message has been delivered. This requires that sending of delivery reports has been turned on by the recipient.
Press Embedded, Show note or Off.
If you turn on request for delivery reports, you'll be notified when your message has been delivered. This requires that sending of delivery reports has been turned on by the recipient.
Press Back.
If you turn on request for delivery reports, you'll be notified when your message has been delivered. This requires that sending of delivery reports has been turned on by the recipient.

Select setting for receiving picture messages

Press MMS.
If you select Automatic, you'll receive all picture messages.
If you select Autom. in home, you'll be notified before you receive picture messages when you're out of range of your home network.
If you select Manual, you'll always be notified before you receive picture messages.
If you select Off, only headers are retrieved. You then have to retrieve the picture message manually.
Press MMS reception.
If you select Automatic, you'll receive all picture messages.
If you select Autom. in home, you'll be notified before you receive picture messages when you're out of range of your home network.
If you select Manual, you'll always be notified before you receive picture messages.
If you select Off, only headers are retrieved. You then have to retrieve the picture message manually.
Press Autom. in home.
If you select Automatic, you'll receive all picture messages.
If you select Autom. in home, you'll be notified before you receive picture messages when you're out of range of your home network.
If you select Manual, you'll always be notified before you receive picture messages.
If you select Off, only headers are retrieved. You then have to retrieve the picture message manually.

Select data connection

Press Configuration sett..
Press Configuration.
Press Personal config..
Press Account.
Press Vodafone MMS.

Save and exit

Press Disconnect to return to standby mode.
