BlackBerry Z10

BlackBerry Z10

Guide to phone keys and sockets - BlackBerry Z10

Step 1 of 13

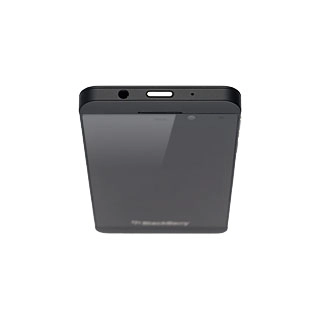

On/Off

Several functions are associated with On/Off:

Step 2 of 13

On/Off

Press and hold On/Off to turn your phone on or off.

Step 3 of 13

On/Off

Briefly press On/Off to turn on the key lock.

Step 4 of 13

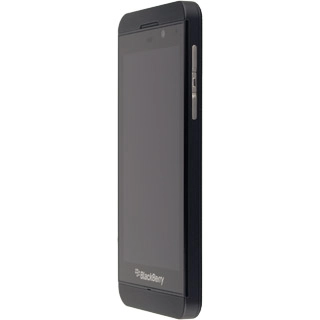

The Volume keys

Several functions are associated with the Volume keys:

Step 5 of 13

The Volume keys

Press the Top or the Bottom volume key to adjust the ring volume.

Step 6 of 13

The Volume keys

Press the Top or the Bottom volume key during a call to adjust the volume.

Step 7 of 13

The Volume keys

Press the Top or the Bottom volume key to silence the incoming call alert.

Step 8 of 13

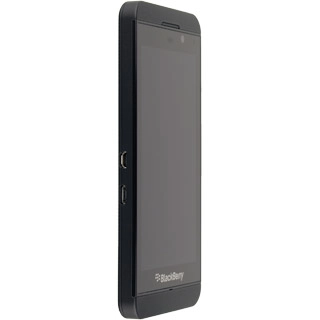

Socket

Connect the charger or data cable to the socket and to a wall socket or your computer's USB port.

Step 9 of 13

Headset socket

Connect the headset to the headset socket.

Step 10 of 13

HDMI socket

Connect an HDMI cable to the HDMI socket and to an external screen to view your pictures or video clips.

Step 11 of 13

The Voice control key

Press the Voice control key to turn on voice control.

Step 12 of 13

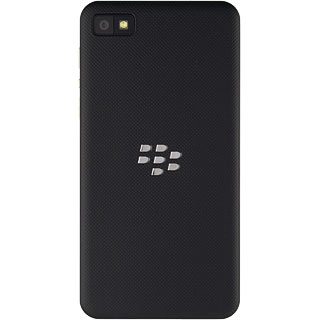

Camera lens at the back of your phone

Point the camera lens at the back of your phone at the required object to take a picture or record a video clip.

Step 13 of 13

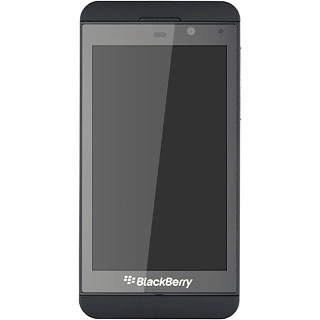

Camera lens at the front of your phone

Point the camera lens at the front of your phone at the required object to take a picture or record a video clip.

1. On/Off

Several functions are associated with On/Off:
Press and hold On/Off to turn your phone on or off.
Briefly press On/Off to turn on the key lock.

2. The Volume keys

Several functions are associated with the Volume keys:
Press the Top or the Bottom volume key to adjust the ring volume.
Press the Top or the Bottom volume key during a call to adjust the volume.
Press the Top or the Bottom volume key to silence the incoming call alert.

3. Socket

Connect the charger or data cable to the socket and to a wall socket or your computer's USB port.

4. Headset socket

Connect the headset to the headset socket.

5. HDMI socket

Connect an HDMI cable to the HDMI socket and to an external screen to view your pictures or video clips.

6. The Voice control key

Press the Voice control key to turn on voice control.

7. Camera lens at the back of your phone

Point the camera lens at the back of your phone at the required object to take a picture or record a video clip.

8. Camera lens at the front of your phone

Point the camera lens at the front of your phone at the required object to take a picture or record a video clip.
