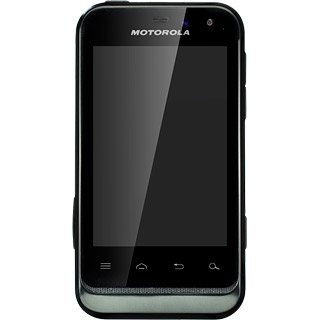

Motorola Defy Mini

Motorola Defy Mini

Set up your phone for Exchange email - Motorola Defy Mini

Read help info

Follow these instructions to set up your phone for Exchange email.

Step 1 of 51

Find "Access Point Names"

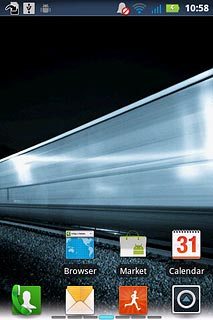

Press the menu icon.

Step 2 of 51

Find "Access Point Names"

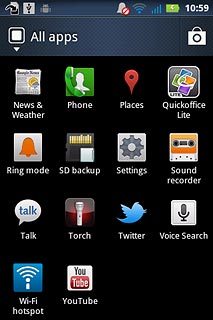

Press Settings.

Step 3 of 51

Find "Access Point Names"

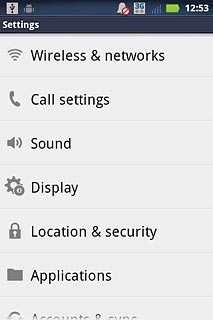

Press Wireless & networks.

Step 4 of 51

Find "Access Point Names"

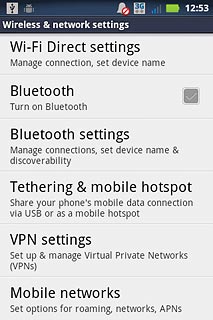

Press Mobile networks.

Step 5 of 51

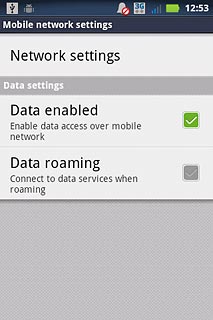

Find "Access Point Names"

Press Network settings.

Step 6 of 51

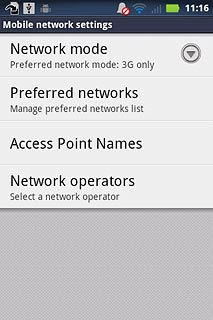

Find "Access Point Names"

Press Access Point Names.

Step 7 of 51

Create new data connection

Press the Menu key.

Step 8 of 51

Create new data connection

Press New APN.

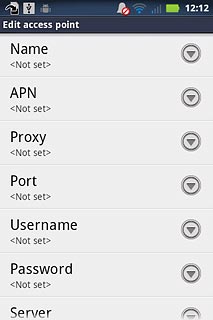

Step 9 of 51

Enter data connection name

Press Name.

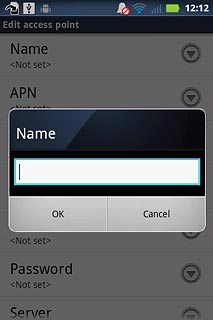

Step 10 of 51

Enter data connection name

Key in Vodafone Mail and press OK.

Step 11 of 51

Enter APN

Press APN.

An APN is used to create a data connection.
Step 12 of 51

Enter APN

Key in live.vodafone.com and press OK.

An APN is used to create a data connection.

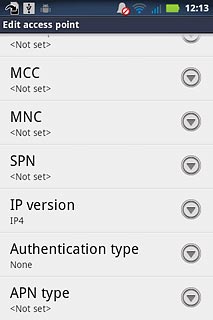

Step 13 of 51

Enter country code

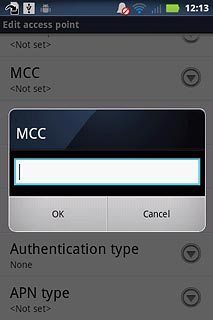

Press MCC.

Step 14 of 51

Enter country code

Key in 272 and press OK.

Step 15 of 51

Enter network code

Press MNC.

Step 16 of 51

Enter network code

Key in 01 and press OK.

Step 17 of 51

Select authentication type

Press Authentication type.

Step 18 of 51

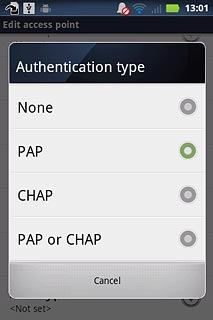

Select authentication type

Press PAP.

Step 19 of 51

Select APN type

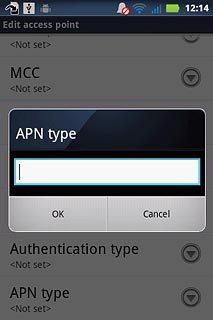

Press APN type.

Step 20 of 51

Select APN type

Key in default and press OK.

Step 21 of 51

Save and activate data connection

Press the Menu key.

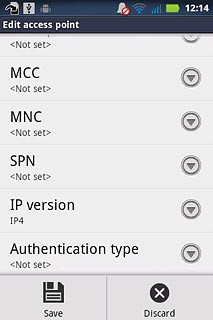

Step 22 of 51

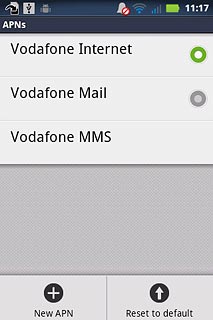

Save and activate data connection

Press Save.

Step 23 of 51

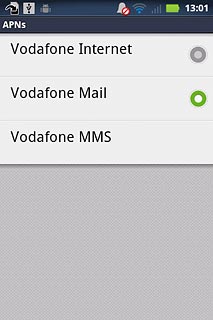

Save and activate data connection

Press the field next to Vodafone Mail to fill in the field.

Step 24 of 51

Save and activate data connection

Press the Home key to return to standby mode.

Step 25 of 51

Find "Corporate"

Press the menu icon.

Step 26 of 51

Find "Corporate"

Press Settings.

Step 27 of 51

Find "Corporate"

Press Accounts and sync.

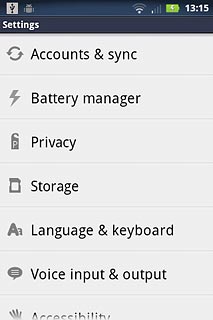

Step 28 of 51

Find "Corporate"

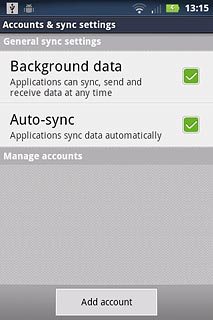

Press Add account.

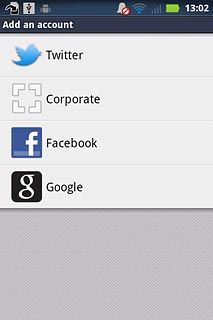

Step 29 of 51

Find "Corporate"

Press Corporate.

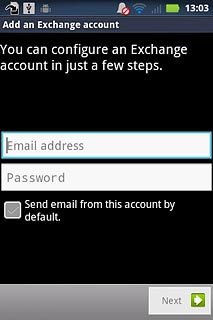

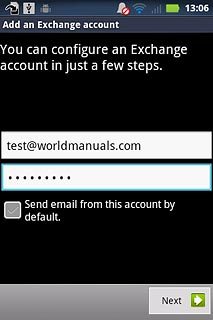

Step 30 of 51

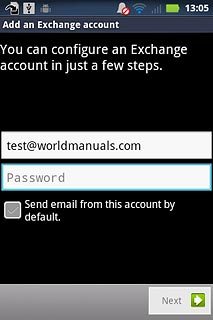

Enter email address

Press Email address and key in your email address.

Step 31 of 51

Enter password

Press Password and key in your password.

Step 32 of 51

Enter password

Press Next.

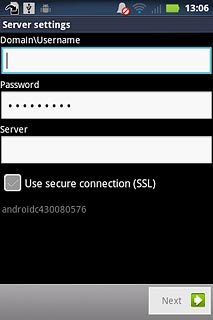

Step 33 of 51

Enter domain and username

Press the field below Domain\Username and key in the domain and username separated by a "\".

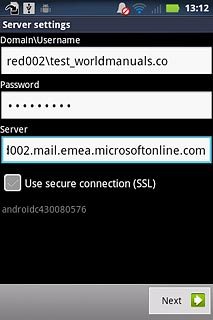

Step 34 of 51

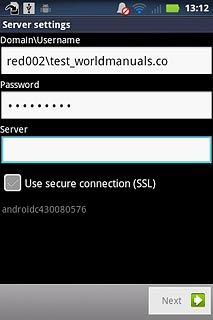

Enter server address

Press the field below Server and key in the server address.

Step 35 of 51

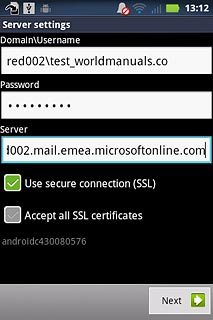

Turn SSL encryption on or off

Press Use secure connection (SSL) to turn SSL encryption on or off.

SSL encryption protects your email messages when sending and receiving email messages. If you turn on SSL encryption, your email provider and internet service provider need to support this function, and you might need to select further settings before you can send and receive email messages.
Step 36 of 51

Turn SSL encryption on or off

When the box next to the menu item is ticked (V), the function is turned on.

SSL encryption protects your email messages when sending and receiving email messages. If you turn on SSL encryption, your email provider and internet service provider need to support this function, and you might need to select further settings before you can send and receive email messages.

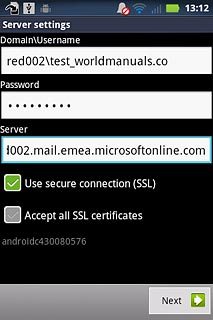

Step 37 of 51

Turn SSL encryption on or off

Press Accept all SSL certificates to turn the function on or off.

SSL encryption protects your email messages when sending and receiving email messages. If you turn on SSL encryption, your email provider and internet service provider need to support this function, and you might need to select further settings before you can send and receive email messages.

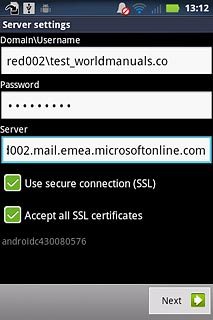

Step 38 of 51

Turn SSL encryption on or off

When the box next to the menu item is ticked (V), the function is turned on.

SSL encryption protects your email messages when sending and receiving email messages. If you turn on SSL encryption, your email provider and internet service provider need to support this function, and you might need to select further settings before you can send and receive email messages.
Step 39 of 51

Turn SSL encryption on or off

Press Next.

SSL encryption protects your email messages when sending and receiving email messages. If you turn on SSL encryption, your email provider and internet service provider need to support this function, and you might need to select further settings before you can send and receive email messages.
Step 40 of 51

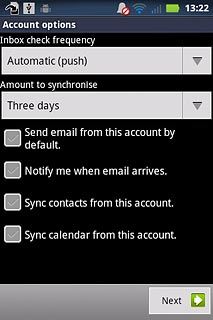

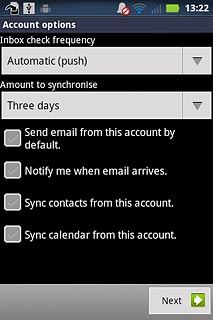

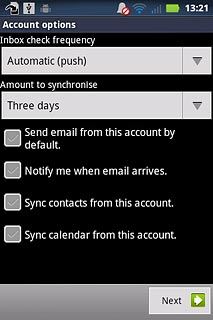

Select setting for retrieving new email messages

Press the drop down list below Inbox check frequency.

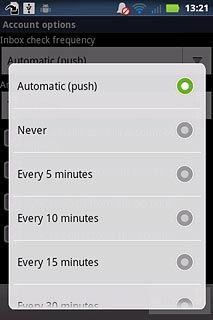

Step 41 of 51

Select setting for retrieving new email messages

Press Automatic (push), Never or the required frequency.
Please note:
each time your phone connects to the server to synchronise, data charges will apply.

Step 42 of 51

Select setting for synchronisation of email messages

Press the drop down list below Amount to synchronise.

Step 43 of 51

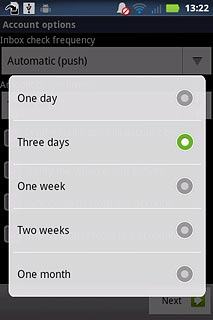

Select setting for synchronisation of email messages

Press the required setting.

Step 44 of 51

Turn automatic synchronisation of contacts on or off

Press Sync contacts from this account to turn the function on or off.

Step 45 of 51

Turn automatic synchronisation of contacts on or off

When the box next to the menu item is ticked (V), the function is turned on.

Step 46 of 51

Turn automatic synchronisation of calendar on or off

Press Sync calendar from this account to turn the function on or off.

Step 47 of 51

Turn automatic synchronisation of calendar on or off

When the box next to the menu item is ticked (V), the function is turned on.

Step 48 of 51

Turn automatic synchronisation of calendar on or off

Press Next.

Step 49 of 51

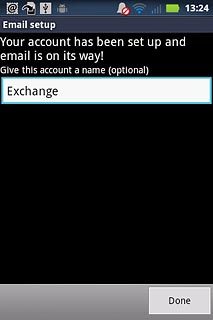

Enter account name

Press the field below Give this account a name (optional) and key in the required name.

Step 50 of 51

Finish setup

Press Done.

Step 51 of 51

Exit

Press the Home key to return to standby mode.
