1. Find "Access Point Name"
Press Settings.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-e9b5d0bd-240d-4996-94d6-f6cc7414492c.png?width=206&height=412)
Press Wireless & networks.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-07e6ff99-6b30-4457-8396-f44b950d3d62.png?width=206&height=412)
Press Mobile network.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-bdabbbf3-7b95-4582-86d0-80f0d2c24a37.png?width=206&height=412)

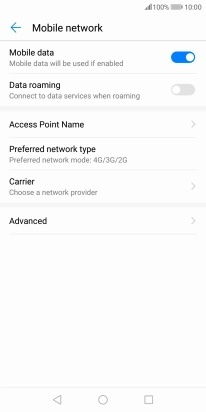

Press Access Point Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-0ed29668-04b8-480a-a945-8159ad2e9121.png?width=206&height=412)
2. Create new data connection

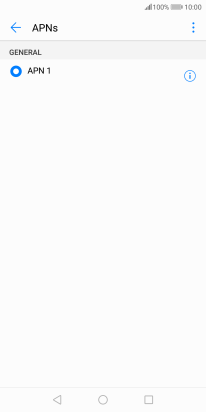

Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-d7cebb09-f3cb-4325-b568-b91db1191186.png?width=206&height=412)

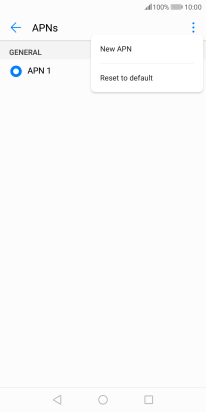

Press New APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-33793498-0b88-44fa-88db-07cdd14c3af8.png?width=206&height=412)
3. Enter a name for the connection

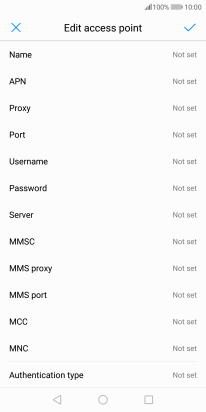

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-0d96d6f1-56ad-43cb-9c61-365f30fad67a.png?width=206&height=412)

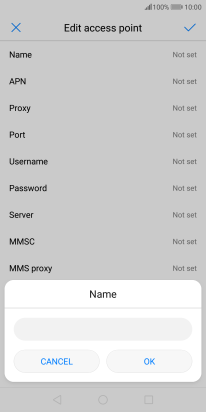

Key in Vodafone Internet and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-d327bd43-f961-4ff6-a67e-373b81943c34.png?width=206&height=412)
Vodafone Internet
4. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-0d96d6f1-56ad-43cb-9c61-365f30fad67a.png?width=206&height=412)
Key in live.vodafone.com and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-2b8555ba-c935-4811-80ff-c60f39e48e11.png?width=206&height=412)
live.vodafone.com
5. Enter country code

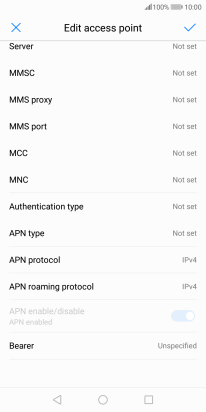

Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-eab15dcf-5515-47bc-9b80-5b1e12f74e01.png?width=206&height=412)
Key in 272 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ca6f2778-eccf-436f-9ee4-8364387f40ee.png?width=206&height=412)
272
6. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-eab15dcf-5515-47bc-9b80-5b1e12f74e01.png?width=206&height=412)
Key in 01 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-3611ed24-19c6-42ed-9f24-b11d8967c3bb.png?width=206&height=412)
01
7. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-eab15dcf-5515-47bc-9b80-5b1e12f74e01.png?width=206&height=412)

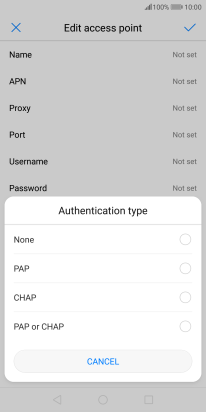

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-69659f73-3946-4dea-a47c-68098ea6651f.png?width=206&height=412)
8. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-eab15dcf-5515-47bc-9b80-5b1e12f74e01.png?width=206&height=412)

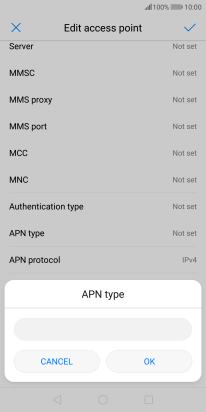

Key in default and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-706c5a85-856a-4bac-809c-2f1e39180d04.png?width=206&height=412)
default
9. Save data connection
Press the save icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-eab15dcf-5515-47bc-9b80-5b1e12f74e01.png?width=206&height=412)

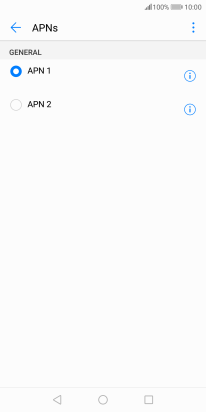

Press the field next to the data connection to activate it.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-36b95f3b-9c90-4830-ace4-beb537893981.png?width=206&height=412)
10. Return to the home screen

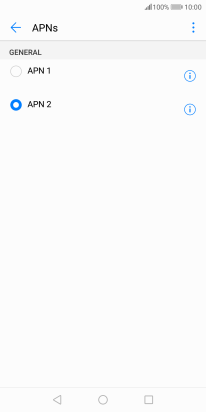

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-e3569493-5547-4a8c-8004-f34ef2e513a0.png?width=206&height=412)
