Vodafone Smart Tab II 7

Vodafone Smart Tab II 7

Guide to device keys and sockets - Vodafone Smart Tab II 7

Step 1 of 8

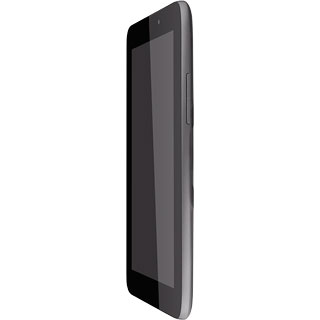

On/Off

Several functions are associated with On/Off:

Step 2 of 8

On/Off

Press On/Off to turn your device on or off.

Step 3 of 8

On/Off

Press On/Off to turn on the key lock.

Step 4 of 8

The Volume key

Press the upper or lower part of the Volume key to adjust the volume.

Step 5 of 8

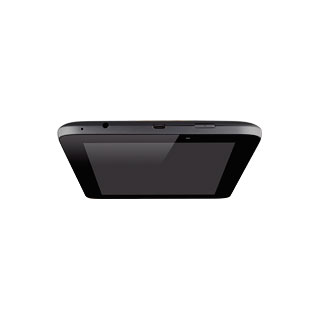

Socket

Connect the charger or data cable to the device socket and to a wall socket or your computer's USB port.

Step 6 of 8

Headset socket

Connect the headset to the headset socket.

Step 7 of 8

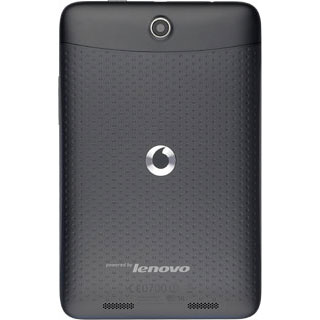

Camera lens at the back of your device

Point the camera lens at the back of your device at the required object to take a picture or record a video clip.

Step 8 of 8

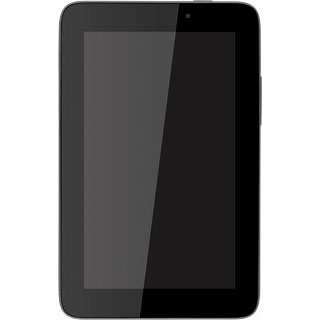

Camera lens at the front of your device

Point the camera lens at the front of your device at the required object to take a picture or record a video clip.

1. On/Off

Several functions are associated with On/Off:
Press On/Off to turn your device on or off.
Press On/Off to turn on the key lock.

2. The Volume key

Press the upper or lower part of the Volume key to adjust the volume.

3. Socket

Connect the charger or data cable to the device socket and to a wall socket or your computer's USB port.

4. Headset socket

Connect the headset to the headset socket.

5. Camera lens at the back of your device

Point the camera lens at the back of your device at the required object to take a picture or record a video clip.

6. Camera lens at the front of your device

Point the camera lens at the front of your device at the required object to take a picture or record a video clip.
