Vodafone R216/Windows 10

Vodafone R216

Windows 10

Start using your router - Vodafone R216/Windows 10

Step 1 of 16

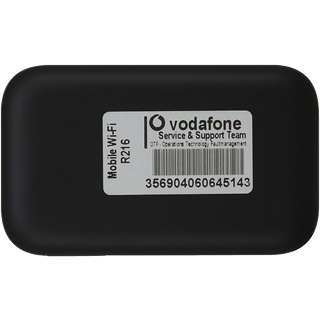

Remove the back cover

Turn the back of your router towards you.
Take hold of the bottom right side of the back cover and remove it.

Step 2 of 16

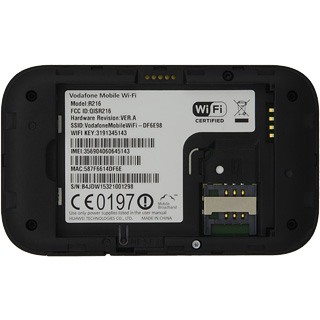

Insert your SIM

Place your SIM as illustrated next to the SIM holder.

Step 3 of 16

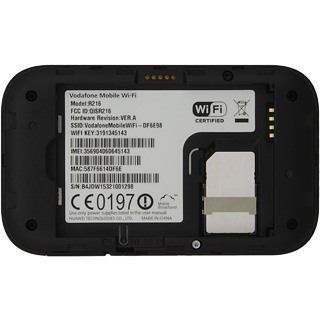

Insert your SIM

Slide your SIM into the holder.

Step 4 of 16

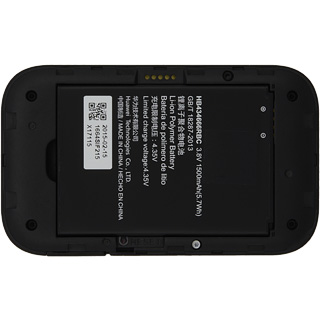

Insert the battery

Place the battery in your router (right side first), matching the battery contacts with the router contacts and press the battery into place.

Step 5 of 16

Replace the back cover

Place the back cover on your router and press it into place.

Step 6 of 16

Turn on your router

Press and hold On/Off.

Step 7 of 16

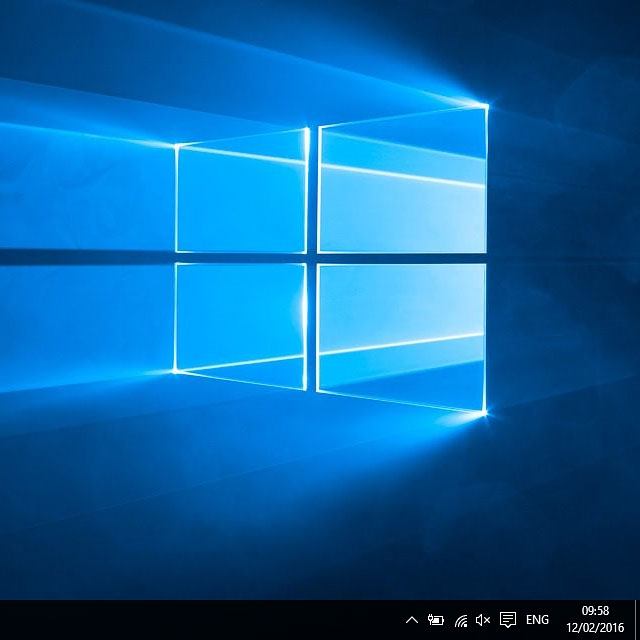

Connect to your Wi-Fi hotspot

Do the following in Windows:
Click the network icon.

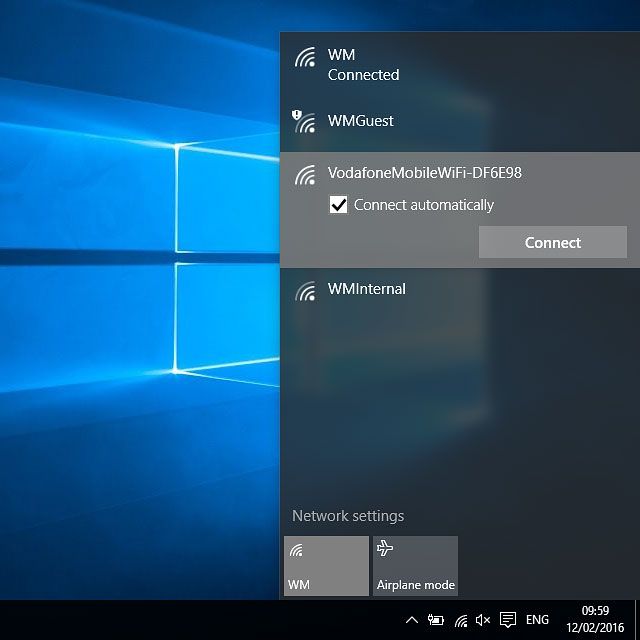

Step 8 of 16

Connect to your Wi-Fi hotspot

Highlight the name of your Wi-Fi hotspot and click Connect.

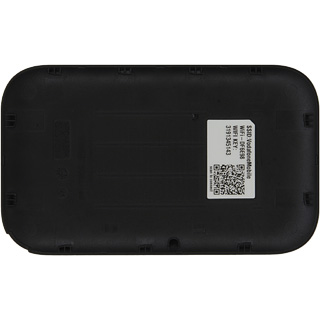

Step 9 of 16

Connect to your Wi-Fi hotspot

You can find the name and password for your Wi-Fi hotspot on the inside of the back cover.

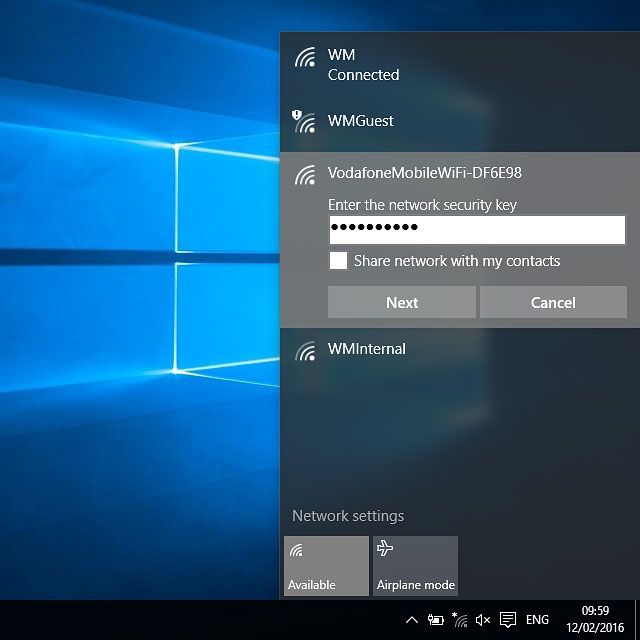

Step 10 of 16

Connect to your Wi-Fi hotspot

Key in the password for your Wi-Fi hotspot and click Next.
A connection to your Wi-Fi hotspot is established.

Vodafone R216/Windows 10
Step 11 of 16

Establish a connection to the internet

Open a browser.
Key in http://vodafonemobile.wifi in the address bar and press Enter.

Step 12 of 16

Establish a connection to the internet

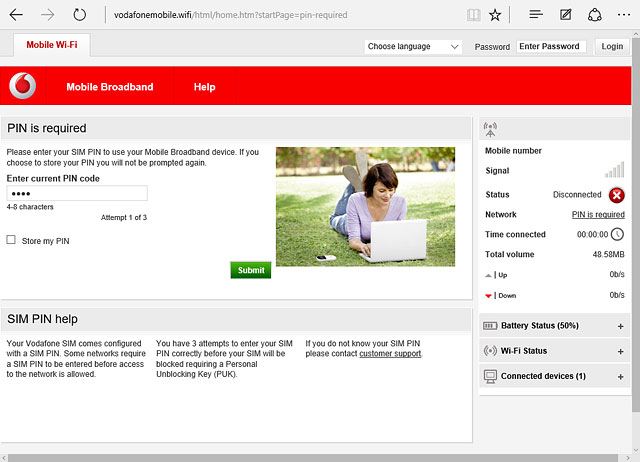

If you're asked to key in your PIN:
Highlight the field below "Enter current PIN code" and key in your PIN.

Step 13 of 16

Establish a connection to the internet

Click Submit.

Step 14 of 16

Establish a connection to the internet

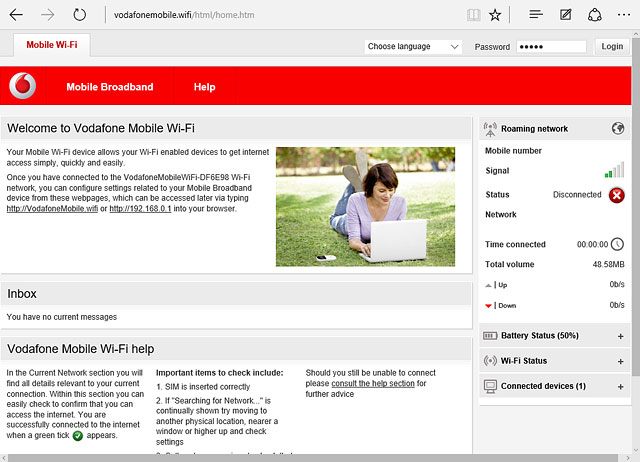

If your router's web interface shows that no connection has been established:
Highlight the field next to "Password" and key in admin

Step 15 of 16

Establish a connection to the internet

Click Login.

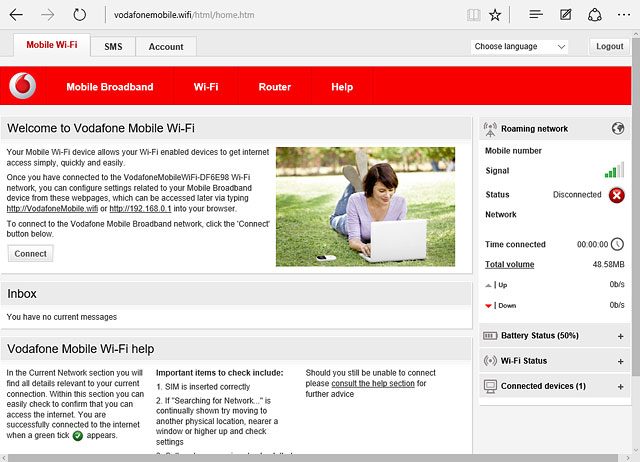

Step 16 of 16

Establish a connection to the internet

Click Connect.
A connection to the internet is established.

1. Remove the back cover

Turn the back of your router towards you.
Take hold of the bottom right side of the back cover and remove it.

2. Insert your SIM

Place your SIM as illustrated next to the SIM holder.
Slide your SIM into the holder.

3. Insert the battery

Place the battery in your router (right side first), matching the battery contacts with the router contacts and press the battery into place.

4. Replace the back cover

Place the back cover on your router and press it into place.

5. Turn on your router

Press and hold On/Off.

6. Connect to your Wi-Fi hotspot

Do the following in Windows:
Click the network icon.
Highlight the name of your Wi-Fi hotspot and click Connect.
You can find the name and password for your Wi-Fi hotspot on the inside of the back cover.
Key in the password for your Wi-Fi hotspot and click Next.
A connection to your Wi-Fi hotspot is established.

7. Establish a connection to the internet

Open a browser.
Key in http://vodafonemobile.wifi in the address bar and press Enter.
Vodafone R216/Windows 10
If you're asked to key in your PIN:
Highlight the field below "Enter current PIN code" and key in your PIN.
Click Submit.
If your router's web interface shows that no connection has been established:
Highlight the field next to "Password" and key in admin
Click Login.
Click Connect.
A connection to the internet is established.
