Vodafone R216/Sierra

Vodafone R216

Set up your router for internet manually - Vodafone R216/Sierra

Step 1 of 18

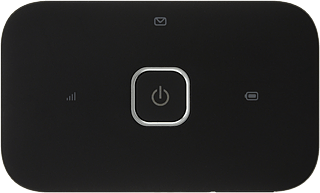

Turn on your router

Press and hold On/Off.

Step 2 of 18

Connect to Wi-Fi hotspot

Do the following in Mac OS X:
Click the Wi-Fi icon.

Step 3 of 18

Connect to Wi-Fi hotspot

Click the name of your Wi-Fi hotspot.

Step 4 of 18

Connect to Wi-Fi hotspot

You can find the name and password for your Wi-Fi hotspot on the inside of the back cover.

Step 5 of 18

Connect to Wi-Fi hotspot

Key in the password for your Wi-Fi hotspot and click Join.
A connection to your Wi-Fi hotspot is established.

Vodafone R216/Sierra
Step 6 of 18

Establish a connection to your router's web interface

Open a browser.
Key in http://vodafonemobile.wifi in the address bar and press Enter.

Step 7 of 18

Establish a connection to your router's web interface

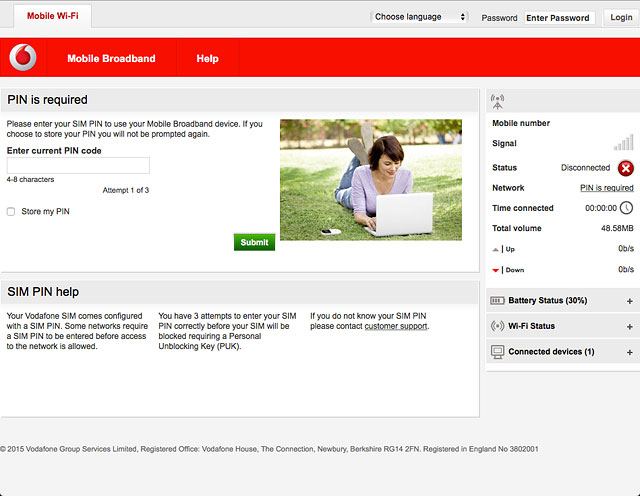

If you're asked to key in your PIN:
Highlight the field below "Enter current PIN code" and key in your PIN.

Step 8 of 18

Establish a connection to your router's web interface

Click Submit.

Step 9 of 18

Establish a connection to your router's web interface

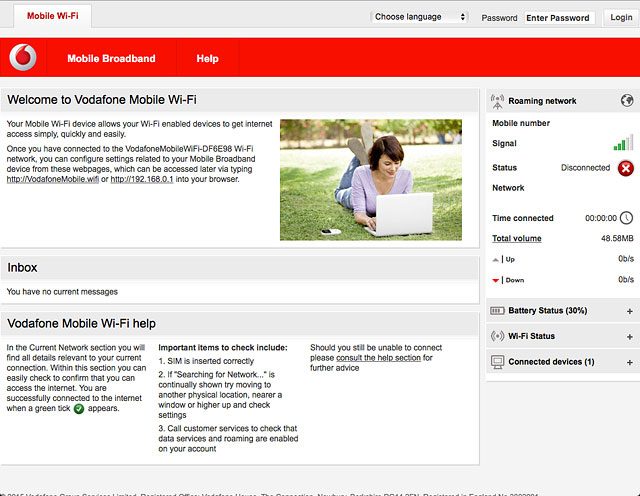

Highlight the field next to "Password" and key in admin

Step 10 of 18

Establish a connection to your router's web interface

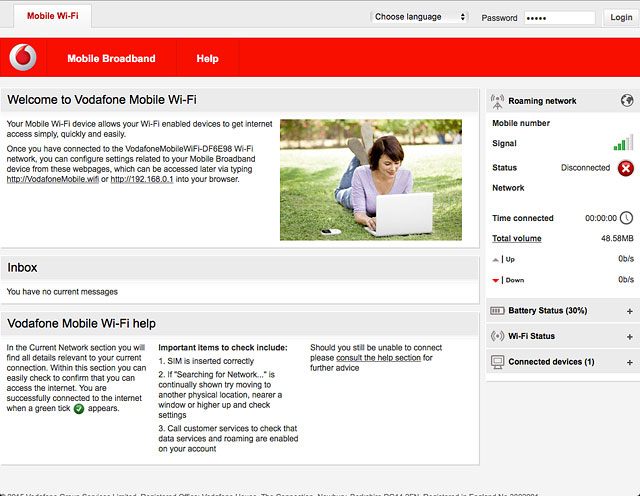

Click Login.

Step 11 of 18

Find "Connection"

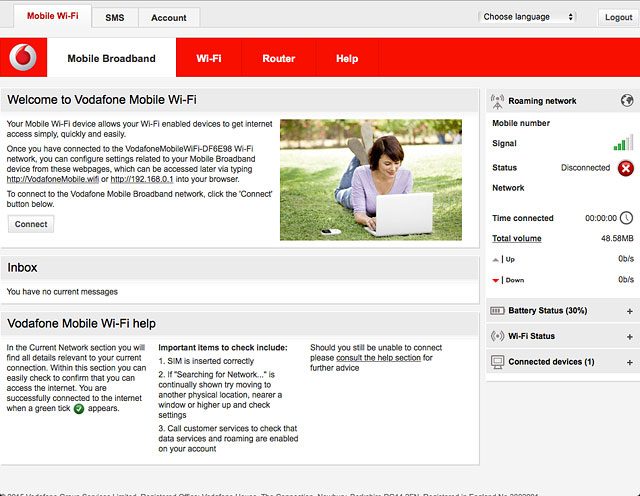

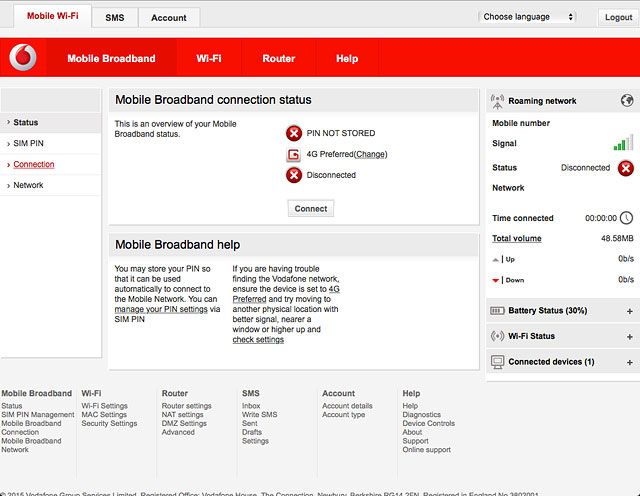

Click Mobile Broadband.

Step 12 of 18

Find "Connection"

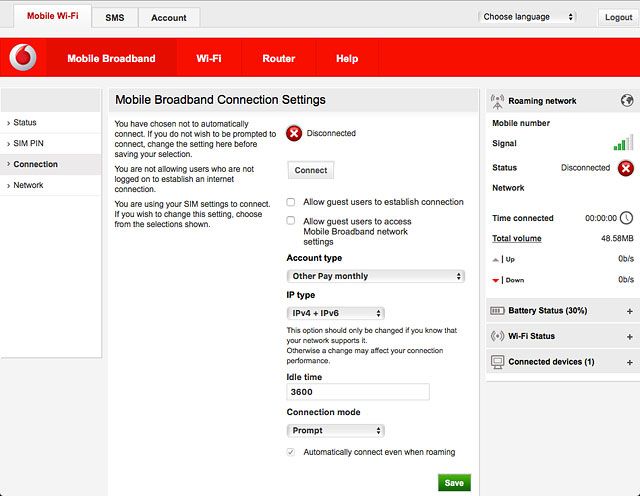

Click Connection.

Step 13 of 18

Create new data connection

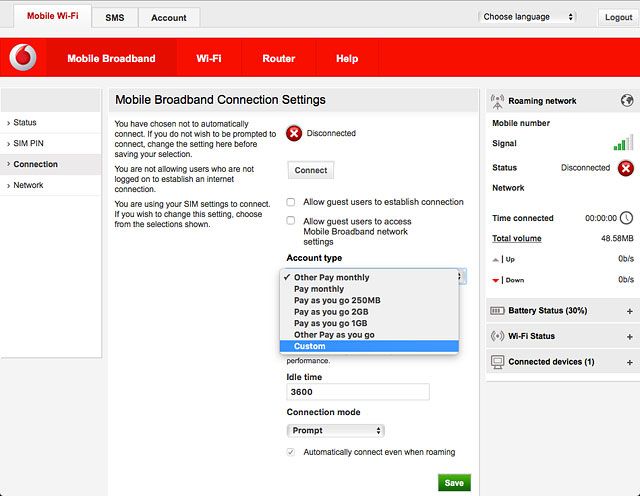

Click the drop down list below "Account type".

Step 14 of 18

Create new data connection

Highlight Custom.

Step 15 of 18

Enter APN

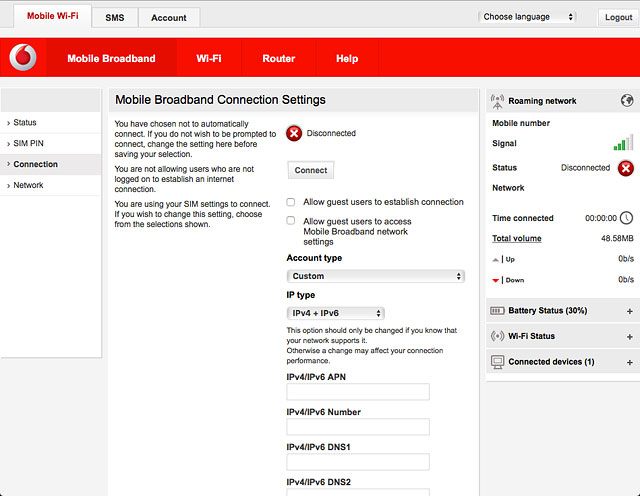

Highlight the field below "IPv4/IPv6 APN" and key in live.vodafone.com

Step 16 of 18

Enter dial-up number

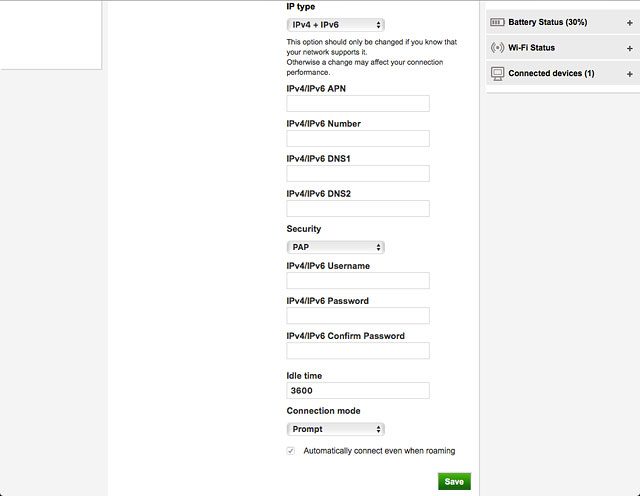

Highlight the field below "IPv4/IPv6 Number" and key in *99#

Step 17 of 18

Save and exit

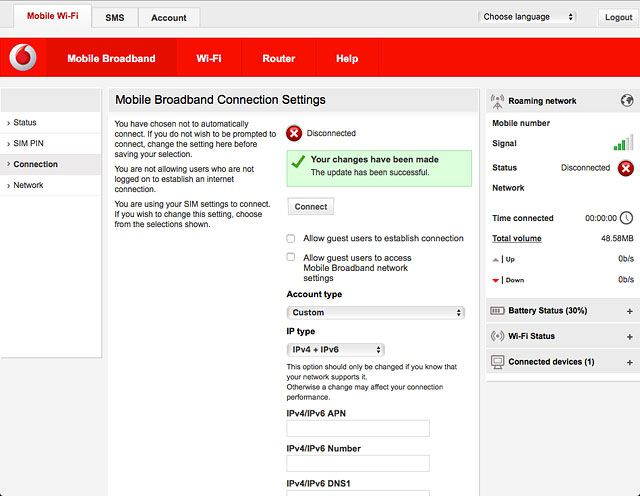

Click Save.

Step 18 of 18

Save and exit

Click Logout.

1. Turn on your router

Press and hold On/Off.

2. Connect to Wi-Fi hotspot

Do the following in Mac OS X:
Click the Wi-Fi icon.
Click the name of your Wi-Fi hotspot.
You can find the name and password for your Wi-Fi hotspot on the inside of the back cover.
Key in the password for your Wi-Fi hotspot and click Join.
A connection to your Wi-Fi hotspot is established.

3. Establish a connection to your router's web interface

Open a browser.
Key in http://vodafonemobile.wifi in the address bar and press Enter.
Vodafone R216/Sierra
If you're asked to key in your PIN:
Highlight the field below "Enter current PIN code" and key in your PIN.
Click Submit.
Highlight the field next to "Password" and key in admin
Click Login.

4. Find "Connection"

Click Mobile Broadband.
Click Connection.

5. Create new data connection

Click the drop down list below "Account type".
Highlight Custom.

6. Enter APN

Highlight the field below "IPv4/IPv6 APN" and key in live.vodafone.com

7. Enter dial-up number

Highlight the field below "IPv4/IPv6 Number" and key in *99#

8. Save and exit

Click Save.
Click Logout.
