Vodafone R216/Sierra

Vodafone R216

Select network - Vodafone R216/Sierra

Read help info

You can set your router to find a network automatically or you can select a network manually.

Step 1 of 19

Turn on your router

Press and hold On/Off.

Step 2 of 19

Connect to Wi-Fi hotspot

Do the following in Mac OS X:
Click the Wi-Fi icon.

Step 3 of 19

Connect to Wi-Fi hotspot

Click the name of your Wi-Fi hotspot.

Step 4 of 19

Connect to Wi-Fi hotspot

You can find the name and password for your Wi-Fi hotspot on the inside of the back cover.

Step 5 of 19

Connect to Wi-Fi hotspot

Key in the password for your Wi-Fi hotspot and click Join.
A connection to your Wi-Fi hotspot is established.

Vodafone R216/Sierra
Step 6 of 19

Establish a connection to your router's web interface

Open a browser.

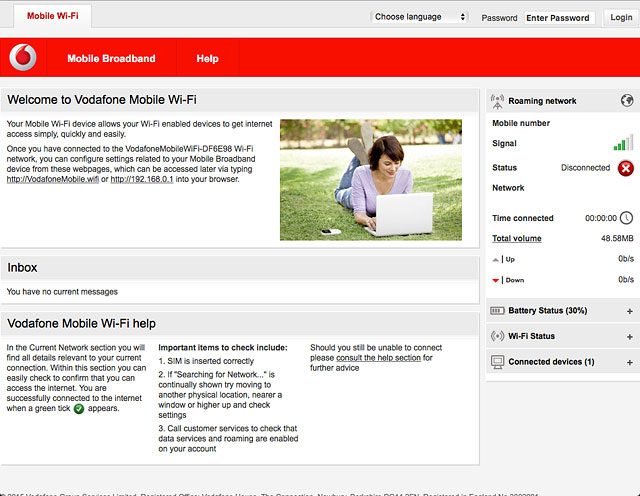

Key in http://vodafonemobile.wifiin the address bar and press Enter.

If an incorrect PIN is entered three times in a row, your SIM will be blocked. To unblock your SIM, you'll need to key in your PUK. The PUK can be obtained by contacting customer services.
PLEASE NOTE:
If the wrong PUK is entered ten times, your SIM will be blocked permanently. In this case, you need a new SIM from Vodafone.
Step 7 of 19

Establish a connection to your router's web interface

If you're asked to key in your PIN:

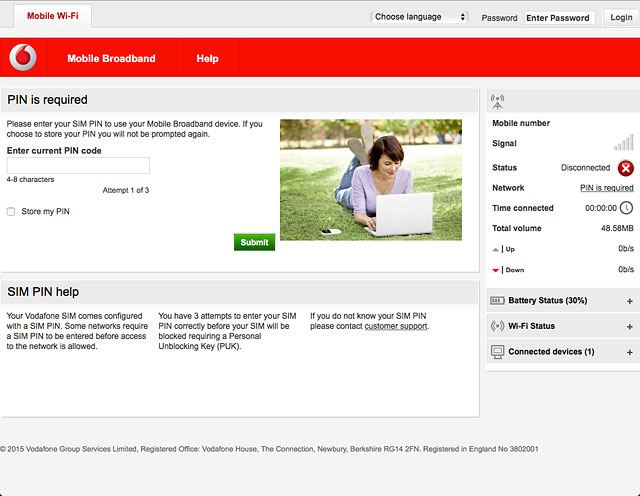

Highlight the field below "Enter current PIN code" and key in your PIN.

If an incorrect PIN is entered three times in a row, your SIM will be blocked. To unblock your SIM, you'll need to key in your PUK. The PUK can be obtained by contacting customer services.
PLEASE NOTE:
If the wrong PUK is entered ten times, your SIM will be blocked permanently. In this case, you need a new SIM from Vodafone.
Step 8 of 19

Establish a connection to your router's web interface

Click Submit.

If an incorrect PIN is entered three times in a row, your SIM will be blocked. To unblock your SIM, you'll need to key in your PUK. The PUK can be obtained by contacting customer services.
PLEASE NOTE:
If the wrong PUK is entered ten times, your SIM will be blocked permanently. In this case, you need a new SIM from Vodafone.
Step 9 of 19

Establish a connection to your router's web interface

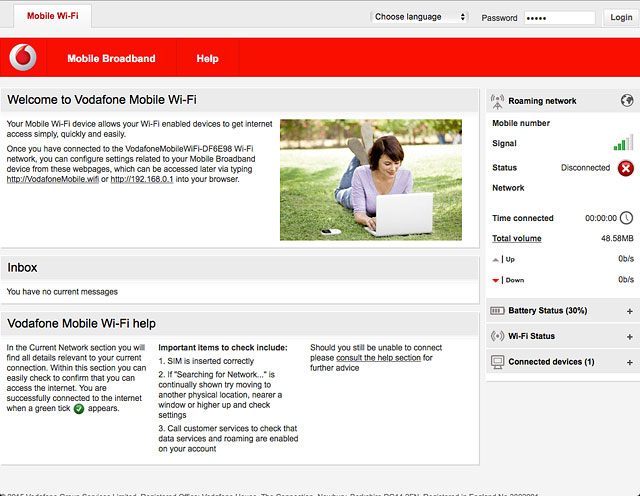

Highlight the field next to "Password" and key in admin

If an incorrect PIN is entered three times in a row, your SIM will be blocked. To unblock your SIM, you'll need to key in your PUK. The PUK can be obtained by contacting customer services.
PLEASE NOTE:
If the wrong PUK is entered ten times, your SIM will be blocked permanently. In this case, you need a new SIM from Vodafone.
Step 10 of 19

Establish a connection to your router's web interface

Click Login.

If an incorrect PIN is entered three times in a row, your SIM will be blocked. To unblock your SIM, you'll need to key in your PUK. The PUK can be obtained by contacting customer services.
PLEASE NOTE:
If the wrong PUK is entered ten times, your SIM will be blocked permanently. In this case, you need a new SIM from Vodafone.
Step 11 of 19

Find "Network"

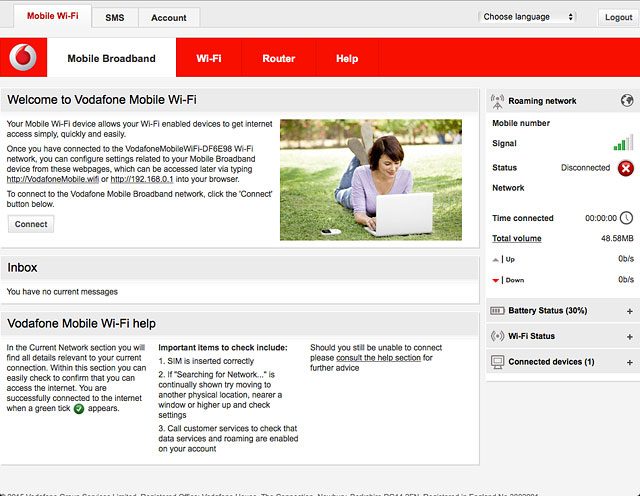

Click Mobile Broadband.

Step 12 of 19

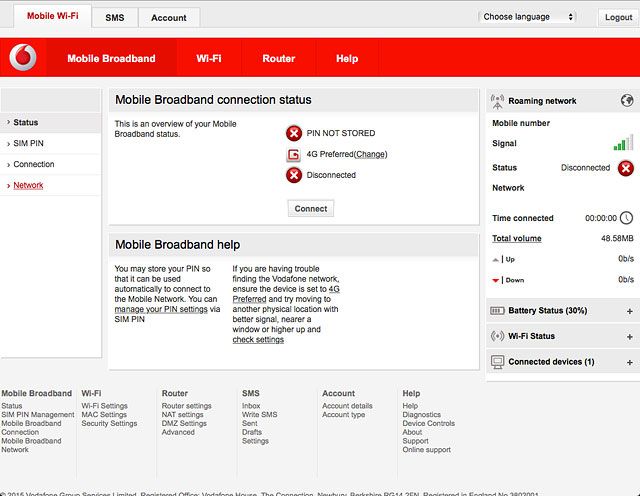

Find "Network"

Click Network.

Vodafone R216/Sierra
Step 13 of 19

Select option

Select one of the following options:
Select network manually, go to 5a.
Select network automatically, go to 5b.

Step 14 of 19

5a - Select network manually

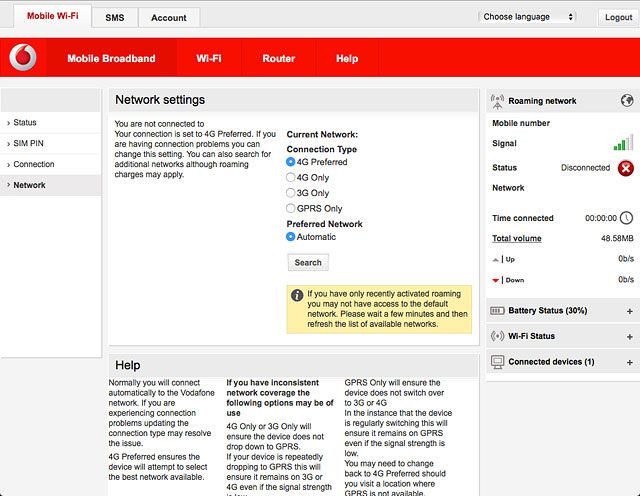

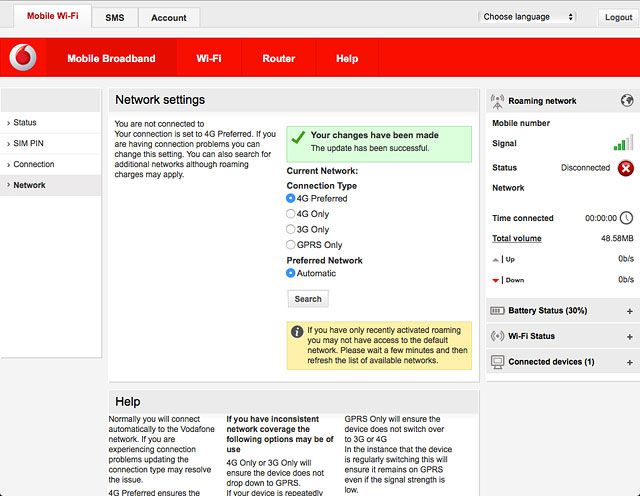

Click Search.

If you're out of range of the selected network, your router won't work.
Step 15 of 19

5a - Select network manually

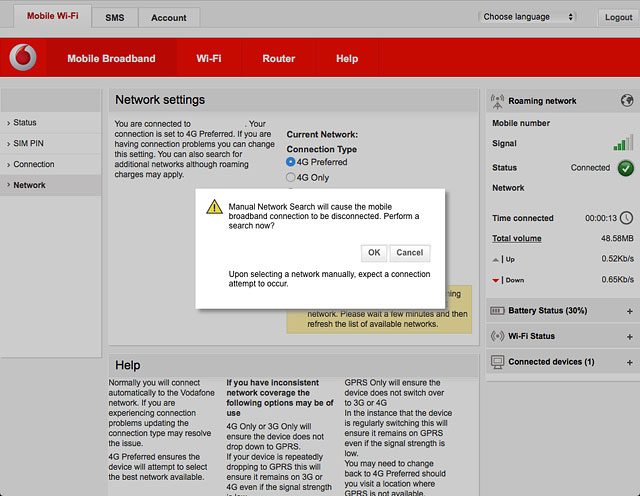

If a connection to the internet has been established:

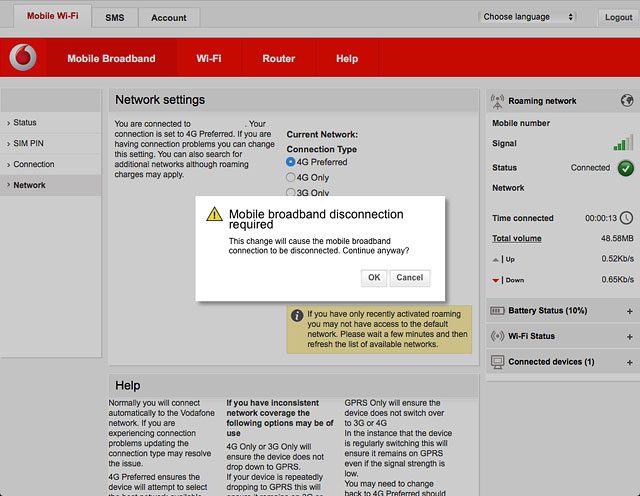

Click OK to end the connection.

If you're out of range of the selected network, your router won't work.
Step 16 of 19

5a - Select network manually

Your router searches for networks within range.

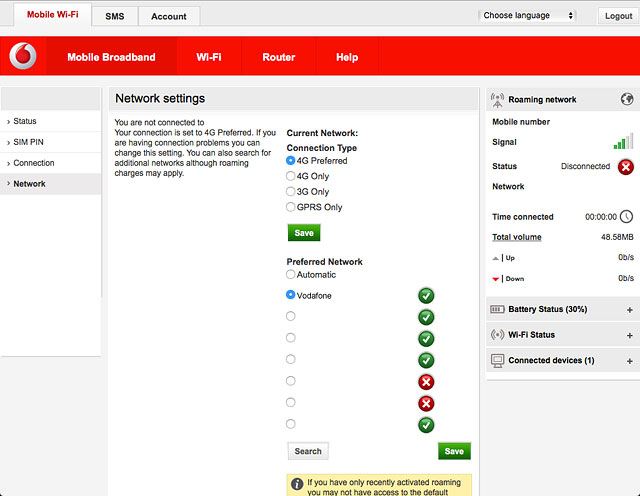

Highlight the required network and click Save.
The screen will tell you if you have access to the network you've chosen.

If you're out of range of the selected network, your router won't work.
Step 17 of 19

5b - Select network automatically

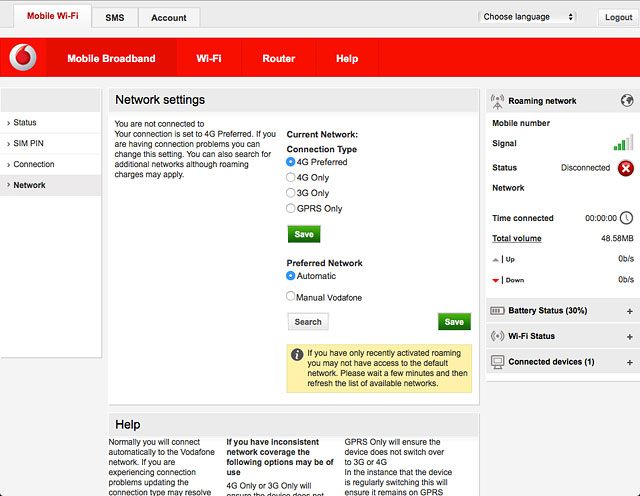

Highlight Automatic and click Save.

Step 18 of 19

5b - Select network automatically

If a connection to the internet has been established:
Click OK to end the connection.

Step 19 of 19

Exit

Click Logout.

Turn on your router

Press and hold On/Off.

Connect to Wi-Fi hotspot

Do the following in Mac OS X:
Click the Wi-Fi icon.
Click the name of your Wi-Fi hotspot.
You can find the name and password for your Wi-Fi hotspot on the inside of the back cover.
Key in the password for your Wi-Fi hotspot and click Join.
A connection to your Wi-Fi hotspot is established.

Establish a connection to your router's web interface

Open a browser.
Key in http://vodafonemobile.wifiin the address bar and press Enter.
If an incorrect PIN is entered three times in a row, your SIM will be blocked. To unblock your SIM, you'll need to key in your PUK. The PUK can be obtained by contacting customer services.
PLEASE NOTE:
If the wrong PUK is entered ten times, your SIM will be blocked permanently. In this case, you need a new SIM from Vodafone.
Vodafone R216/Sierra
If you're asked to key in your PIN:
Highlight the field below "Enter current PIN code" and key in your PIN.
If an incorrect PIN is entered three times in a row, your SIM will be blocked. To unblock your SIM, you'll need to key in your PUK. The PUK can be obtained by contacting customer services.
PLEASE NOTE:
If the wrong PUK is entered ten times, your SIM will be blocked permanently. In this case, you need a new SIM from Vodafone.
Click Submit.
If an incorrect PIN is entered three times in a row, your SIM will be blocked. To unblock your SIM, you'll need to key in your PUK. The PUK can be obtained by contacting customer services.
PLEASE NOTE:
If the wrong PUK is entered ten times, your SIM will be blocked permanently. In this case, you need a new SIM from Vodafone.
Highlight the field next to "Password" and key in admin
If an incorrect PIN is entered three times in a row, your SIM will be blocked. To unblock your SIM, you'll need to key in your PUK. The PUK can be obtained by contacting customer services.
PLEASE NOTE:
If the wrong PUK is entered ten times, your SIM will be blocked permanently. In this case, you need a new SIM from Vodafone.
Click Login.
If an incorrect PIN is entered three times in a row, your SIM will be blocked. To unblock your SIM, you'll need to key in your PUK. The PUK can be obtained by contacting customer services.
PLEASE NOTE:
If the wrong PUK is entered ten times, your SIM will be blocked permanently. In this case, you need a new SIM from Vodafone.

Find "Network"

Click Mobile Broadband.
Click Network.

Select option

Select one of the following options:
Select network manually, go to 5a.
Select network automatically, go to 5b.
Vodafone R216/Sierra

5a - Select network manually

Click Search.
If you're out of range of the selected network, your router won't work.
If a connection to the internet has been established:
Click OK to end the connection.
If you're out of range of the selected network, your router won't work.
Your router searches for networks within range.
Highlight the required network and click Save.
The screen will tell you if you have access to the network you've chosen.
If you're out of range of the selected network, your router won't work.

5b - Select network automatically

Highlight Automatic and click Save.
If a connection to the internet has been established:
Click OK to end the connection.

Exit

Click Logout.
