Vodafone R215/Windows 8

Vodafone R215

Windows

Select setting for automatic connection - Vodafone R215/Windows 8

Step 1 of 19

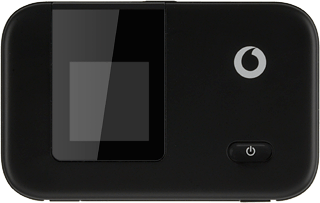

Turn on your router

Press and hold On/Off.

Step 2 of 19

Connect to your Wi-Fi hotspot

Do the following in Windows:
Click the network icon.

Step 3 of 19

Connect to your Wi-Fi hotspot

Highlight the name of your Wi-Fi hotspot and click Connect.

Step 4 of 19

Connect to your Wi-Fi hotspot

To see the name and password for your Wi-Fi hotspot:
Press MENU to highlight Info.

Step 5 of 19

Connect to your Wi-Fi hotspot

Press On/Off to see the name and password for your Wi-Fi hotspot.

Step 6 of 19

Connect to your Wi-Fi hotspot

Key in the password for your Wi-Fi hotspot and click Next.
A connection to your Wi-Fi hotspot is established.

Vodafone R215/Windows 8
Step 7 of 19

Establish a connection to your router's web interface

Open a browser.
Key in vodafonemobile.wifi in the address bar and press Enter.

Step 8 of 19

Establish a connection to your router's web interface

If you're asked to key in your PIN:
Highlight the field below "Enter current PIN code" and key in your PIN.

Step 9 of 19

Establish a connection to your router's web interface

Click Submit.

Step 10 of 19

Establish a connection to your router's web interface

Highlight the field next to "Password" and key in admin

Step 11 of 19

Establish a connection to your router's web interface

Click Login.

Step 12 of 19

Find "Connection"

Click Mobile Broadband.

Step 13 of 19

Find "Connection"

Click Connection.

Vodafone R215/Windows 8
Step 14 of 19

Select option

Select one of the following options:
Select setting for automatic connection, go to 5a.
Turn automatic connection when roaming on or off, go to 5b.

Step 15 of 19

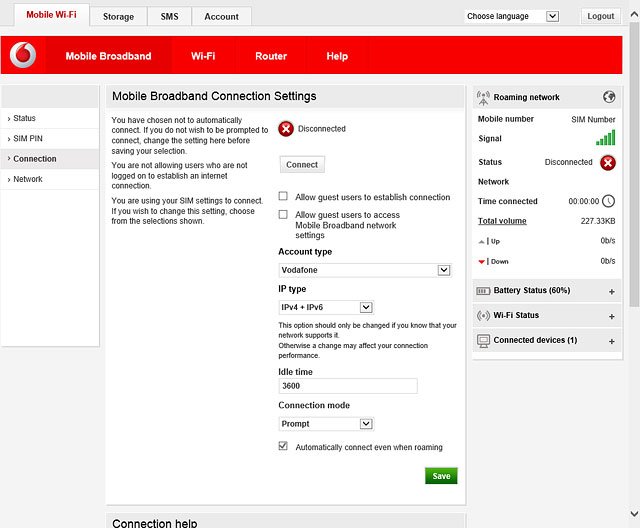

5a - Select setting for automatic connection

Click the drop down list below "Connection mode".

Step 16 of 19

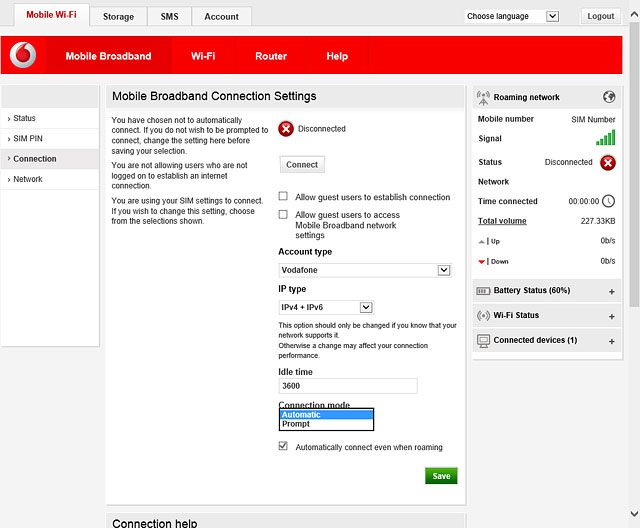

5a - Select setting for automatic connection

Highlight Automatic or Prompt.

Step 17 of 19

5b - Turn automatic connection when roaming on or off

Click the box next to "Automatically connect even when roaming" to turn the function on or off.

Step 18 of 19

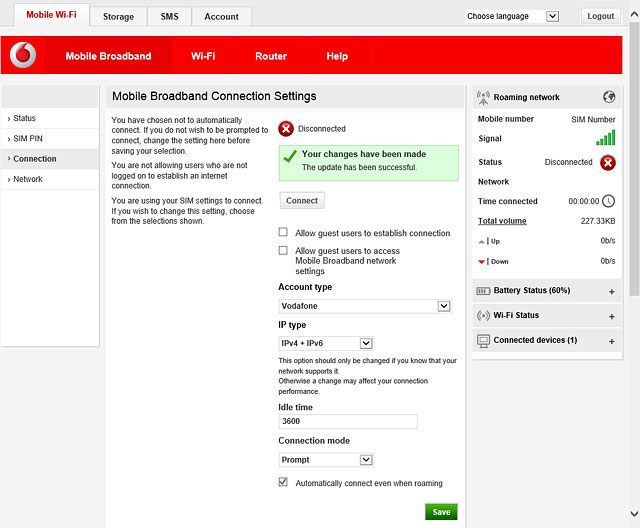

Save settings

Click Save.

Step 19 of 19

Exit

Click Logout.

1. Turn on your router

Press and hold On/Off.

2. Connect to your Wi-Fi hotspot

Do the following in Windows:
Click the network icon.
Highlight the name of your Wi-Fi hotspot and click Connect.
To see the name and password for your Wi-Fi hotspot:
Press MENU to highlight Info.
Press On/Off to see the name and password for your Wi-Fi hotspot.
Key in the password for your Wi-Fi hotspot and click Next.
A connection to your Wi-Fi hotspot is established.

3. Establish a connection to your router's web interface

Open a browser.
Key in vodafonemobile.wifi in the address bar and press Enter.
Vodafone R215/Windows 8
If you're asked to key in your PIN:
Highlight the field below "Enter current PIN code" and key in your PIN.
Click Submit.
Highlight the field next to "Password" and key in admin
Click Login.

4. Find "Connection"

Click Mobile Broadband.
Click Connection.

5. Select option

Select one of the following options:
Select setting for automatic connection, go to 5a.
Turn automatic connection when roaming on or off, go to 5b.
Vodafone R215/Windows 8

6. 5a - Select setting for automatic connection

Click the drop down list below "Connection mode".
Highlight Automatic or Prompt.

7. 5b - Turn automatic connection when roaming on or off

Click the box next to "Automatically connect even when roaming" to turn the function on or off.

8. Save settings

Click Save.

9. Exit

Click Logout.
