Vodafone R209-Z/Windows 8

Vodafone R209-Z

Windows

Set up your router for internet manually - Vodafone R209-Z/Windows 8

Step 1 of 18

Turn on your router

Press and hold On/Off.

Step 2 of 18

Connect to your Wi-Fi hotspot

Do the following in Windows:
Click the network icon.

Step 3 of 18

Connect to your Wi-Fi hotspot

Highlight the name of your Wi-Fi hotspot and click Connect.

Step 4 of 18

Connect to your Wi-Fi hotspot

You can find the name and password for your Wi-Fi hotspot under the battery.

Step 5 of 18

Connect to your Wi-Fi hotspot

Key in the password for your Wi-Fi hotspot and click Next.
A connection to your Wi-Fi hotspot is established.

Vodafone R209-Z/Windows 8
Step 6 of 18

Establish a connection to your router's web interface

Open a browser.
Key in vodafonemobile.wifi in the address bar and press Enter.

Step 7 of 18

Establish a connection to your router's web interface

If you're asked to key in your PIN:
Highlight the field below "Enter current PIN code" and key in your PIN.

Step 8 of 18

Establish a connection to your router's web interface

Click Submit.

Step 9 of 18

Establish a connection to your router's web interface

Highlight the field next to "Password" and key in admin

Step 10 of 18

Establish a connection to your router's web interface

Click Login.

Step 11 of 18

Find "Connection"

Click Mobile Broadband.

Step 12 of 18

Find "Connection"

Click Connection.

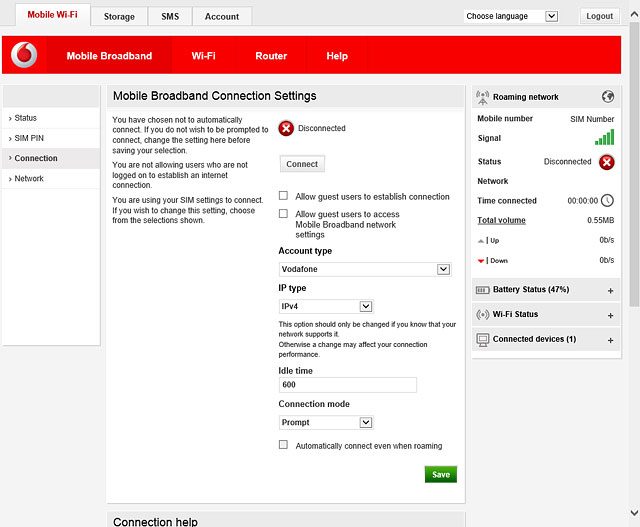

Step 13 of 18

Create new data connection

Click the drop down list below "Account type".

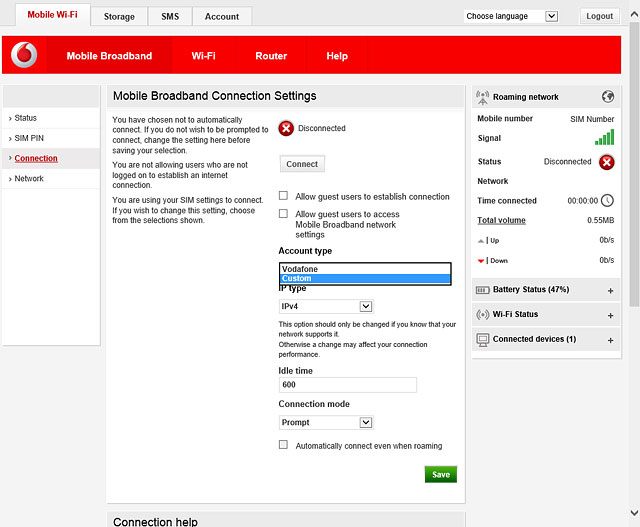

Step 14 of 18

Create new data connection

Highlight Custom.

Step 15 of 18

Enter APN

Highlight the field below "IPv4 APN" and key in live.vodafone.com

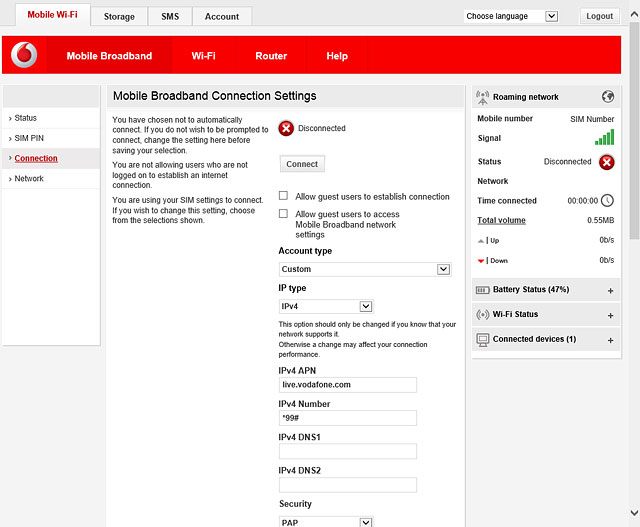

Step 16 of 18

Enter dial-up number

Highlight the field below "IPv4 Number" and key in *99#

Step 17 of 18

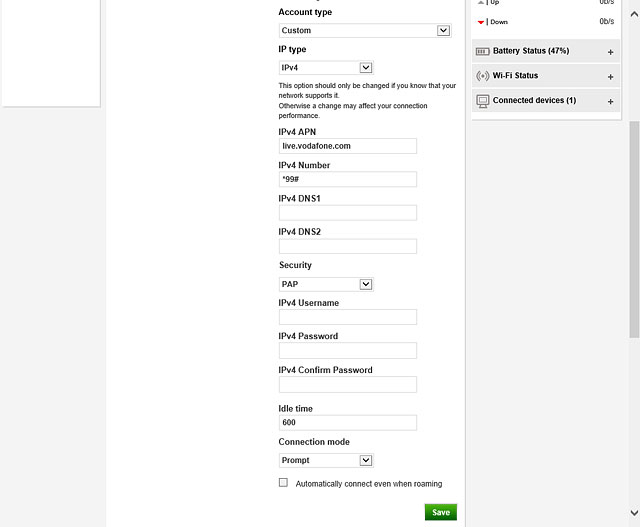

Save settings

Click Save.

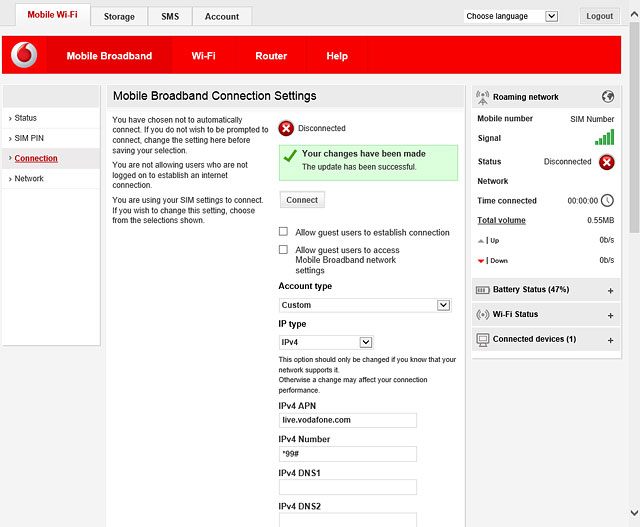

Step 18 of 18

Exit

Click Logout.

1. Turn on your router

Press and hold On/Off.

2. Connect to your Wi-Fi hotspot

Do the following in Windows:
Click the network icon.
Highlight the name of your Wi-Fi hotspot and click Connect.
You can find the name and password for your Wi-Fi hotspot under the battery.
Key in the password for your Wi-Fi hotspot and click Next.
A connection to your Wi-Fi hotspot is established.

3. Establish a connection to your router's web interface

Open a browser.
Key in vodafonemobile.wifi in the address bar and press Enter.
Vodafone R209-Z/Windows 8
If you're asked to key in your PIN:
Highlight the field below "Enter current PIN code" and key in your PIN.
Click Submit.
Highlight the field next to "Password" and key in admin
Click Login.

4. Find "Connection"

Click Mobile Broadband.
Click Connection.

5. Create new data connection

Click the drop down list below "Account type".
Highlight Custom.

6. Enter APN

Highlight the field below "IPv4 APN" and key in live.vodafone.com

7. Enter dial-up number

Highlight the field below "IPv4 Number" and key in *99#

8. Save settings

Click Save.

9. Exit

Click Logout.
