Set up your router for internet manually - Vodafone R208 / Windows 7

Step 1 of 20

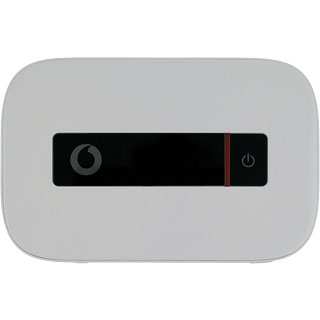

Turn on your router

Press and hold On/Off.

Step 2 of 20

Connect to your Wi-Fi hotspot

Do the following in Windows:

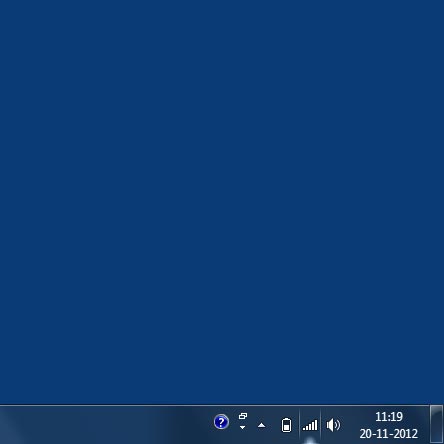

Click the network icon.

Step 3 of 20

Connect to your Wi-Fi hotspot

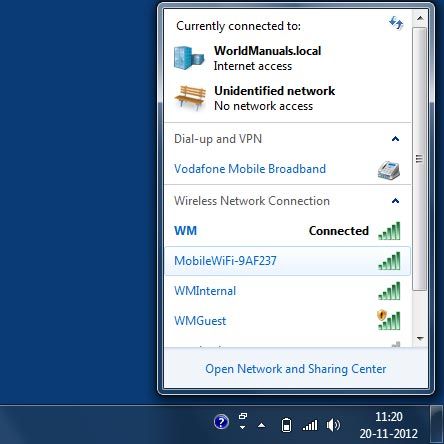

Highlight the name of your Wi-Fi hotspot and click Connect.

Step 4 of 20

Connect to your Wi-Fi hotspot

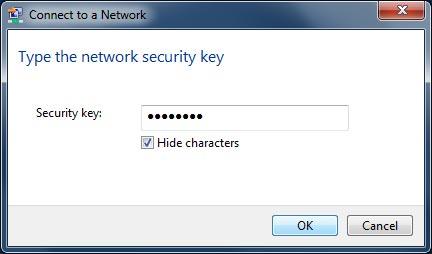

Key in the password for your Wi-Fi hotspot and click OK.
A connection to your Wi-Fi hotspot is established.

Vodafone R208 / Windows 7
Step 5 of 20

Establish a connection to your router's web interface

Open a browser.
Key in 192.168.0.1 in the address bar and press Enter.

Step 6 of 20

Establish a connection to your router's web interface

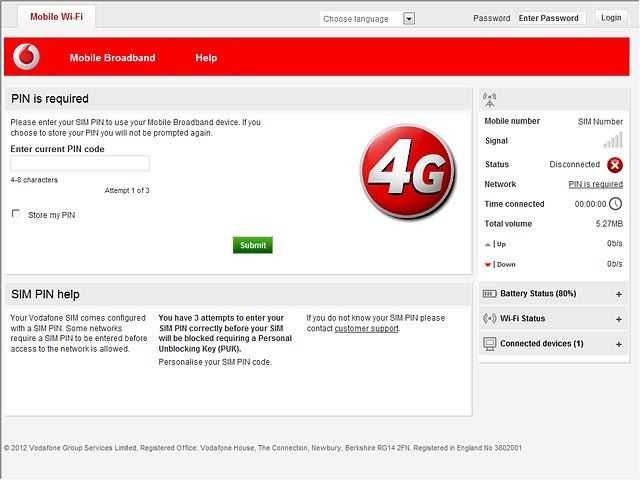

If you're asked to key in your PIN:
Highlight the field below Enter current PIN code and key in your PIN.

Step 7 of 20

Establish a connection to your router's web interface

Click Submit.

Step 8 of 20

Establish a connection to your router's web interface

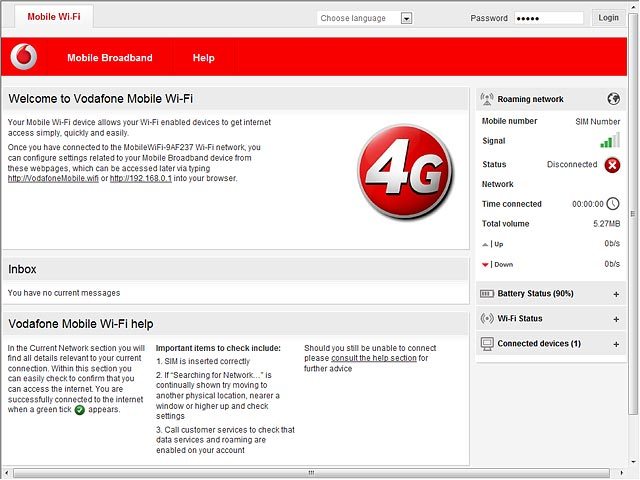

Highlight the field next to Password and key in admin

Step 9 of 20

Establish a connection to your router's web interface

Click Login.

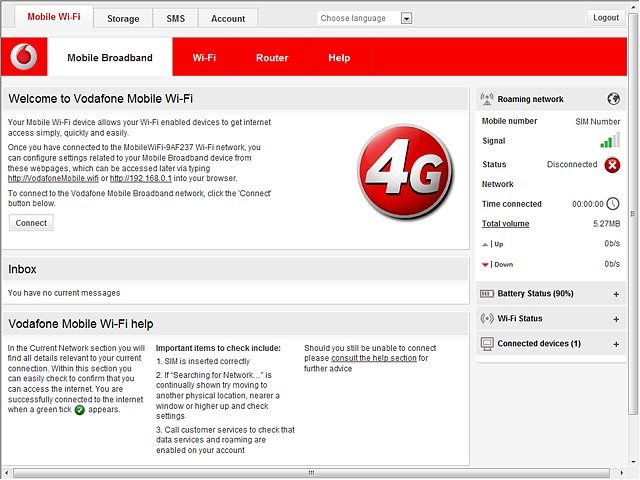

Step 10 of 20

Find "Connection"

Click Mobile Broadband.

Step 11 of 20

Find "Connection"

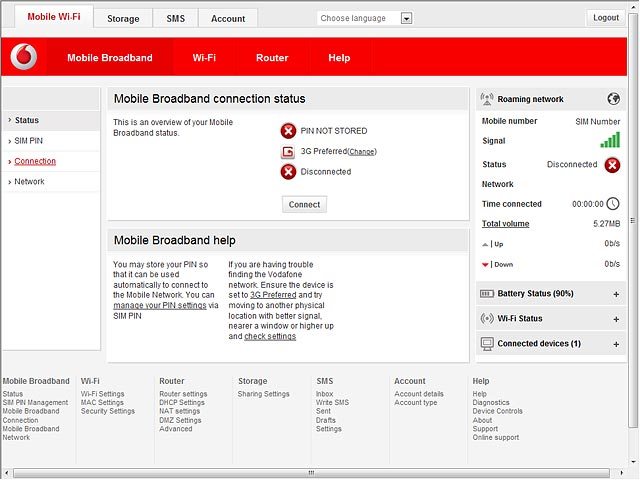

Click Connection.

Step 12 of 20

Create new data connection

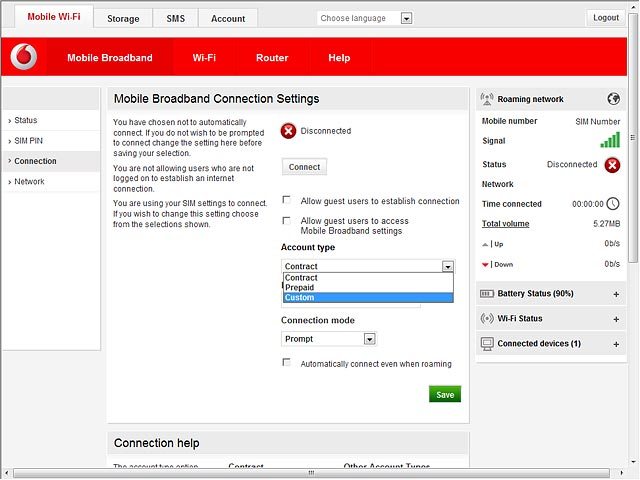

Click the drop down list below Account type.

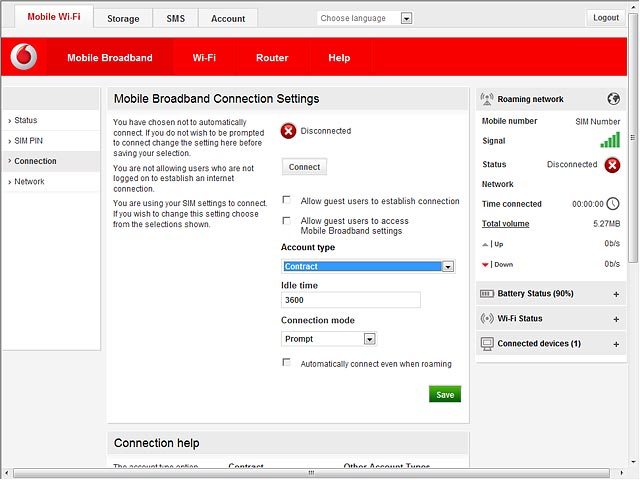

Step 13 of 20

Create new data connection

Highlight Custom.

Step 14 of 20

Enter APN

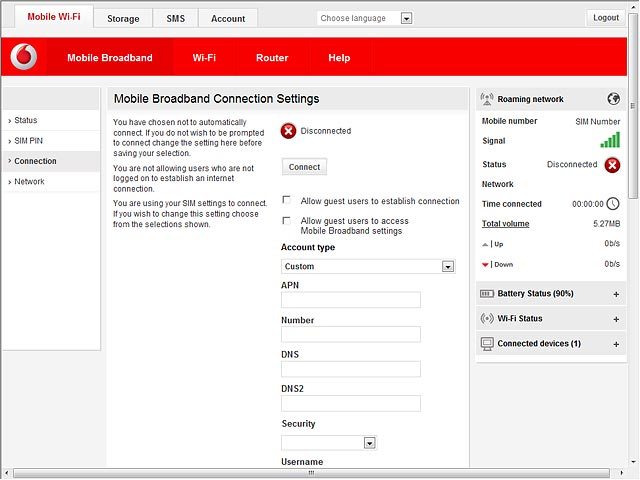

Highlight the field below APN.
Key in hs.vodafone.ie

Step 15 of 20

Enter dial-up number

Highlight the field below Number and key in *99#

Step 16 of 20

Enter username

Highlight the field below Username and key in vodafone

Step 17 of 20

Enter password

Highlight the field below Password and key in vodafone

Step 18 of 20

Enter password

Highlight the field below Confirm Password and key in vodafone

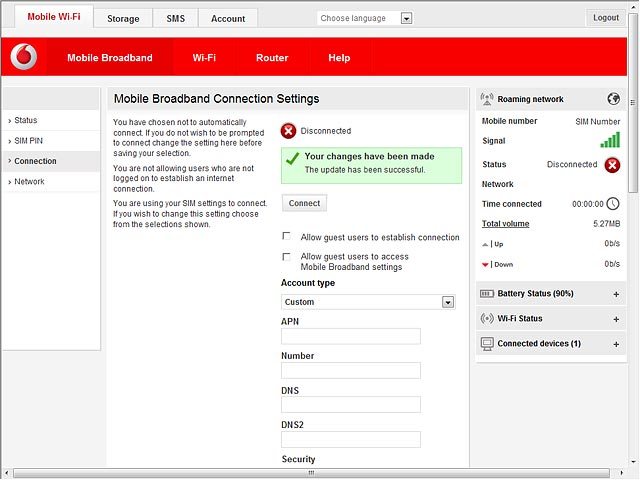

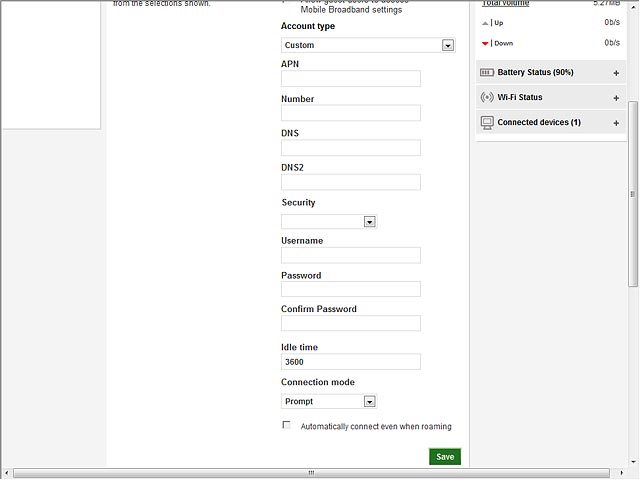

Step 19 of 20

Save and exit

Click Save.

Step 20 of 20

Save and exit

Click Logout.

1. Turn on your router

Press and hold On/Off.

2. Connect to your Wi-Fi hotspot

Do the following in Windows:
Click the network icon.
Highlight the name of your Wi-Fi hotspot and click Connect.
Key in the password for your Wi-Fi hotspot and click OK.
A connection to your Wi-Fi hotspot is established.

3. Establish a connection to your router's web interface

Open a browser.
Key in 192.168.0.1 in the address bar and press Enter.
Vodafone R208 / Windows 7
If you're asked to key in your PIN:
Highlight the field below Enter current PIN code and key in your PIN.
Click Submit.
Highlight the field next to Password and key in admin
Click Login.

4. Find "Connection"

Click Mobile Broadband.
Click Connection.

5. Create new data connection

Click the drop down list below Account type.
Highlight Custom.

6. Enter APN

Highlight the field below APN.
Key in hs.vodafone.ie

7. Enter dial-up number

Highlight the field below Number and key in *99#

8. Enter username

Highlight the field below Username and key in vodafone

9. Enter password

Highlight the field below Password and key in vodafone
Highlight the field below Confirm Password and key in vodafone

10. Save and exit

Click Save.
Click Logout.
