Vodafone R206/Windows Vista

Vodafone R206

Set up your router for internet manually - Vodafone R206/Windows Vista

Step 1 of 20

Turn on your router

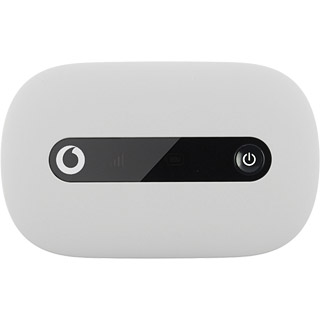

Press and hold On/Off.

Step 2 of 20

Connect to your Wi-Fi hotspot

Do the following in Windows:

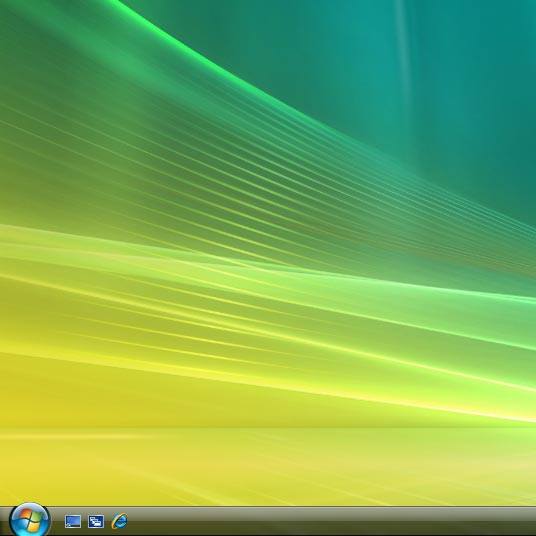

Click the Windows icon.

Step 3 of 20

Connect to your Wi-Fi hotspot

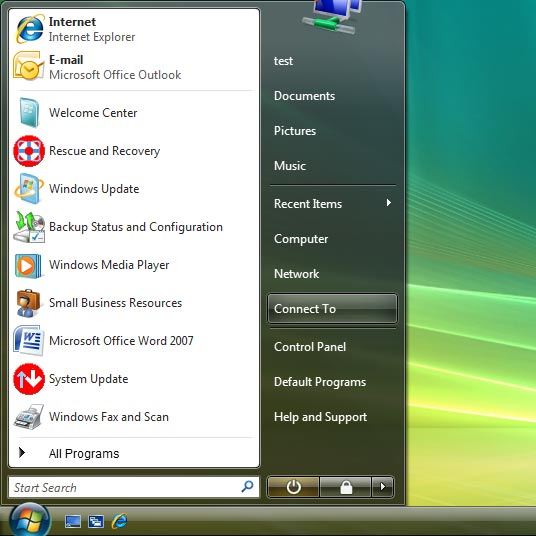

Click Connect To.

Step 4 of 20

Connect to your Wi-Fi hotspot

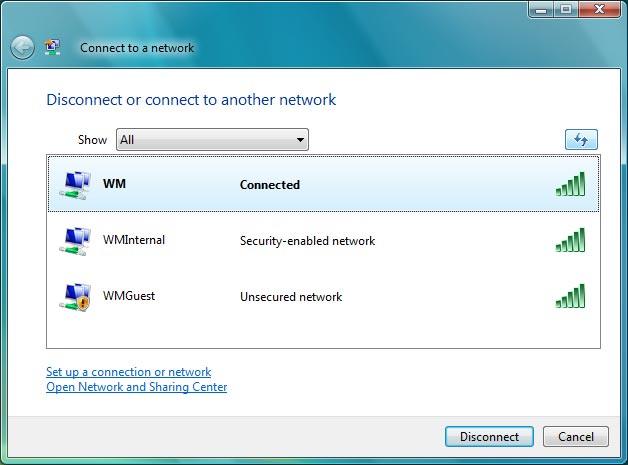

If required, click the refresh icon.

Step 5 of 20

Connect to your Wi-Fi hotspot

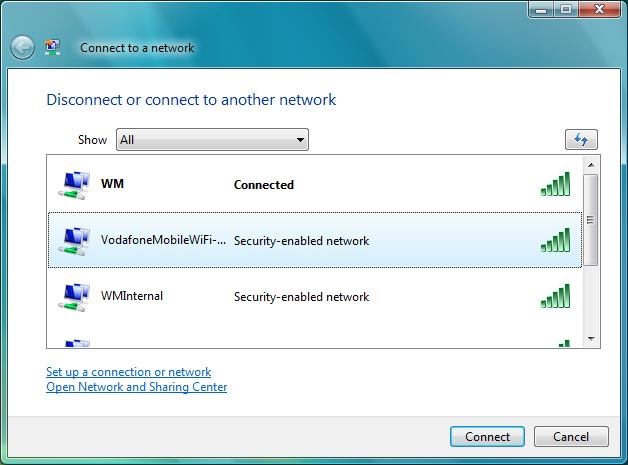

Highlight the name of your Wi-Fi hotspot and click Connect.

Step 6 of 20

Connect to your Wi-Fi hotspot

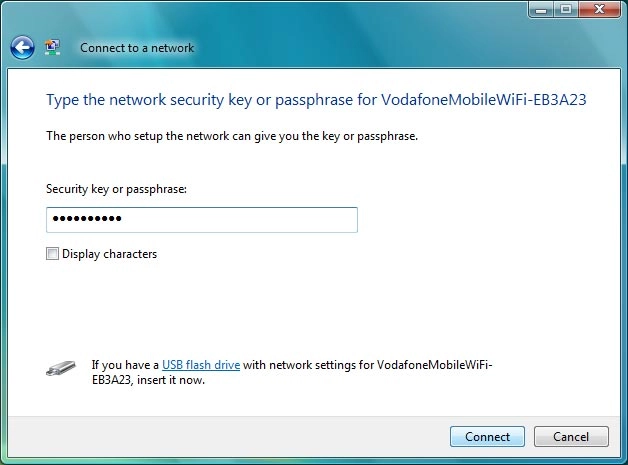

Key in the password for your Wi-Fi hotspot and click Connect.

Step 7 of 20

Connect to your Wi-Fi hotspot

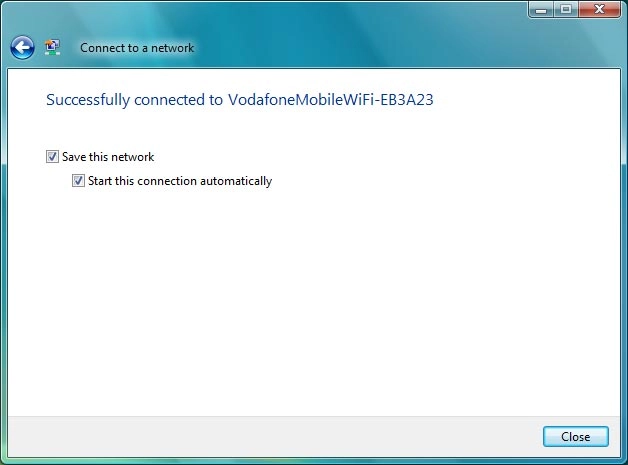

Click Close.
A connection to your Wi-Fi hotspot is established.

Vodafone R206/Windows Vista
Step 8 of 20

Establish a connection to your router's web interface

Open a browser.
Key in 192.168.0.1 in the address bar and press Enter.

Step 9 of 20

Establish a connection to your router's web interface

If you're asked to key in your PIN:

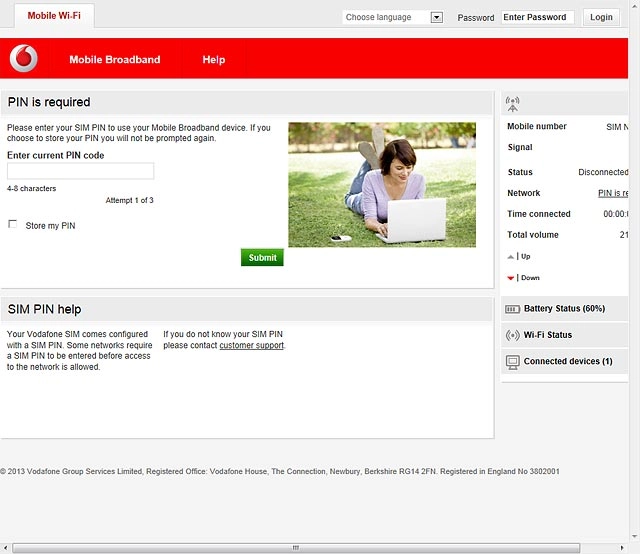

Highlight the field below "Enter current PIN code" and key in your PIN.

Step 10 of 20

Establish a connection to your router's web interface

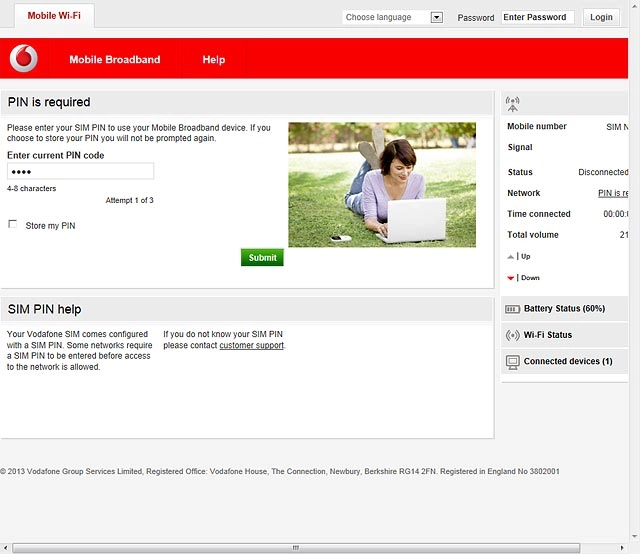

Click Submit.

Step 11 of 20

Establish a connection to your router's web interface

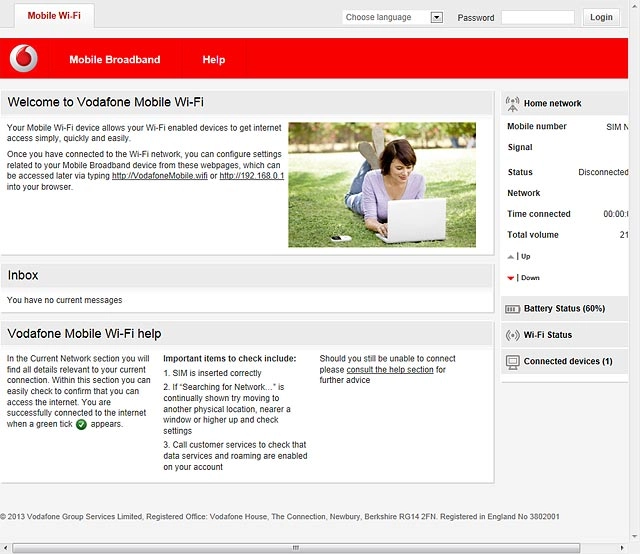

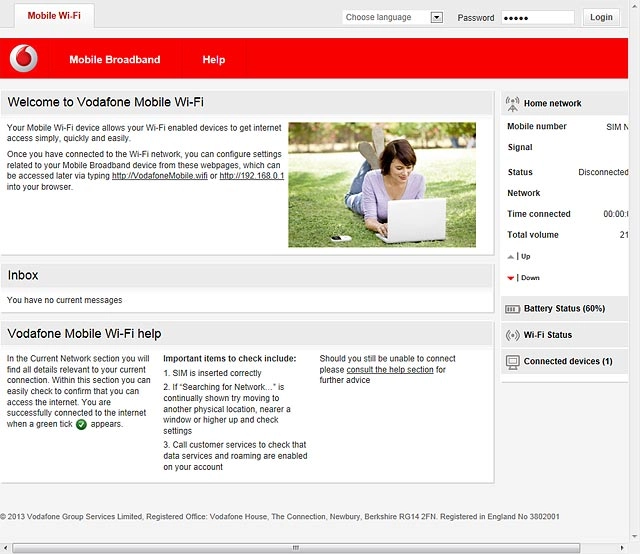

Highlight the field next to "Password" and key in admin

Step 12 of 20

Establish a connection to your router's web interface

Click Login.

Step 13 of 20

Find "Connection"

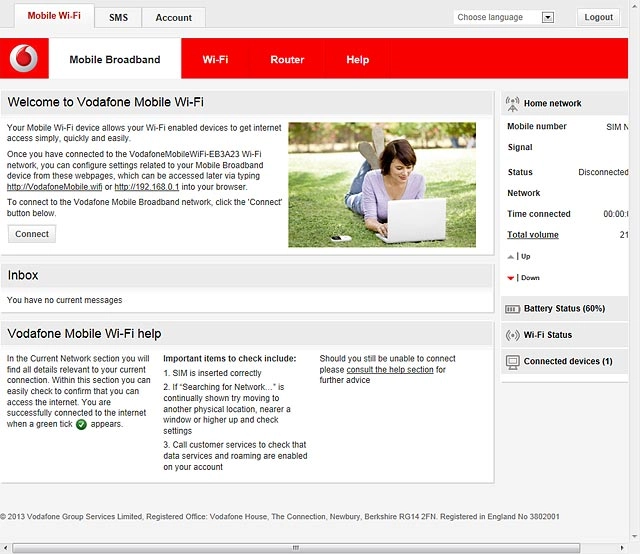

Click Mobile Broadband.

Step 14 of 20

Find "Connection"

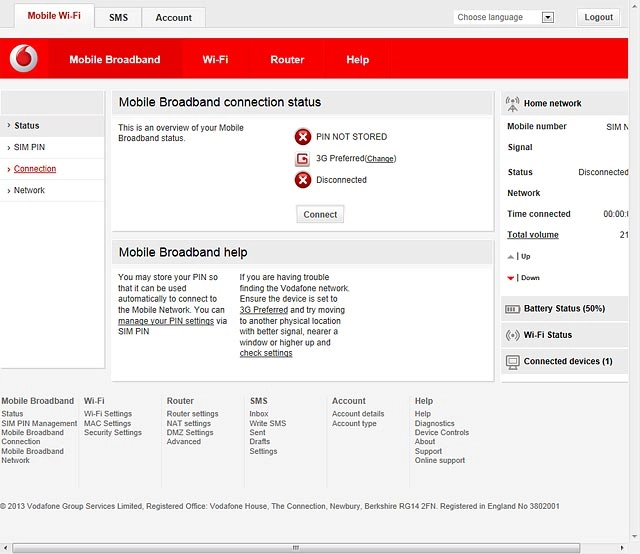

Click Connection.

Step 15 of 20

Create new data connection

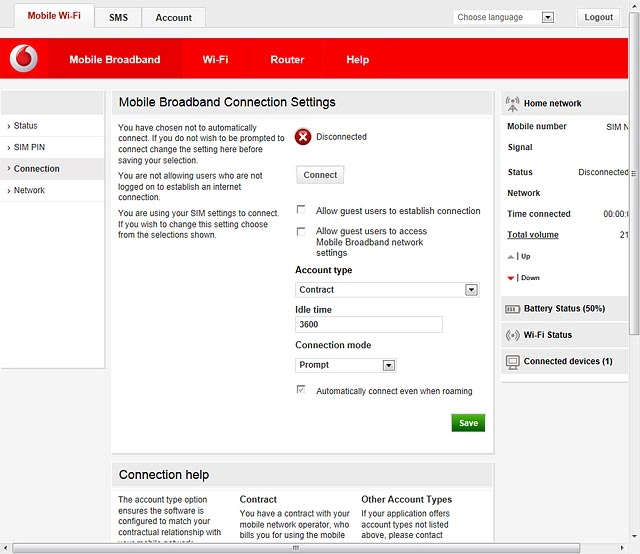

Click the drop down list below "Account type".

Step 16 of 20

Create new data connection

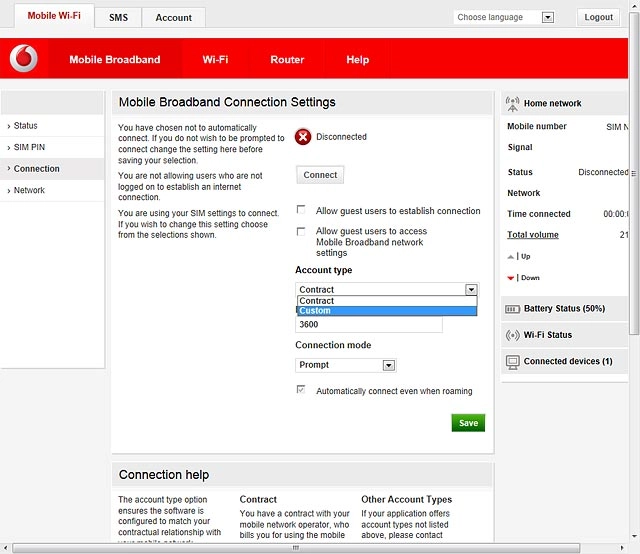

Highlight Custom.

Step 17 of 20

Enter APN

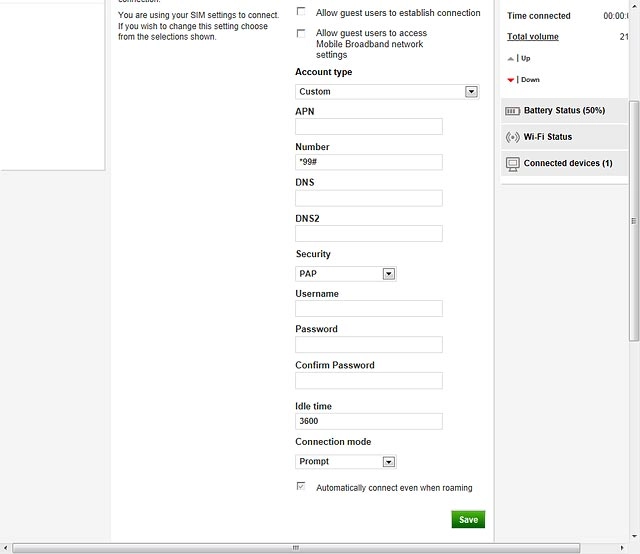

Highlight the field below "APN" and key in live.vodafone.com

Step 18 of 20

Enter dial-up number

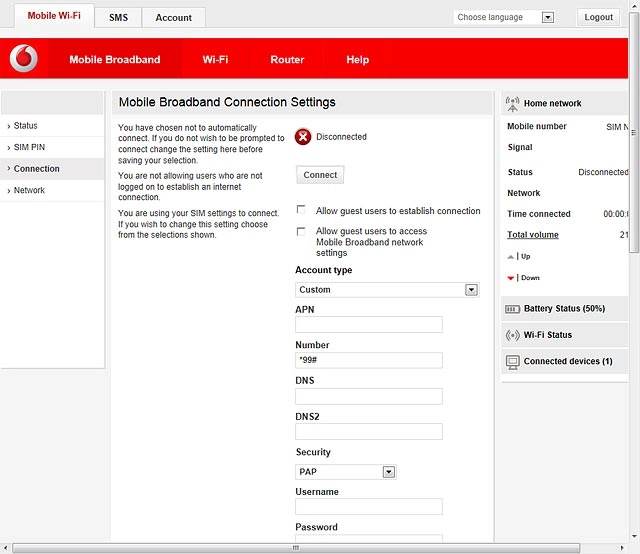

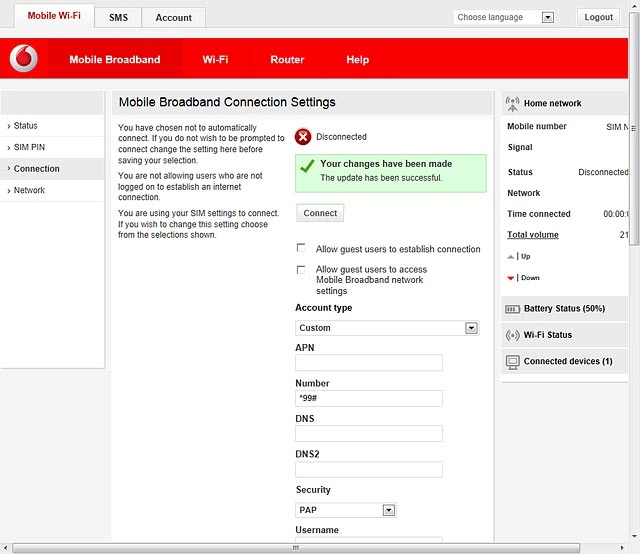

Highlight the field below "Number" and key in *99#

Step 19 of 20

Save and exit

Click Save.

Step 20 of 20

Save and exit

Click Logout.

1. Turn on your router

Press and hold On/Off.

2. Connect to your Wi-Fi hotspot

Do the following in Windows:
Click the Windows icon.
Click Connect To.
If required, click the refresh icon.
Highlight the name of your Wi-Fi hotspot and click Connect.
Key in the password for your Wi-Fi hotspot and click Connect.
Click Close.
A connection to your Wi-Fi hotspot is established.

3. Establish a connection to your router's web interface

Open a browser.
Key in 192.168.0.1 in the address bar and press Enter.
Vodafone R206/Windows Vista
If you're asked to key in your PIN:
Highlight the field below "Enter current PIN code" and key in your PIN.
Click Submit.
Highlight the field next to "Password" and key in admin
Click Login.

4. Find "Connection"

Click Mobile Broadband.
Click Connection.

5. Create new data connection

Click the drop down list below "Account type".
Highlight Custom.

6. Enter APN

Highlight the field below "APN" and key in live.vodafone.com

7. Enter dial-up number

Highlight the field below "Number" and key in *99#

8. Save and exit

Click Save.
Click Logout.
