Start using your router - Vodafone R206/Windows 7

Step 1 of 15

Remove the back cover

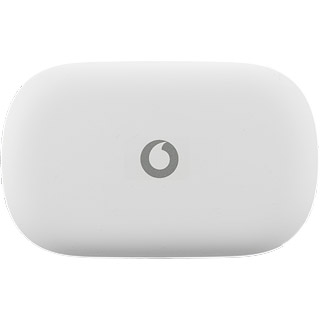

Turn the back of your router towards you.
Take hold of the bottom right corner of the back cover and remove it.

Step 2 of 15

Insert your SIM

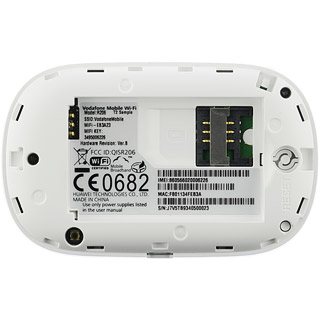

Place your SIM as illustrated in the SIM holder.

Step 3 of 15

Insert your SIM

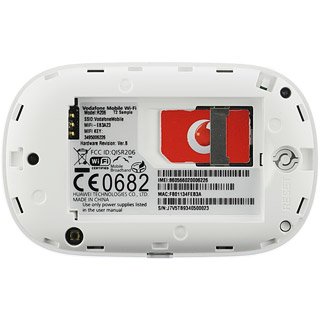

Slide your SIM into the holder.

Vodafone R206/Windows 7
Step 4 of 15

Insert battery

Place the battery in your router (left side first), matching the battery contacts with the router contacts, and press the battery into place.

Step 5 of 15

Replace the back cover

Place the back cover on your router and press it into place.

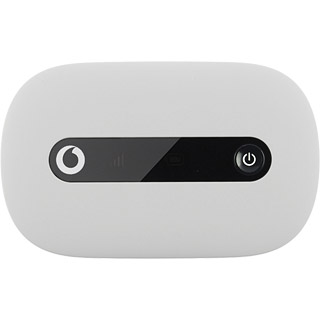

Step 6 of 15

Turn on your router

Press and hold On/Off.

Step 7 of 15

Connect to your Wi-Fi hotspot

Do the following in Windows:

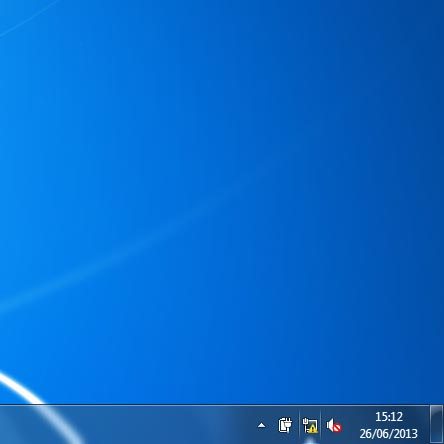

Click the network icon.

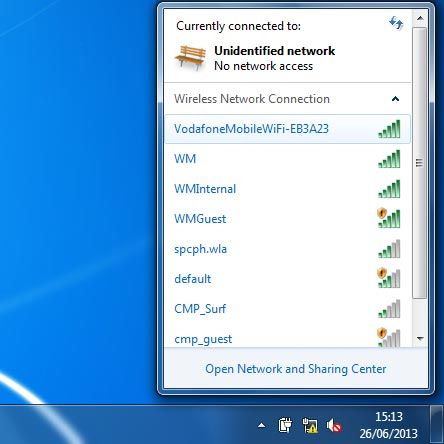

Step 8 of 15

Connect to your Wi-Fi hotspot

Highlight the name of your Wi-Fi hotspot and click Connect.
You can find the name and password for your Wi-Fi hotspot on the inside of the back cover.

Step 9 of 15

Connect to your Wi-Fi hotspot

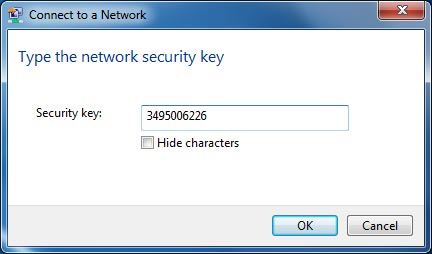

Key in the password for your Wi-Fi hotspot and click OK.
A connection to your Wi-Fi hotspot is established.

Vodafone R206/Windows 7
Step 10 of 15

Establish connection to the internet

Open a browser.
Key in 192.168.0.1 in the address bar and press Enter.

Step 11 of 15

Establish connection to the internet

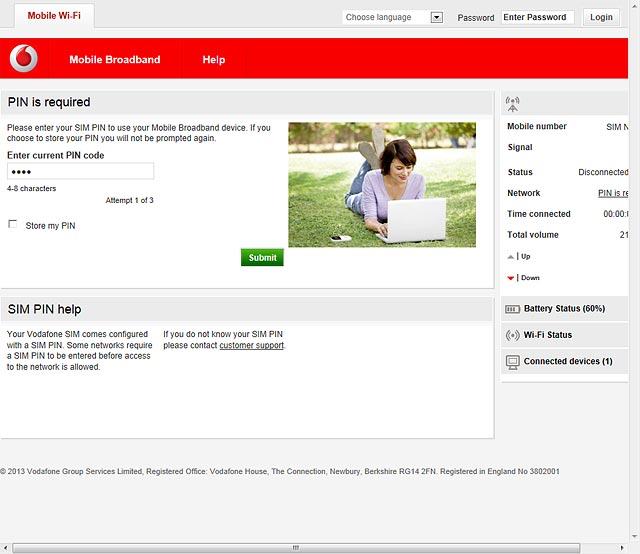

If you're asked to key in your PIN:

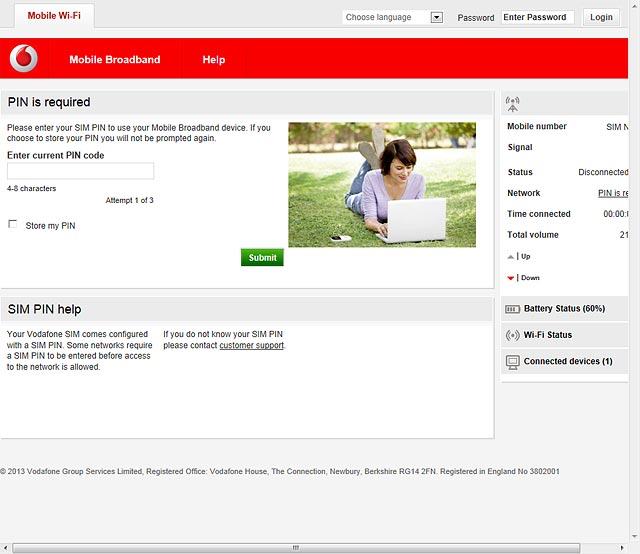

Highlight the field below "Enter current PIN code" and key in your PIN.

Step 12 of 15

Establish connection to the internet

Click Submit.

Step 13 of 15

Establish connection to the internet

If your router's web interface shows that no connection has been established:

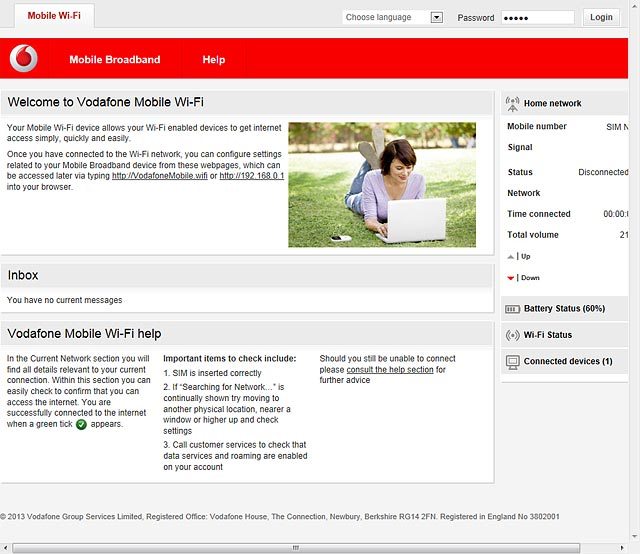

Highlight the field next to "Password" and key in admin

Step 14 of 15

Establish connection to the internet

Click Login.

Step 15 of 15

Establish connection to the internet

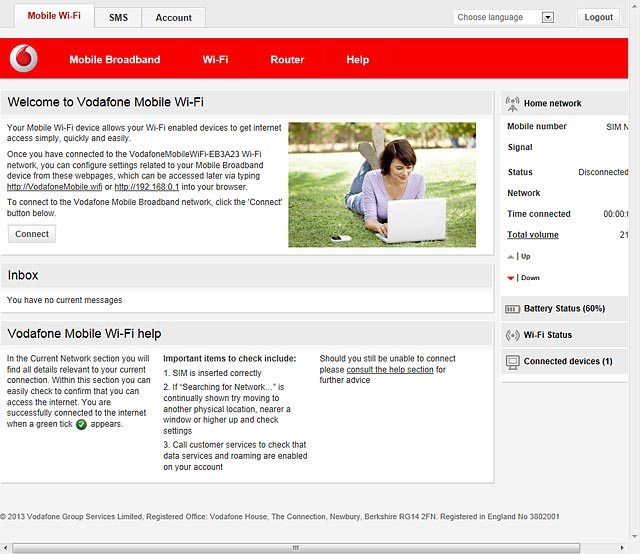

Click Connect.
A connection to the internet is established.

1. Remove the back cover

Turn the back of your router towards you.
Take hold of the bottom right corner of the back cover and remove it.

2. Insert your SIM

Place your SIM as illustrated in the SIM holder.
Slide your SIM into the holder.

3. Insert battery

Place the battery in your router (left side first), matching the battery contacts with the router contacts, and press the battery into place.
Vodafone R206/Windows 7

4. Replace the back cover

Place the back cover on your router and press it into place.

5. Turn on your router

Press and hold On/Off.

6. Connect to your Wi-Fi hotspot

Do the following in Windows:
Click the network icon.
Highlight the name of your Wi-Fi hotspot and click Connect.
You can find the name and password for your Wi-Fi hotspot on the inside of the back cover.
Key in the password for your Wi-Fi hotspot and click OK.
A connection to your Wi-Fi hotspot is established.

7. Establish connection to the internet

Open a browser.
Key in 192.168.0.1 in the address bar and press Enter.
Vodafone R206/Windows 7
If you're asked to key in your PIN:
Highlight the field below "Enter current PIN code" and key in your PIN.
Click Submit.
If your router's web interface shows that no connection has been established:
Highlight the field next to "Password" and key in admin
Click Login.
Click Connect.
A connection to the internet is established.
