Vodafone R206/Snow Leopard

Vodafone R206

Set up your router for internet manually - Vodafone R206/Snow Leopard

Read help info

Usually, your router automatically uses the necessary settings to connect to the Internet. If this isn't the case, it may help to set up your router for internet manually.

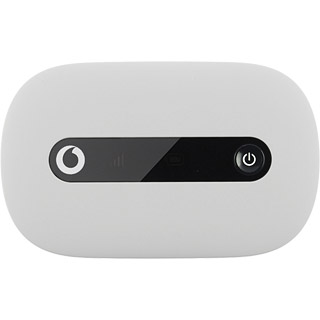

Step 1 of 17

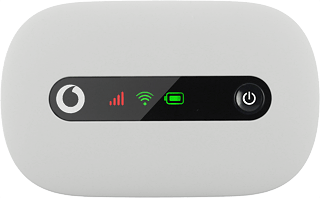

Turn on your router

Press and hold On/Off.

Step 2 of 17

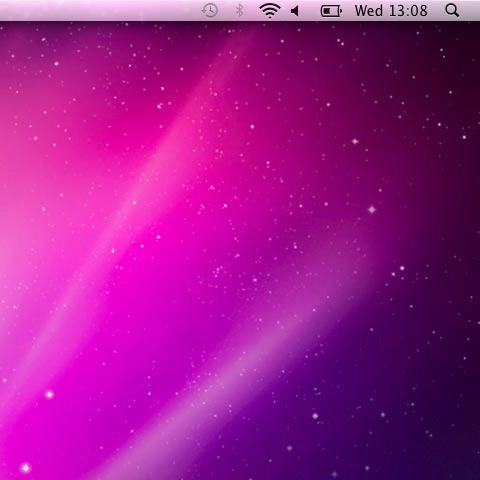

Connect to Wi-Fi hotspot

Do the following in Mac OS X:
Click the Wi-Fi icon.

Step 3 of 17

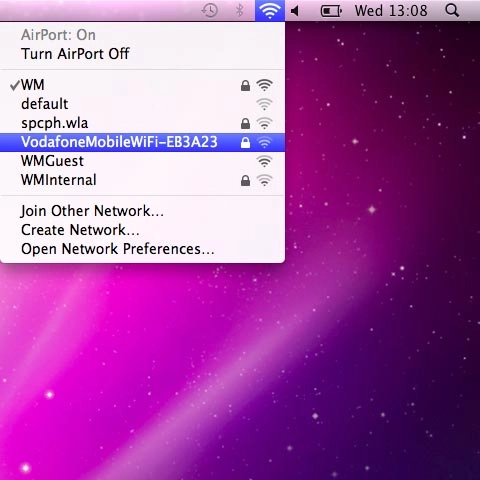

Connect to Wi-Fi hotspot

Click the name of your Wi-Fi hotspot.
You can find the name and password for your Wi-Fi hotspot on the inside of the back cover.

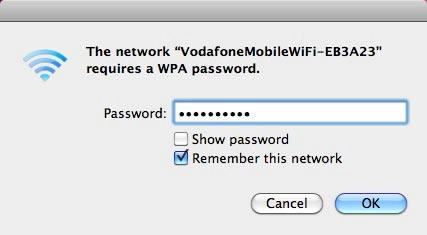

Step 4 of 17

Connect to Wi-Fi hotspot

Key in the password for your Wi-Fi hotspot and click OK.
A connection to your Wi-Fi hotspot is established.

Vodafone R206/Snow Leopard
Step 5 of 17

Establish a connection to your router's web interface

Open a browser.
Key in 192.168.0.1 in the address bar and press Enter.

If an incorrect PIN is entered three times in a row, your SIM will be blocked. To unblock your SIM, you'll need to key in your PUK. The PUK can be obtained by contacting customer services.
Please note:
If the wrong PUK is entered ten times in a row, your SIM will be blocked permanently. In this case, you need a new SIM from Vodafone.

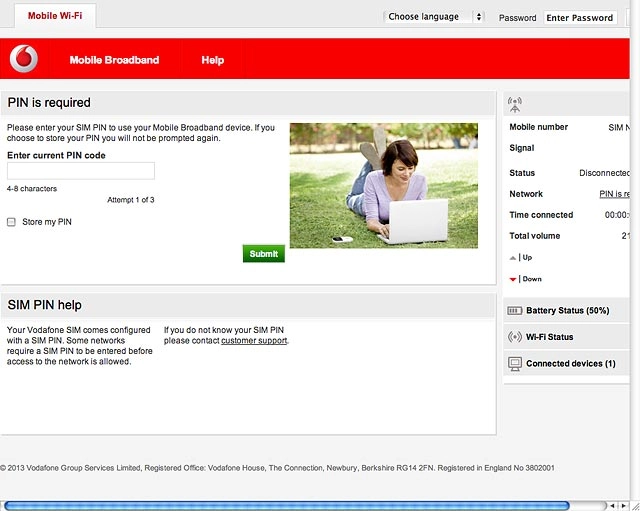

Step 6 of 17

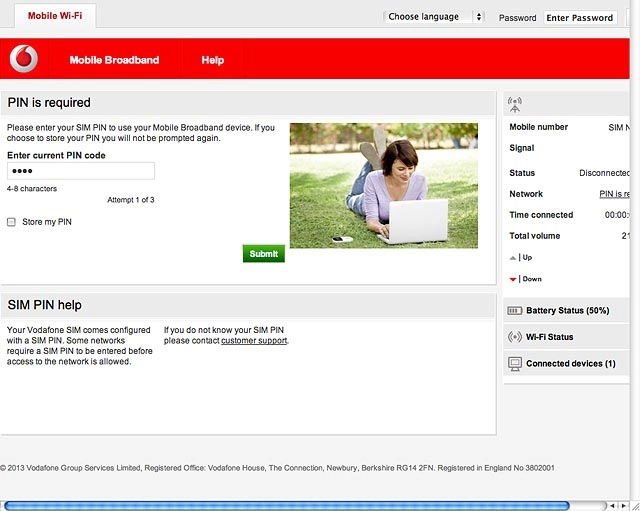

Establish a connection to your router's web interface

If you're asked to key in your PIN:
Highlight the field below "Enter current PIN code" and key in your PIN.

If an incorrect PIN is entered three times in a row, your SIM will be blocked. To unblock your SIM, you'll need to key in your PUK. The PUK can be obtained by contacting customer services.
Please note:
If the wrong PUK is entered ten times in a row, your SIM will be blocked permanently. In this case, you need a new SIM from Vodafone.
Step 7 of 17

Establish a connection to your router's web interface

Click Submit.

If an incorrect PIN is entered three times in a row, your SIM will be blocked. To unblock your SIM, you'll need to key in your PUK. The PUK can be obtained by contacting customer services.
Please note:
If the wrong PUK is entered ten times in a row, your SIM will be blocked permanently. In this case, you need a new SIM from Vodafone.

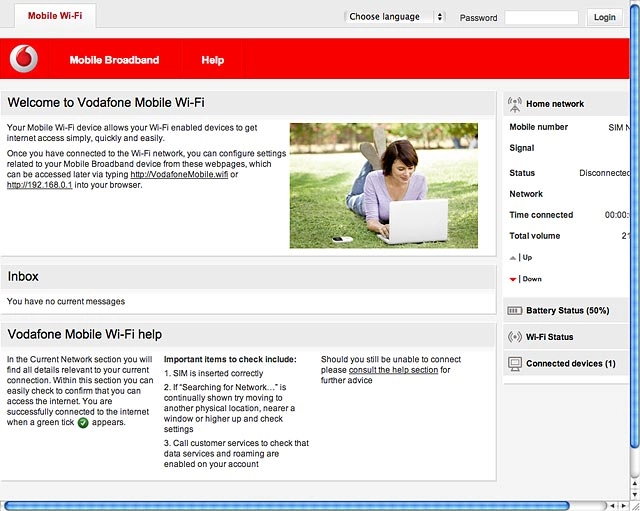

Step 8 of 17

Establish a connection to your router's web interface

Highlight the field next to "Password" and key in admin

If an incorrect PIN is entered three times in a row, your SIM will be blocked. To unblock your SIM, you'll need to key in your PUK. The PUK can be obtained by contacting customer services.
Please note:
If the wrong PUK is entered ten times in a row, your SIM will be blocked permanently. In this case, you need a new SIM from Vodafone.

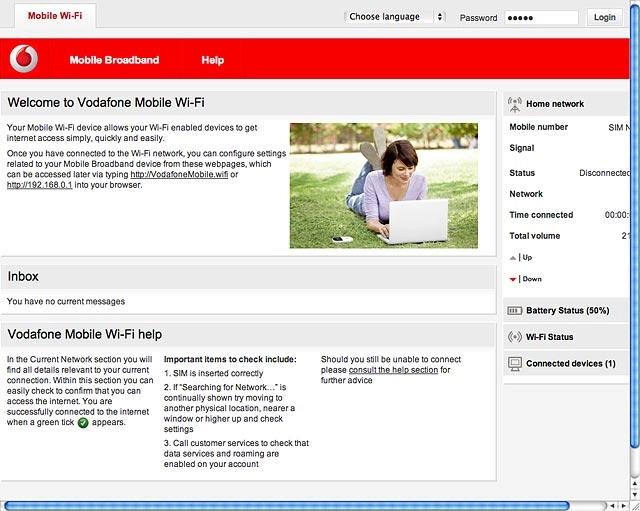

Step 9 of 17

Establish a connection to your router's web interface

Click Login.

If an incorrect PIN is entered three times in a row, your SIM will be blocked. To unblock your SIM, you'll need to key in your PUK. The PUK can be obtained by contacting customer services.
Please note:
If the wrong PUK is entered ten times in a row, your SIM will be blocked permanently. In this case, you need a new SIM from Vodafone.

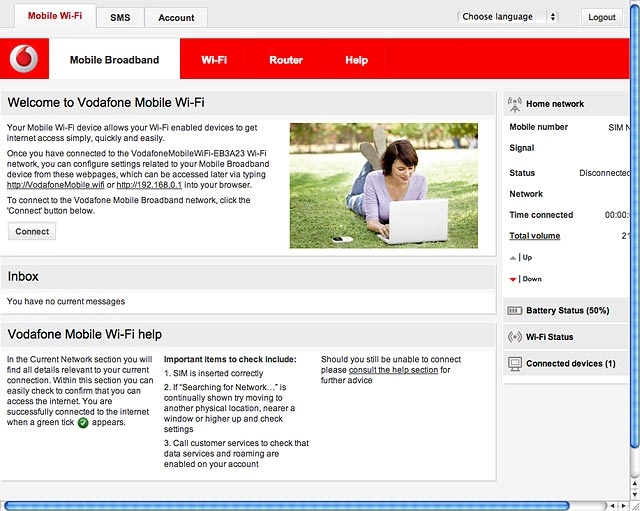

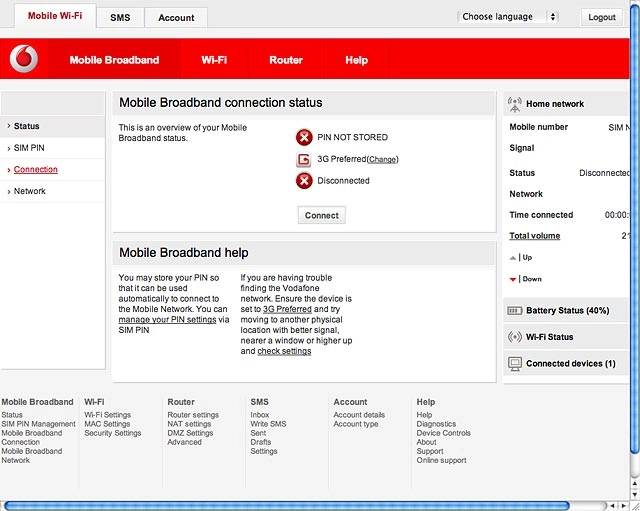

Step 10 of 17

Find "Connection"

Click Mobile Broadband.

Step 11 of 17

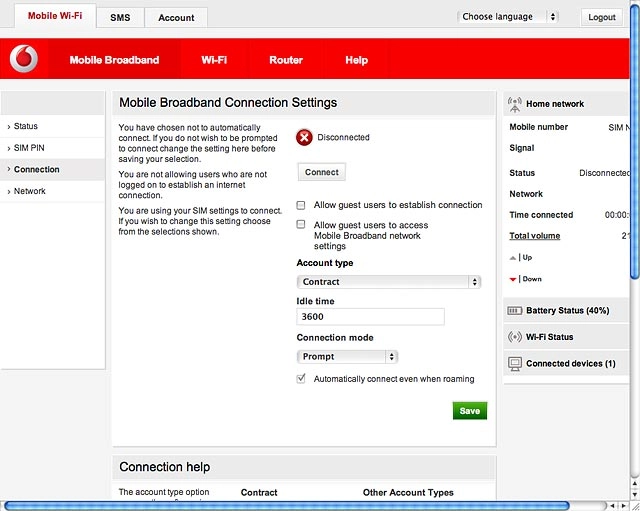

Find "Connection"

Click Connection.

Step 12 of 17

Create new data connection

Click the drop down list below "Account type".

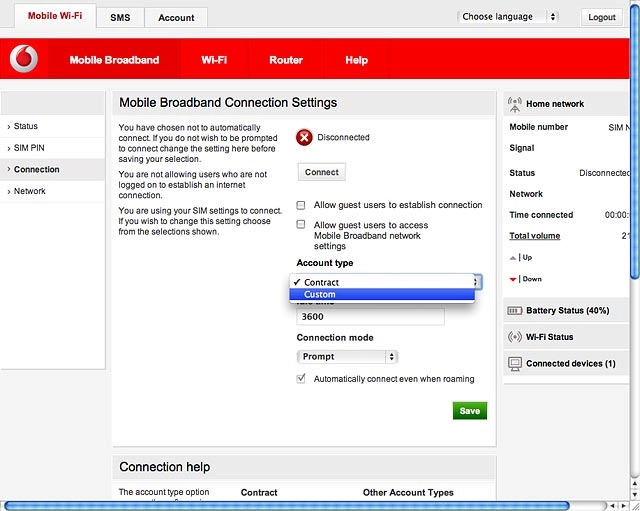

Step 13 of 17

Create new data connection

Highlight Custom.

Step 14 of 17

Enter APN

Highlight the field below "APN" and key in live.vodafone.com

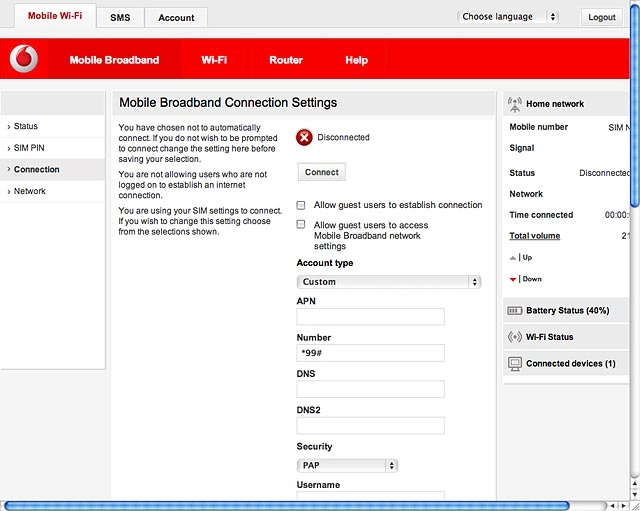

Step 15 of 17

Enter dial-up number

Highlight the field below "Number" and key in *99#

Step 16 of 17

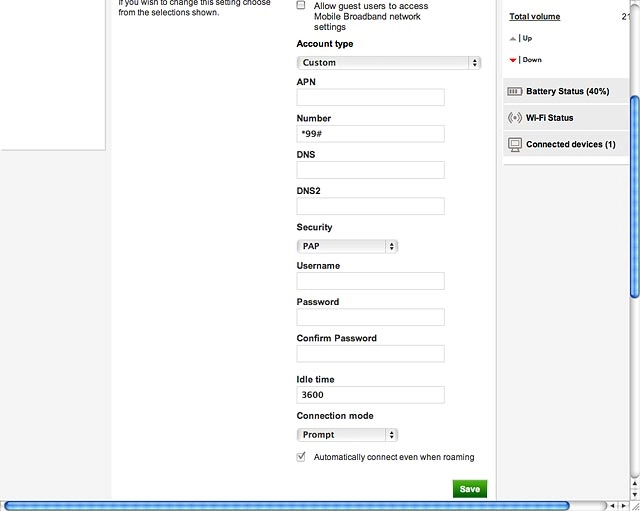

Save and exit

Click Save.

Step 17 of 17

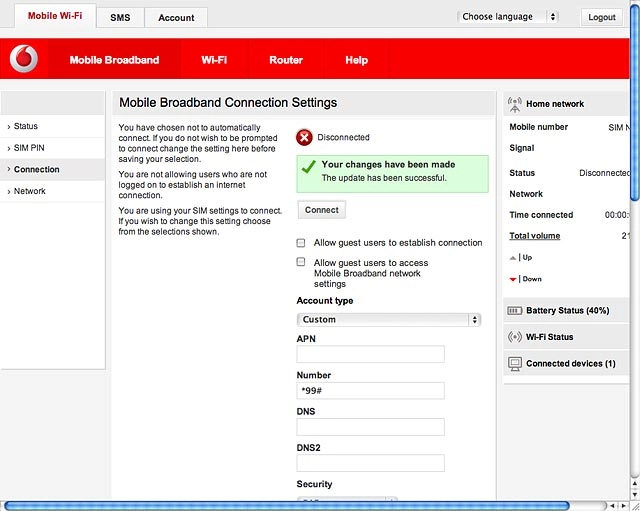

Save and exit

Click Logout.

Turn on your router

Press and hold On/Off.

Connect to Wi-Fi hotspot

Do the following in Mac OS X:
Click the Wi-Fi icon.
Click the name of your Wi-Fi hotspot.
You can find the name and password for your Wi-Fi hotspot on the inside of the back cover.
Key in the password for your Wi-Fi hotspot and click OK.
A connection to your Wi-Fi hotspot is established.

Establish a connection to your router's web interface

Open a browser.
Key in 192.168.0.1 in the address bar and press Enter.
If an incorrect PIN is entered three times in a row, your SIM will be blocked. To unblock your SIM, you'll need to key in your PUK. The PUK can be obtained by contacting customer services.
Please note:
If the wrong PUK is entered ten times in a row, your SIM will be blocked permanently. In this case, you need a new SIM from Vodafone.
Vodafone R206/Snow Leopard
If you're asked to key in your PIN:
Highlight the field below "Enter current PIN code" and key in your PIN.
If an incorrect PIN is entered three times in a row, your SIM will be blocked. To unblock your SIM, you'll need to key in your PUK. The PUK can be obtained by contacting customer services.
Please note:
If the wrong PUK is entered ten times in a row, your SIM will be blocked permanently. In this case, you need a new SIM from Vodafone.
Click Submit.
If an incorrect PIN is entered three times in a row, your SIM will be blocked. To unblock your SIM, you'll need to key in your PUK. The PUK can be obtained by contacting customer services.
Please note:
If the wrong PUK is entered ten times in a row, your SIM will be blocked permanently. In this case, you need a new SIM from Vodafone.
Highlight the field next to "Password" and key in admin
If an incorrect PIN is entered three times in a row, your SIM will be blocked. To unblock your SIM, you'll need to key in your PUK. The PUK can be obtained by contacting customer services.
Please note:
If the wrong PUK is entered ten times in a row, your SIM will be blocked permanently. In this case, you need a new SIM from Vodafone.
Click Login.
If an incorrect PIN is entered three times in a row, your SIM will be blocked. To unblock your SIM, you'll need to key in your PUK. The PUK can be obtained by contacting customer services.
Please note:
If the wrong PUK is entered ten times in a row, your SIM will be blocked permanently. In this case, you need a new SIM from Vodafone.

Find "Connection"

Click Mobile Broadband.
Click Connection.

Create new data connection

Click the drop down list below "Account type".
Highlight Custom.

Enter APN

Highlight the field below "APN" and key in live.vodafone.com

Enter dial-up number

Highlight the field below "Number" and key in *99#

Save and exit

Click Save.
Click Logout.
