Vodafone R205 / Windows Vista

Vodafone R205

Choose settings for Wi-Fi hotspot - Vodafone R205 / Windows Vista

Step 1 of 15

Turn on your router

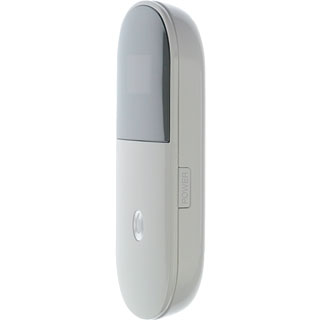

Press and hold On/Off.

Step 2 of 15

Connect to your Wi-Fi hotspot

Do the following in Windows:

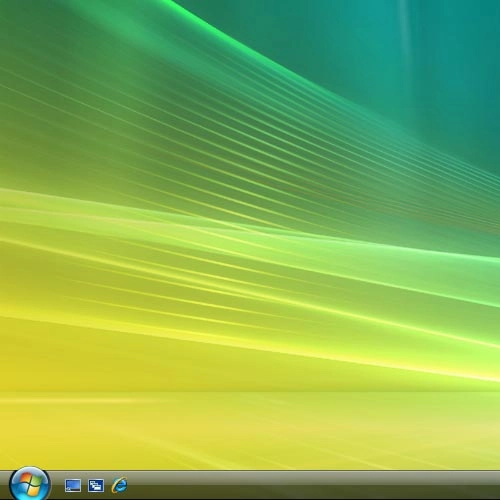

Click the Windows icon.

Step 3 of 15

Connect to your Wi-Fi hotspot

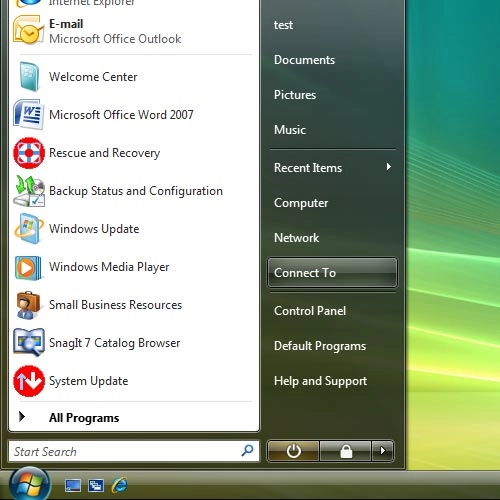

Click Connect To.

Step 4 of 15

Connect to your Wi-Fi hotspot

If required, click the refresh icon.

Step 5 of 15

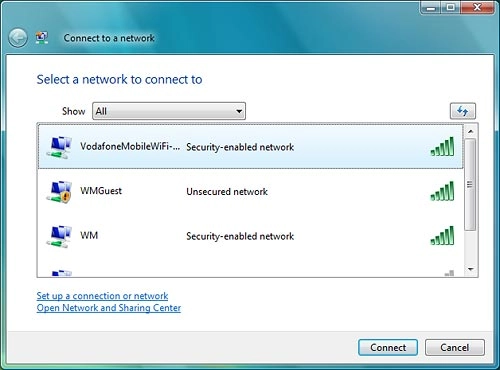

Connect to your Wi-Fi hotspot

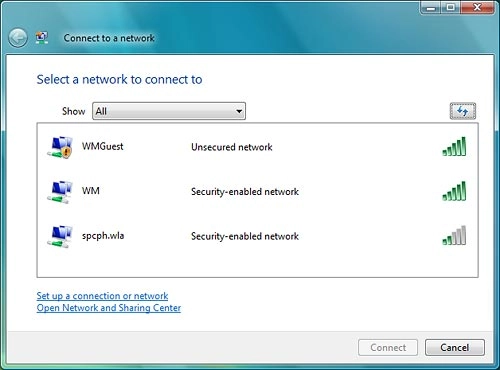

Highlight the name of your Wi-Fi hotspot and click Connect.

Step 6 of 15

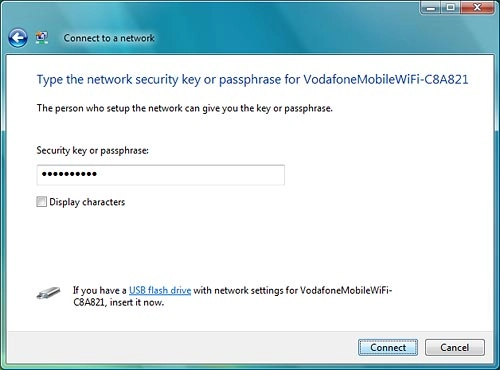

Connect to your Wi-Fi hotspot

Key in the password for your Wi-Fi hotspot and click Connect.

Step 7 of 15

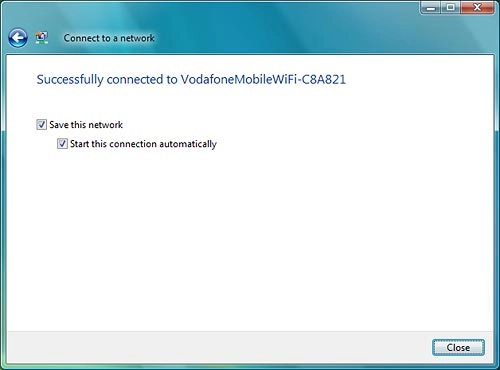

Connect to your Wi-Fi hotspot

Click Close.
A connection to your Wi-Fi hotspot is established.

Step 8 of 15

Connect to the router configuration page

Open a browser window.
Key in 192.168.0.1 in the address bar and press Enter.

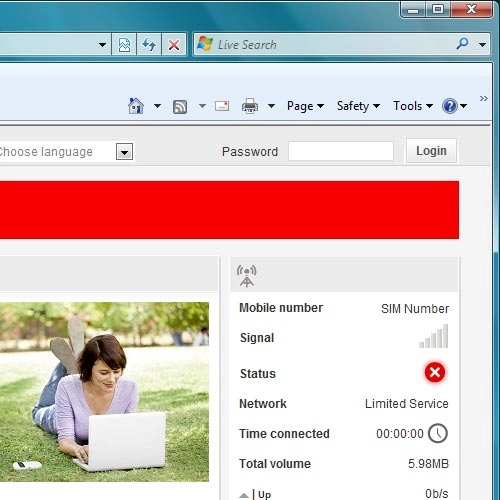

Highlight the field next to Password and key in admin

Step 9 of 15

Connect to the router configuration page

Click Login.

Step 10 of 15

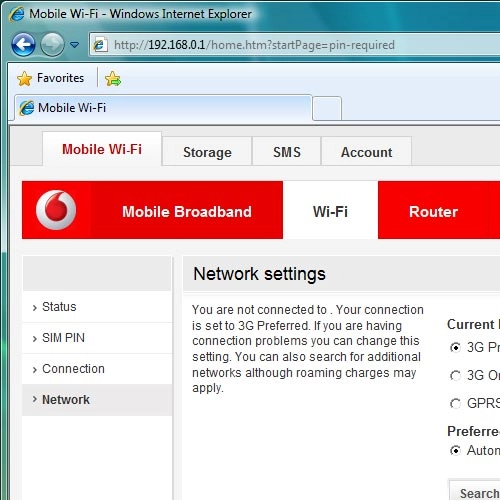

Find "Security"

Click Wi-Fi.

Step 11 of 15

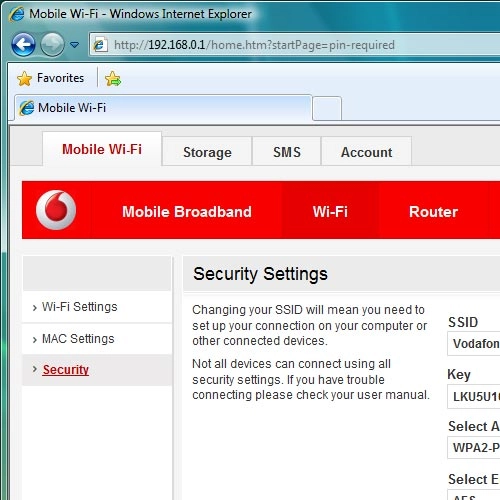

Find "Security"

Click Security.

Step 12 of 15

Enter Wi-Fi hotspot name

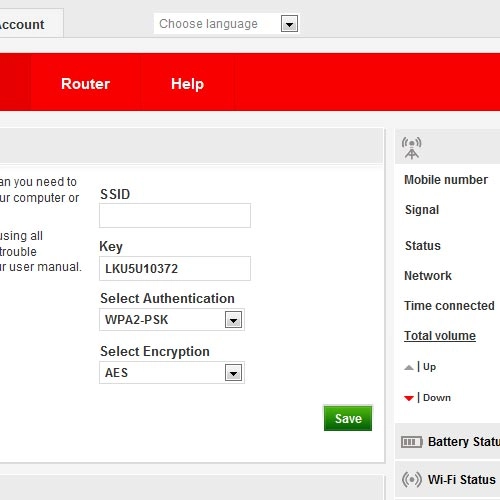

Highlight the field below SSID and key in the required name for your Wi-Fi hotspot.

Step 13 of 15

Enter Wi-Fi hotspot password

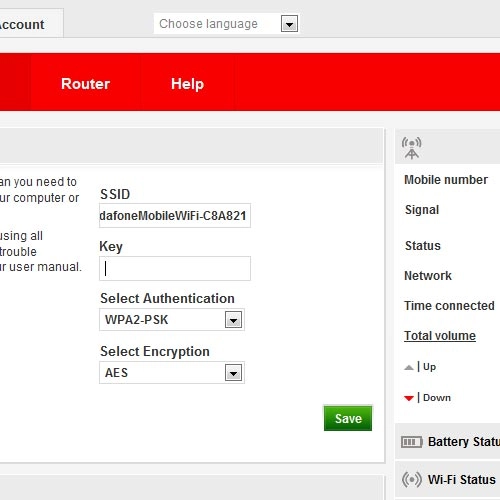

Highlight the field below Key and key in the required password for your Wi-Fi hotspot.

Step 14 of 15

Save and exit

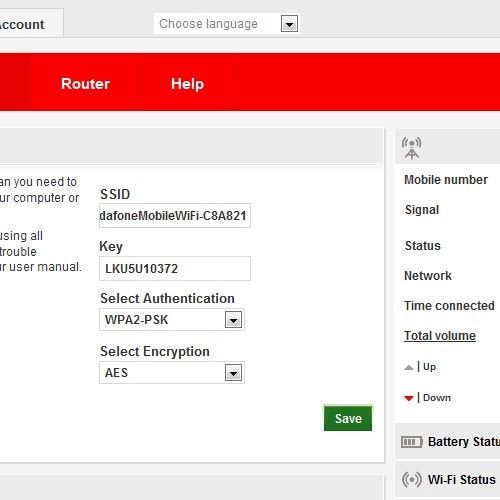

Click Save.

Step 15 of 15

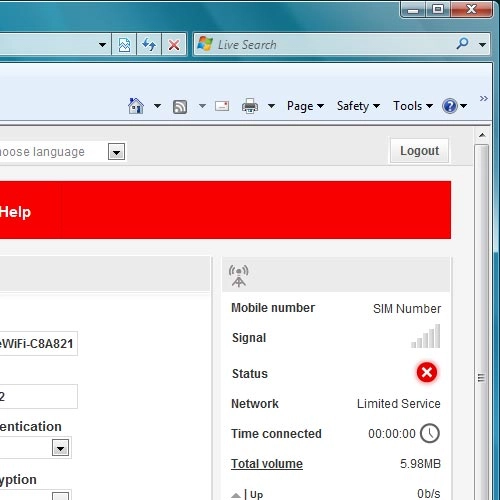

Save and exit

Click Logout.

1. Turn on your router

Press and hold On/Off.

2. Connect to your Wi-Fi hotspot

Do the following in Windows:
Click the Windows icon.
Click Connect To.
If required, click the refresh icon.
Highlight the name of your Wi-Fi hotspot and click Connect.
Key in the password for your Wi-Fi hotspot and click Connect.
Click Close.
A connection to your Wi-Fi hotspot is established.

3. Connect to the router configuration page

Open a browser window.
Key in 192.168.0.1 in the address bar and press Enter.
Highlight the field next to Password and key in admin
Click Login.

4. Find "Security"

Click Wi-Fi.
Click Security.

5. Enter Wi-Fi hotspot name

Highlight the field below SSID and key in the required name for your Wi-Fi hotspot.

6. Enter Wi-Fi hotspot password

Highlight the field below Key and key in the required password for your Wi-Fi hotspot.

7. Save and exit

Click Save.
Click Logout.
