Set up your router for internet manually - Vodafone R205 / Snow Leopard

Read help info

Usually, your router automatically uses the necessary settings to connect to the Internet. If this isn't the case, it may help to set up your router for internet manually. Follow these instructions to set up your router for internet manually.

Step 1 of 18

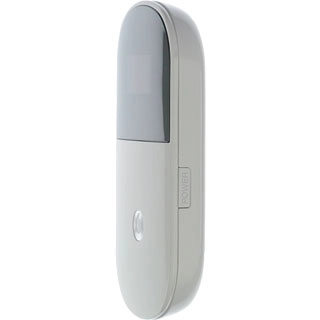

Turn on your router

Press and hold On/Off.

Step 2 of 18

Connect to Wi-Fi hotspot

Do the following in Mac OS X:

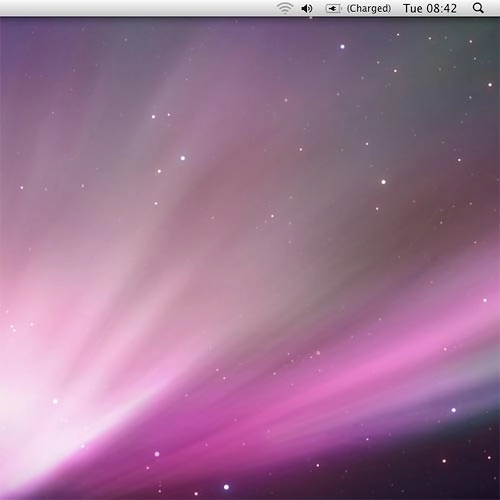

Click the Wi-Fi icon.

You can see the Wi-Fi hotspot name and password by pressing On/Off twice in quick succession.
Step 3 of 18

Connect to Wi-Fi hotspot

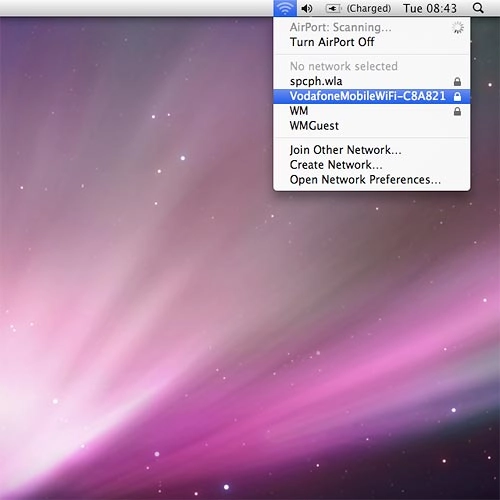

Click the name of your Wi-Fi hotspot.

You can see the Wi-Fi hotspot name and password by pressing On/Off twice in quick succession.
Step 4 of 18

Connect to Wi-Fi hotspot

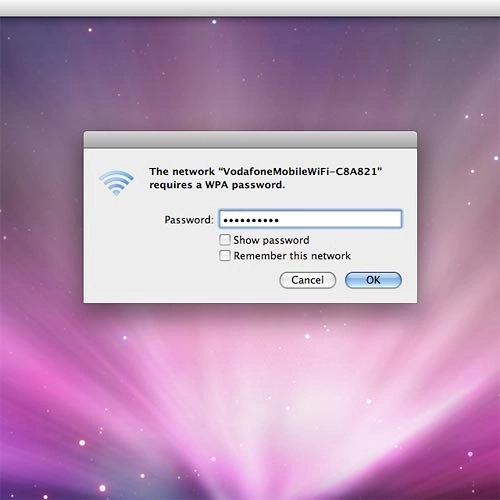

Key in the password for your Wi-Fi hotspot and click OK.
A connection to the internet is established.

You can see the Wi-Fi hotspot name and password by pressing On/Off twice in quick succession.

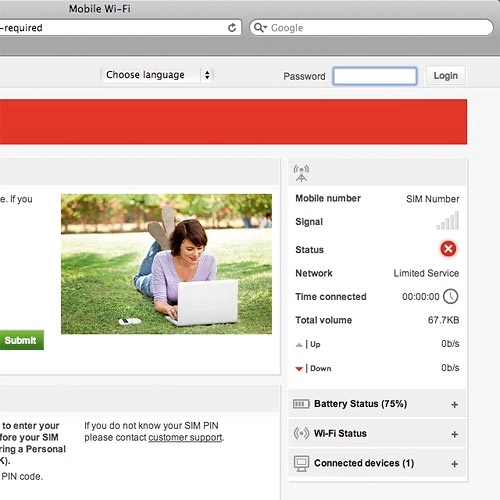

Step 5 of 18

Connect to the router configuration page

Open a browser window.
Key in 192.168.0.1 in the address bar and press Enter.
Highlight the field next to Password and key in admin

Step 6 of 18

Connect to the router configuration page

Click Login.

Step 7 of 18

Find "Connection"

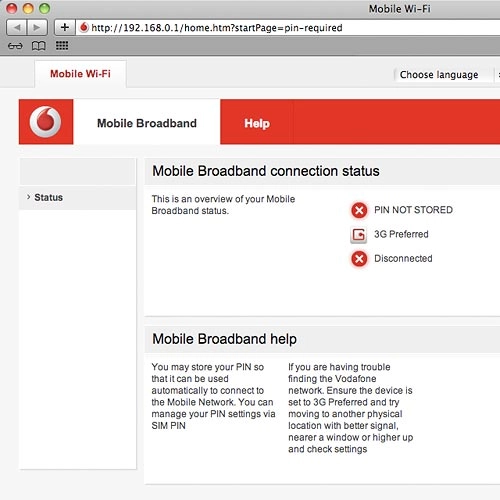

Click Mobile Broadband.

Step 8 of 18

Find "Connection"

Click Connection.

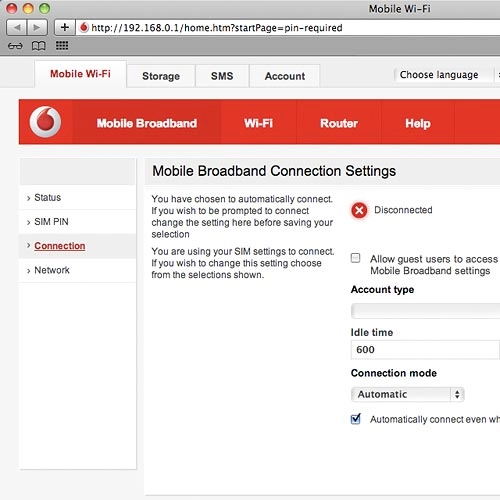

Step 9 of 18

Create new data connection

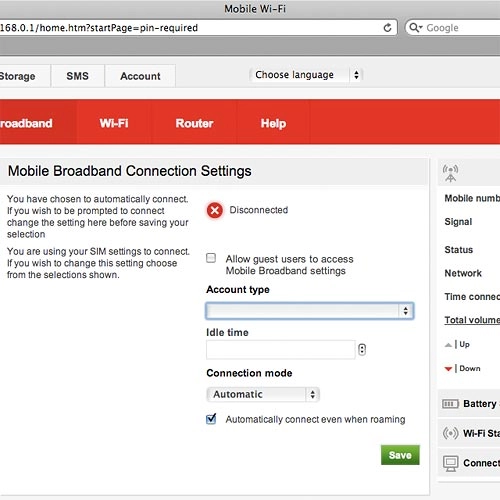

Click the drop down list below Account type.

Step 10 of 18

Create new data connection

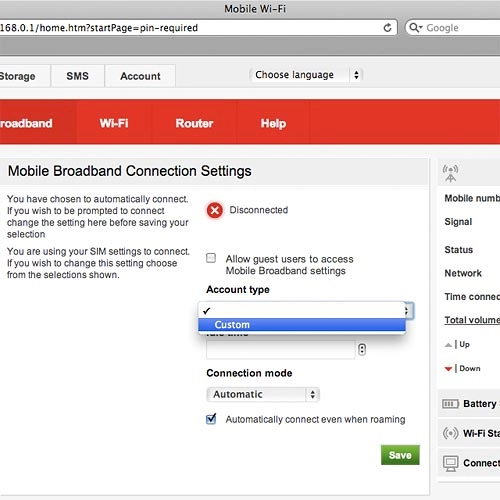

Highlight Custom.

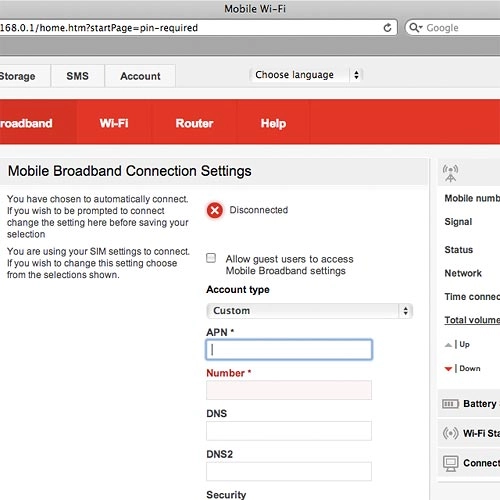

Step 11 of 18

Enter APN

Highlight the field below APN.
Key in hs.vodafone.ie

Step 12 of 18

Enter dial-up number

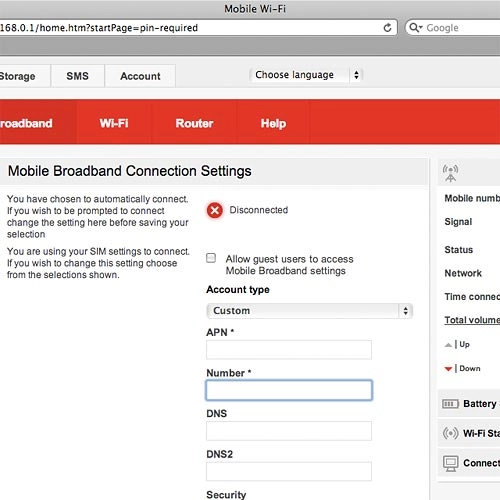

Highlight the field below Number and key in *99#

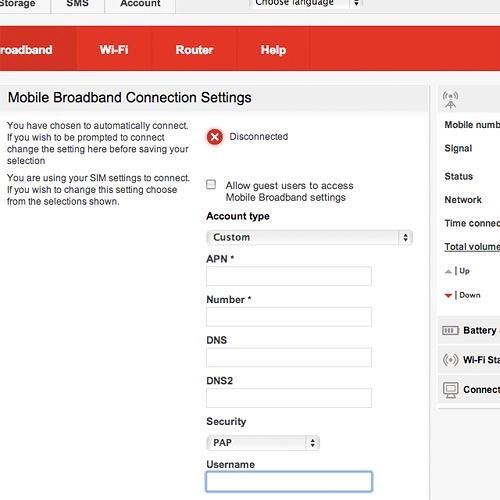

Step 13 of 18

Enter username

Highlight the field below Username and key in vodafone

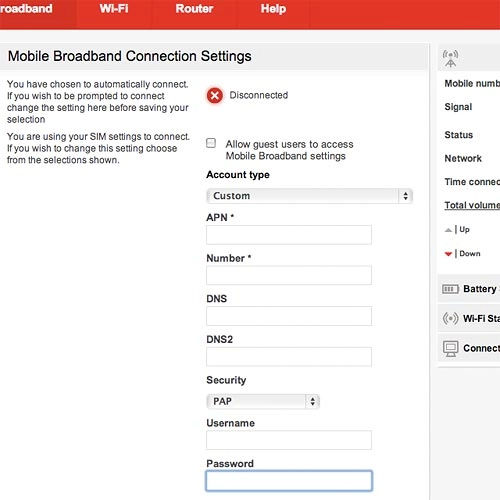

Step 14 of 18

Enter password

Highlight the field below Password and key in vodafone

Step 15 of 18

Enter password

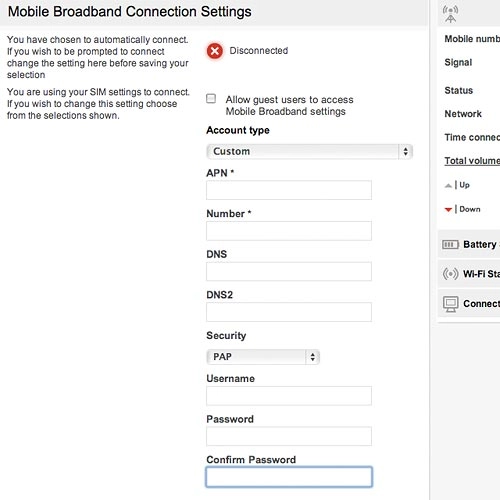

Highlight the field below Confirm Password and key in vodafone

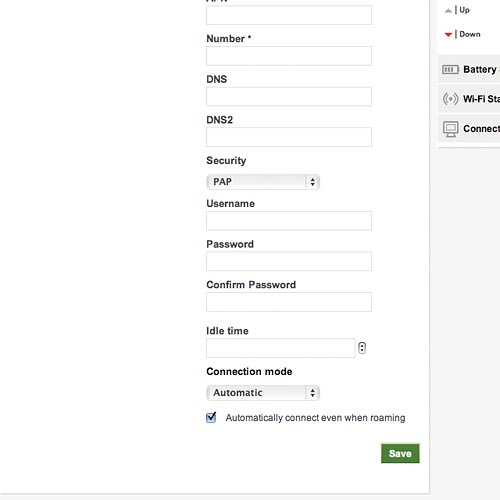

Step 16 of 18

Save and exit

Click Save.

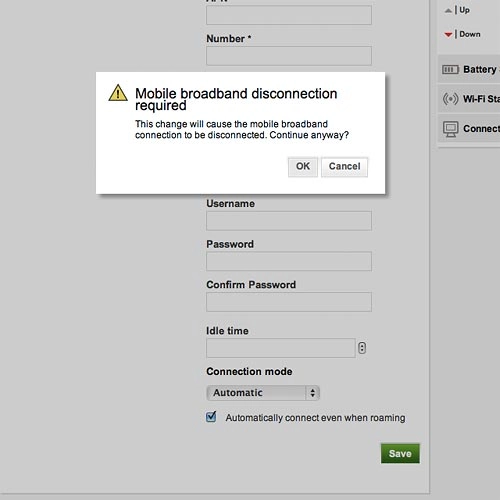

Step 17 of 18

Save and exit

Click OK.

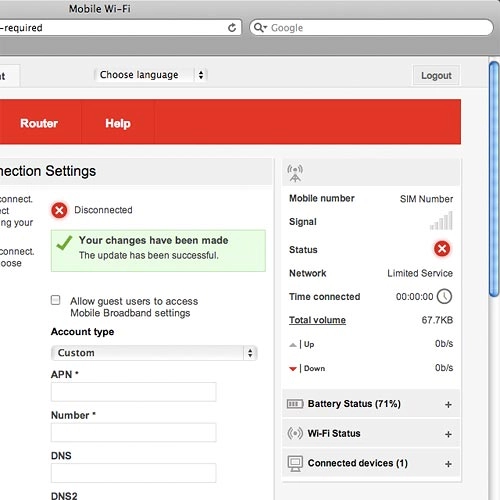

Step 18 of 18

Save and exit

Click Logout.
