Vodafone K4305/Snow Leopard

Vodafone K4305

Install USB modem - Vodafone K4305/Snow Leopard

Step 1 of 8

Insert your SIM

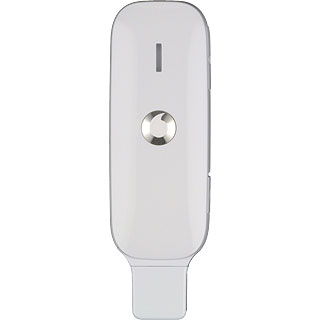

Turn the front of your USB modem towards you.
Slide the cover upwards and remove it.

Step 2 of 8

Insert your SIM

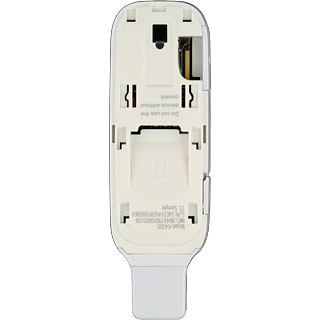

Turn your SIM as illustrated next to the SIM holder and slide your SIM into place in the SIM holder.

Step 3 of 8

Insert your SIM

Place the cover on your USB modem with a small opening at the bottom and slide the cover downwards.

Vodafone K4305/Snow Leopard
Step 4 of 8

Connect your USB modem and your computer

Connect your USB modem to your computer's USB port.

Step 5 of 8

Install USB modem

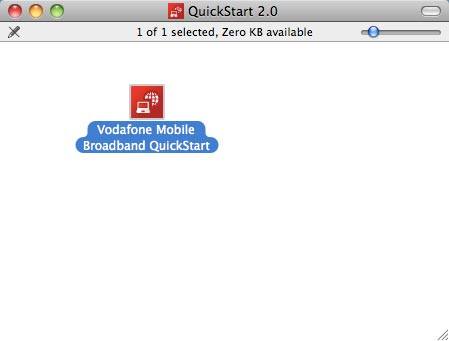

Double-click Vodafone Mobile Broadband QuickStart.

Step 6 of 8

Install USB modem

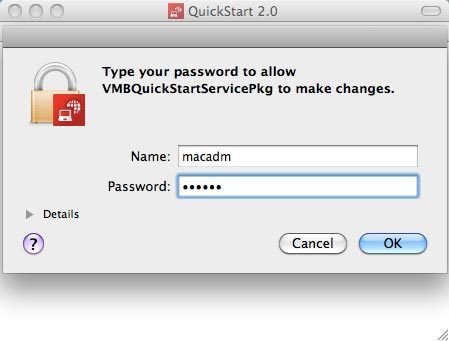

Key in your username and password for the computer and click OK.
Follow the instructions to install your USB modem.
Your computer automatically opens the USB modem's web interface in a browser.

Step 7 of 8

Enter PIN

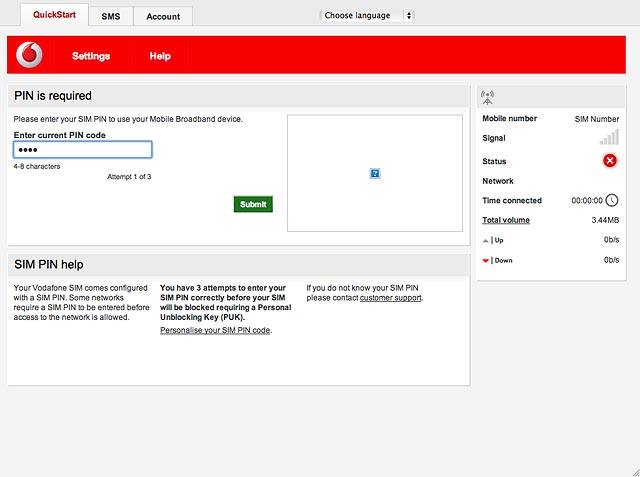

Highlight the field below Enter current PIN code and key in your PIN.

Step 8 of 8

Enter PIN

Click Submit.

1. Insert your SIM

Turn the front of your USB modem towards you.
Slide the cover upwards and remove it.
Turn your SIM as illustrated next to the SIM holder and slide your SIM into place in the SIM holder.
Place the cover on your USB modem with a small opening at the bottom and slide the cover downwards.

2. Connect your USB modem and your computer

Connect your USB modem to your computer's USB port.
Vodafone K4305/Snow Leopard

3. Install USB modem

Double-click Vodafone Mobile Broadband QuickStart.
Key in your username and password for the computer and click OK.
Follow the instructions to install your USB modem.
Your computer automatically opens the USB modem's web interface in a browser.

4. Enter PIN

Highlight the field below Enter current PIN code and key in your PIN.
Click Submit.
