Vodafone K4201z/Windows 7

Vodafone K4201z

Install USB modem - Vodafone K4201z/Windows 7

Step 1 of 9

Insert your SIM

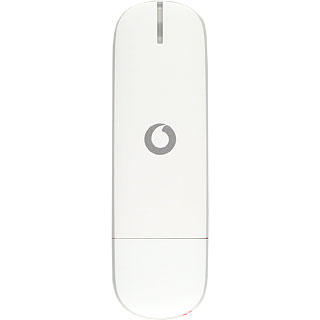

Turn the front of your USB modem towards you.
Slide the cover upwards and remove it.

Step 2 of 9

Insert your SIM

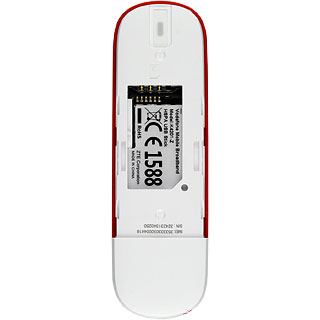

Turn your SIM as illustrated in the SIM holder and slide your SIM into place in the SIM holder.

Step 3 of 9

Insert your SIM

Place the cover on your USB modem with a ½ cm opening at the top and slide the cover downwards.

Vodafone K4201z/Windows 7
Step 4 of 9

Connect your USB modem and your computer

Connect your USB modem to your computer's USB port.

Step 5 of 9

Install USB modem

If the installation doesn't start automatically:

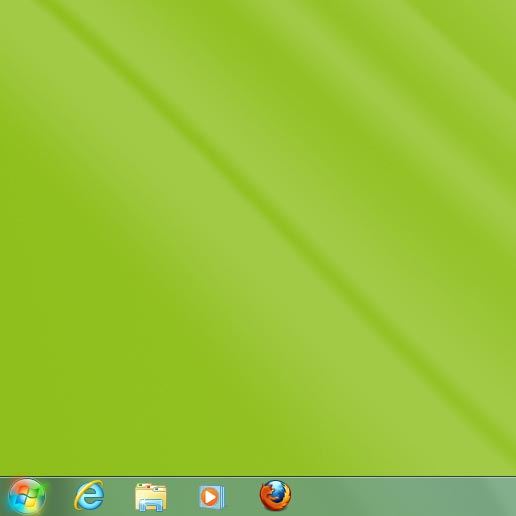

Click the Windows icon.

Step 6 of 9

Install USB modem

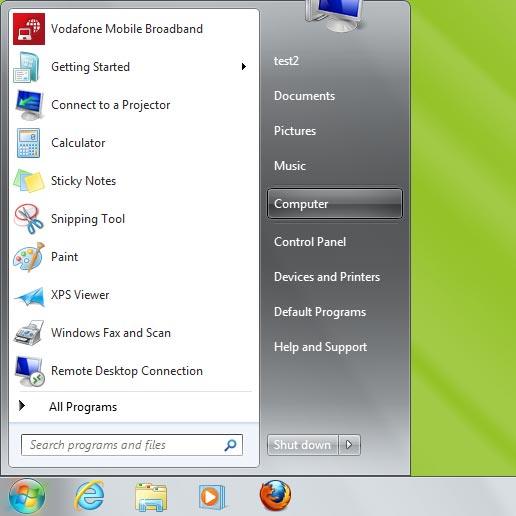

Click Computer.

Step 7 of 9

Install USB modem

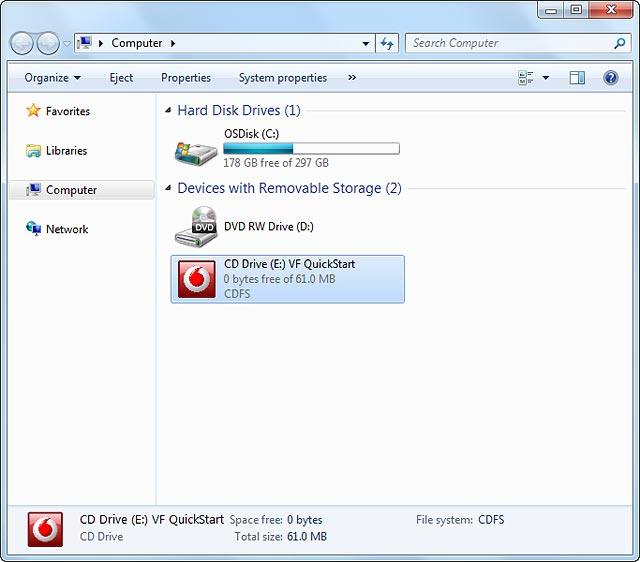

Double-click VF QuickStart.

Step 8 of 9

Install USB modem

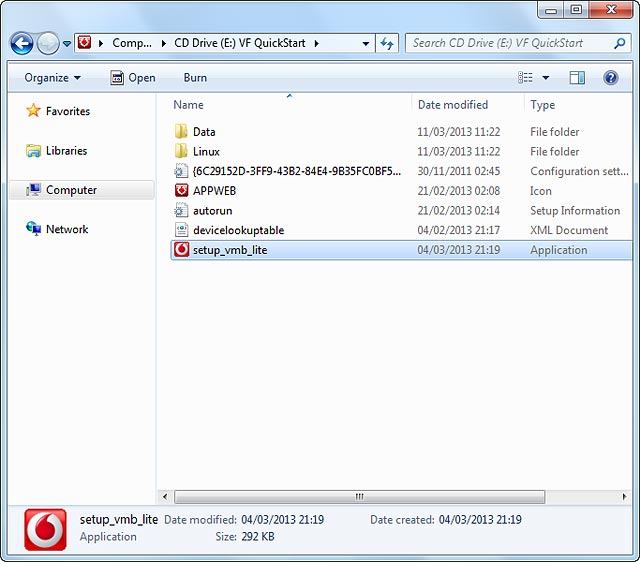

Double-click setup_vmb_lite.
Follow the instructions on the screen to install your USB modem.

Step 9 of 9

Install USB modem

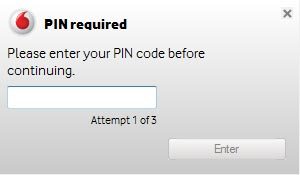

Highlight the field below "Please enter your PIN code before continuing".
Key in your PIN and press Enter.

1. Insert your SIM

Turn the front of your USB modem towards you.
Slide the cover upwards and remove it.
Turn your SIM as illustrated in the SIM holder and slide your SIM into place in the SIM holder.
Place the cover on your USB modem with a ½ cm opening at the top and slide the cover downwards.

2. Connect your USB modem and your computer

Connect your USB modem to your computer's USB port.
Vodafone K4201z/Windows 7

3. Install USB modem

If the installation doesn't start automatically:
Click the Windows icon.
Click Computer.
Double-click VF QuickStart.
Double-click setup_vmb_lite.
Follow the instructions on the screen to install your USB modem.
Highlight the field below "Please enter your PIN code before continuing".
Key in your PIN and press Enter.
