Vodafone HG659/Windows 7

Vodafone HG659

Start using your router - Vodafone HG659/Windows 7

Read help info

Before you start using your router, you need to follow these initial steps.

Step 1 of 7

Connect internet connection

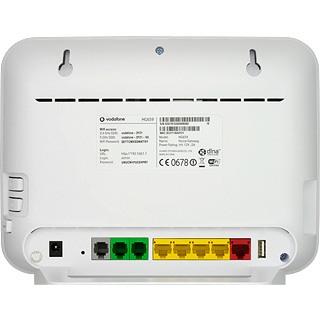

Turn the back of your router towards you.

Step 2 of 7

Connect internet connection

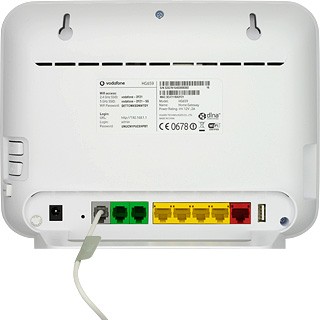

To connect a fibre broadband connection, you need to connect the network cable to the "WAN" socket in your router and to the ONT box.

Step 3 of 7

Connect internet connection

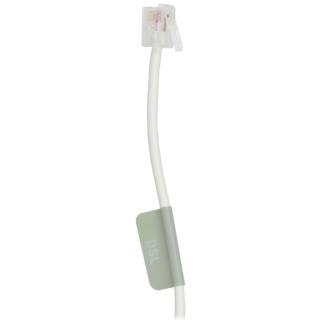

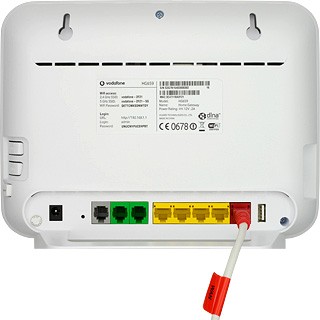

To connect a DSL connection, you need to connect the phone cable to "the DSL socket" in your router.

Step 4 of 7

Connect internet connection

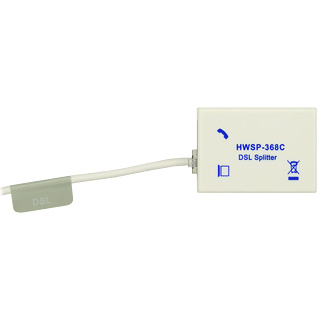

If the wall phone socket has only one socket, you need to connect the filter to this socket. Then connect the phone cable to the broadband socket in the filter.

Step 5 of 7

Connect internet connection

If the wall phone socket has two sockets, you don't need to use the filter. Connect the phone cable to the broadband wall socket.

Step 6 of 7

Turn on your router

Connect the power supply to the "Power" socket and to a wall socket.

Step 7 of 7

Turn on your router

Press "ON/OFF" to turn on your router.

1. Connect internet connection

Turn the back of your router towards you.
To connect a fibre broadband connection, you need to connect the network cable to the "WAN" socket in your router and to the ONT box.
To connect a DSL connection, you need to connect the phone cable to "the DSL socket" in your router.
If the wall phone socket has only one socket, you need to connect the filter to this socket. Then connect the phone cable to the broadband socket in the filter.
If the wall phone socket has two sockets, you don't need to use the filter. Connect the phone cable to the broadband wall socket.

2. Turn on your router

Connect the power supply to the "Power" socket and to a wall socket.
Press "ON/OFF" to turn on your router.
