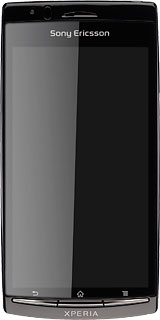

Guide to phone keys and sockets - Sony Ericsson Xperia Arc

Read help info

Follow these instructions for a guide on how to use the phone keys and sockets.

Step 1 of 16

On/Off

Several functions are associated with On/Off:

Step 2 of 16

On/Off

Press On/Off to turn your phone on and off.

Step 3 of 16

On/Off

Press and hold On/Off to access other functions, such as silent mode and flight mode.

Step 4 of 16

The Home key

Several functions are associated with the Home key:

Step 5 of 16

The Home key

Press the Home key to return to standby mode.

Step 6 of 16

The Home key

Press and hold the Home key to view a list of the most recently used menu items.

Step 7 of 16

The Return key

Press the Return key to exit an active menu item.

Step 8 of 16

The Menu key

Press the Menu key to open a pop-up menu.

Step 9 of 16

The Volume key

Several functions are associated with the Volume key:

Step 10 of 16

The Volume key

Press the upper or lower part of the Volume key to adjust the volume.

Step 11 of 16

The Volume key

Press the upper or lower part of the Volume key to silence the incoming call alert.

Step 12 of 16

Socket

Connect the charger or data cable to the phone socket and to a wall socket or your computer's USB port.

Step 13 of 16

Headset socket

Connect the headset to the headset socket.

Step 14 of 16

The Camera key

Press the Camera key to take pictures.

Step 15 of 16

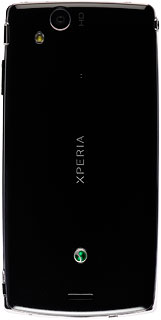

Camera lens

Point the camera lens at the required object to take a picture or record a video clip.

Step 16 of 16

HDMI socket

Connect a HDMI cable to the HDMI socket and to an external screen to view your pictures or video clips.

On/Off

Several functions are associated with On/Off:
Press On/Off to turn your phone on and off.
Press and hold On/Off to access other functions, such as silent mode and flight mode.

The Home key

Several functions are associated with the Home key:
Press the Home key to return to standby mode.
Press and hold the Home key to view a list of the most recently used menu items.

The Return key

Press the Return key to exit an active menu item.

The Menu key

Press the Menu key to open a pop-up menu.

The Volume key

Several functions are associated with the Volume key:
Press the upper or lower part of the Volume key to adjust the volume.
Press the upper or lower part of the Volume key to silence the incoming call alert.

Socket

Connect the charger or data cable to the phone socket and to a wall socket or your computer's USB port.

Headset socket

Connect the headset to the headset socket.

The Camera key

Press the Camera key to take pictures.

Camera lens

Point the camera lens at the required object to take a picture or record a video clip.

HDMI socket

Connect a HDMI cable to the HDMI socket and to an external screen to view your pictures or video clips.
