Set up your tablet for picture messaging - Samsung Galaxy Tab 3 8.0

Read help info

A picture message is a message which can contain pictures and other media files and can be sent to other tablets, mobile phones and email addresses. You can send and receive picture messages as soon as you've inserted your SIM. If this isn't the case, you can set up your tablet for picture messaging manually.

Step 1 of 29

Find "Access Point Names"

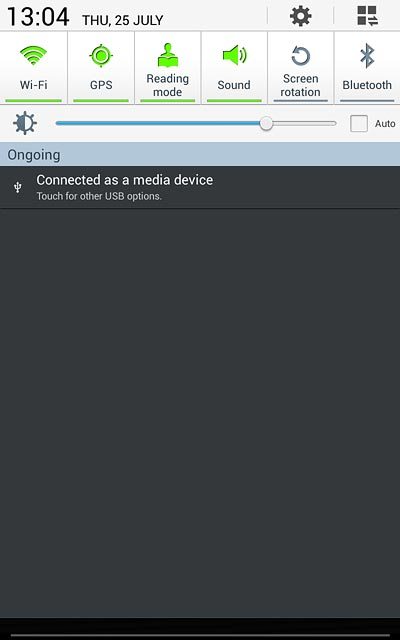

Slide your finger down the display starting from the top edge of your tablet.
Press the settings icon.

Step 2 of 29

Find "Access Point Names"

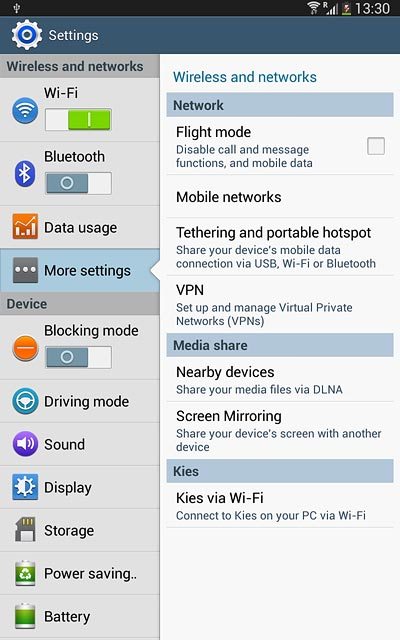

Press More settings.

Step 3 of 29

Find "Access Point Names"

Press Mobile networks.

Step 4 of 29

Find "Access Point Names"

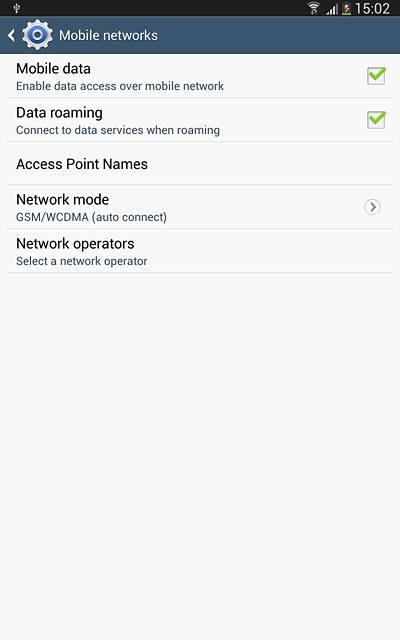

Press Access Point Names.

Step 5 of 29

Create new data connection

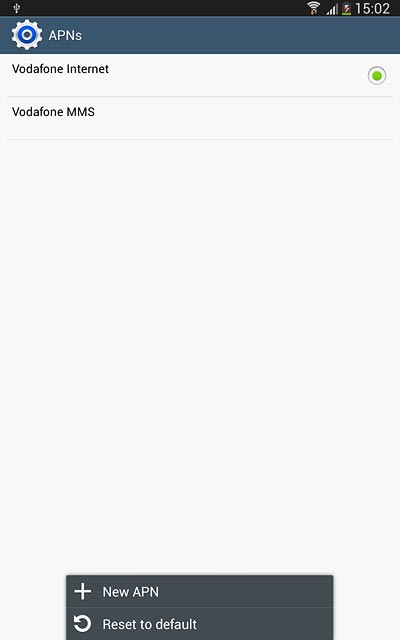

Press the Menu key.

Step 6 of 29

Create new data connection

Press New APN.

Step 7 of 29

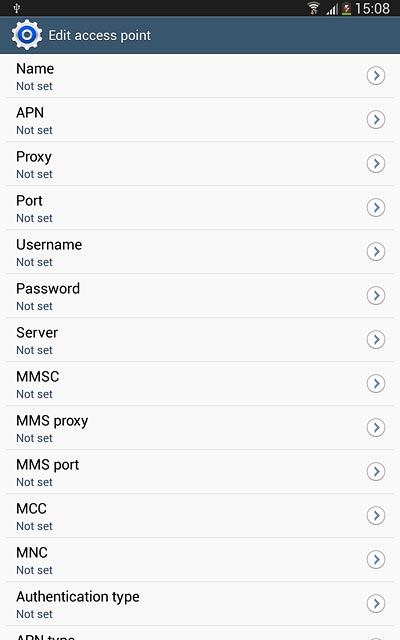

Enter data connection name

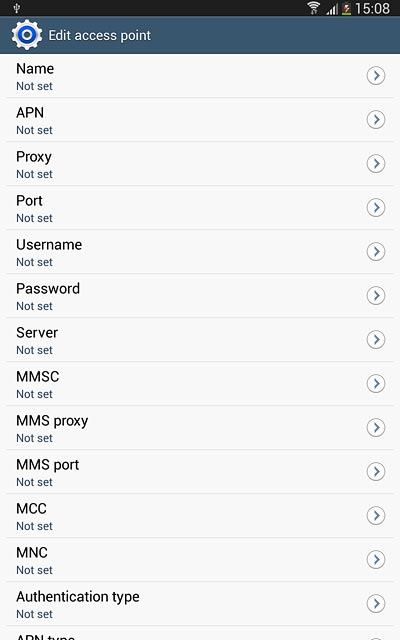

Press Name.

Step 8 of 29

Enter data connection name

Key in Vodafone MMS and press OK.

Step 9 of 29

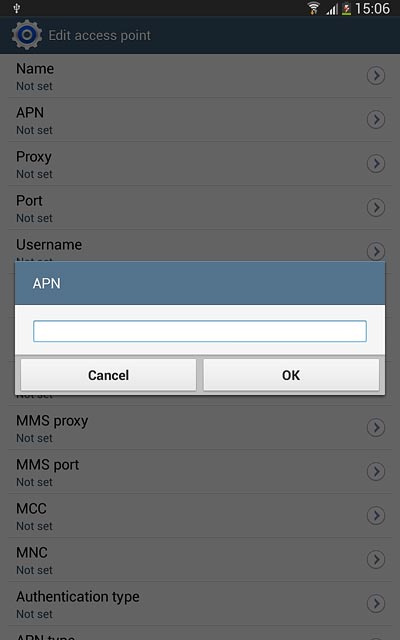

Enter APN

Press APN.

Step 10 of 29

Enter APN

Key in mms.vodafone.net and press OK.

Step 11 of 29

Enter picture messaging server

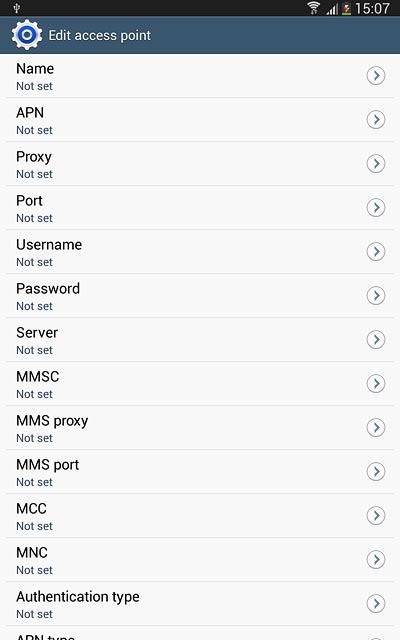

Press MMSC.

Step 12 of 29

Enter picture messaging server

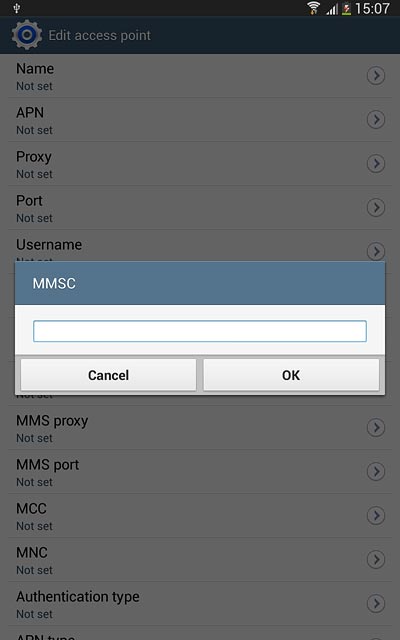

Key in http://www.vodafone.ie/mms and press OK.

Step 13 of 29

Enter IP address

Press MMS proxy.

Step 14 of 29

Enter IP address

Key in 10.24.59.200 and press OK.

Step 15 of 29

Enter port number

Press MMS port.

Step 16 of 29

Enter port number

Key in 80 and press OK.

Step 17 of 29

Enter country code

Press MCC.

Step 18 of 29

Enter country code

Key in 272 and press OK.

Step 19 of 29

Enter network code

Press MNC.

Step 20 of 29

Enter network code

Key in 01 and press OK.

Step 21 of 29

Select authentication type

Press Authentication type.

Step 22 of 29

Select authentication type

Press PAP.

Step 23 of 29

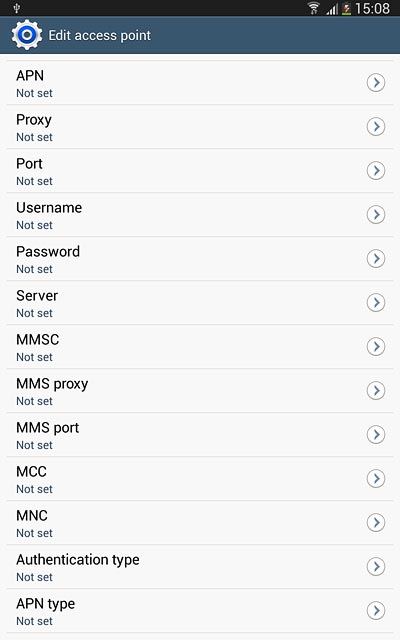

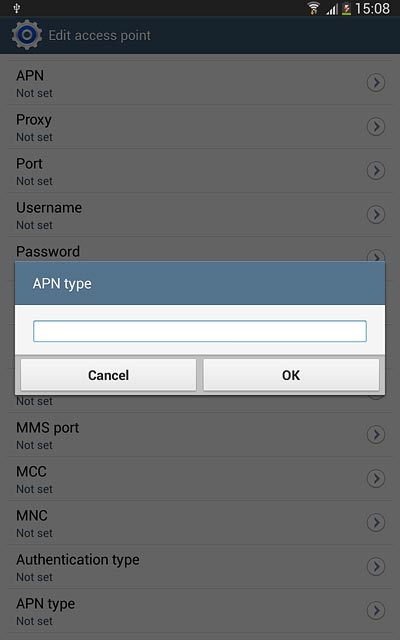

Select APN type

Press APN type.

Step 24 of 29

Select APN type

Key in mms and press OK.

Step 25 of 29

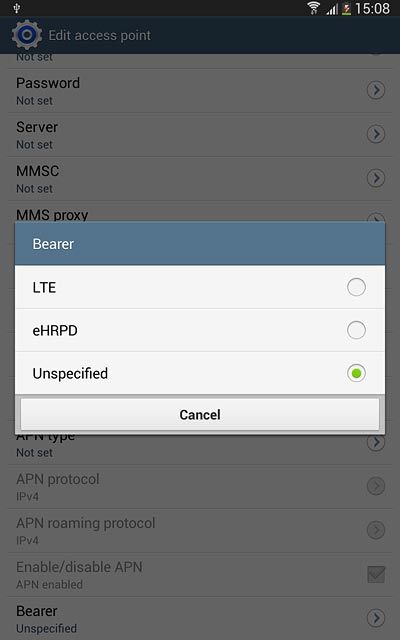

Select data bearer

Press Bearer.

Step 26 of 29

Select data bearer

Press Unspecified.

Step 27 of 29

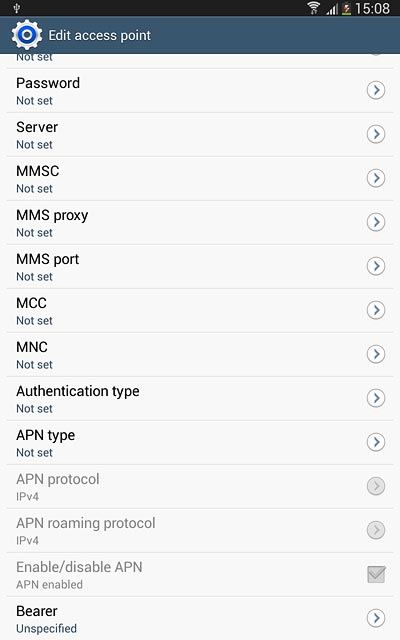

Save data connection

Press the Menu key.

Step 28 of 29

Save data connection

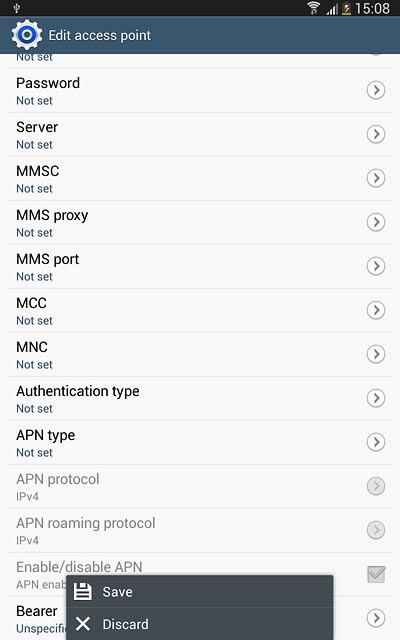

Press Save.

Step 29 of 29

Return to the home screen

Press the Home key to return to the home screen.

Find "Access Point Names"

Slide your finger down the display starting from the top edge of your tablet.
Press the settings icon.
Press More settings.
Press Mobile networks.
Press Access Point Names.

Create new data connection

Press the Menu key.
Press New APN.

Enter data connection name

Press Name.
Key in Vodafone MMS and press OK.

Enter APN

Press APN.
Key in mms.vodafone.net and press OK.

Enter picture messaging server

Press MMSC.
Key in http://www.vodafone.ie/mms and press OK.

Enter IP address

Press MMS proxy.
Key in 10.24.59.200 and press OK.

Enter port number

Press MMS port.
Key in 80 and press OK.

Enter country code

Press MCC.
Key in 272 and press OK.

Enter network code

Press MNC.
Key in 01 and press OK.

Select authentication type

Press Authentication type.
Press PAP.

Select APN type

Press APN type.
Key in mms and press OK.

Select data bearer

Press Bearer.
Press Unspecified.

Save data connection

Press the Menu key.
Press Save.

Return to the home screen

Press the Home key to return to the home screen.
