Guide to device keys and sockets - Samsung Galaxy Tab 2 10.1

Read help info

Follow these instructions for a guide on how to use the device keys and sockets.

Step 1 of 12

On/Off

Several functions are associated with On/Off:

Step 2 of 12

On/Off

Press On/Off to turn your device on or off.

Step 3 of 12

On/Off

Press On/Off to turn on the key lock.

Step 4 of 12

On/Off

Press and hold On/Off to access silent mode and flight mode.

Step 5 of 12

The Volume keys

Several functions are associated with the Volume key:

Step 6 of 12

The Volume keys

Press the upper or lower part of the Volume key to adjust the ring volume.

Step 7 of 12

The Volume keys

Press the upper or lower part of the Volume key during a call to adjust the volume.

Step 8 of 12

The Volume keys

Press the upper or lower part of the Volume key to silence the incoming call alert.

Step 9 of 12

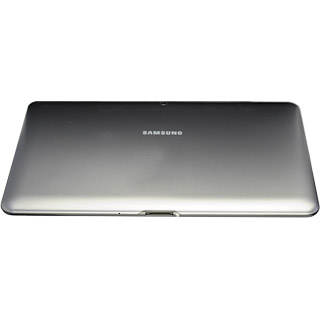

Socket

Connect the charger or data cable to the device socket and to a wall socket or your computer's USB port.

Step 10 of 12

Headset socket

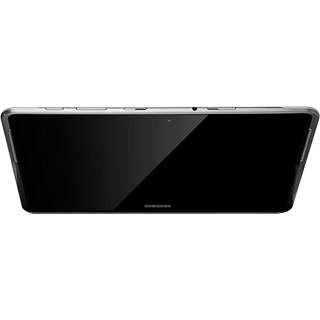

Connect the headset to the headset socket at the top of your device.

Step 11 of 12

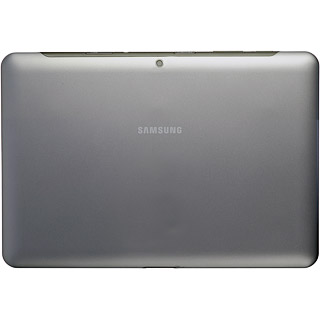

Camera lens at the back of your device

Point the camera lens at the back of your device at the required object to take a picture, record a video clip or during a video call.

Step 12 of 12

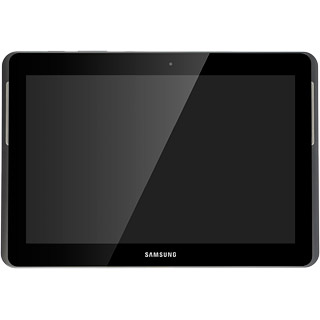

Camera lens at the front of your device

Point the camera lens at the front of your device at the required object during a video call.

On/Off

Several functions are associated with On/Off:
Press On/Off to turn your device on or off.
Press On/Off to turn on the key lock.
Press and hold On/Off to access silent mode and flight mode.

The Volume keys

Several functions are associated with the Volume key:
Press the upper or lower part of the Volume key to adjust the ring volume.
Press the upper or lower part of the Volume key during a call to adjust the volume.
Press the upper or lower part of the Volume key to silence the incoming call alert.

Socket

Connect the charger or data cable to the device socket and to a wall socket or your computer's USB port.

Headset socket

Connect the headset to the headset socket at the top of your device.

Camera lens at the back of your device

Point the camera lens at the back of your device at the required object to take a picture, record a video clip or during a video call.

Camera lens at the front of your device

Point the camera lens at the front of your device at the required object during a video call.
