Samsung Galaxy J1 (2016)

Samsung Galaxy J1 (2016)

Android 5.1.1

I can't send and receive picture messages on my Samsung Galaxy J1 (2016) Android 5.1.1

Cause 5 of 5: Your phone hasn't been set up for picture messaging correctly

To send and receive picture messages, your need to set up your phone correctly for picture messaging.

Solution: Set up your phone for picture messaging.

Step 1 of 26

Find "Access Point Names"

Slide your finger downwards starting from the top of the screen.

Step 2 of 26

Find "Access Point Names"

Press the settings icon.

Step 3 of 26

Find "Access Point Names"

Press Mobile networks.

Step 4 of 26

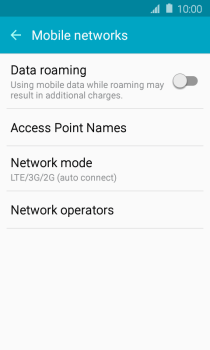

Find "Access Point Names"

Press Access Point Names.

Step 5 of 26

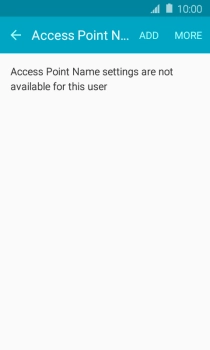

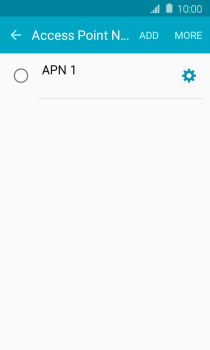

Create new data connection

Press ADD.

Step 6 of 26

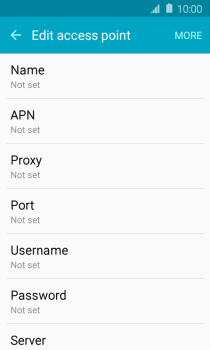

Create new data connection

Press Name.

Vodafone MMS
Step 7 of 26

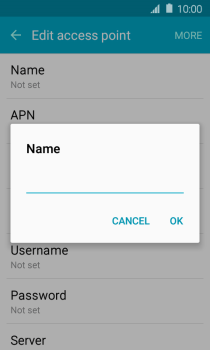

Create new data connection

Key in Vodafone MMS and press OK.

Step 8 of 26

Enter APN

Press APN.

mms.vodafone.net
Step 9 of 26

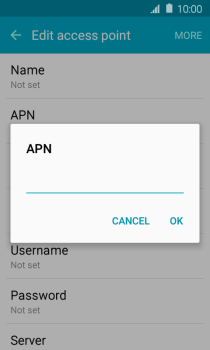

Enter APN

Key in mms.vodafone.net and press OK.

Step 10 of 26

Enter MMSC

Press MMSC.

http://www.vodafone.ie/mms
Step 11 of 26

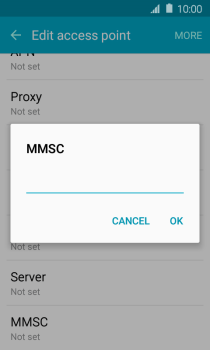

Enter MMSC

Key in http://www.vodafone.ie/mms and press OK.

Step 12 of 26

Enter IP address

Press MMS proxy.

10.24.59.200
Step 13 of 26

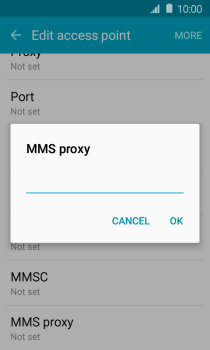

Enter IP address

Key in 10.24.59.200 and press OK.

Step 14 of 26

Enter port number

Press MMS port.

80
Step 15 of 26

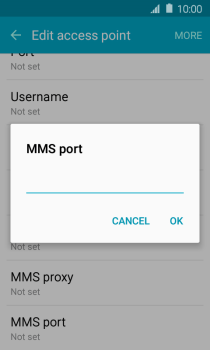

Enter port number

Key in 80 and press OK.

Step 16 of 26

Enter country code

Press MCC.

272
Step 17 of 26

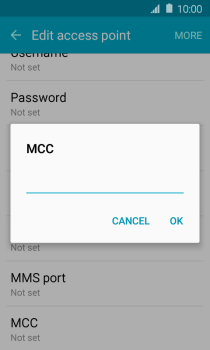

Enter country code

Key in 272 and press OK.

Step 18 of 26

Enter network code

Press MNC.

01
Step 19 of 26

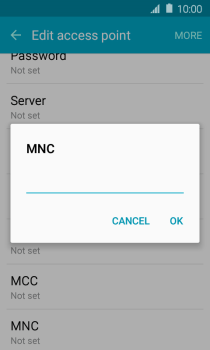

Enter network code

Key in 01 and press OK.

Step 20 of 26

Select authentication type

Press Authentication type.

Step 21 of 26

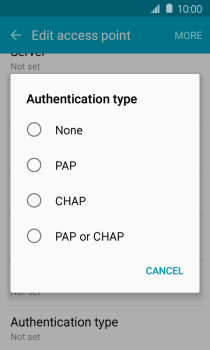

Select authentication type

Press PAP.

Step 22 of 26

Select APN type

Press APN type.

mms
Step 23 of 26

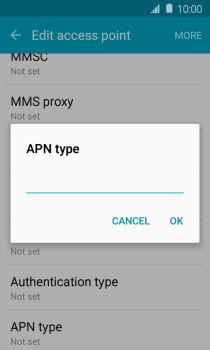

Select APN type

Key in mms and press OK.

Step 24 of 26

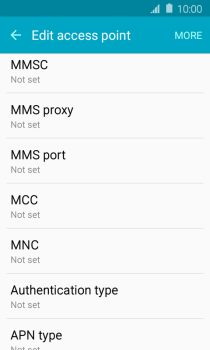

Save data connection

Press MORE.

Step 25 of 26

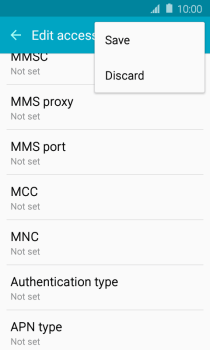

Save data connection

Press Save.

Step 26 of 26

Return to the home screen

Press the Home key to return to the home screen.

1 Find "Access Point Names"

Slide your finger downwards starting from the top of the screen.
Press the settings icon.
Press Mobile networks.
Press Access Point Names.

2 Create new data connection

Press ADD.
Press Name.
Key in Vodafone MMS and press OK.
Vodafone MMS

3 Enter APN

Press APN.
Key in mms.vodafone.net and press OK.
mms.vodafone.net

4 Enter MMSC

Press MMSC.
Key in http://www.vodafone.ie/mms and press OK.
http://www.vodafone.ie/mms

5 Enter IP address

Press MMS proxy.
Key in 10.24.59.200 and press OK.
10.24.59.200

6 Enter port number

Press MMS port.
Key in 80 and press OK.
80

7 Enter country code

Press MCC.
Key in 272 and press OK.
272

8 Enter network code

Press MNC.
Key in 01 and press OK.
01

9 Select authentication type

Press Authentication type.
Press PAP.

10 Select APN type

Press APN type.
Key in mms and press OK.
mms

11 Save data connection

Press MORE.
Press Save.

12 Return to the home screen

Press the Home key to return to the home screen.
